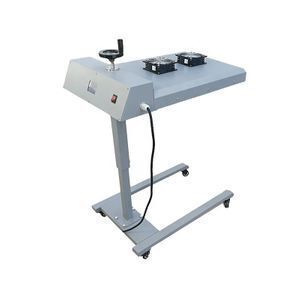

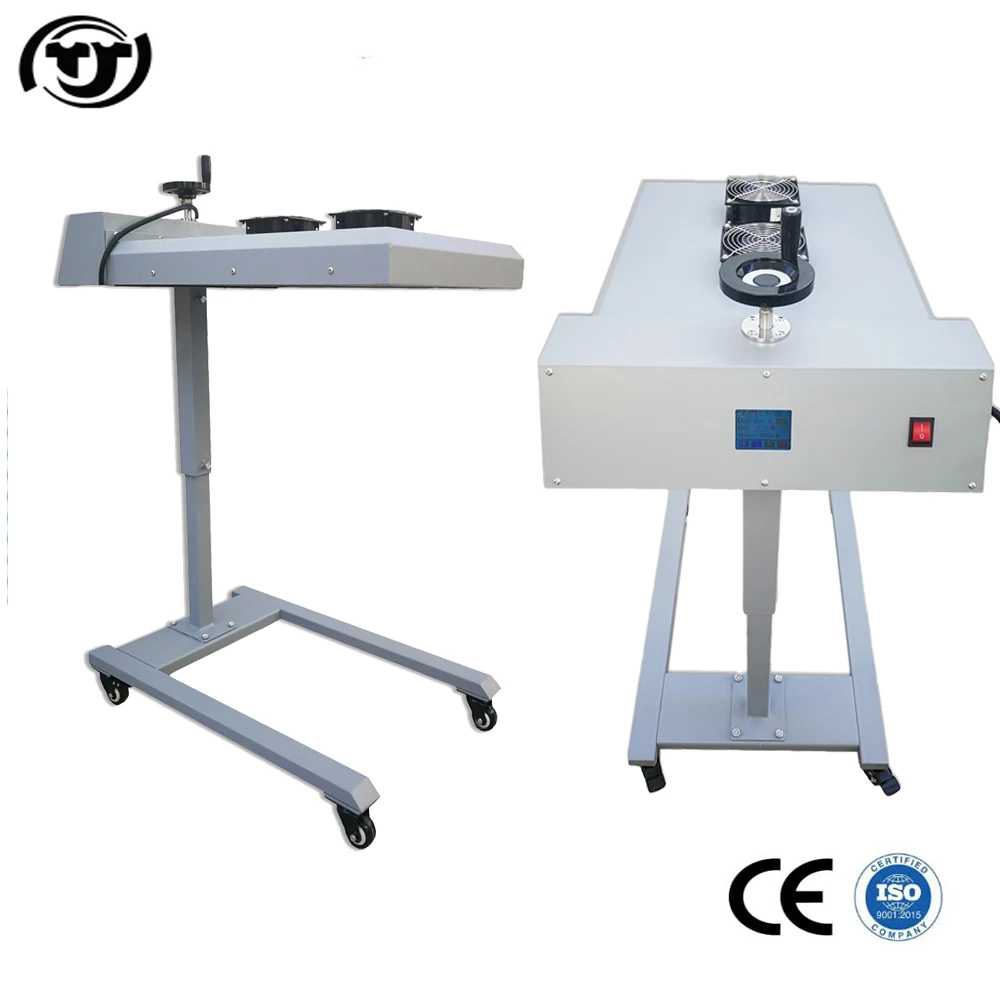

Newly Far Infrared Screen Printing Flash Dryer

Supplier: Suzhou Tianjiu Printing Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr jinling Huang
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	Screen Printnig;	Place of Origin:	Jiangsu China (Mainland);
Weight:	32kg;	Condition:	New;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Supply Ability:	999 Piece/Pieces per Month;
Fan:	double fans;	Usage:	Fast Dryer t shirts;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Height of machine:	can be adjusted;
Packaging Detail:	Screen Printing Flash Dryer package:900x580x260mm Gross weight:32kg/set;	Brand Name:	TJ;
Voltage:	220V;	Automatic Grade:	Semi-Automatic;
Lamps:	Carbon fiber IR lamp;	Dimension(LWH):	900x580x260mm;
Product name:	Screen Printing Flash Dryer;	Warranty:	One Year;
Function:	Drying;	Port:	shanghai;
Type:	drying machine;	Certification:	CE;
Control panel:	Led touch display;

Newly Far Infrared Screen Printing Flash Dryer

Product Description

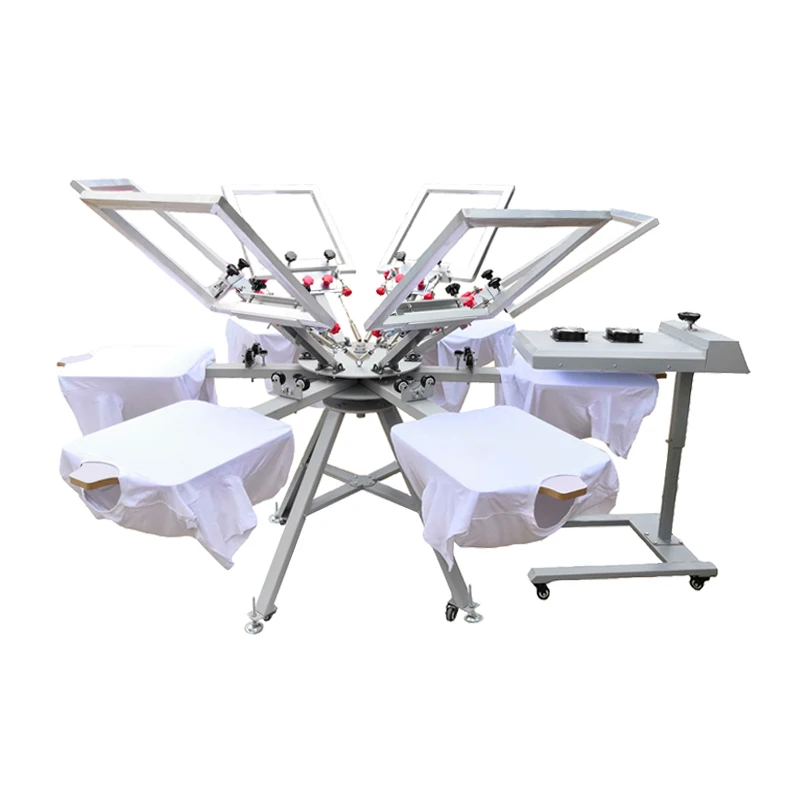

The flash dryer is a important equipment in printing process,especially in multi-color printing.you can dry the ink quickly to print next color by flash dryer. it's specially combined with t shirt carousel screen printing machine.

Features

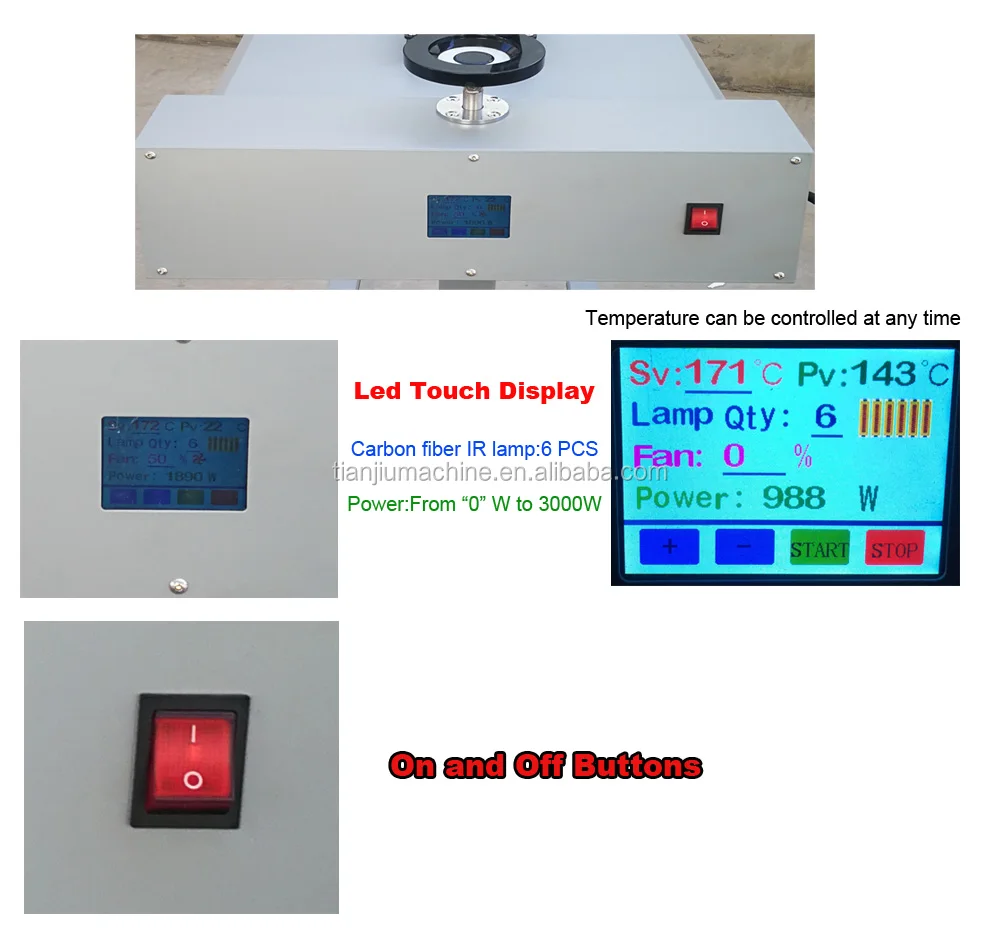

1	LED touch display,and PLC control panel,very easy to operate.

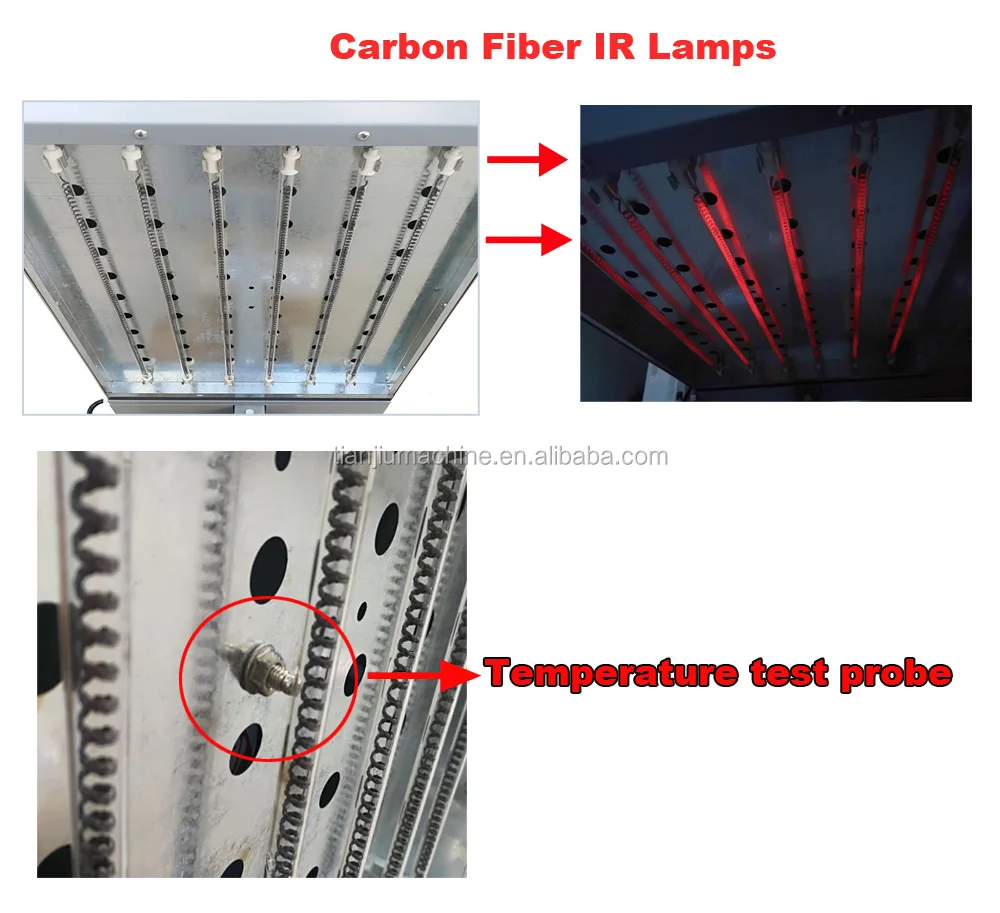

2	Carbon fiber IR lamps to heat very quickly,longer lifetime.
3	Intelligent control working power,save 30% electricity.
4	There are 3 working level for 6 lamps, adjust 2,4,6 lamps to work.

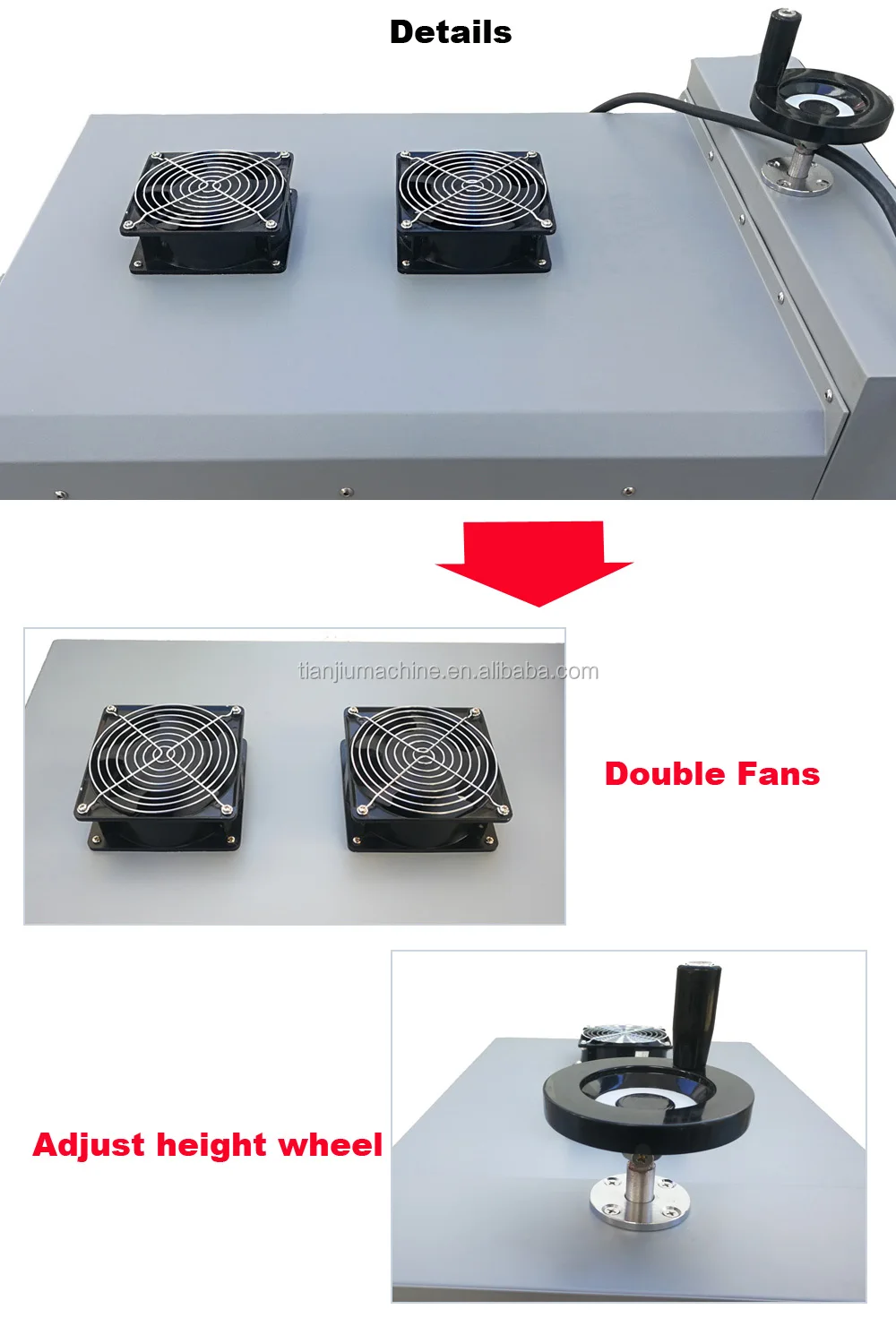

5	Double fans to blow hot air for drying fastly.
6	Have temperature probe to test real tenperature,then show it on display.
7	Adjust the fans speed following your requirements.
8	Drying height adjustable,200mm adjust range up and down.

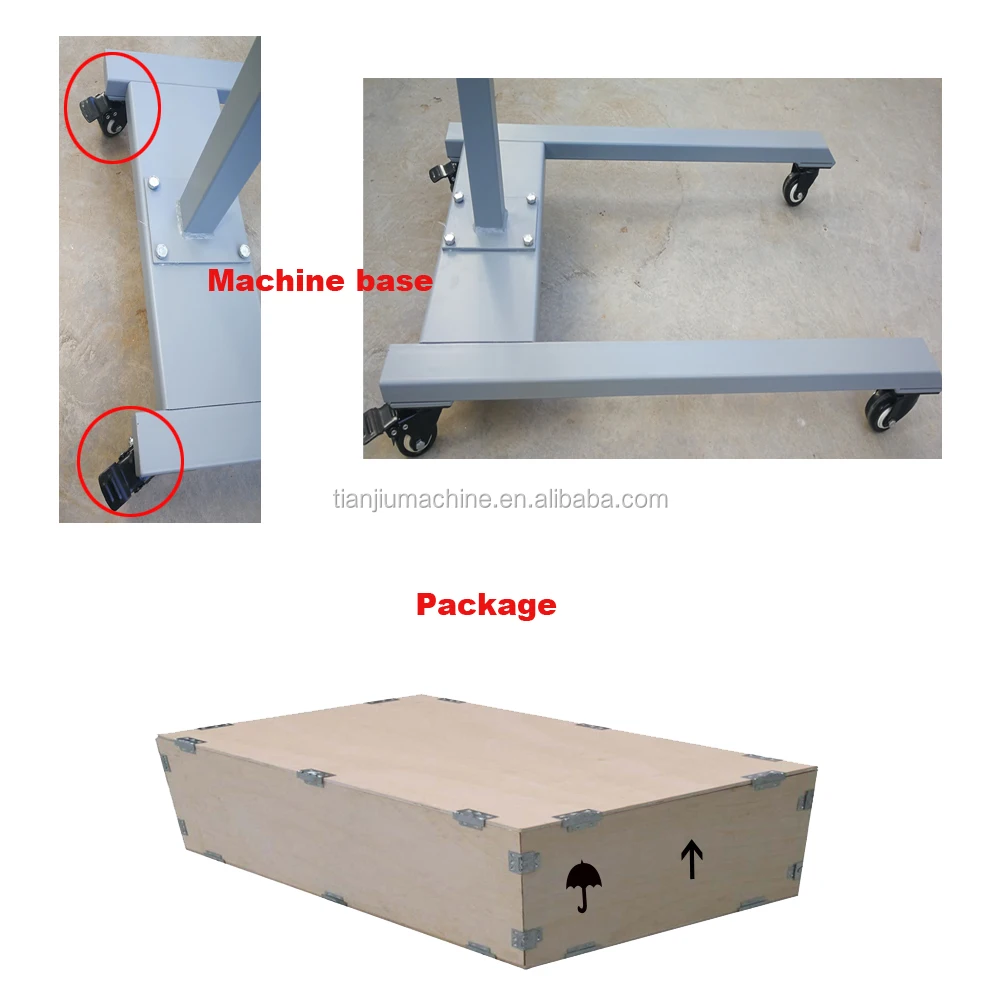

9	Easy to move with 4 freely wheels.

Technical Parameter

1	Heating area : 500*600mm.
2	Max temperature: 150°C
3	IR lamps number:6 lamps
4	Power: 220V/110v 50 Hz,3 KW
5	Packing size: 900x580mmx260mm
6	Gross weight: 32kgs

Detail Of Picture
