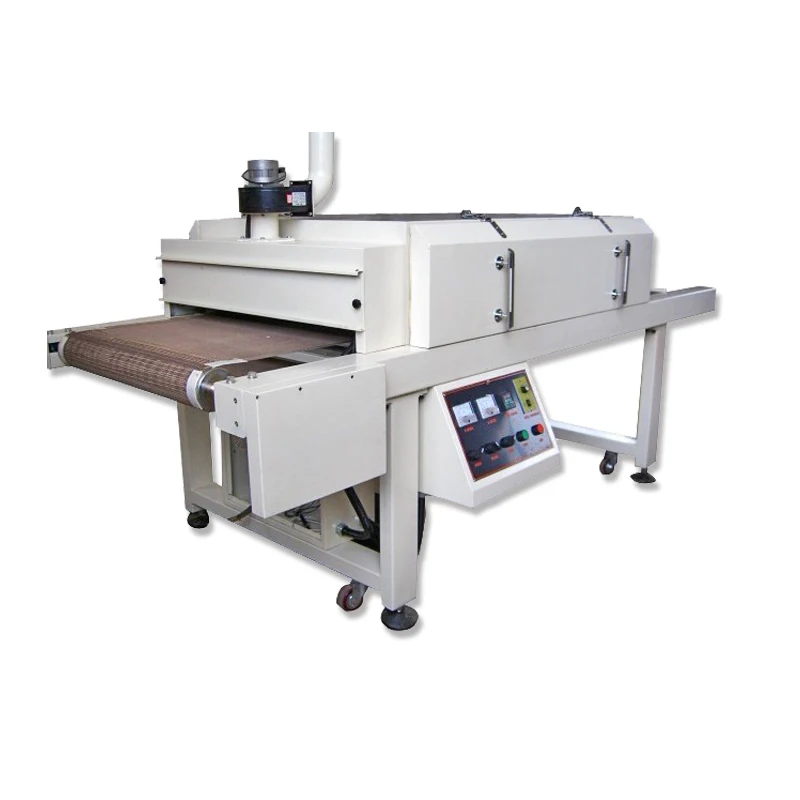

Screen printing conveyor belt dryer

Click here to contact

Product details

After-sales Service Provided:	Overseas service center available;	Power(W):	4800W;
Overall feedput length:	750mm;	Supply Ability:	50 Unit/Units per Month;
Place of Origin:	Jiangsu China (Mainland);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Certification:	ISO9001;	Product name:	conveyor belt dryer;
Machine warranty:	3 years;	Type:	Flash Drying Equipment;
Conveyor witdth:	700mm;	Warranty:	3~5years;
Port:	shanghai;	Oven tunnel length:	1250mm;
Certification:	CE;	Packaging Detail:	conveyor belt dryer wooden case,300KG Demension: 2500 * 1100 * 1200 MM;
Dimension(LWH):	250011001200mm;	Application:	Screen printing;
Over loading length:	2450mm;	Weight:	300kg;
Overall output length:	450mm;	Voltage:	220V;
Condition:	New;	Brand Name:	TJ;

Product Description

Name	Screen printing conveyor belt dryer
Application	The conveyor dryer effectively solves many problems which has long beset the utilization of this process, eg. discoloration of printed cloth, the difficulty of fully drying heating-set ink enables the production of printed products with good colorfastness, high flexibility and high gloss.
Feature
1	Teflon screen belt , customers' designs are welcome.
2	Motor can be set to any speed and provides a smooth and even motion.
3	Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
4	Adjustable belt speed and tunnel temperature controls.
5	Uses over 30% less electricity than other comparable products.
Parameter
1	Overall output length: 450 MM
2	Overall feedput length: 750 MM
3	Oven tunnel length: 1250 MM
4	Over loading length: 2450 MM
5	Conveyor witdth:700MM
6	Heater quantity: 6 Pcs
7	Total power: 4.8 KW
8	Temperature adjustment: 0-300 Centigrade
9	Belt speed adustment: 0-50CM/MIN
10	Demension: 250011001200 MM
11	Gross weight: 300 KG
Warranty	For all our machines, we provide one-year warranty. Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by us.
