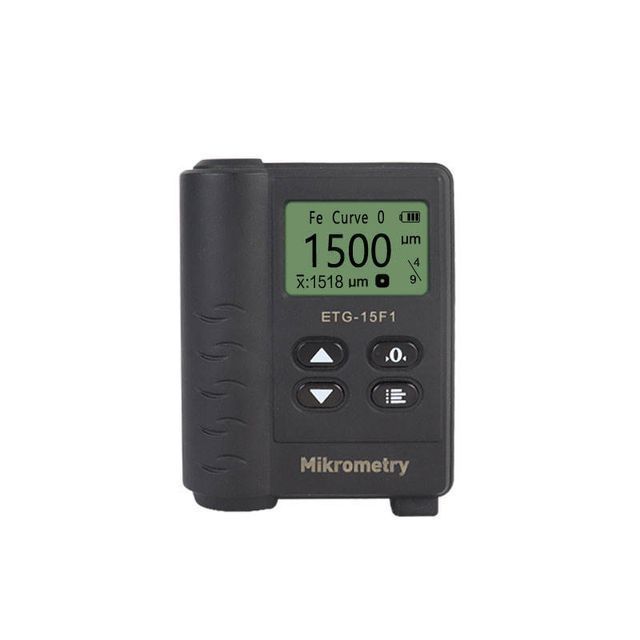

Coating Thickness Gauge 0-1500 Micron Car Paint Tester Handheld Graphic LCD Backlight Display FE Coating Thickness Gauge
-
Supplier: Mikrometry instruments limited -
Region: Guangdong, China -
Contact: Ms Amanda Li -
Price: $95.00 / 2 - 5 units
$87.50 / >=6 units -
Min. Order: 2 units
Product details
| Data storage: | Up to 500 readings. | weight: | 110 g |
| Warranty: | 1 year | testing method: | Magnetic induction |

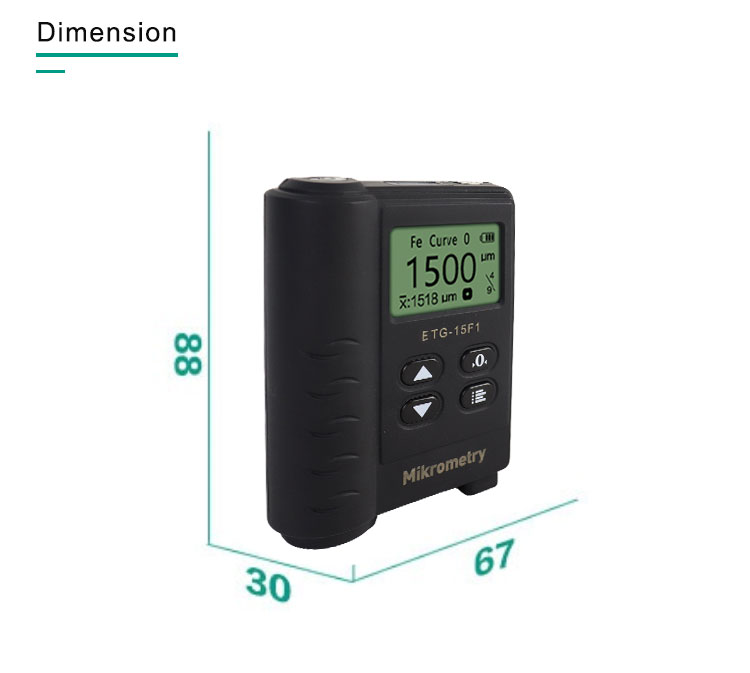

| size: | 88 x 67 x 30mm | exhibit: | Graphic LCD with backlight |
| brand: | Microscopic measurement | Gross weight per piece: | 0.400 kg |
| type: | Handheld | Single package size: | 21.6X11.6X6.6 cm |
| color: | grey | place of origin; place of origin: | Guangdong, China |
| accuracy: | 0～100μm: ±1.5μm 101～1500μm: ≤1.5% | model: | ETG15F1 |
| Resolution: | 0～999μm: 0.1μm ≥1000μm: 1μm | Custom Support: | OBM |
| product name: | Coating Thickness Gauge Price ETG15F1 | Sales unit: | single product |
| Measuring range: | 0~1500μm (0~60mil) |
Product Description
ThisCoating Thickness Gauge Priceis an economical option that provides high-quality automotive paint thickness measurement. This portable meter is designed for non-invasive coating thickness measurement. You will be able to use a dual technology that automatically identifies ferrous (magnetic induction measurement) substrates.
feature:
* Very compact size with integrated probe.
* Magnetic induction method (ISO 2178, ASTM D7091), measuring non-magnetic coatings on magnetic substrates.
* Fast one-handed operation. Place the instrument on the sample and view the measurement.
* Immediate measurement without calibration.
*Easy to perform zero point correction to provide correct measurement results for measurement applications with little variation in shape and substrate material. The single-point calibration function allows adjustment in the event of severe changes in shape or substrate material and enables high-accuracy measurements within the selected measurement range.
* Data is transferred to PC via USB cable.
* Statistical functions allow to evaluate measurement series and display the most important characteristics
Statistics.
* Automatic shut-down.
* Magnetic induction method (ISO 2178, ASTM D7091), measuring non-magnetic coatings on magnetic substrates.
* Fast one-handed operation. Place the instrument on the sample and view the measurement.
* Immediate measurement without calibration.
*Easy to perform zero point correction to provide correct measurement results for measurement applications with little variation in shape and substrate material. The single-point calibration function allows adjustment in the event of severe changes in shape or substrate material and enables high-accuracy measurements within the selected measurement range.
* Data is transferred to PC via USB cable.
* Statistical functions allow to evaluate measurement series and display the most important characteristics
Statistics.
* Automatic shut-down.
Product parameters
testing method | Magnetic induction |
Measuring range | 0~1500μm (0~60mil) |
Resolution | 0～999μm: 0.1μm |
≥1000μm: 1μm | |
accuracy | 0～100μm: ±1.5μm |
101～1500μm: ≤1.5% | |
data storage | Up to 1500 readings. |
exhibit | Graphic LCD with backlight |
power supply | 1.5V*3 (AAA alkaline battery). Lifespan: Approx. 80 hours |
Operating temperature | 0～50℃ |
aspect | 88 x 67 x 30mm |
weight | 120 grams |
