Mikrometry Digital Torque Wrench Calibrator Tester with different capacity Torsion measuring ETT-B

  • Supplier: Mikrometry instruments limited
  • Region: Guangdong, China
  • Contact: Ms Amanda Li
  • Price: $741.00 / 1 - 4 units
    $568.00 / >=5 units
  • Min. Order: 1 unit
Click here to contact
Product details
Display:240*160 dot matrix LCD(3.1 inch) with LED Backlight;Overload Capacity:120% of F.S.;
Selectable Units:N.m,N.cm,kgf.cm,lbf.ft,lbf.in;Single package size:43X31X21 cm;
Range:5%~100% Capacity;Single gross weight:3.500 KG;
Place of Origin:China;Product Name:Digital Torque Wrench Calibrator Tester ETT-B;
Accuracy:± 0.3% Readings;Selling Units:Single item;
Products Description

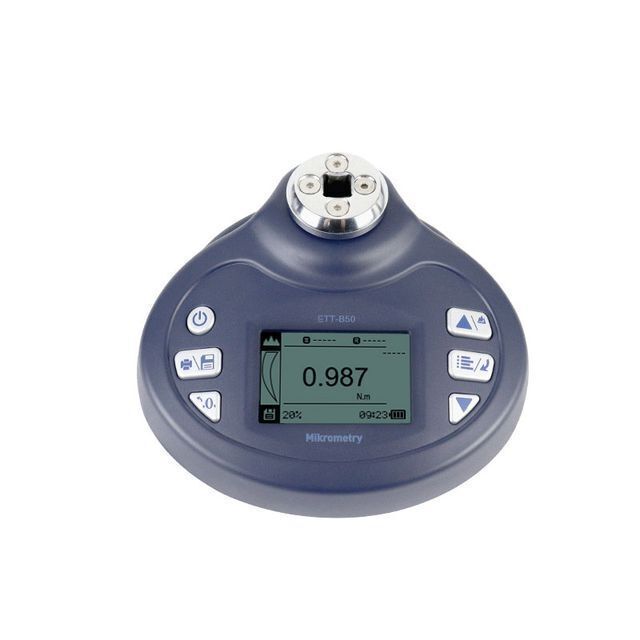

Mikrometry Digital Torque Wrench Calibrator Tester with different capacity Torsion measuring ETT-B
Mikrometry digital torque wrench calibrator tester is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Features:
Curve or digital display modes
Reverse display setting
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.3% Readings
Sampling Rate: up to 2KHz
Product Paramenters
Range
5%~100% Capacity
Accuracy
± 0.3% Readings
Selectable Units
N.m、N.cm、kgf.cm、lbf.ft、lbf.in
Display
240*160 dot matrix LCD(3.1 inch) with LED Backlight
Overload Capacity
120% of F.S.
Measurement Mode
Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak
Display Mode
Digital / Curve
Data Sampling Rate
Up to 2KHz
Memory
1000 data
Set Point
Programmable high and low limits
Battery Indicator
Display flashes battery icon when battery is low
Power
3.6VDC 1600mAH Ni-Mh rechargeable batteries
Battery Life
Approx. 25 hours per charge
Charger / Adaptor
Universal USB/BM charger, Input:110~240VAC
Temperature Effects
<0.03% FS per °C
Communication
USB or RS-232
Software
Free software for USB communication
Outputs
RS-232, "Within" set point output， "Under or over" set point output
Operating environment
Temperature: -10 to 40°C
Relative Humidity: 20 to 80%
Storage environment
Temperature: ­ -20 to +50°C
Relative Humidity: 5 to 90%
Dimension
197X183X83 mm
Weight
~ 1.6 kg
Accessories
AC adapter/charger, USB cable, Square drive adapter
Options
Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand.
Models
Model
Capacity/Resolution
N.m
N.cm
kgf.cm
lbf.ft
lbf.in
Interface
ETTB2
0.1~2/0.0002
10~200/0.02
1~20/0.002
0.07~1.48/0.0002
0.89~17.7/0.002
 □12.5(1/2”)
 □6.3(1/4”)
ETTB5
0.25~5/0.005
25~500/0.05
2.5~50/0.005
0.18~3.7/0.0005
2.2~44.3/0.005
ETTB10
0.5~10/0.001
50~1000/0.1
5~100/0.01
0.37~7.4/0.001
4.4~88.5/0.01
ETTB20
1~20/0.002
100~2000/0.2
10~200/0.02
0.7~14.8/0.002
8.9~177/0.02
 □12.5(1/2”)
 □6.3(1/4”)
ETTB50
2.5~50/0.005
250~5000/0.5
25~500/0.05
1.8~36.8/0.005
22~443/0.05
ETTB100
5~100/0.01
500~10000/1
50~1000/0.1
3.7~74/0.01
44~885/0.1
Company Profile
About Us
Mikrometry Instrument Limited is a designer and manufacturer of height gauge, force and torque measurement products, portable
hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic,
packaging, food, and many other industries. We also offer optimized solutions for special requirements.
R & D
Mikrometry have more than 20 R& D engineers, and our products have more than 100 patents for inventions. From PCBA to firmware,
ID/MD. All the sensor and products are assembled and produced by Mikrometry.
Integrated Manufacturing
Mikrometry products (Include sensors and key devices) are done in-house. Integrated manufacturing helps ensure high quality
standards and allows us to maintain extensive stock for quick shipment.
Service & Support
We offer 7 x 24 hours online. And we have a technology team with more than 10 years experience, good technical skill, English
communication and project management.
