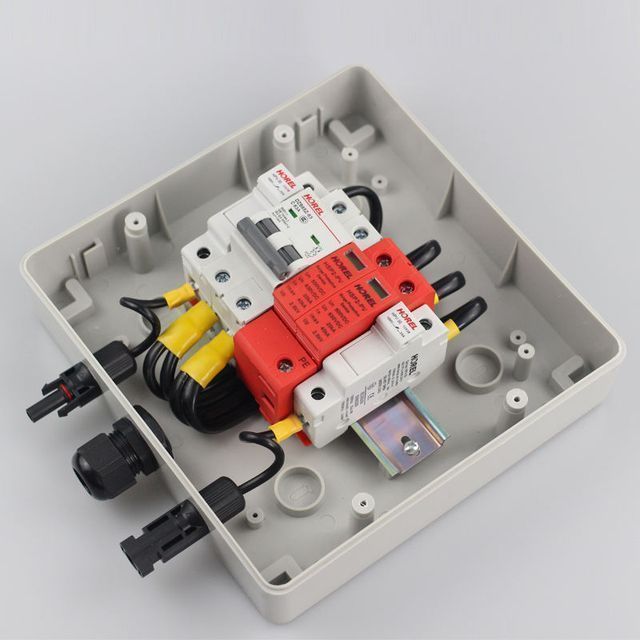

Photovoltaic DC distribution cabinet Photovoltaic grid-connected power generation DC distribution protection box Off-grid DC combiner box

Click here to contact

Product details

place of origin; place of origin:	Zhejiang	product name:	Solar combiner box
payment terms:	Western Union, wire transfer	On (kV):	3.8
Warranty:	3 years	Packaging Details:	standard
color:	white	Test voltage:	1000V
Function:	for solar panels	Amplifier:	40KA
volt:	DC1000V	model:	HRPV
Supply capacity:	10 pieces per day	Connection system:	crimp connection
port:	Shanghai/Ningbo	Certificate:	TUV
brand:	LNP	Cable Standard:	2.5mm2 4.0mm2 6.0mm2 10.0mm2

Name	HRPV-1/1
Electrical parameters
System maximum DC voltage	550V	1000V
Maximum input amplifier per string	15A
Maximum input string	1
Maximum output switching amplifier	16A/20A
Number of inverters MPPT	1
number of output strings	1
lighting protection
test category	secondary protection
Nominal discharge amplifier	20KA
Maximum discharge amplifier	40KA
Voltage protection level	2.8KV	3.8KV
Maximum continuous working voltage Uc	630V	1050V
Polish	2P	3P
Structural features	plug-in module
system
Protection class	IP65
output switch	DC circuit breaker/DC disconnect switch (optional)
solar connector	standard
Photovoltaic DC fuse	standard
Photovoltaic surge protector	standard
Monitoring module	optional
prevent diode	optional
Box material	PVC
Installation method	Wall-mounted
Operating temperature	-25℃- +55℃
temperature rise	2 km
allowable relative humidity	0-95% non-condensing
environment humidity	0~99%
Installation: Indoor/Outdoor (IP65 electronics)	Yes
Mechanical parameters
WidthHeightDepth(mm)	300260140
