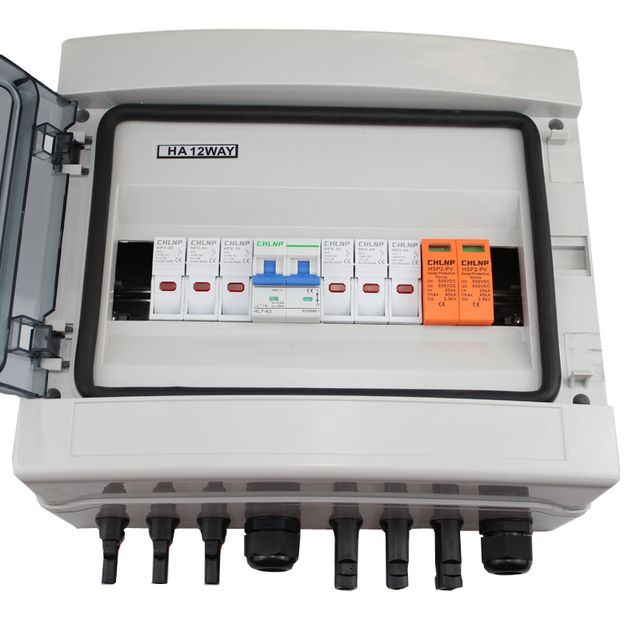

1KW 2KW 3KW 5KW 10KW Photovoltaic solar combiner box 2 series DC1000V DC500V waterproof DC circuit breaker box

Click here to contact

Product details

payment terms:	Western Union, wire transfer	Supply capacity:	10 pieces per day
Amplifier:	40KA	Test voltage:	1000V
Packaging Details:	standard	On (kV):	3.8
Function:	for solar panels	Cable Standard:	2.5mm2 4.0mm2 6.0mm2 10.0mm2
place of origin; place of origin:	Zhejiang	port:	Shanghai/Ningbo
brand:	CHLNP	Certificate:	TUV
Connection system:	crimp connection	Certification:	television
product name:	Solar combiner box	model:	HRPV
volt:	DC1000V	Warranty:	3 years

Name	HRPV-1/1
Electrical parameters
System maximum DC voltage	550V	1000V
Maximum input amplifier per string	15A
Maximum input string	1
Maximum output switching amplifier	16A/20A
Number of inverters MPPT	1
number of output strings	1
lighting protection
test category	secondary protection
Nominal discharge amplifier	20KA
Maximum discharge amplifier	40KA
Voltage protection level	2.8KV	3.8KV
Maximum continuous working voltage Uc	630V	1050V
Polish	2P	3P
Structural features	plug-in module
system
Protection class	IP65
output switch	DC circuit breaker/DC disconnect switch (optional)
solar connector	standard
Photovoltaic DC fuse	standard
Photovoltaic surge protector	standard
Monitoring module	optional
prevent diode	optional
Box material	PVC
Installation method	Wall-mounted
Operating temperature	-25℃- +55℃
temperature rise	2 km
allowable relative humidity	0-95% non-condensing
environment humidity	0~99%
Installation: Indoor/Outdoor (IP65 electronics)	Yes
Mechanical parameters
WidthHeightDepth(mm)	300260140
