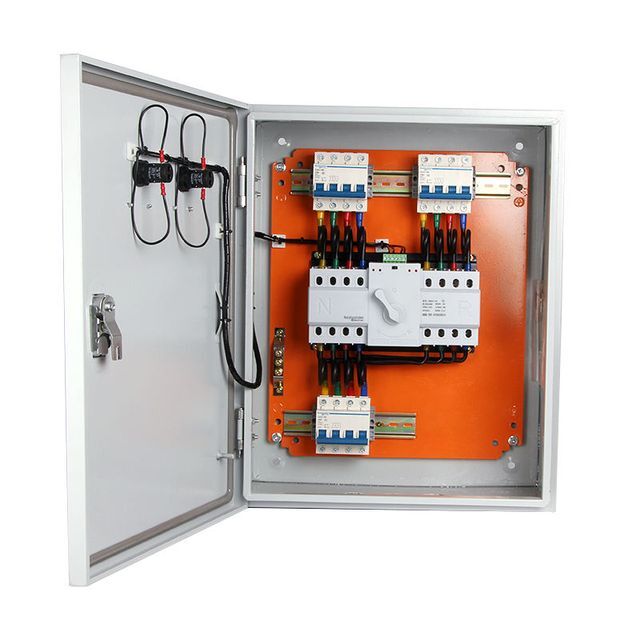

16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Circuit Breaker

Supplier: Yueqing Lanpu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Alan LAU
Price: $24.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated frequency:	50/60Hz	Rated current:	Up to 3200A
type:	CB	brand:	LNP
Certificate:	Chief Executive	Life:	electrical operation
Material:	silver contacts	Packaging Details:	Fragmentation
pole:	3P 4P	Number of poles:	4
Operation:	Manual and automatic, or manual	Supply capacity:	10 pieces per day
payment terms:	Wire transfer, MoneyGram	Rated current:	63A 100A
Mechanical life:	20000 times/operation	connect:	Terminal type, stable working condition
place of origin; place of origin:	Zhejiang, China	port:	Ningbo/Shanghai
model:	Headquarters 5	product name:	Dual power automatic transfer switch ATS

application:
The HQ5 ATS is used in generator systems to convert two power sources. Widely used in the following fields
Important power supply sites, namely transportation, distribution power supply systems and automation systems.
It is used in places where power failure is not allowed, such as firefighting, hospitals, banks, buildings, etc.

1. Basic Specifications:

Conventional thermal current lth	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage Ui	750V								1000V
Rated impulse withstand voltage Uimp	8KV								12KV
Voltage rating of switch copper	AC 440V
Rated working current le AC-33A	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
Rated connection capacity	10 le
Rated breaking capacity	10 le
Rated condition short-circuit current	100KA								70KA			100KA		120KA		80KA
Rated short-time withstand current IS	7KA			9KA		13KA			26KA			50KA		55KA
Transfer time I-II or II -I	0.45s								0.6s			1.2s				2.4s
Switching the control voltage of the motor	DC24V AC220V AC280V

Performance:

1. Double complex contacts, horizontal and vertical basic frames, to achieve "zero" arc (no arc interrupter);

2. Reliable machine interlocking and electrical interlocking, the actuator adopts an independent overload isolating switch,
It makes more reliable and safe.

3. "Return to zero" technology, which can be forced to "return to zero" in an emergency (disconnect two power supplies at the same time). Meet the fire linkage requirements.

4. The switching of the operation overload isolation switch is driven by a single motor, the switching is stable and reliable, and there is no noise.
small shock

5. The drive motor of the manipulator is only used when the current passes through the moment when the overload cut-off switch is switched.

6. Use the mechanism interlocking device for overload disconnecting switch. Ensure normal and backup power supplies work normally
Reliable and undisturbed.

7. Clear switch position indication, padlock function, etc. to safely realize power and overload isolation

8. High security, high automation, high repeatability, service life of more than 8000 times
