hydraulic rock splitter for sale manual rock splitter hydraulic rock splitter for rock splitting

Product details
brand:pandaShowroom location:not any
product name:stone crusherMotor Type:DC
port:Qingdao, Shenzhen, Shanghai, TianjinCore components:motor
Split distance:13-18mmapplication:Coal mining, quarry drilling, DTH drilling, stone, rock, concrete splitting
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramMechanical test report:if
Marketing Type:normal productFixed work stress:55-63Mpa
Warranty:1 yearApplicable industries:Construction Engineering, Energy and Mining
Actual splitting force:600 tonsDimensions (L*W*H):1m*1.2m*1m
Health status:newplace of origin; place of origin:Shandong China
Packaging Details:Glued wooden case + pallet 1 set/packSupply capacity:1000 pieces per week
Video external inspection:ifOpening diameter:42mm to 48mm
Minimum drilling depth:400mm to 700mmtype:stone crusher
Weight (kg):200Core Components Warranty:1 year
Split Part Diameter:40.5mm to 45.5mmCertification:ISO9001
deliver goods:Air/Sea/Express
Product Description
Hydraulic rock concrete splitting machine is a hand-held splitting and demolition tool. It can controllably split rock or concrete. Especially suitable for enclosed areas where large machines cannot work.

Such as hydraulic crushers and places with strict restrictions on noise, dust, flying debris, vibration, and exhaust gas, and are also widely used in places that require non-explosion and prohibit explosion.

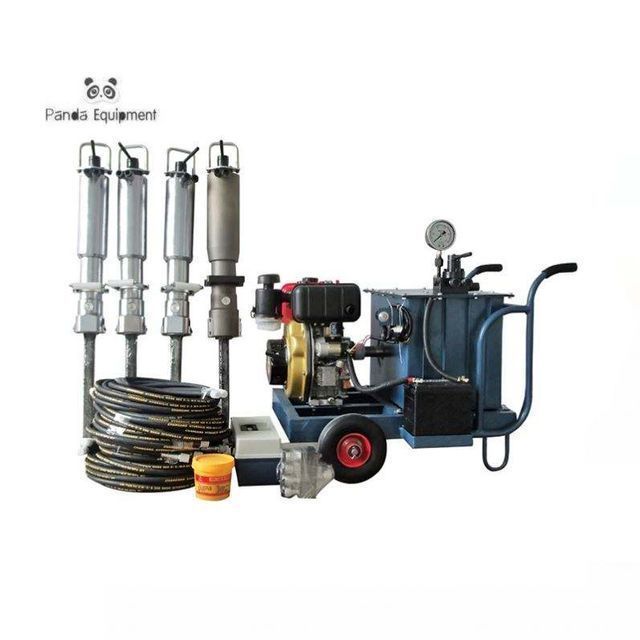

It includes the power station and cylinder.

power plant:

IncludeDiesel, Electricity and Gasoline.

Cylinder (gun):

Includealuminum and steel.

One station can match 1-10 cylinders.

Advantages of our hydraulic separators:

Huge splitting force of up to 600 tons

Dust-free and near-silent operation

no vibration

light

finishing

always in control

For close and hard-to-reach places

easy to handle

Different sizes of reverse wedge and center wedge can be used on the same diverter.

Specification:
Model
Hole diameter (mm)
Divider diameter (mm)
Split effective length (mm)
Minimum drilling depth (mm)
Actual splitting force (tons)
Rated working pressure (Mpa)
Split distance (mm)
PA150
42-44
40.5
150
400
600
55.63
13-18
PA250
42-44
40.5
250
500
600
55.63
13-18
PA350
46-48
44.5
350
600
600
55.63
13-18
PA450
46-48
44.5
450
700
600
55.63
13-18
detailed image

power plant:

diesel engine

electrical

gasoline


Different cylinder materials:

aluminum

Lighter, about 35kg per piece, a little more expensive than steel, the most popular steel for customers.

C12

Also made of aluminum, but high performance. More similar to the original DARDA.

steel

Each piece is about 45kg, the cheapest of the three materials. It is also very popular among customers.

Production application:
