Custom Logo China Custom Electronic Circuit Board Supplier Ems Oem Inverter Charger Pcb Other Pcb &Amp Pcba

Supplier: Croll Technology (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Mr Ian Siu
Price: $3.00 / 10 - 999 pieces
$2.00 / 1000 - 4999 pieces
$1.20 / >=5000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Details:	Bubble bag	minute. Hole size:	0.1
Layers:	2~24L any layer	Plate thickness:	0.4mm~3.0mm
minute. Line spacing:	0.05mm	Supply capacity:	1,000,000 pieces/month
place of origin; place of origin:	Guangdong, China	application:	Automotive, Industrial, Medical, Datacom, Consumer
payment terms:	Western Union, wire transfer	type:	high density circuit board
Special technique 2:	6.heatsink 7.Countersink 8.Hybrid Stackup 9.Anylayer	brand:	cathode ray tube
Serve:	OEM/DFM	Special technique 1:	1. Impedance 2. Via Fill 3. PFH, Backdrill 4. Mix Finish 5. Cave
Surface treatment:	ENIG, ENEPIG, OSP, HASL, Tin, Silver	Substrate:	FR4,CEM1,PI,PET,Ceramic,SUS,Glass...
model:	high density circuit board	minute. Line width:	0.05mm
Copper Thickness:	0.33oz~2oz	Board size:	5mm~500mm
Certificate:	RoHS/ISO9001/ISO14001	port:	Shenzhen

Product parameters

Application scenarios

Automotive, Industrial, Medical, Consumer, Network, Communication

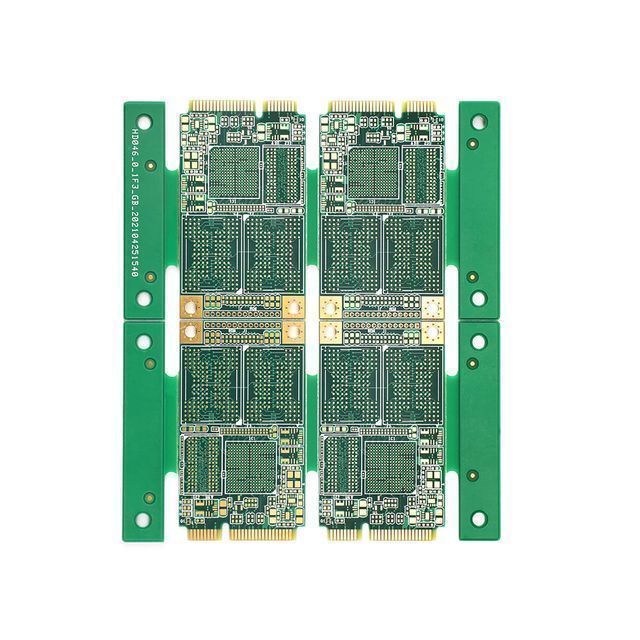

Do not:CRT_SSD_V01

layers: 10-layer HDIsubstrate: FR4 Tg170plate thickness: 0.8mmcopper thickness: 35 micronssurface treatment: ENIG (≥0.05um) + Gold Finger (≥0.25um)single size: 22*80mmPanel size: 123*166mmFeatured Crafts:

*Blind via structure*Plated vias*Impedance controlApplication field: Automotive, Industrial, Medical, Consumer

No: CRT_SSD_V02

layers: 12-layer HDI

substrate: FR4 Tg170

plate thickness: 0.8mm

copper thickness: 35 microns

surface treatment:
ENIG (≥0.05um) + Gold Finger (≥0.25um)

single size: 22*80mm

Panel size: 123*80mm

Featured Crafts:

**Blind hole structure
* Electroplated overfilled vias

* Impedance control

* Fill through-hole resin plugs with electroplating

Application field:
Automotive, Industrial, Medical, Consumer

high density circuit board			special technology.
place of origin; place of origin:	China	1. Impedance 2. By filling 3.PFH, back drill 4. Mixed finishes 5. Cave 6. Radiator 7. Countersink 8. Hybrid stacking 9. ENEPIG
brand:	cathode ray tube
Application areas:	Automotive, Industrial, Medical, Datacom, Consumer
Layers:	2~24L any layer
Material:	FR4 (Tg150~Tg170)
Plate thickness (mm):	0.4mm~3.0mm
Copper Thickness (oz):	0.33oz~2oz
Dimensions (mm):	5mm~500mm
minute. LW/L (mm):	0.05/0.05
minute. Hole (mm):	0.1
solder mask;	Green, yellow, blue, black, white...
Surface treatment:	ENIG,OSP,HASL,Imm Tin,Imm Silver...
Certificate:	RoHS/ISO9001/ISO14001
Serve:	OEM/DFM
