Chemistry Use Jacks Compression Pressure Filter/Press/Press Filter

Supplier: Zhengzhou Leabon Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Carolyn Ji
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China (Mainland);	Name:	manual hydraulic pressure filter;
Machine weight (kg):	630;	Certification:	CE Certificate;
Packaging Detail:	International standard export package of jacks comression pressure filter;	Inner dimension of frame (mm):	520*520;
After-sales Service Provided:	Video technical support;	Applicable Industries:	Manufacturing Plant,Construction works ,Energy & Mining;
Supply Ability:	400 Set/Sets per Month jacks comression pressure filter;	Filtering area (m2):	6;
Volume of filter chambers (L):	60;	Payment Terms:	L/C,T/T,credit card;
Port:	Qingdao Port/Shanghai Port;	After-sales Service Provided:	Engineers available to service machinery overseas;
Cake thickness (mm):	20;	Dimension(LWH):	1960x700x860mm;
Power(W):	no power;	Filtering press (Mpa):	0.6;
Numbers of filter plates (PCS):	14;	External dimension(mm):	1960700860mm;
Automatic Grade:	Manual;	Brand Name:	LEABON;
Warranty:	1 Year;	Condition:	New;
Weight:	630kg;	Voltage:	380V;

Product Description

Chemical use jacks comression pressure filter/press/press filter

Feature of jacks comression pressure filter

1. PP or and glass fiber polypropylene material plate and frame

2. Plate and frame type, box type

3. No need power supply.

4. Filter plate pressed by hoisting jack.

5. Opening filter plate manually

Model	XQ6/520-20U jacks comression pressure filter
Filtering area (m*m)	6
nner dimension of frame (mm)	520*520
Cake thickness (mm)	20
Volume of filter chambers (L)	60
Numbers of filter plates (PCS)	14
Filtering press (Mpa)	0.6
Machine weight (kg)	630
External dimension(mm)	1960x700x860

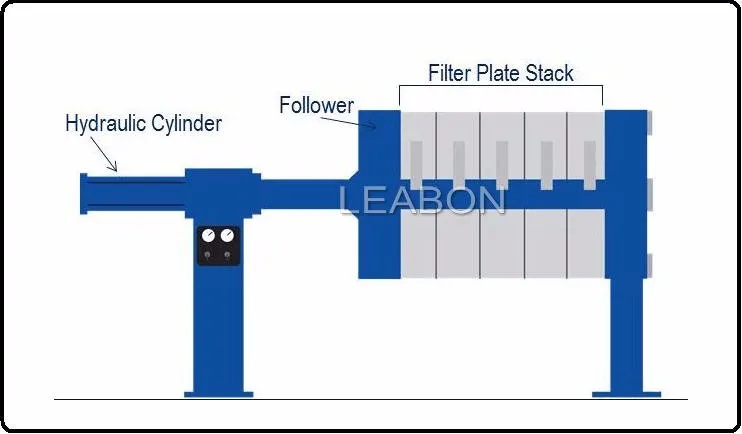

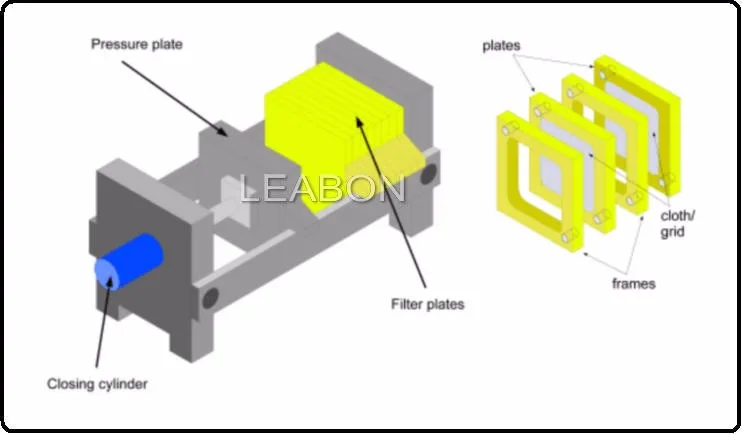

Structure

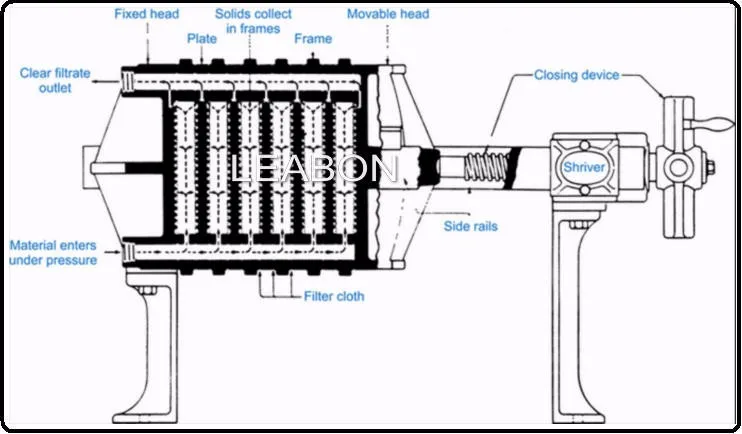

Structure Features of jacks comression pressure filter press

1.Hoisting Jack Filter Press has a screw jack as its compressor device, featuring simple structures, easy operation unnecessary power, being practical and economical.

2. Usually it is applied in the press whose filter area is 1-40m2.

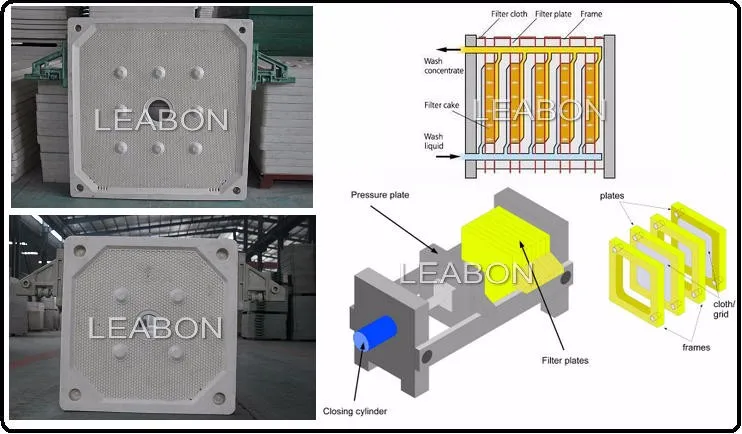

The filter plate of this kind has two types: plate and frame type, box type.

3.The plate and frame type has filter plates frames as a filter unit. Filter cloth can be easily fixed. It can find its application in products that need filter medium (filter paper, filter membrane and settling plate).
