CE Certificated Factory Supply 1500-2000kgs/h Biomass Wood Pellet Machine for Sale

Product details
Dimension(L*W*H):1.8*1.0*1.65m;Machinery Test Report:Provided;
Packaging Detail:High density fiberboard;Marketing Type:New Product 2020;
pellet diameter:6-10mm;Brand Name:Leabon;
Video outgoing-inspection:Provided;Package Preview:;
Pellet Diameter (mm):6 - 12;After-sales Service Provided:Field installation, commissioning and training;
Certification:CE;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Port:Qingdao or Shanghai;Local Service Location:None;
color of the wood pelletizer:according to the client's request;Power (kW):90KW;
pellet length:adjustable;Showroom Location:None;
Supply Ability:200 Set/Sets per Month wood powder pellet making machine;Condition:New;
weight of the wood pelletizer:9 ton;Applicable Industries:Manufacturing Plant,Farms;
Weight (KG):4000;dimension:1.8*1.0*1.65m;
After Warranty Service:Field maintenance and repair service;Key Selling Points:Easy to Operate;
Output (kg/h):800 - 1000 kg/h;Raw Material Processed:Grass,Rice Husk,Wood Sawdust,Biomass,Straw,Cotton Stalks;
packing:wooden fumigated box;Warranty:1 Year;
Motor Power (Kw):90KW;Voltage:380V;
model:LH wood pellet machine;capacity:1500-1700kg/h;
power:132kw 1500kg/h wood pellet mill machine;Place of Origin:Henan China;
Core Components:Gearbox;Power(W):132kw;
Warranty of core components:3 years;

 Wood pellet machine production line, wood powder pellet making machine





What the pellet machine is used for and why do so many people choose the pellet machine?

We can easily know that the pellet machine was use for making pellets from the text meaning from the sentence. And what is the pellet used for? You could say that a pellet is compressed dry biomaterial.And the pellets are used as kind of bio-energy.

If you want to aks why do so many people choose the pellet machine, i can tell you with various good reasons: pellets can be used as animal feed, animal bedding or as bio fuel. In many western country families, pellet machine is becoming an necessity both for feeding animals and get the heat in cold winter.

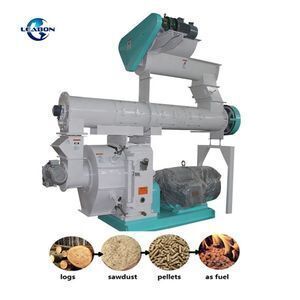

Brief introduction of the sawdust pellet machine

1. LH biomass wood pellet machine can press biomass particles such as sawdust, straw, rice husk and etc.

2. Use Cold-pressing molding technology, Polishing integer process. Streamline appearance, Compact structure.

3. high output, low consumption and noise, better stability and lower fault rates, Fatigue resistance is strong, continuous production, economy and durability.

4. The machine adopts special high quality materials and Advanced even shaft transmission, Key components are high quality alloy steel adds wear resisting material, Using German vacuum furnace heat treatment, Service life can be extended 5-7 times.



Working methods

The raw material is under dried condition, which is compressed, and formed into small eraser-sized bits, the final pellets is clean, pleasant and smooth, and its density is more than1.0 G/M3.





Raw Material

This wood solid fuel pellet mill machine is researched and developed for producing biomass pellet specially.

The raw material could be sawdust, wood, straw, rice husk, bagasse, cotton stalk, peanut shell, bamboo, empty fruit branch, pulverized coal, waste paper, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.



Requirements of the raw materials of wood pellet machine :

Size: 3-5mm

Moisture: 10-15%





LH Ring Die

Model

Main Power
(KW)

Capacity
(t/h)

Feeding

Power
(KW)

Conditioner Power

(KW)

Die Diameter
(mm)

Pellet size
(mm)

LH- 320

37

0.2-0.3

1.5

2.2

320

6,8,10,12

LH- 350

55

0.5-0.7

1.5

3

350

LH- 420

90

0.8-1.2

2.2

5.5

420

LH- 480

90

1.3-1.8

480

LH- 508

132

1.7-2.2

508

LH- 558

160

2-2.5

572

LH- 678

185

2.5-3.5

3

11

678

LH- 768

250

4-5.5

4

18.5

768

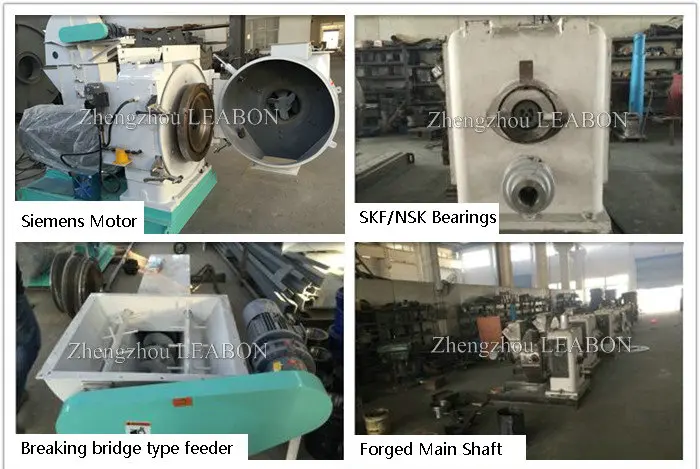

Advantages:



1.   Siemens motor, Imported SKF/NSK bearing;

2.   Equiped with Automatic oil and cooling adding system;

3.   National patent;

4.   Competitive price

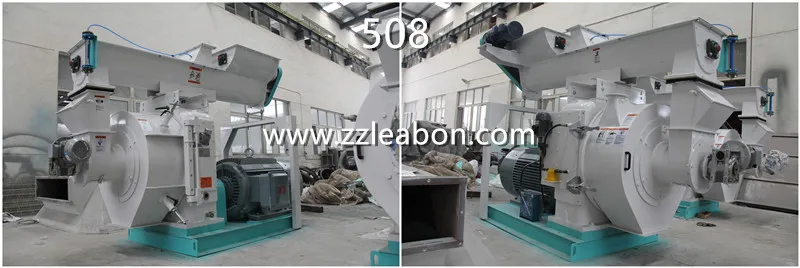

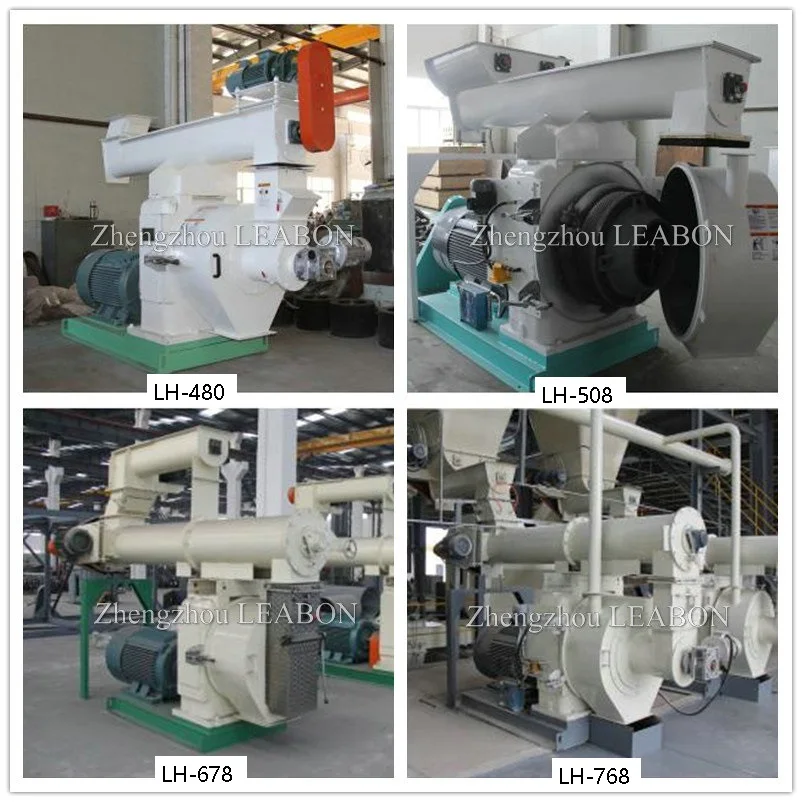

Photos of the LH System capacity wood pellet mill:



Final wood pellets from the wood pellet mill:



Finished Products

Final pellet size:6mm, 8mm,10mm,12mm.

Length : 20-50mm, it can be changed and controlled by yourself;

The finished products are smooth in surface and shapely in posture.

Its hardness is reach to European standard.

Pellet fuel is convenient in the process of manufacturing, packing, storing and transporting as a clean renewable energy.

This kind of granulation is easy to operate and maintain with lower price.

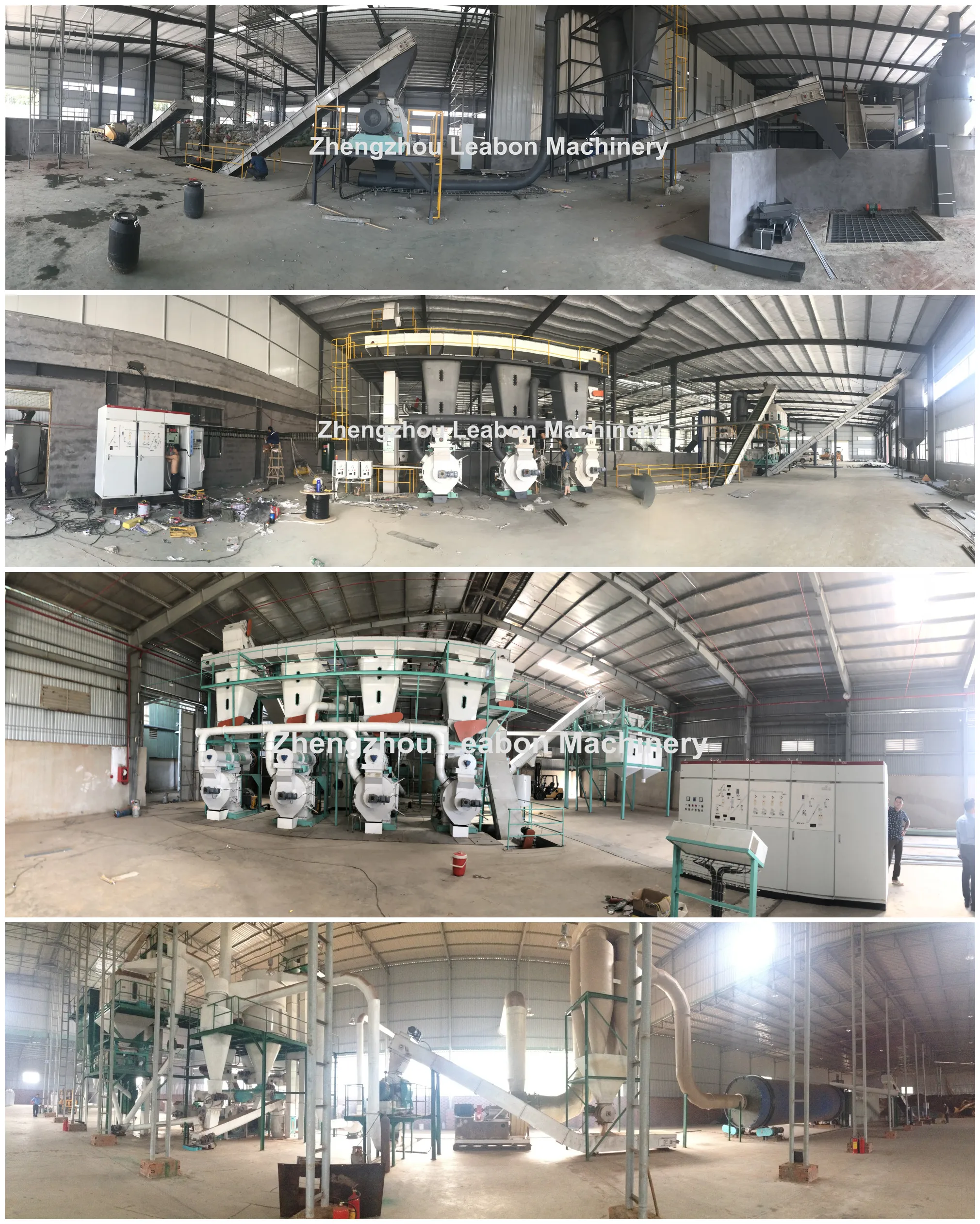

We can supply the complete pellet making line, following is our succesful pellet line cases

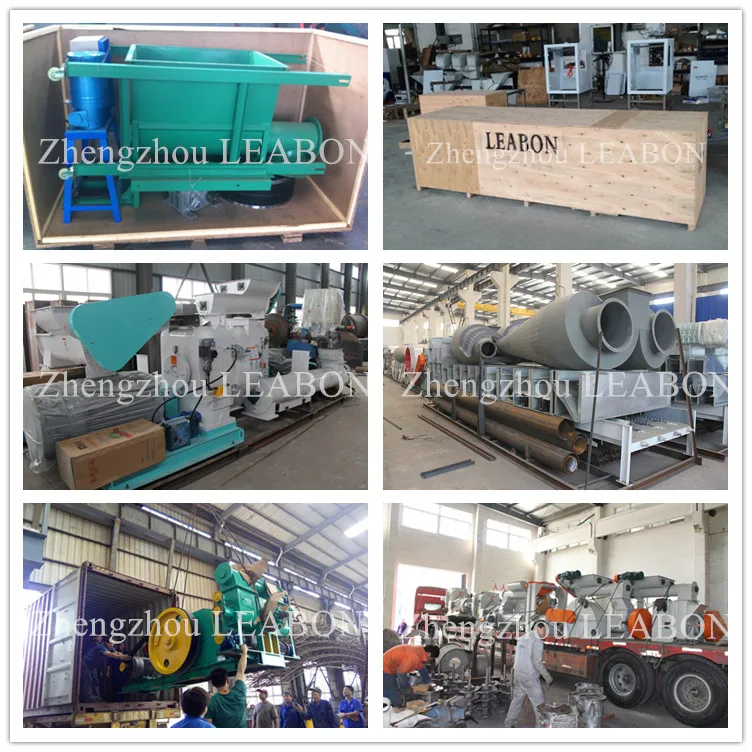

The delivery of the pellet making line machines:





FAQ

If you are interested in our wood pellet making line, please kindly inform:



1.What is your raw material for making wood pellet?

2.What is the size of your raw material?especially the max feeding diameter (mm)

3. What is the moisture content of your raw material?(mm)

3. What is the capcity do you need(kg/h) ?

4. What is the final pellet size do you need (mm) ?



Then we will choose most suitable wood pellet machine or make detailed pellet making line for you and quote you ASAP.

Any more question about the wood pellet machine, please feel free to contact us at any time:
