Automatic Straight Seam Welding Machine

Product details
Model Number:SSW series;Warranty:1 Year;
Usage:seam welding;Brand:DuroWelder;
Input voltge:220V/380V/440V/480V;Workpiece diameter:48-800mm;
Weight:According to the Machine Model;Delivery Detail:Within 15 days after payment;
Packaging Detail:Angle Iron Frame and Human Made Wooden Sheet Box;Brand Name:DuroWelder;
Condition:New;Type:SSW series;
Power(W):220V/380V/440V/480V;Max welding length:320-2000mm;
Welding Mode:seam welding;Welding Speed:300-2000mm/min;
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Color:Blue;Workpiece thickness:0.3-3mm;
Rated Frequency:50/60Hz;Dimensions:According to the Machine Model;
Welding Diameter:320mm-2000mm;Port:Guangzhou/Shenzhen/Huizhou;
Forming Time:Welding Culinderical;Place of Origin:Guangdong China (Mainland);
Certification:CE ISO;Voltage:220V/380V/440V/480V;
Supply Ability:30 Set/Sets per Month;After-sales Service Provided:Engineers available to service machinery overseas;

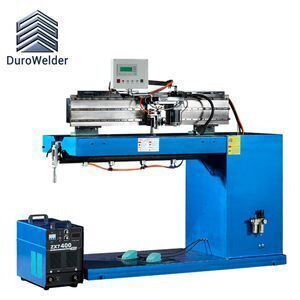

Automatic Straight Seam Welding Machine

Main Features and Applications:
1. Automatic Argon Arc(Plasma) Straight Seam Welding Machine mainly includes two parts: specially designed Straight Seam Automatic Machinery Part and Standard Welding Source Part

2. According to different welding requirement of various materials , the Automatic Straight Seam Machinery Part can be designed into two kinds : Plate Type pressing Mechanism and Keyboard Type Copper Pressing Mechanism, to get the regular and stable clamping and cooling effect.

3. Standard welding Source Part includes TIG(tungsten inert gas shielded arc welding), MIG(metal inert gas shielded arc welding) MAG(metal active gas arc welding) SAW(submerged arc welding)PAW(plasma arc welding),etc, Automatic Machinery Part can be equipped by the standard welding source manufactured by our company , can also work with other well-known brands of welding power.

4. Automatic Machinery Part is adopted PLC control, DC motor drive has stepless adjustable welding speed and interfaces with any power source .

5. Weld Seam back up design has a groove to form a weld on the bottom of a welded plate and provide consistent gas flow to the back of the weld, to assure the stable gas shield and ensure double-side forming in single side welding.

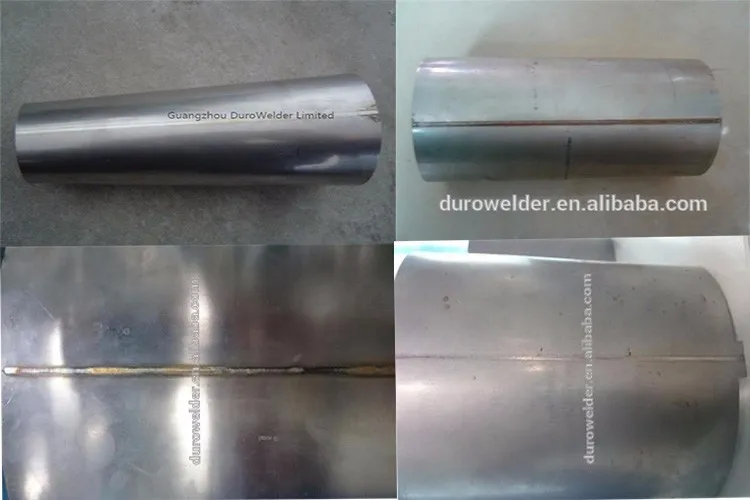

6. Automatic Straight Seam welding Machine is mainly used for the high quality and low distortion automatic straight welding, such as metallic cylinders and aligned plates made with stainless steel , iron , aluminum and brass, etc.

7. Compared with the traditional manual welding way , high welding efficiency and speed, well welding quality and good consistency.

Item       ModelSSW-300SSW-500SSW-800SSW-1000SSW-1200SSW-1500SSW-2000
Input voltge220V/380V/440V/480V,50/60Hz
Max welding length320mm500mm800mm1000mm1200mm1500mm2000mm
Workpiece diameter48-800mm60-80076-800mm85-800mm98-800mm115-800mm150-960mm
Workpiece thickness0.3-3mm                                     0.4-3mm
Welding Speed300-2000mm/min


Product Description:

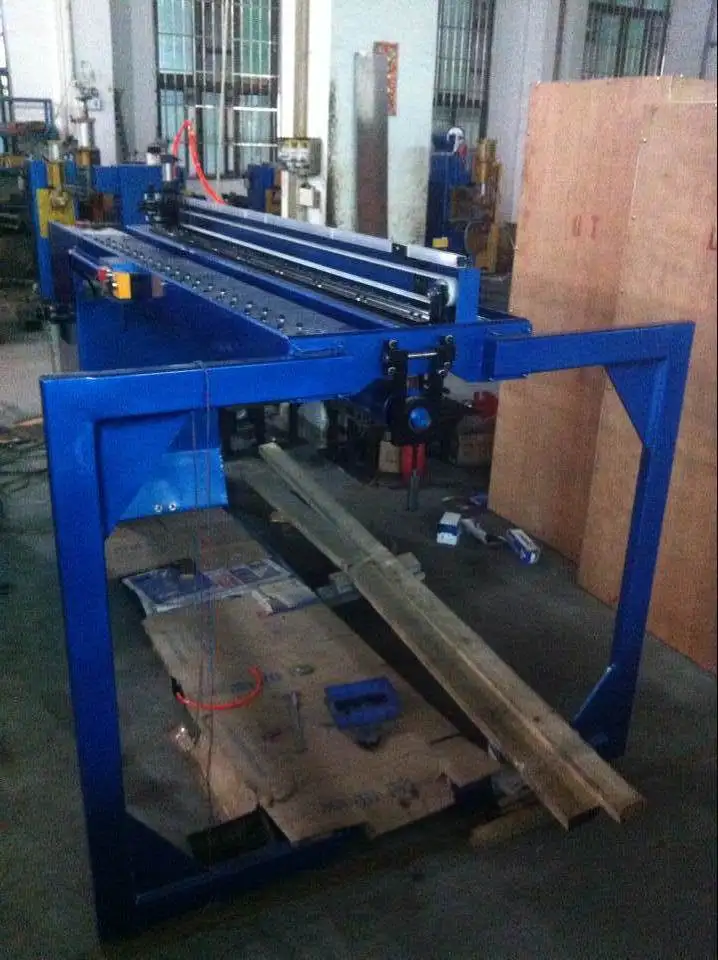

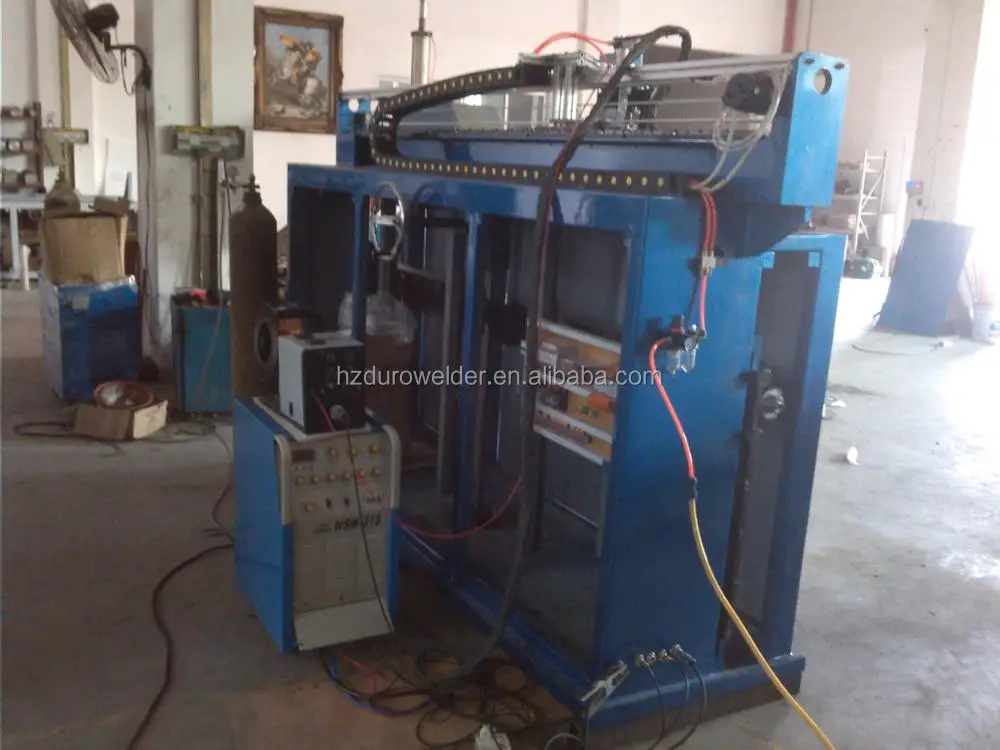

Machine Picture:

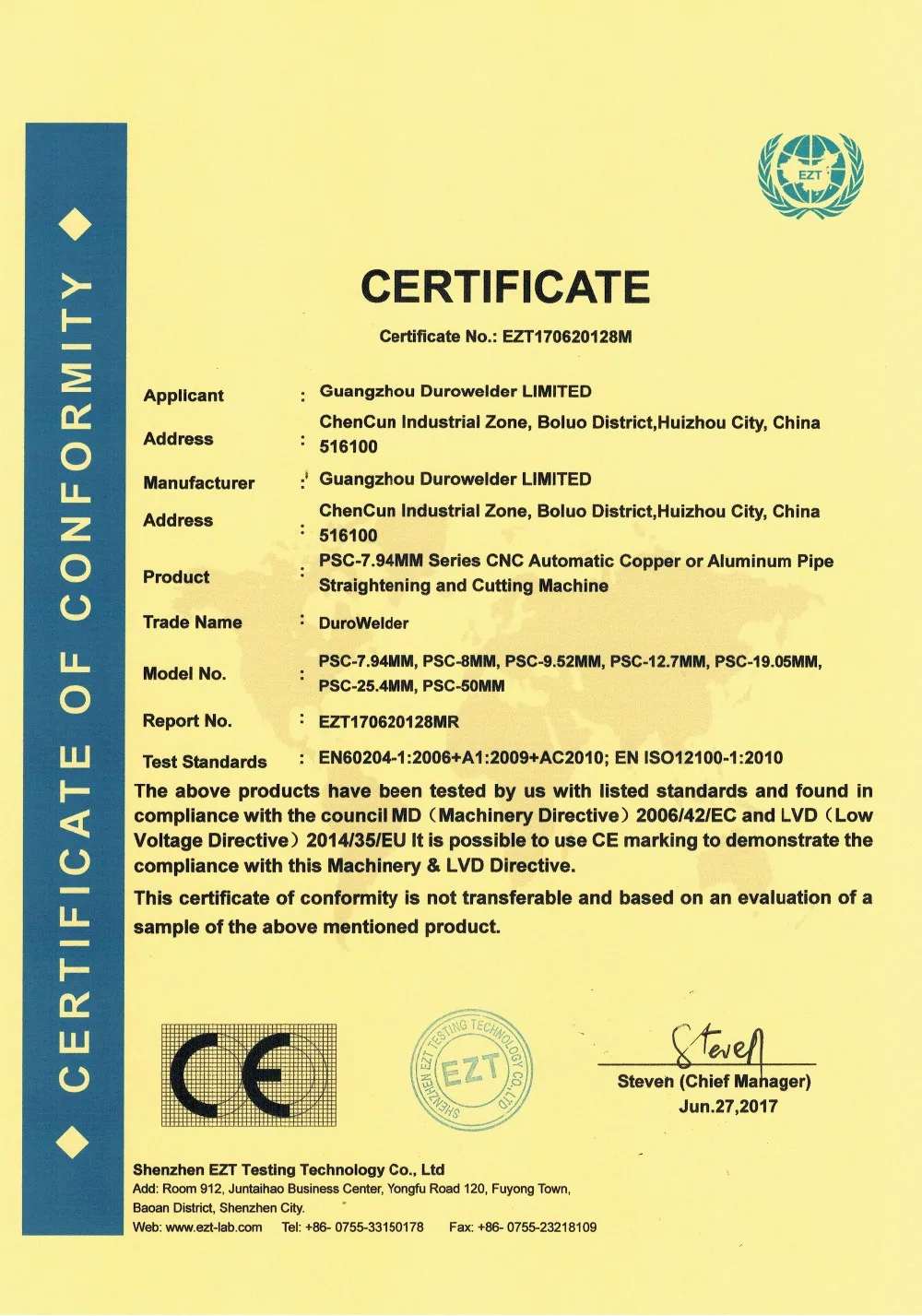

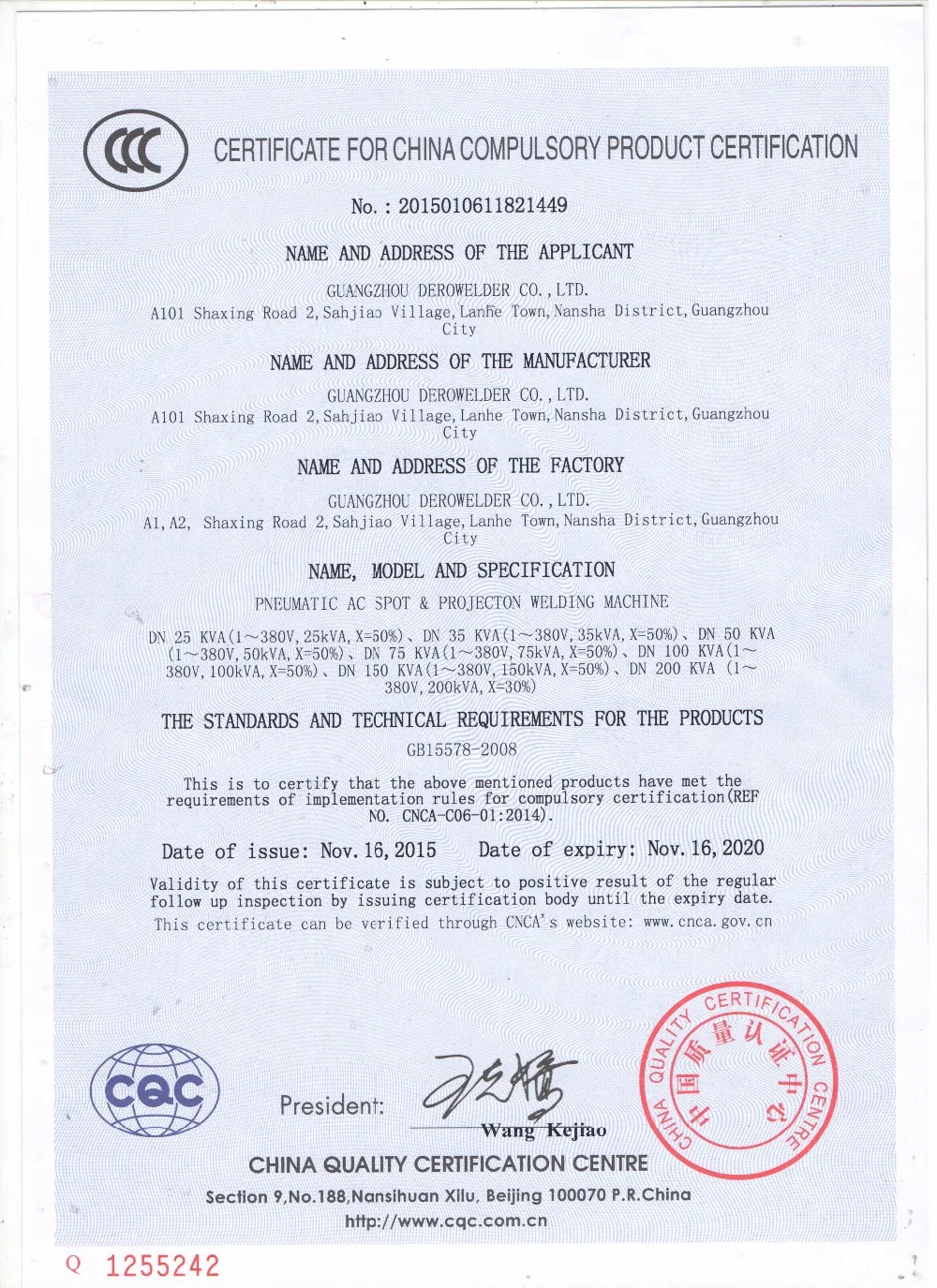

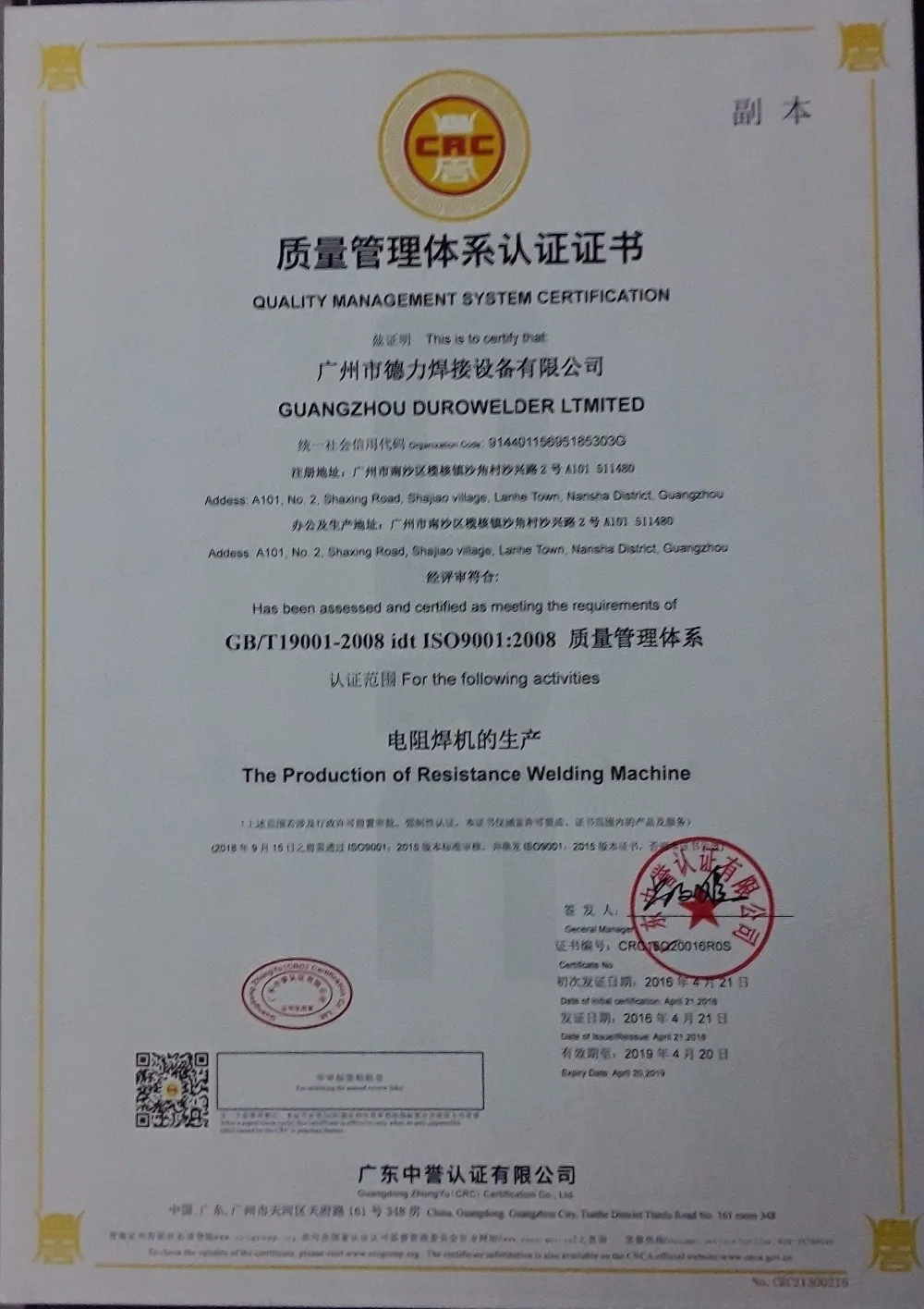

3C Quality certificatesISO Quality certificatesce certificate(29)

factoryAdamcontact way
If you want to know more information about our products, please feel free to contact me!
