Fanuc system VMC CNC machining center uses 135mm center high universal indexing head 4-axis CNC turntable price

Supplier: Anhe Intelligent Equipment (dongguan) Co., Ltd.
Region: Guangdong, China
Contact: Ms Ms Deng
Price: $2350.00 /set
Min. Order: 1 set

Click here to contact

Product details

Disc diameter:	170mm	Packaging Details:	Plywood case
Video external inspection:	if	Card:	SCT
type:	split	brand:	SCT
Gross weight per piece:	60.000 kg	Warranty:	1 year
Center height:	135mm	Weight (kg):	60
color:	blue	product name:	CNC turntable
Chuck:	160MM	Marketing Type:	normal product
Split:	CNC	Single package size:	54X50X45 cm
Showroom location:	not any	Mechanical test report:	if
Sales unit:	single product	Gear ratio:	1:72
Applicable industries:	Mechanical Repair Shop, Manufacturing Plant	Health status:	new
Model:	MD-170A	usage:	Divide the workpiece
Core components:	gear	gear:	worm gear
Guide key width:	12h7

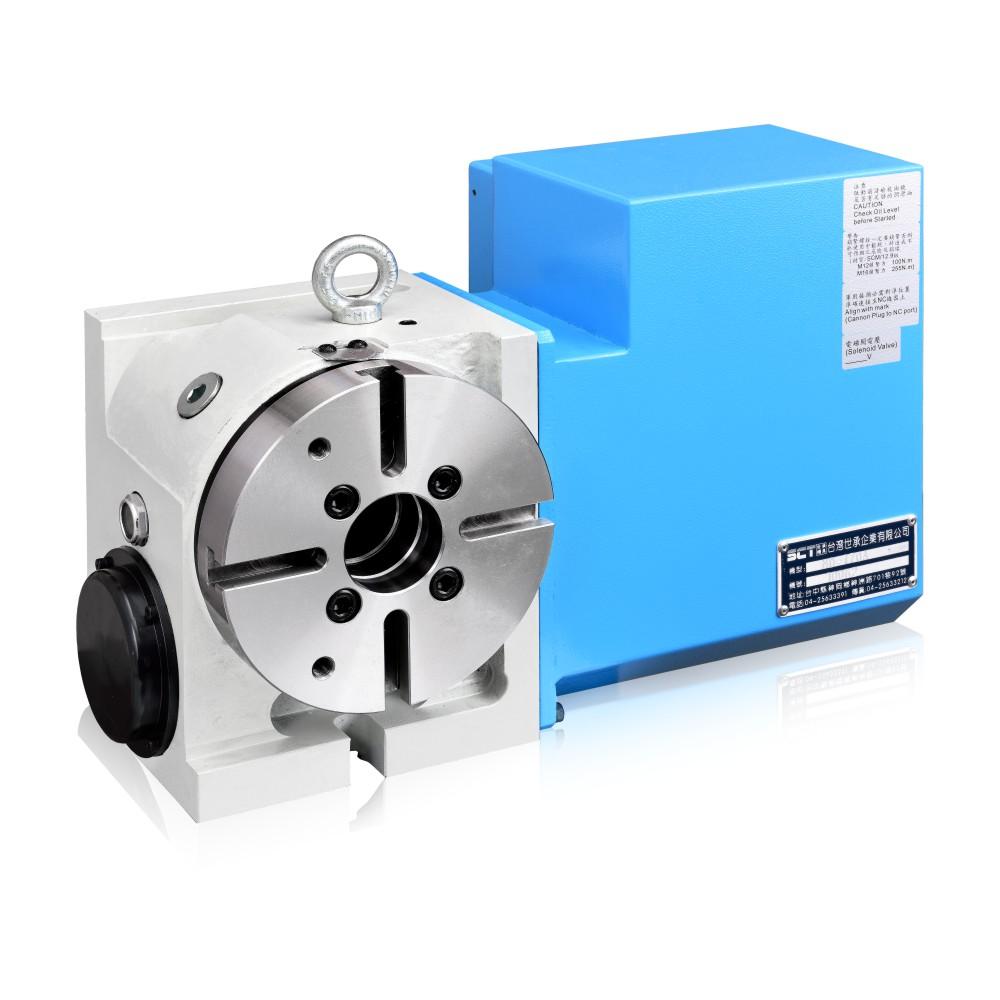

Fanuc system VMC CNC machining center uses 135mm center high universal indexing head 4-axis CNC turntable price

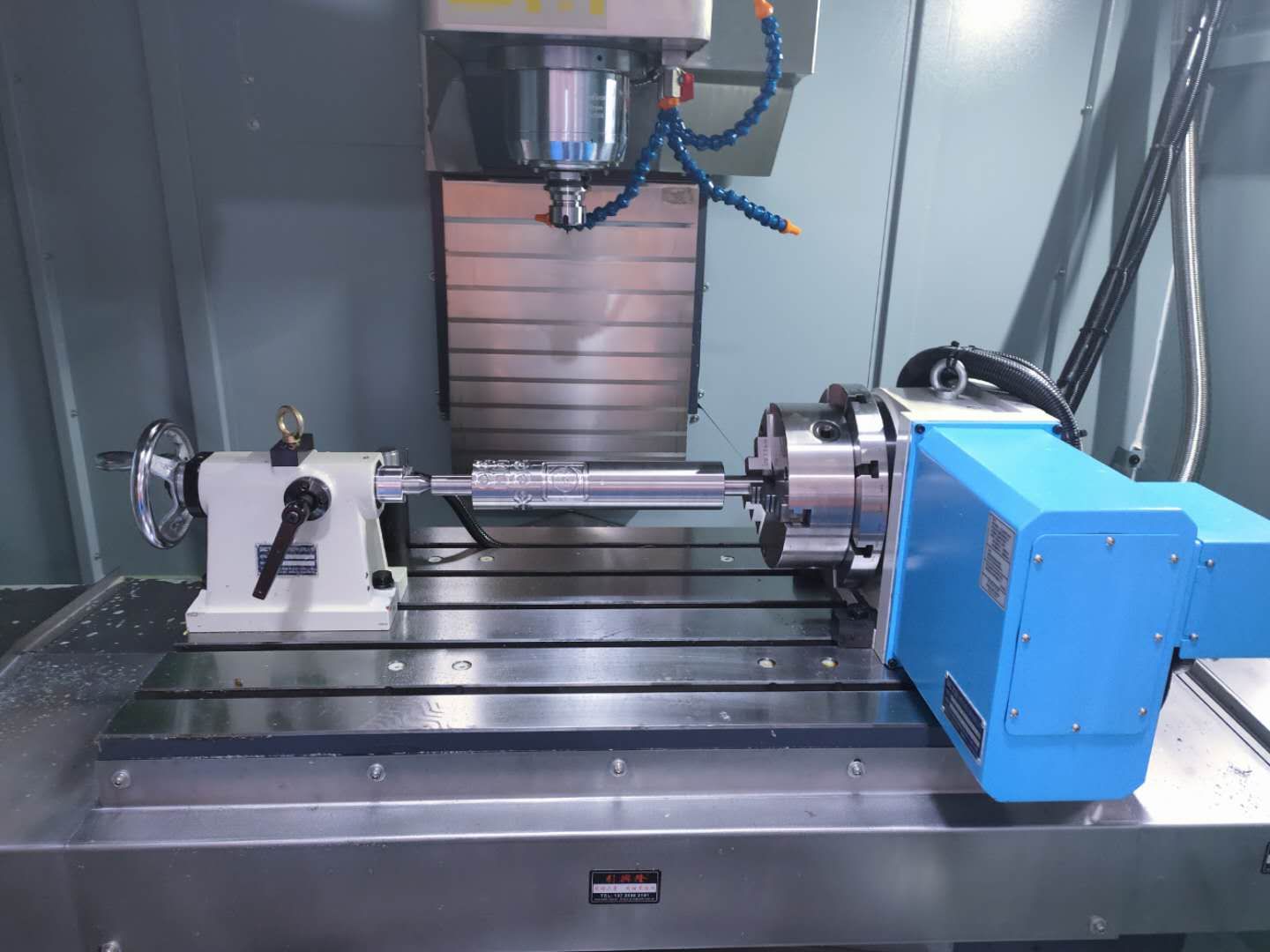

This type of CNC turntable is driven by worm gear and has hydraulic or pneumatic braking. It is mainly used in CNC machining centers, CNC drilling and tapping machining centers, etc.

feature:

1. The turntable adopts double lead screws.
2. Worm material is aluminum bronze alloy.
3. Transmission positioning accuracy is high.
4. Crossed ball bearings ensure long machining time.

Product Description

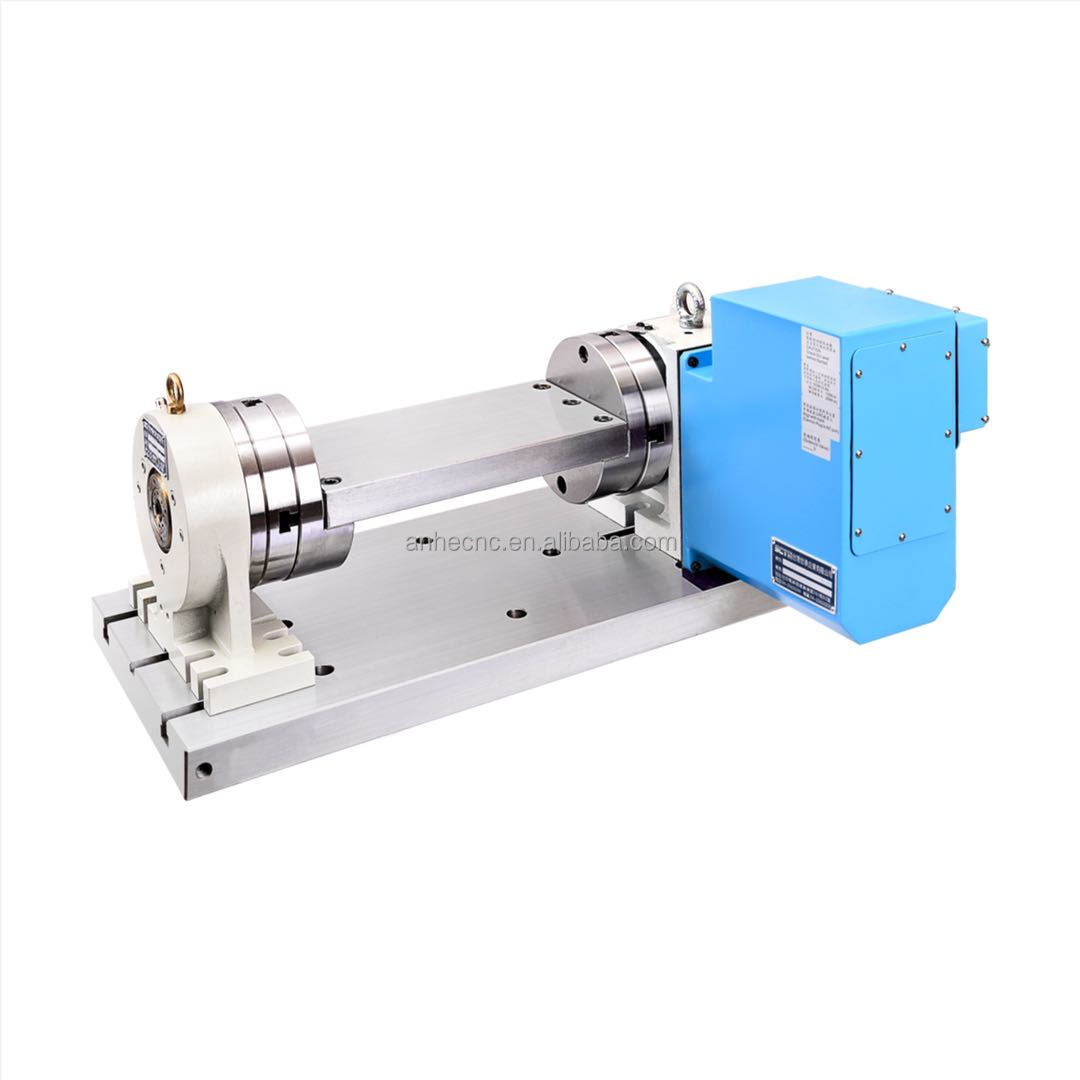

Optional accessories

painting

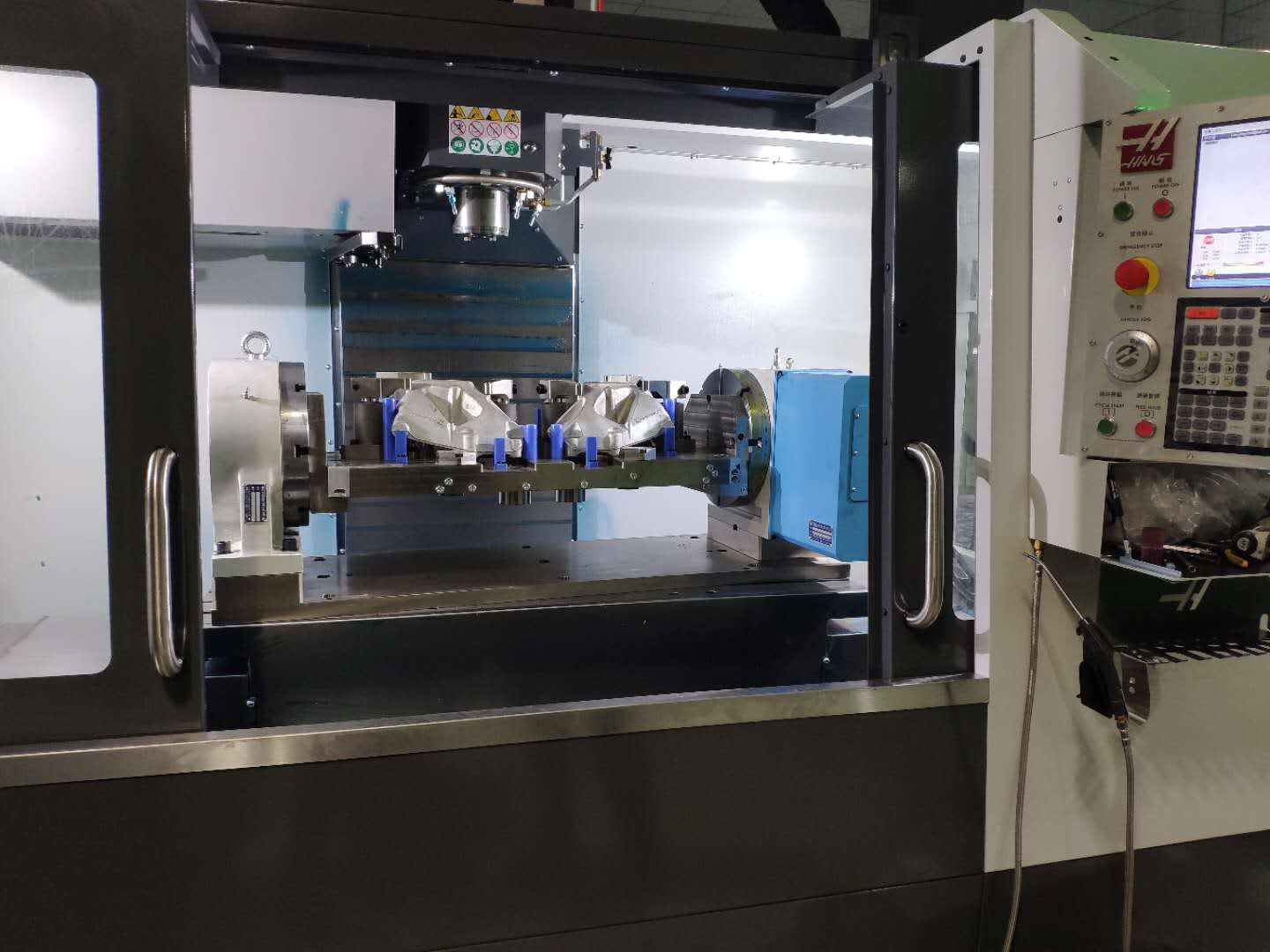

solution

Specification

Model	MD-170A
Disc diameter	170mm
Spindle center through bracket	50h7
Center height at level	221mm
vertical placement center height	135mm
T-slot width	12h7
Guide key width	14h7
locking force	5kg/cm2 (pneumatic)
Equally small angle	0.001 degree
gear ratio	1:72
Division accuracy (cumulative value)	40"
reproducible accuracy	±2"
weight	65kg
Package dimensions	65x55x50cm
