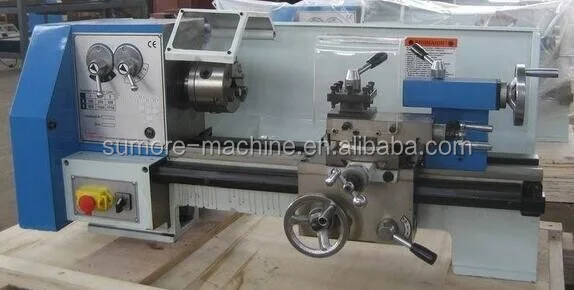

Mini bench lathe with variable speed for sale BV20L

Click here to contact

Product details

Port:	Shanghai Port;	Automatic Grade:	Manual;
Payment Terms:	L/C,D/A,D/P,T/T;	Packaging Detail:	1 set/polywood case (aluminum strips strengthen);
Number of spindle speed:	6;	Type:	Horizontal;
Place of Origin:	Shanghai China (Mainland);	Condition:	New;
Swing over carriage:	115mm;	Tool way:	4;
Range of spindle speeds:	120-2,000 rpm;	Center height:	110 mm;
Range of longitudinal feeds:	0.04-0.3mm/rev;	CNC or Not:	Normal;
Center distance:	350/500 mm;	Power(W):	550 w;
Metic threading cutting:	0.4-3mm(11 steps);	Brand Name:	Sumore Machinery;
Swing over bed:	200mm;	Supply Ability:	10000 Set/Sets per Month;
Dimension(LWH):	1,080 x 610 x 380 mm;	Certification:	CE SGS;
Weight:	110 kg;	Spindle taper:	MT3;
After-sales Service Provided:	No overseas service provided;	Delivery Detail:	Shipped in 25 days after payment;
Max. Swing Diameter:	200mm;	Voltage:	Customer's Requirement;

Products description

Cheap mini manual conventional lathe machine for metal BV20L with 500mm distance 220V is HOT SELLING all over the world, Features are as below:

1. Most enconomical, widely useful hobby lathe.

2. V-way bed is precision ground.

3. Spindle is supported by precision tappred bearing.

4. Headstock is constantly oiled during operating.

5. Power longitudinal feeds allows threading.

6. Adjustable gids for slideways.

7 Euipe with chuck guard, tool post guard.

8. Change gears has large feed and threading functions.

9. Tailstock can be off set for turning tapers

Technical Data

Model	BV20L
Center height	110 mm
Swing over bed	200 mm
Swing over carriage	115 mm
Center distance	350 / 550 mm
Spindle bore	20 mm
Spindle taper	MT3
Number of steps of spindle speeds	6
Range of spindle speeds	120-2,000 rpm
Metic threading cutting	0.4-3mm(11 steps)
Range of longitudinal feeds	0.04-0.3mm/rev
Taper of tailstock sleeve	MT2
Motor	550 w
Overall demension	1,080x610x380 mm
Net /Gross Weight	110 / 125 kg

Accessories

Standard Accessories	Optional Accessories
3-jaw chuck	4-jaw Chuck
Dead Center	Face Plate
Cutting Tools	Face Plate Clamping Kit
Change Gear Set	TiN Coated Cutting Tools & Replaceable Tips
Tool postet guard	Steady Rest
Chuck Safety Guard	Follow Rest
V-belt	Drill Chuck and Drill Arbor
Manual & Parts List	Live Center
	Quick Change Tool Post
	Clutch for Feed Rod
	Lead Screw Guard
	Digital Readout Cutting Depth
	Coolant System
	Work Light

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	110-120 sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
