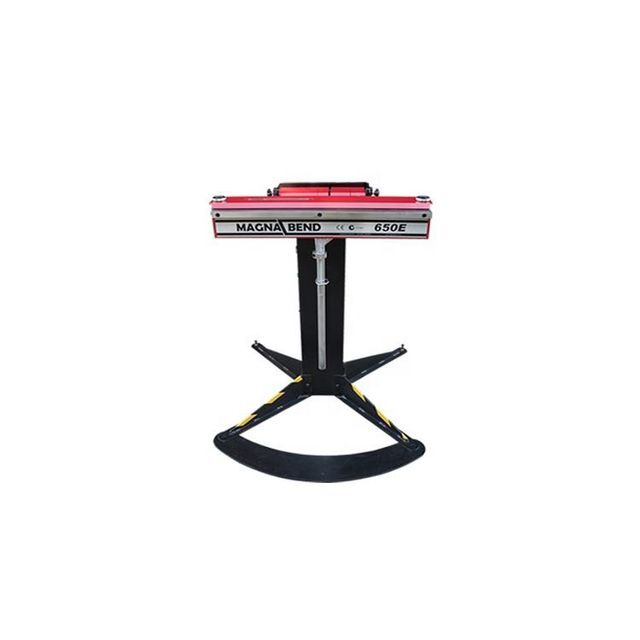

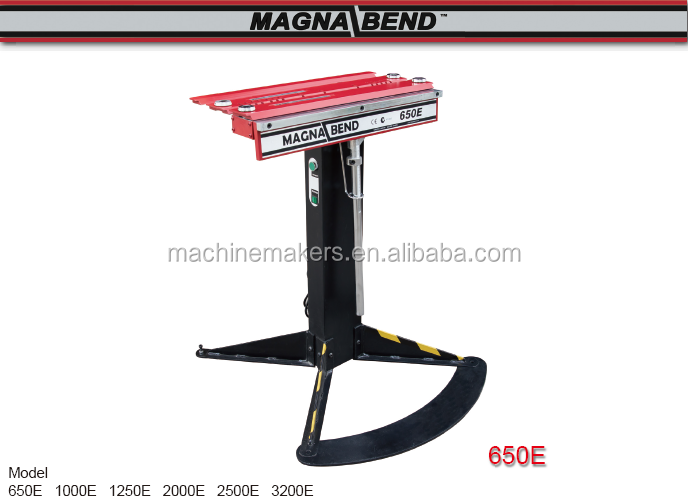

650E box plate sheet metal manual magnetic bending machine

  • 900.00 set
Min. Order: 1 set FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details

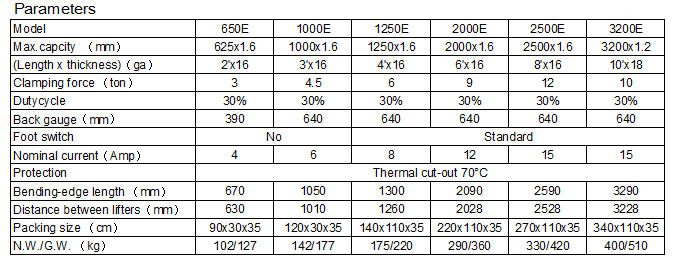

port:Xiamen, FuzhouMaximum capacity:625mm x 1.6mm
Mechanical test report:ifWarranty:1 year
Packaging Preview:Health status:new

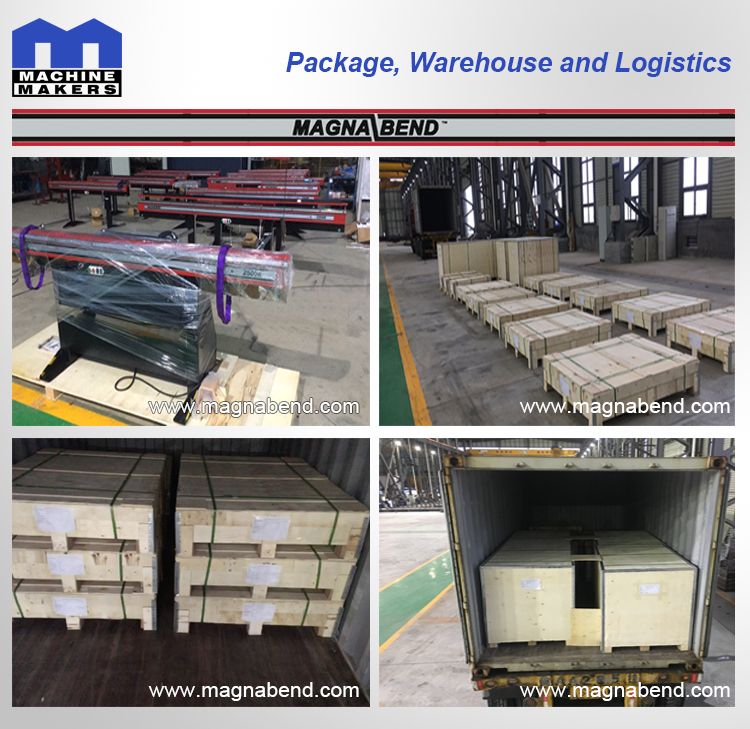

Packaging Details:glulam crateRotation angle:180°

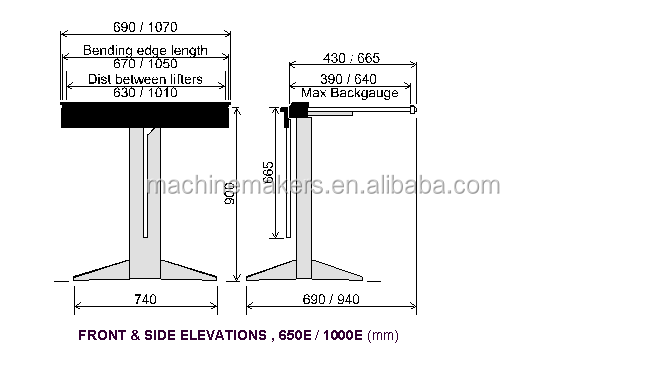

Flange length:670 mmMarketing Type:Hot Products of 2019
Protect:Thermal disconnect, 70 °CMain selling point:multifunctional
Bending length (mm):625 mmpayment terms:wire transfer
Distance between lifts:630 mmCore components:engine
current:4 ampsWeight (kg):120
automation:manualplace of origin; place of origin:Fujian China
strength:electromagneticApplicable industries:Energy and Mining, Printing Shops, Mechanical Repair Shops, Manufacturing Plants, Advertising Agencies, Construction Works, Building Materials Stores
Material/Metal Finishing:Aluminum Alloy, Alloy, Brass/Copper, Stainless Steel, AluminumDuty cycle:30%
Clamping force:3 tonsbrand:Magna Bend
Video external inspection:ifSupply capacity:100 sets per month
Core Components Warranty:5 yearsShowroom location:Australia
electric:1 phase, 220/240V AC

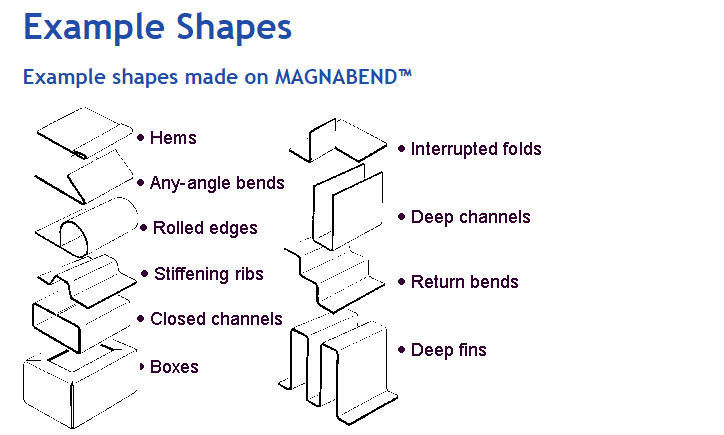

advantage

  1. There is no limit to the depth of the box.
  2. Can form deep grooves, completely closed section.
  3. Automatic clamping and unclamping means faster operation and less fatigue.
  4. Accurate and continuous indication of beam angle.
  5. Set angle stops quickly and accurately.
  6. Infinite length bends can be made in stages.
  7. The open design allows for the folding of complex shapes.
  8. Machines can be connected end to end for long bends.

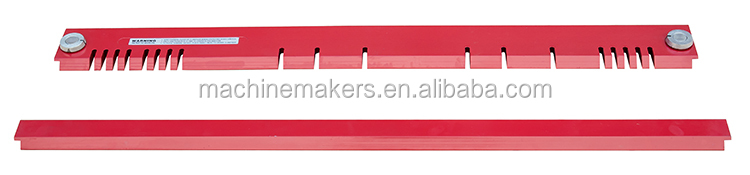

  9. Easily adapts to custom tools (clamp bars with special cross-sections).
