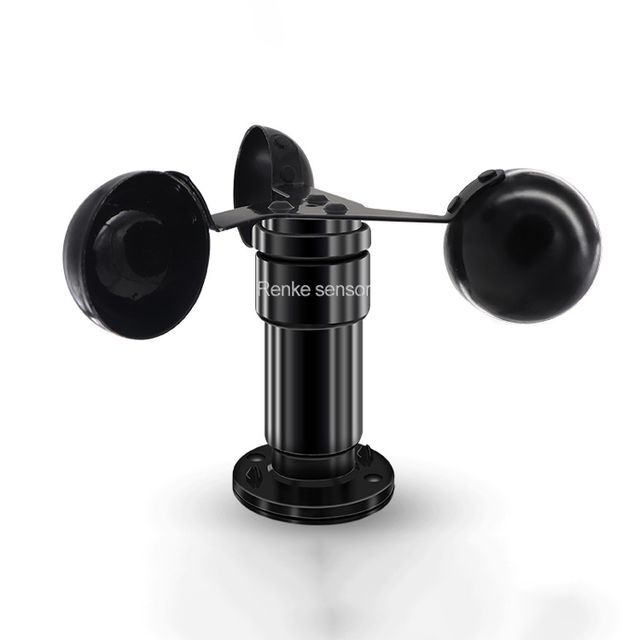

Low Price Aluminum Alloy Cup Anemometer Wind Speed Sensor

Supplier: Shandong Renke Control Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Binda JD
Price: $26.30 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 years	power supply:	5~30VDC
Certificate:	CE ISO9001	Operating temperature:	-40℃~+60℃,0%RH~80%RH
Material:	Aluminum alloy	application:	Wind speed detection
Gross weight per piece:	0.500 kg	Packaging Details:	1 piece per box, use EPE packaging product. (wind speed sensor and wind direction sensor)
Custom Support:	OEM, ODM, OBM	type:	wind sensor
output signal:	4~20mA/0~5V/0~10V/RS485/pulse	Single package size:	28X25X22 cm
accuracy:	±(0.2+0.03V)m/s	Sales unit:	single product
brand:	human	place of origin; place of origin:	Shandong China
model:	RS-FS-*	product name:	Low price aluminum alloy cup anemometer wind speed sensor
Measuring range:	0~30m/s	Key words:	Aluminum Wind Speed Sensor

Low price aluminum alloy cup anemometer wind speed sensor

Product Description

Material	Aluminum alloy
power supply	10-30VDC(rs485/analog), 5~30VDC(pulse)
Measuring range	0～30m/s
accuracy	±(0.2+0.03V) m/s
Resolution	0.1 m/s
energy consumption	0.4W
Response time	≤ 0.5s
Start wind speed	≤0.2m/s
Operating temperature	-20℃~+60℃, 0%RH~80%RH
output signal	RS485/Analog/Pulse

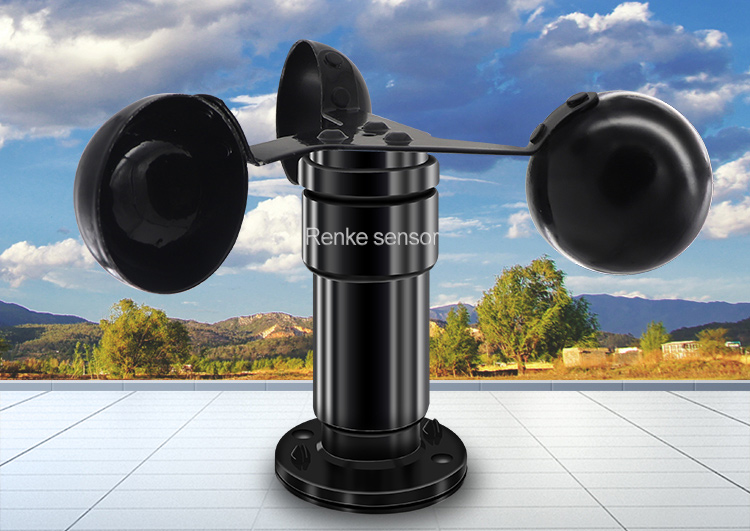

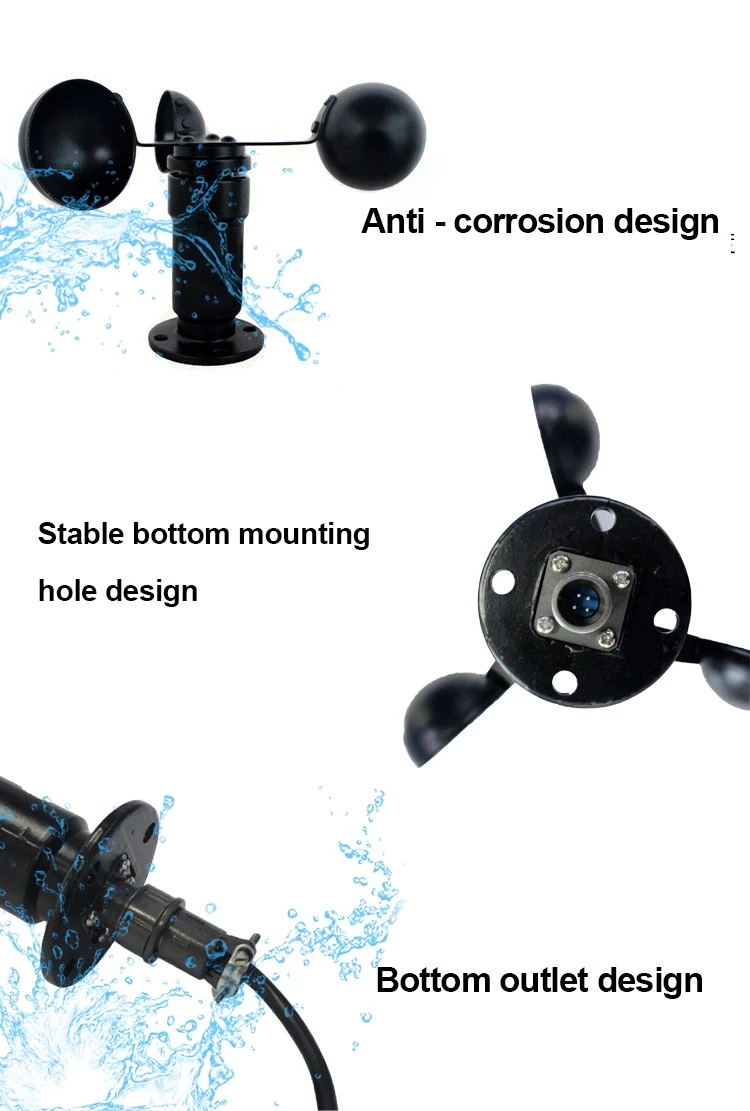

detailed image

1. Range: 0-30m/s, resolution 0.1m/s 2. Anti-electromagnetic interference treatment
3. The bottom outlet method is adopted to completely eliminate the aging problem of the air plug rubber pad, and it is still waterproof after long-term use
4. Using high-performance imported bearings, the rotation resistance is small and accurate
Measurement
5. Waterproof shell, high mechanical strength, high hardness, corrosion resistance, anti-rust for long-term outdoor use
6. The structure and weight of the equipment are carefully designed and distributed, with small inertia and sensitive response

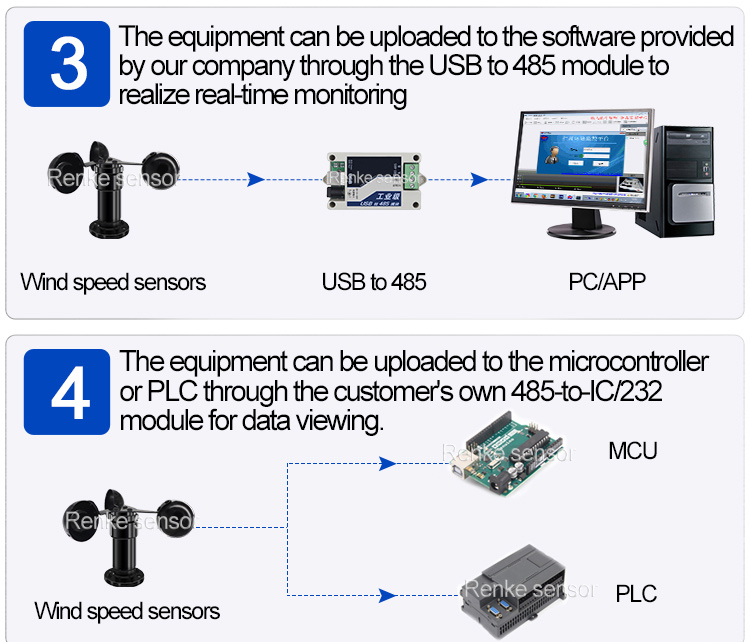

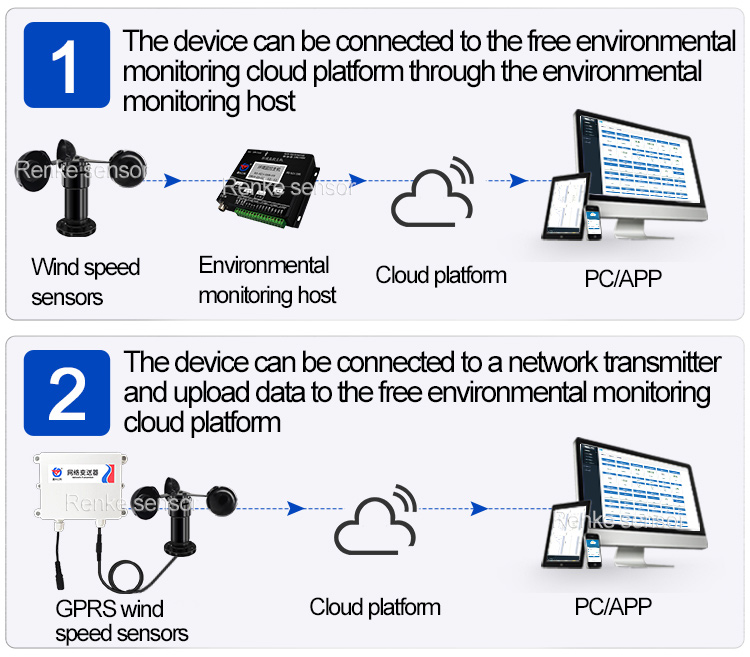

7. Pulse, Analog or ModBus-RTU standard communication

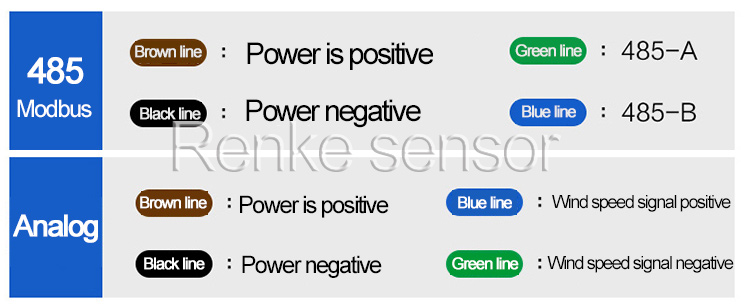

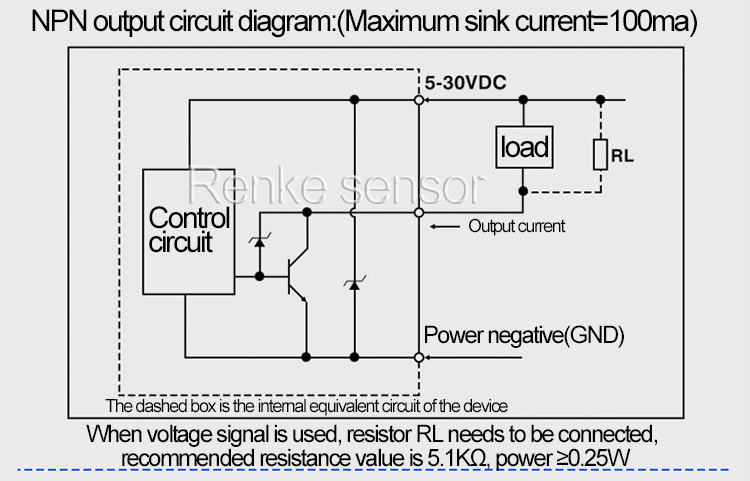

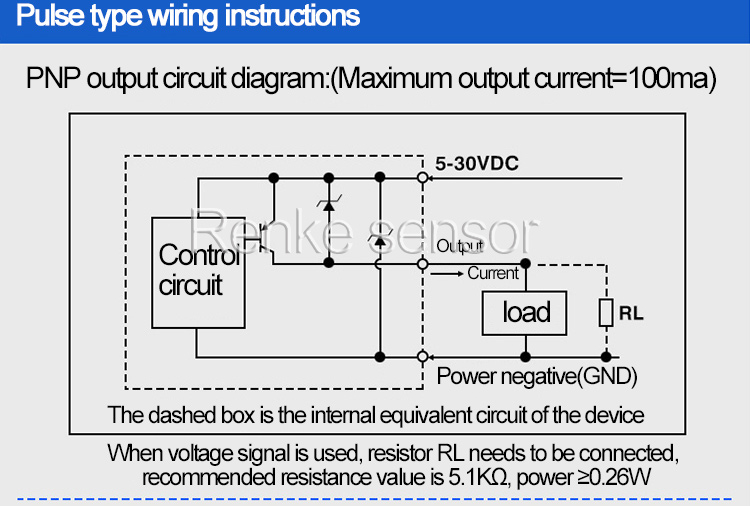

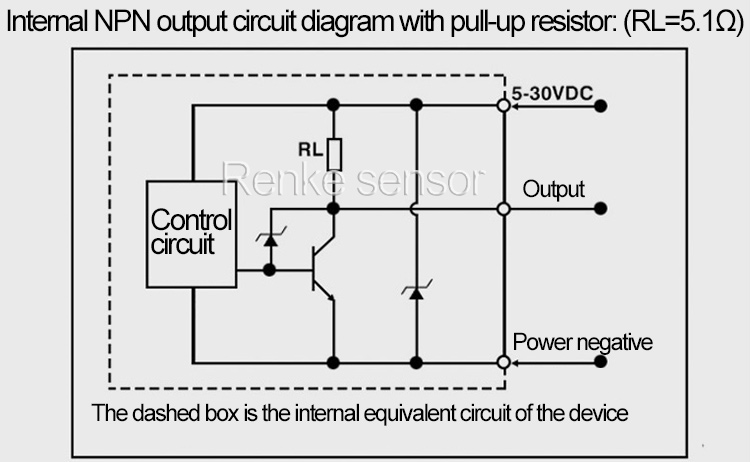

electrical wiring
