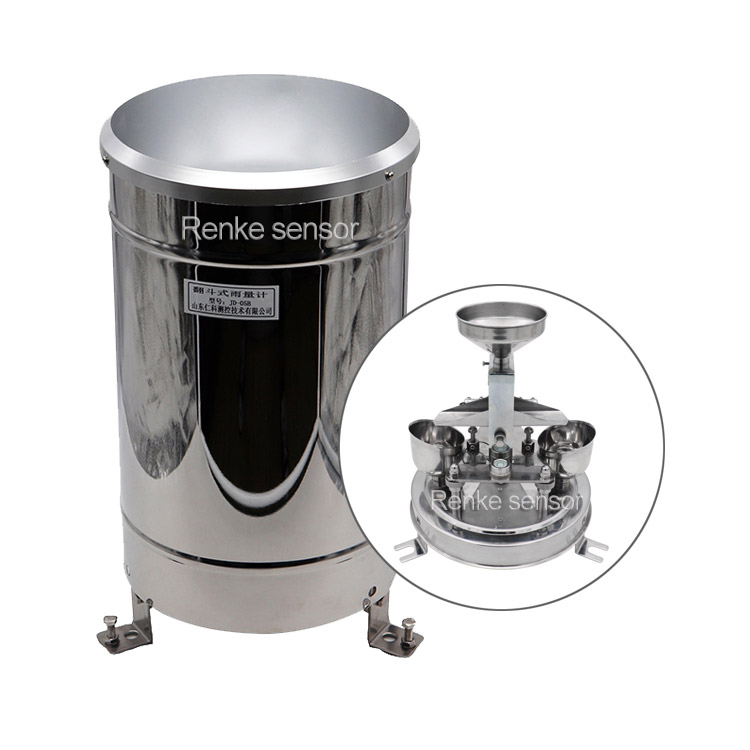

High quality rain gauge sensor stainless steel tipping bucket rain gauge for weather station or environmental monitoring

Supplier: Shandong Renke Control Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Binda JD
Price: $108.30 / 1 - 9 pieces
$105.00 / 10 - 49 pieces
$101.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Single package size:	44X30X35 cm	power supply:	10~30VDC
Material:	Stainless steel	Operating temperature:	0-50℃
model:	RS-YL	Warranty:	2 years
brand:	human	product name:	Rain gauge with solar light for every environment
accuracy:	≤±3%	Key words:	rain gauge
Gross weight per piece:	3.000 kg	Resolution:	0.5mm
the inside diameter of:	200 mm (8 inches)	Sales unit:	single product
Packaging Preview:		Packaging Details:	Rain gauge with pearl cotton
Custom Support:	OEM, ODM, OBM	place of origin; place of origin:	Shandong China
output method:	RS485/pulse	Measuring range:	0.01mm/min~4mm/min

High quality rain gauge sensor stainless steel tipping bucket rain gauge for weather station or environmental monitoring

Product Description

Our Tipping Bucket Rain Gauge is a durable weather instrument used to monitor rainfall and total rainfall. It has been updated and improved with the addition of an inner funnel to allow rainfall to flow evenly into the meter, providing better accuracy at higher rainfall rates. With very little care, it will provide years of service. Rain gauges are made of highly UV-resistant plastic/stainless steel and provide reliable, low-cost tipping-bucket rainfall monitoring. A tipping-bucket sensor mechanism activates a sealed reed switch that produces a contact closure for every 0.1mm, 0.2mm or 0.5mm of rainfall. The rain gauge sensor can be mounted on a pole or bolted to a horizontal plate.

Renke 0-5V 0-10V RS485 Lowes Power 4 20ma Rain Gauge with Metal
the inside diameter of rain sensor rain sensor	Φ200+0.6mm rain sensor rain sensor rain sensor
0.2gle-tip	0.2mm
Measuring rangerain sensor rain sensor	4mm/minrain sensor rain sensor rain sensor
accuracy	≤±3%
single pointrain sensor rain sensor	0.5mm(15.7cc) rain sensor rain sensor
Material	Stainless Steel 304
humidity rain sensor rain sensor rain sensor	95%rain sensor rain sensor rain sensor
Operating temperature	-10℃~50℃
level control rain sensor rain sensor	Bullseye level mounted on baserain sensor
Mounting holes	three installations
weightrain sensor rain sensor rain sensor	3.5kgrain sensor rain sensor rain sensor
high	402.8mm

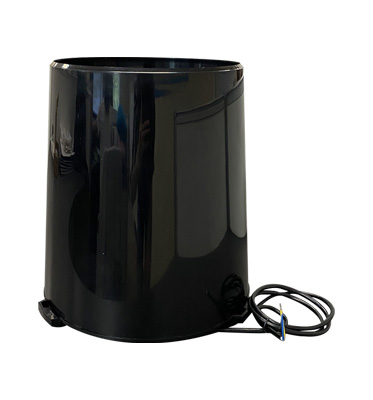

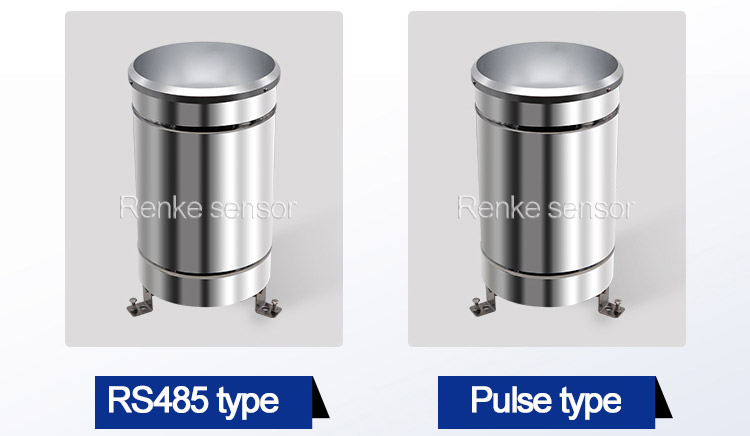

Rain gauge type

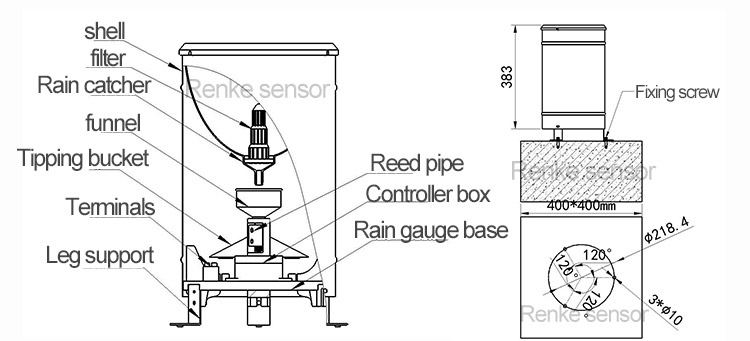

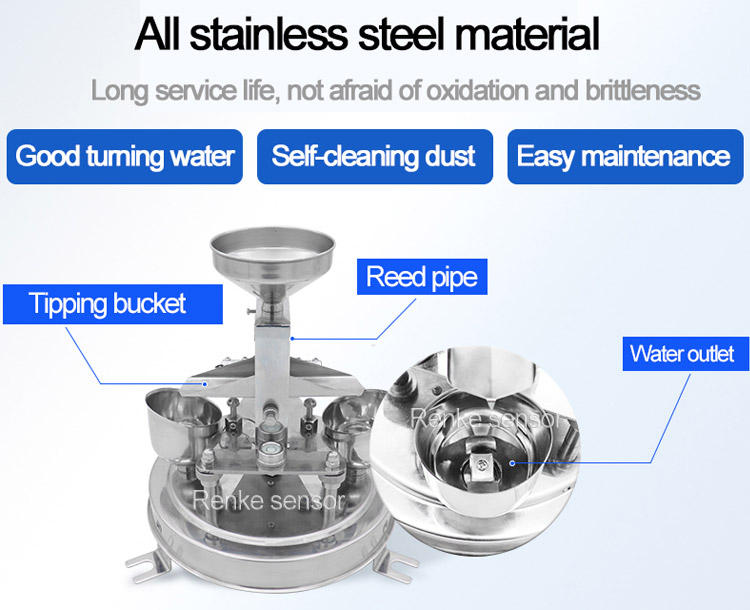

detailed image

♦ High precision and good stability rain sensorrain sensorrain sensorrain sensor

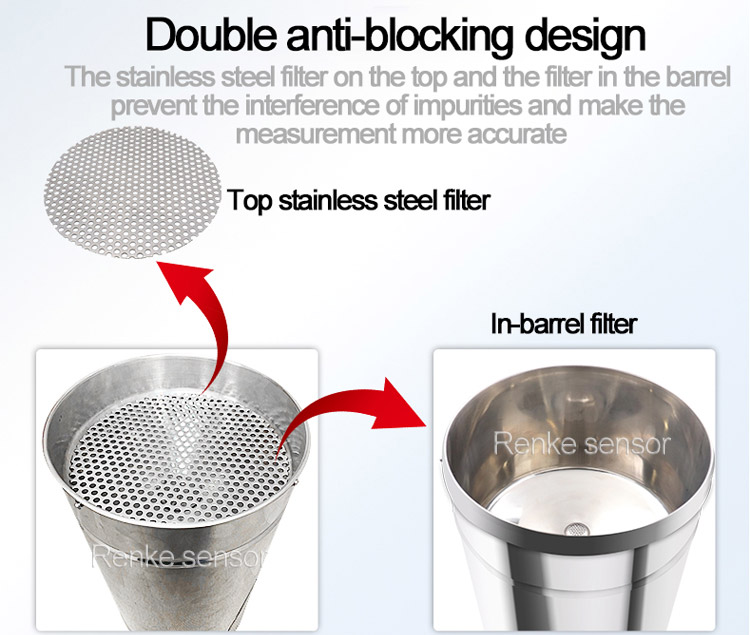

♦ The funnel is designed with mesh holes to prevent debris and other debris from blocking the downstream flow rain sensorrain sensorrain sensorrain sensor
♦ The flip part is sensitive to rotation, stable in performance and reliable in operation

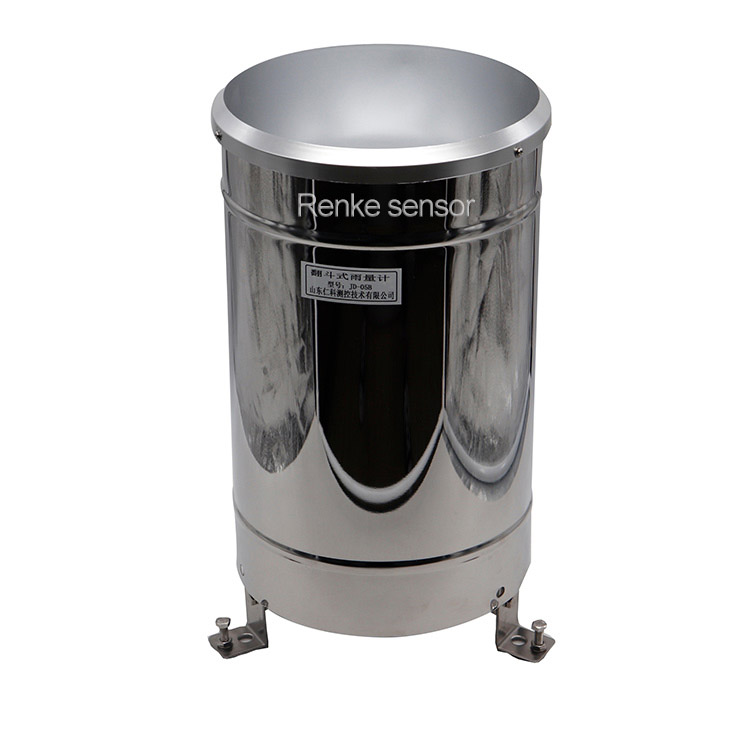

♦ Stainless steel shell, beautiful appearance and high quality
♦ The oil pan is made of stainless steel and is fully rammed. The finish is high and the water retention error is small.

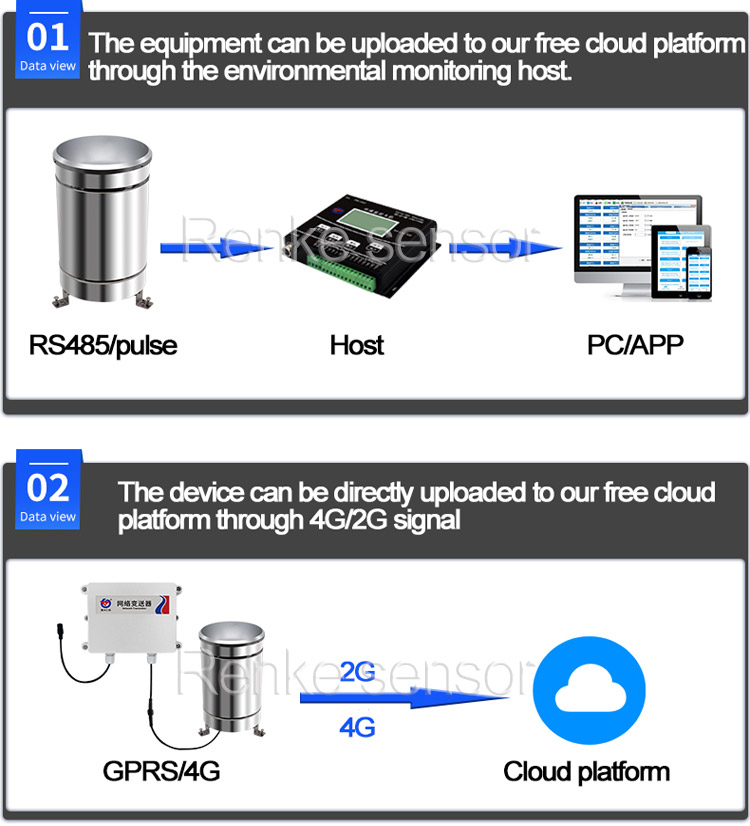

output method

application

♦ Weather station, hydrological station
♦ Environmental protection, flood control
♦ Used by relevant departments such as agriculture and forestry to measure precipitation
