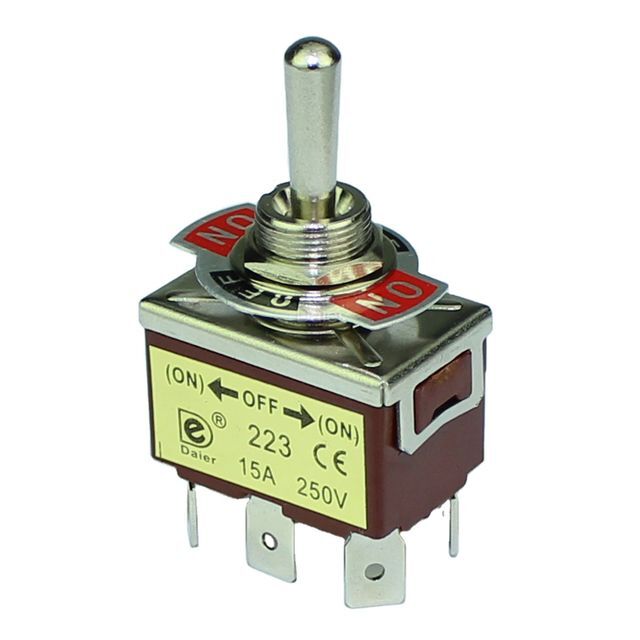

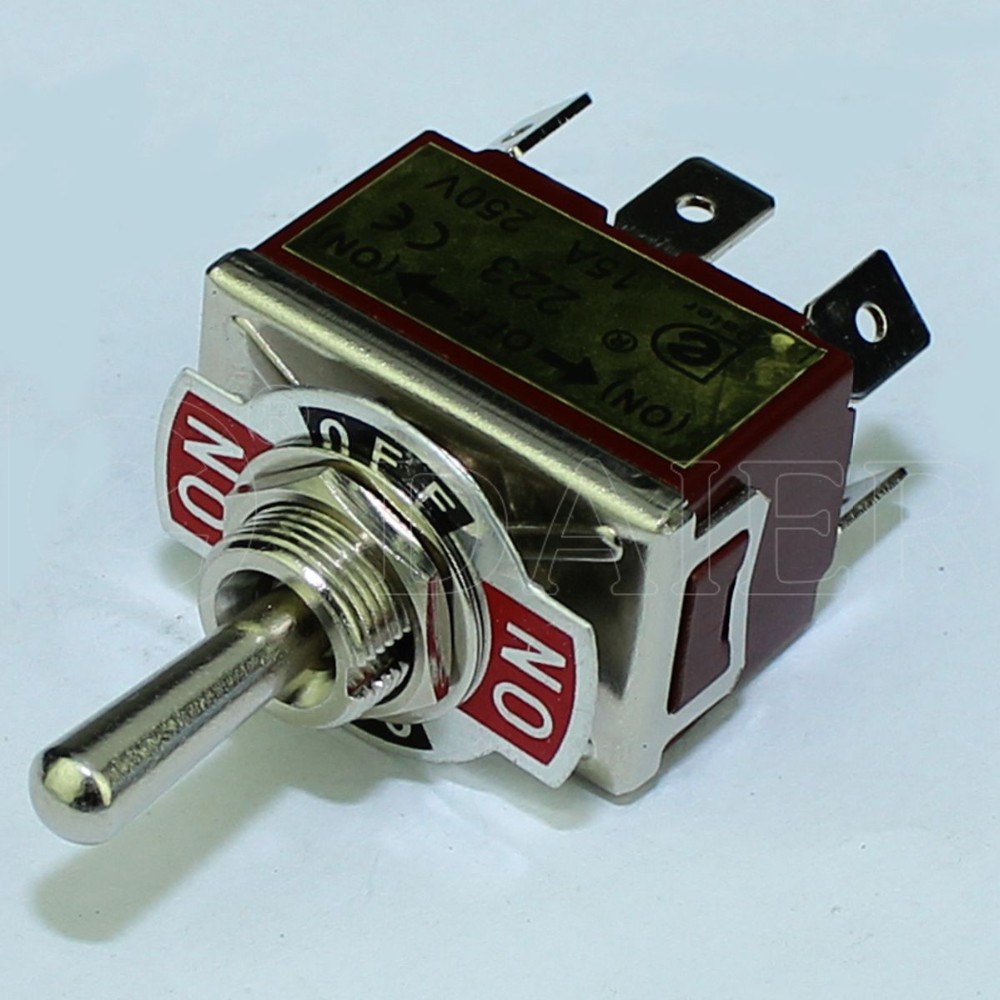

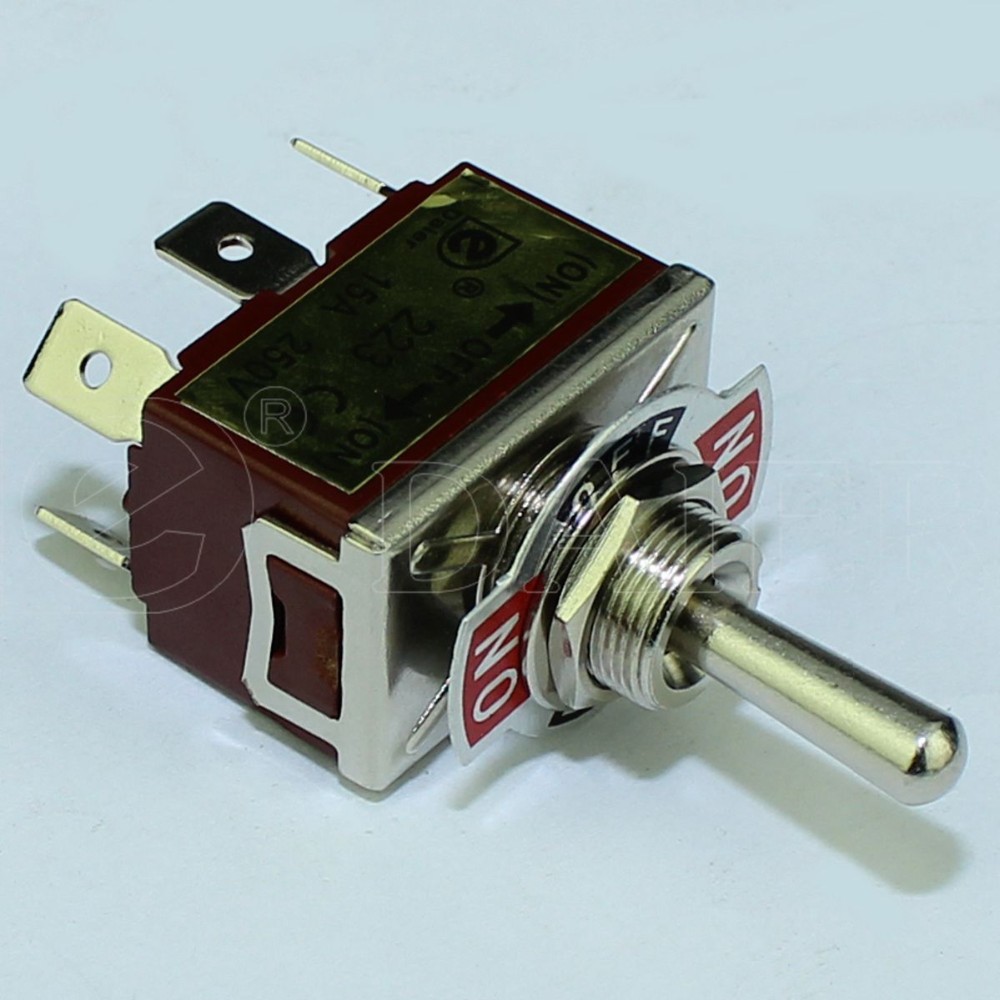

15A 250V (ON)-OFF-(ON) Spring Return 6 Pin Medium Switch DPDT Momentary Brown Base
- 1.08 1 - 24 pieces
- 0.90 >=25 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Preview: | standard: | IEC standard | |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Mechanical life: | 10000 cycles |
| maximum. Voltage: | 250VAC | Certificate: | CE, TUV |
| thing: | 15A 250V (ON)-OFF-(ON) Spring Return 6Pin Toggle Switch DPDT Momentary | brand: | dale |
| maximum. current: | 15A | Packaging Details: | 20pcs/box, 500pcs/carton of 15A 250V (ON)-OFF-(ON) Spring Return 6Pin Medium Toggle Switch DPDT Momentary with Brown Base |
| Rated current: | 15A | Circuit characteristics: | (on)-off-(on) |
| terminal type: | computer terminal | Model: | KN3C-223P |
| place of origin; place of origin: | Zhejiang, China | Is it smart: | Do not |
| port: | Ningbo | Rated voltage: | 250V |
| model: | KN3C-223P | Certification: | CE, TUV |
| Operating temperature: | -25℃~+85℃ | color: | Brown |
Product Description
thing | 15A 250V (ON)-OFF-(ON) Spring Return 6Pin Toggle Switch DPDT Momentary |
switch function | (On) Off (On) DPDT6pin toggle switch dpdt momentary |
score | 15A 125VAC; 10A 250VAC |
Contact resistance | < 50MΩ |
Insulation resistance | 500VDC 1000MΩ min |
Dielectric strength | 1500VAC, 1 minute |
Operating temperature | -25°C~+85°C |
Electrical life | 10000 cycles |
Product display
