High quality ZX6350 universal vertical and horizontal horizontal drilling machine for sale

Supplier: Shandong Gold Cnc Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Suyu Meng
Price: $5000.00 / 1 - 4 sets
$4680.00 / 5 - 19 sets
$4000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Shandong China	year:	2021
Table travel (Y) (mm):	300	Table travel (Z) (mm):	400
Number of axes:	3	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
port:	optional	Supply capacity:	300 sets per month
product name:	ZX6350 milling and drilling machine vertical milling machine	Spindle taper:	MT4,MT4
Showroom location:	not any	Core parts warranty:	1 year
Packaging Preview:		Video external inspection:	if
Weight (kg):	1200	Table travel (mm):	600/300/400, 600/300/400
Spindle speed range (rpm):	(8steps)115-1750(V),(12steps)40-1300(H),115-1750 rpm	Table stroke (X) (mm):	600 mm
Machine Dimensions (LWH):	140015002250mm	After-sales service provided:	Online support, video technical support
Processing capacity:	medium	Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works, others
Warranty:	1 year	Main selling point:	multifunctional
Health status:	new	Function:	Milling, horizontal milling, drilling, boring, tapping, end milling
Spindle motor power (kW):	2.2/1.5	brand:	Gold NC
type:	common	Certification:	ISO9001/CE
working desk size:	1200*280	Voltage:	380V/custom
Core components:	Bearings, motors, pumps	Marketing Type:	Hot Products of 2021
Mechanical test report:	if	maximum. load:	300
Dimensions (LWH):	140015002250mm	Packaging Details:	Wooden packing
model:	ZX6350

Product Description

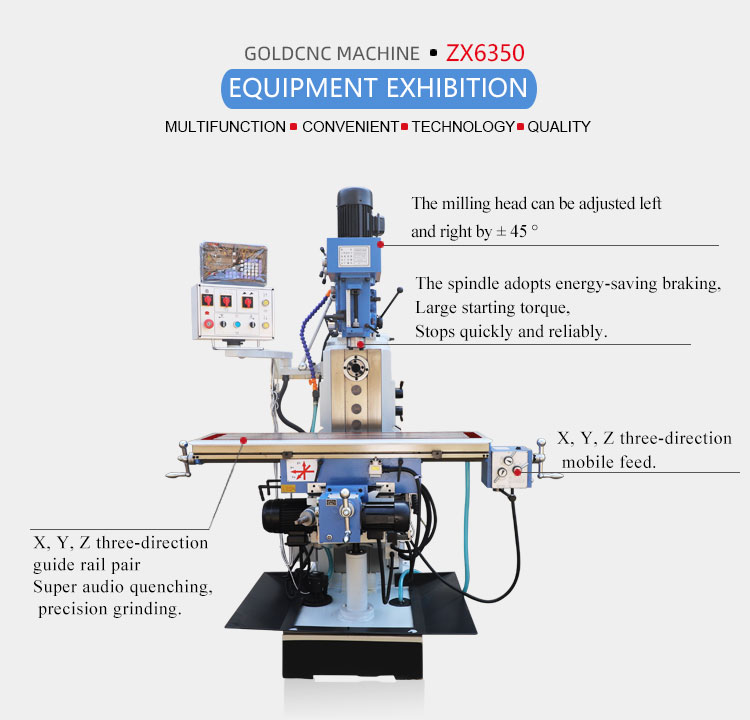

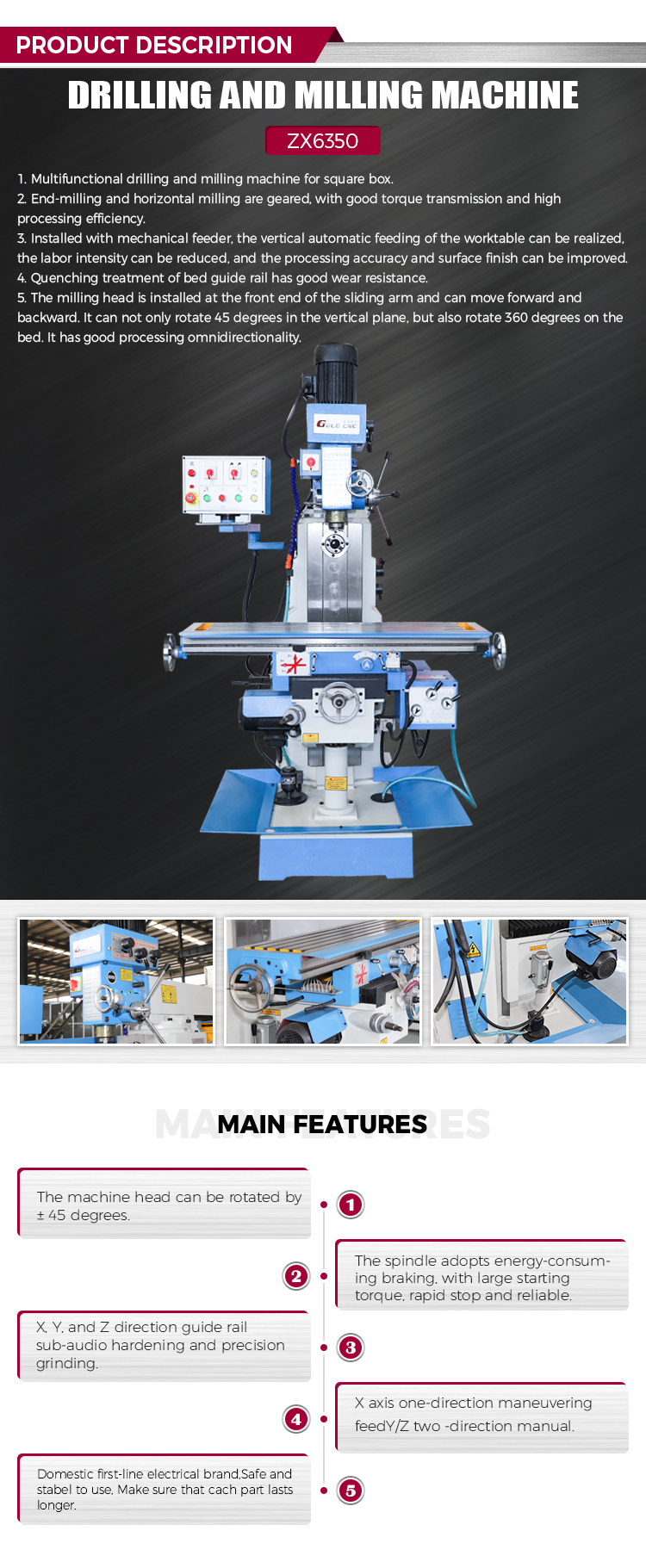

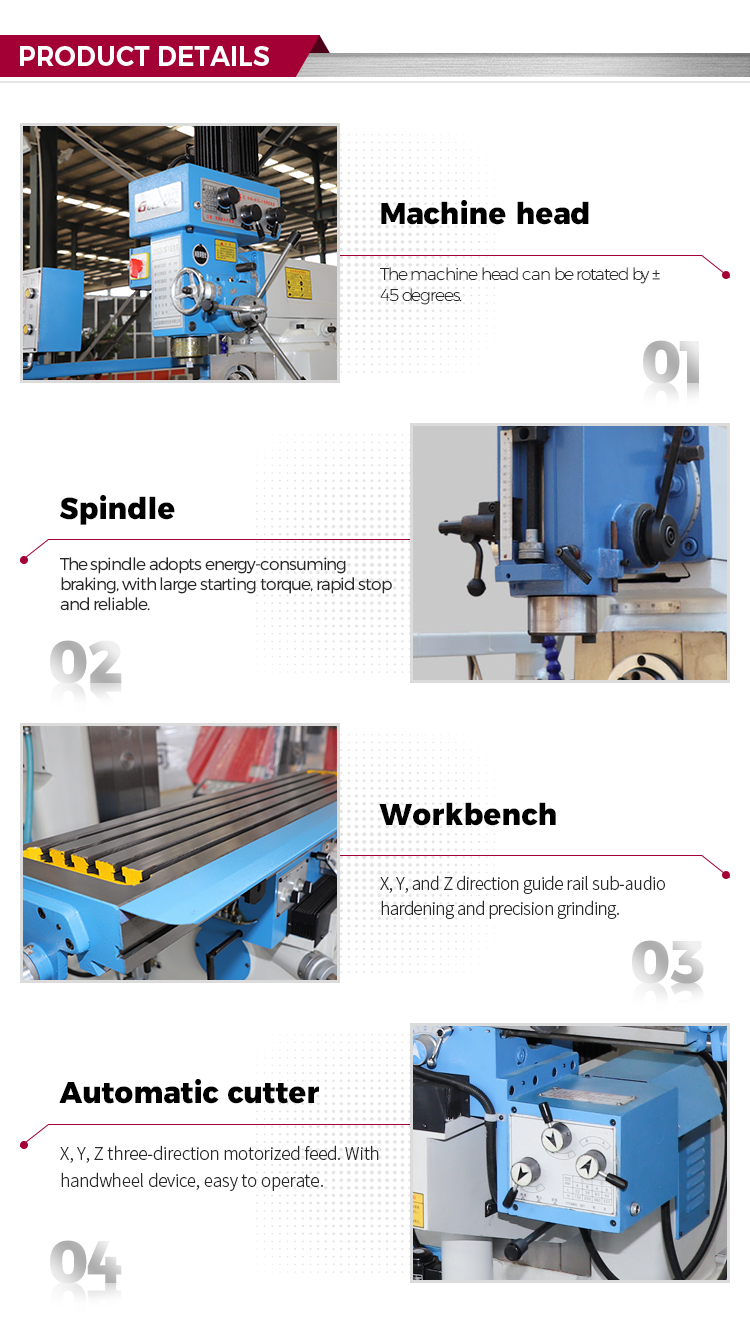

ZX6350 universal milling machine is a square box multifunctional drilling and milling machine. Vertical and horizontal milling is gear transmission, with good torque transmission and high processing efficiency. The machine tool is equipped with a mechanical feeder, which can realize the longitudinal automatic feeding of the worktable, reduce labor intensity, and improve machining accuracy and surface finish. The bed guide rail is hardened and has good wear resistance. The milling head is installed at the front of the sliding arm and can move forward and backward. It can not only rotate 45 degrees left and right in the vertical plane, but also rotate 360 degrees on the bed, which has good processing versatility.

The main technical parameters	unit	ZX6350
Spindle taper		MT4
Distance from spindle end to table	mm	90-390
Distance from horizontal axis to table	mm	0-300
Distance from vertical axis to vertical guide surface of bed	mm	200-500
Spindle speed range	rpm	(8steps)115-1750(V)
Spindle speed range			(12 steps) 40-1300(H)
working desk size	mm	1200×280
table travel	mm	600/300/400
The horizontal distance from the horizontal axis to the cantilever plane	mm	175
Worktable feed rate (X/Y)	mm/min	22-555(8steps)810(fast)
Table speed (Z)	mm/min	560
Number of T slots/width/pitch	mm	3/14/70
main motor power	kilowatt	1.5/2.2(V); 2.2(H)
Table motor feed motor power	W	750
Lifting table feed motor power	W	750
Cooling pump motor power	W	40
weight	Kilogram	1100/1200
Machine size	mm	1400×1500×2250
