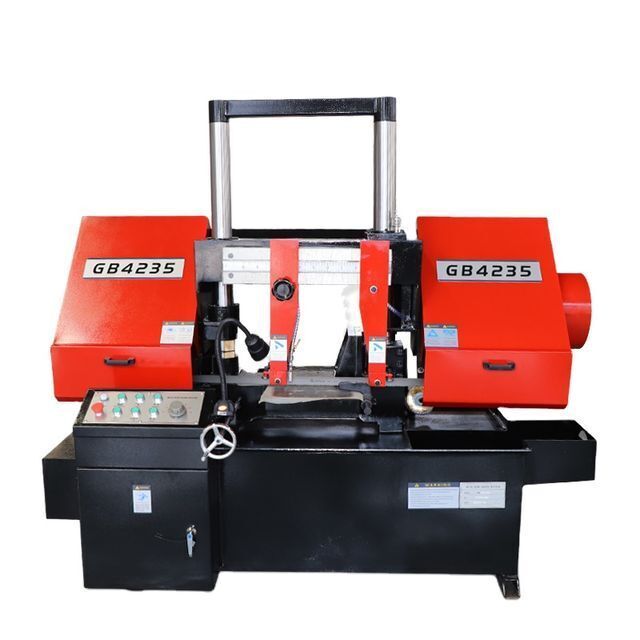

GB4235 Horizontal double column metal band sawing machine

Supplier: Shandong Gold Cnc Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Suyu Meng
Price: $4420.00 / 1 - 4 sets
$4360.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Port:	Optional;
Package Preview:	;	Packaging Detail:	The machines standard packed by plywood wooden box.;
Motor Power (kw):	3;	Dimension(LWH):	200011001700mm;
Saw Blade Speed:	27,45,69m/min;	Condition:	New;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining,Other;	Supply Ability:	100 Sets per Month;
Place of Origin:	Shandong, China;	Showroom Location:	None;
Warranty of core components:	1 Year;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
After Warranty Service:	Video technical support,Online support;	Certification:	ISO9001 CE;
Hydraulic Motor Power (kW):	0.75;	Voltage:	480V 380V 220V Optional;
Video outgoing-inspection:	Provided;	Warranty:	1 Year;
Machine Type:	Band Saw Machine;	Rated Power:	3kw;
Saw Blade Tension Method:	Manual;	Product name:	GB4235 Horizontal double column metal band sawing machine;
Weight (KG):	850;	Cutting Capacity (mm):	350*350;
Working clamping mode:	Hydraulic vice;	Brand Name:	GOLD CNC;
Key Selling Points:	Competitive Price;	Model:	GB4235;
Marketing Type:	New Product 2020;	Blade Speed (m/min):	27/45/69;
Core Components:	Engine,Motor;

Products Description

Gold CNC provides horizontal metal band sawing machine for you.
The structure of the sawing machine is a double column.

The model of ordinary double column series saw machine is divided into: GB4250/4240/4235/4230/4228/4220.

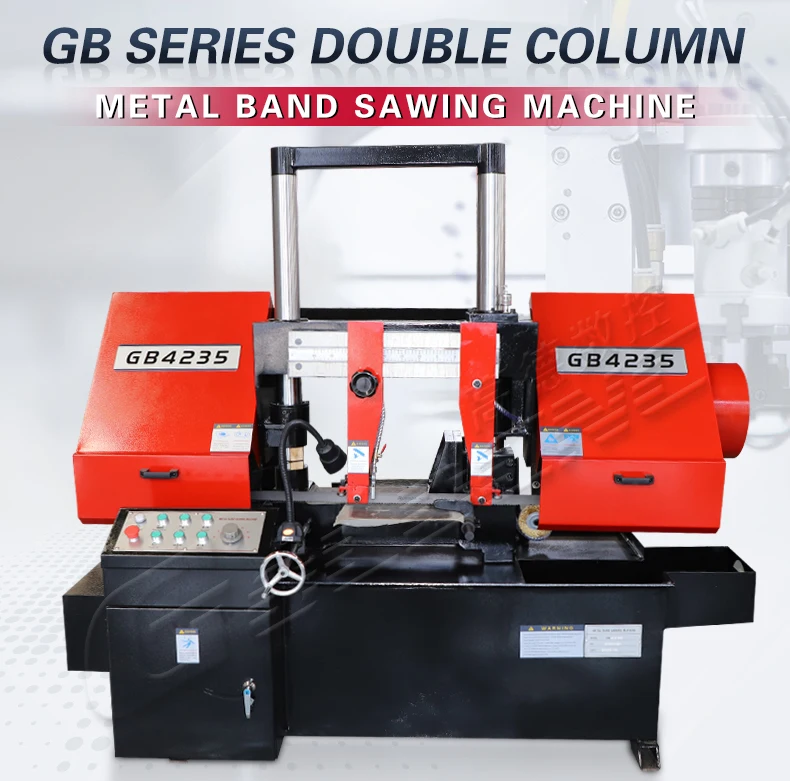

GB series double column sawing machine Main Features:
1) High quality,adopt international standards Stable structure; high rigidity,high durability.
2) Synchronous wheel, Sawing belt synchronous wheel is high quality castings, suitable for high frequency and smooth operation.
3) Double column structure can best ensure operation stability and cutting accuracy.
4) Hydraulic vise,the workpiece is clamped by hydraulic vice and controlled by hydraulic speed control valve. It can also be
adjusted manually.
5) Motor and reducer,the motor and reducer are used for sawing machines to ensure the efficient operation of synchronous wheels.
6) Saw bar tightening device,the saw blade is tightened up (manual, hydraulic pressure can be selected), so that the saw blade and the synchronous wheel are firmly and tightly attached, so as to achieve safe operation at high speed and high frequency.
7) Advanced hydraulic technology,hydraulic clamping,stepless variable frequency speed regulation,runs smoothly.

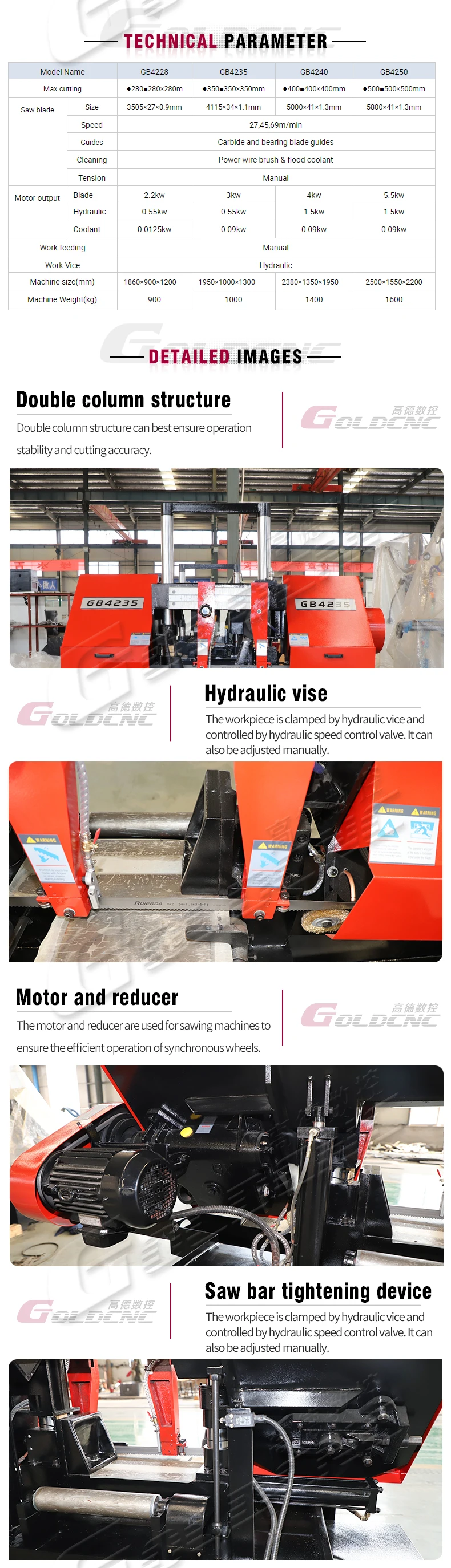

Model Name			GB4228	GB4235	GB4240	GB4250
Max.cutting			●280■280×280mm	●350■350×350mm	●400■400×400mm	●500■500×500mm
Saw blade	Size	3800×27×0.9mm	4115×34×1.1mm	5000×41×1.3mm	5800×41×1.3mm
		Speed	27,45,69m/min
		Guides	Carbide and bearing blade guides
		Cleaning	Power wire brush & flood coolant
		Tension	Manual
Motor output	Blade	3kw	3kw	4kw	5.5kw
		Hydraulic	0.55kw	0.55kw	1.5kw	1.5kw
		Coolant	0.0125kw	0.09kw	0.09kw	0.09kw
Work feeding			Manual
Work Vice			Hydraulic
Machine size(mm)			1860×900×1200	1950×1000×1300	2380×1350×1950	2500×1550×2200
Machine Weight(kg)			900	1000	1400	1600
