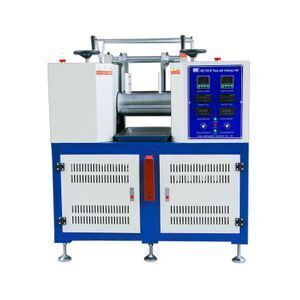

Lab Rubber Two Roll Mixing Mill

Product details
Speed:960r/min;Delivery:in stock and prompt ship;
Function:Lab Rubber Two Roll Mixing Mill;Certification:CE//BV/ISO/ASTM;
Brand Name:LIXIAN;Dimension(L*W*H):1100*700*1200mm;
Warranty:3 years warranty;Supply Ability:50 Set/Sets per Month Lab Rubber Two Roll Mixing Mill is our main product;
Front roll speed:9.8m/min;Roll gap:4 mm;
Motor Power:5.5 KW;Roller speed ratio:1:1.22;
Simply roll diameter:160 mm;Condition:New;
Type:Open Mixing Mill;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Lab Rubber Two Roll Mixing Mill support any payment way;
Packaging Detail:Lab Rubber Two Roll Mixing Mill packaged in wooden case.;Weight:580KG;
After-sales Service Provided:Overseas service center available;Roll surface width:320 mm;
Power(W):5.5KW;Voltage:380V;
A feeding quantity:1~2 kg;Port:ShenZhen;
Place of Origin:Guangdong China (Mainland);



Product Description



Equipment summary:

Open Rubber Mixing Equipment suitable for plastic industry polymer material mixing and processing. Such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.



Technical parameters:

Model

HZ-7015A-5

HZ-7015A-6

HZ-7015A-8

HZ-7015A-10

Roller Diameter

(metric /inch)

120mm/4in

160mm/6in

200mm/8in

250mm/10in

Roller face width

320mm

320mm

620mm

620mm

Mixing capacity

0.3~2kg

0.5~3kg

1~10kg

2~15kg

Picking device

SUS304 Stainless

steel hopper

SUS304 Stainless

steel hopper

SUS304 Stainless

steel hopper

SUS304 Stainless

steel hopper

Roller temperature

RT~300°C

RT~300°C

RT~300°C

RT~300°C

Heating method

electrical heating

electrical heating

electrical heating

electrical heating

Temp Accuracy

±3°C

±3°C

±3°C

±3°C

temperature

controller

PID control

PID control

PID control

PID control

Roller Rev

frequency control

frequency control

frequency control

frequency control

Roller ratio adjusted

according

requirements

1:1.22/1:1.35

1:1.4

1:1.22/1:1.35

1:1.4

1:1.1/1:1.22

1:1.4/1:1.7

1:1.1/1:1.22

1:1.4/1:1.7

Roller hardness

50~60HRC

50~60HRC

50~60HRC

50~60HRC

Roller processing

Mirror polishing chrome plated

Roller spacing

0.1~8mm adjustable

0.1~8mm adjustable

0.1~8mm adjustable

0.1~10mm adjustable

Spacing display mode

Calibration/digital display

Safety device

Collision type emergency stop

Safety device number

7 PCS

7 PCS

7 PCS

7 PCS

Special function

Emergency stop inversion

Motor power

4.5KW

5.5KW

7.5KW

15KW

Power voltage

3§, AC380V

3§, AC380V

3 §, AC380V

3§, AC380V

Dimension

1*1.1*1.4(M)

1*1.1*1.5(M)

1.5*1.2*1.5(M)

1.5*1.3*1.6(M)

Weight

≈2T

≈2.5T

≈3.4T

≈4T



Reference standard:

GB 6038-2006 Rubber ingredients of rubber testing, mixing and Vulcanization equipment and operating procedures.

GBT 13577-1992 Mill for rubber and plastics

HGT 2149-2004 Open rubber mixing machine, plastic mixing mill test methods

JBT 53113-1999 Open plastic mixing mill product quality grading



Technique Feature:

1.The core technology from Taiwan, The main parts adopt the French schneider.
2.The whole floor,easy installation, driving mode is uniaxial output ensure the torsion big,Imported bearings

reduce rubbing force to ensure save electricity, low noise and rubber thickness uniform parallel controllable.

3.Roll adopts the vanadium titanium alloy chilled cast iron,roll hardness(HRC)50-60,surface is hard

wear-resisting, durable. Roller lumen finish machining to ensure that the roller body cooling quickly and evenly.
4.The machine adopts manual adjustment mode, Thickness control precision,easy operation,High safety factor.
5.The machine is equipped with an emergency brake, When emergency accidents,four corners have

emergency switch, a number of brake system, convenient quick stop machine.
6.Transmission device adopts hardened reducer,compact structure,transmission efficiency,little noise.
7.Automatic oiling device to ensure that long-term oil for driving part,Make up the pump forget supply damage

to part of serious consequences.
