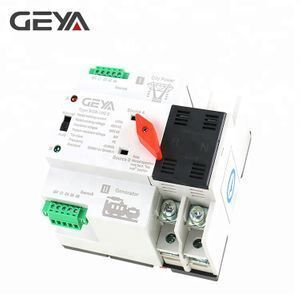

GEYA W2R Mini ATS 2P Automatic Transfer Switch Electrical Selector Switches Dual Power Switch Din Rail Type ATS 63A 100A

Supplier: Zhejiang Geya Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cassie Zhang
Price: $23.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE ISO;	Place of Origin:	Zhejiang China (Mainland);
Packaging Detail:	ATS Automatic Transfer Switch is General sea worthy Package, export standard carton box.;	Brand Name:	GEYA OEM ODM;
Insulation Voltage:	AC 690V;	Model Number:	W2R-2P;
Port:	Wenzhou Ningbo Shanghai;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Max. Current:	100A;	Pole:	2P/3P/4P;
Rated frequency:	50/60Hz;	Product name:	Dual Power Automatic Transfer Switch ATS;
Rated Voltage:	AC 400V;	Supply Ability:	50000 Piece/Pieces per Month ATS Automatic Transfer Switch Manufacturer;
Max. Voltage:	400V;	MOQ:	1 PCS;
Guarantee:	2years;	Rated current in:	16A 20A 25A 32A 40A 50A 63A 100A;

GEYA W2R Mini ATS 2P Automatic Transfer Switch Electrical Selector Switches Dual Power Switch Din Rail Type ATS 63A 100A

Banner

Product Description

General

W2R-100 series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

W2R-100 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.

Technical Data

ITEM NO.	W2R-ATS
Rated current Ie(A)	16A, 20A, 25A, 32A, 40A, 50A, 63A,100A

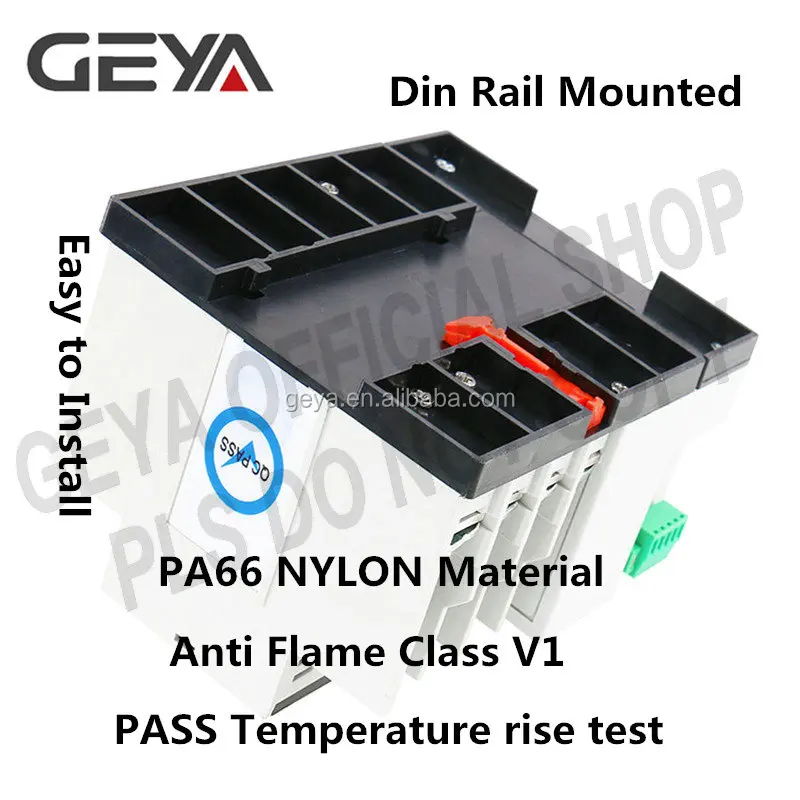

Installation	Din rail
Rated insulation voltage Ui (V)	AC690, 50HZ
Rated working voltage Ue (V)	AC400, 50HZ
Rated impulse withstand voltage (KV )	8KV

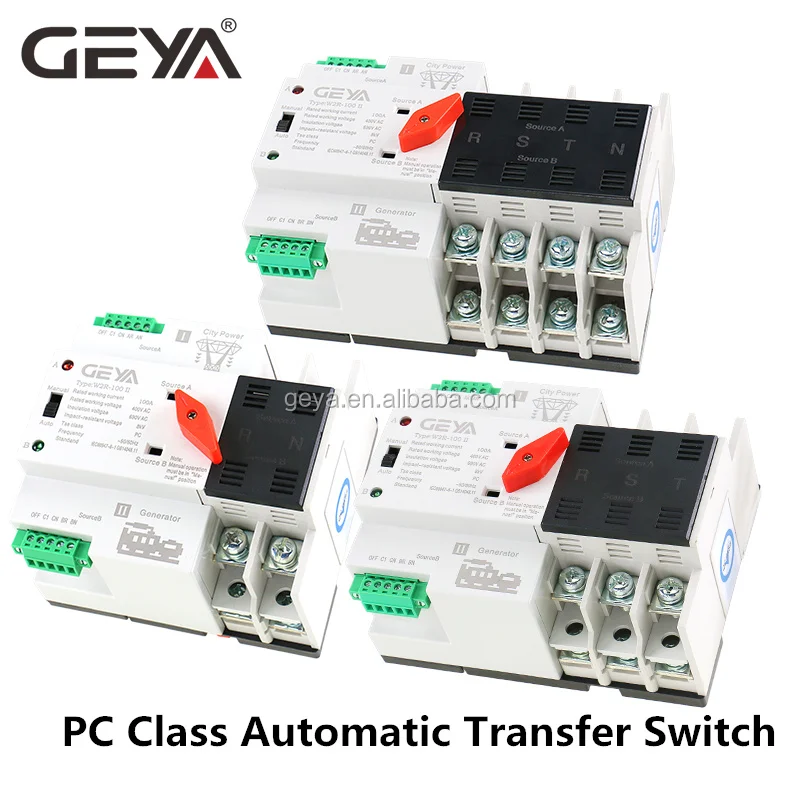

Poles	2P 3P 4P
Weight (KG)	1.7 2.1 2.6
Connecting and breaking	6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance	2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq	50KA
SCPD (FUSES )	RT16-00-63A
Control circuit	Rated supply voltage Us: AC220V, 50HZ. Working condition:85% Us~110% Us
Ancillary circuit	Two isolated relays, each relay with 2 groups of passive switch contact. Contact capacity: AC220 50Hz, Ie=5A
Switching time	<50ms
Action time	<50ms
