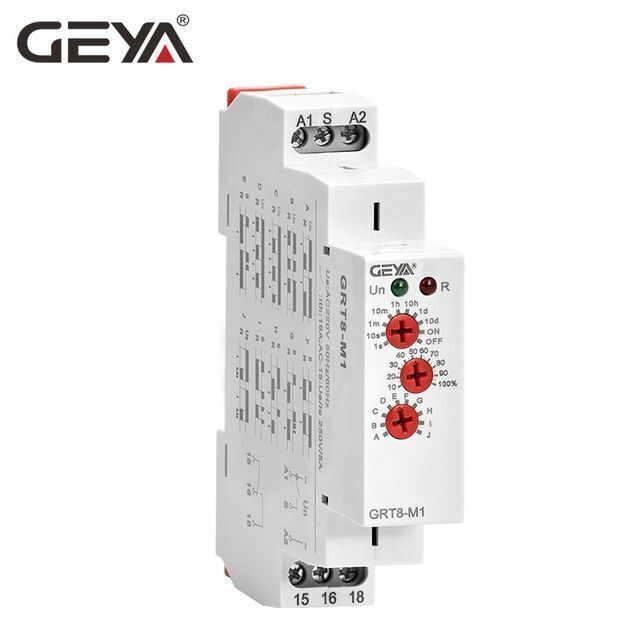

GEYA GRT8-M1 16A AC230V or AC/DC 12-240V hot sale Multi-function Modular Time Relay

Supplier: Zhejiang Geya Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cassie Zhang
Price: $15.00 / 50 - 199 pieces
$14.50 / 200 - 499 pieces
$14.00 / 500 - 999 pieces
$13.50 / >=1000 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Size:	Miniature;	Single package size:	12X10X5 cm;
Contact Load:	Low Power;	Theory:	Time Relay;
Selling Units:	Single item;	Output:	1SPDT OR 2SPDT;
Place of Origin:	Zhejiang, China;	Package Preview:	;
Current:	16A;	Voltage Range:	AC/DC12-240V, AC230V;
Certifications:	CE CB;	Single gross weight:	0.300 KG;
Time Range:	0.1s-10days ON OFF;	Protect Feature:	Sealed;
Usage:	PROTECTIVE;	Warranty/guarantee:	18months;
MOQ:	1PCS;	Frequency:	50/60HZ;
Model Number:	GRT8-M1Timer relay;	Packaging Detail:	Timer relay is standard seaworthy package,1pcs individual box, 10pcs in a middle box, 20boxes per carton. Base quotation is blank package. OEM design is acceptable.;
Brand Name:	GEYA OEM ODM;	Supply Terminal:	A1-A2;
Weight/pcs:	0.1KG/PCS;

Relay Series

**This link is special for GRT8-M1 AC/DC12V-240V, if you need other specification, please kindly tell us!

Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions,10 time ranges, multi-voltage).

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT or 2SPDT
-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off
- 1-MODULE 18mm, DIN rail mounting, convenient install.

GRT8-M	Multifunction Time Relay Selection
*Please leave a message which specification needed?*
1SPDT 16A/AC1	GRT8-M1 AC230V
1SPDT 16A/AC1		GRT8-M1 AC/DC12-240V
2SPDT 16A/AC1	GRT8-M2 AC230V
2SPDT 16A/AC1		GRT8-M2 AC/DC12-240V

If you want to know more technical information or price, please kindly contact us freely!
