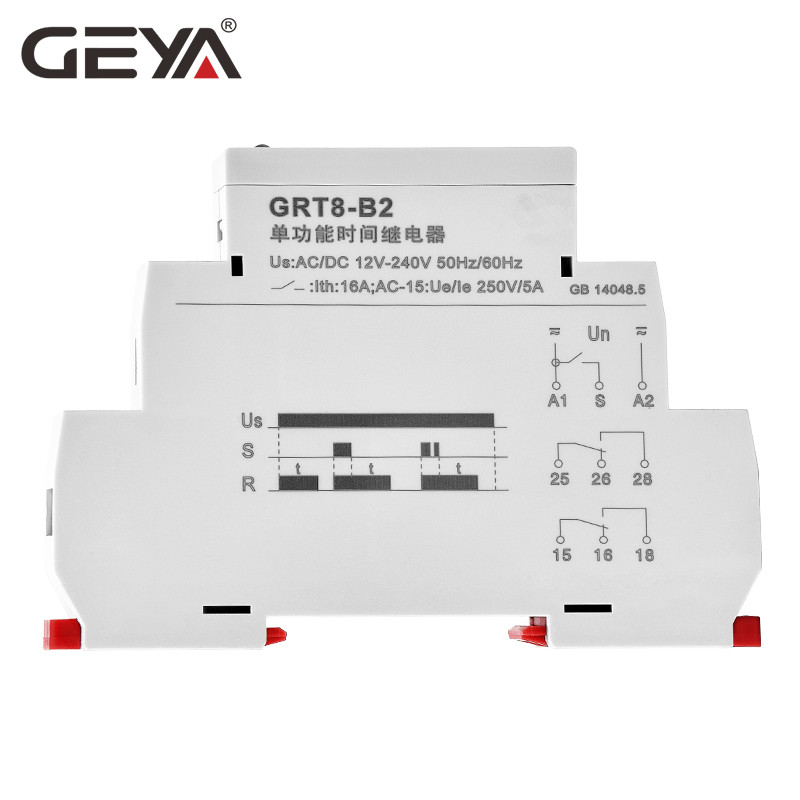

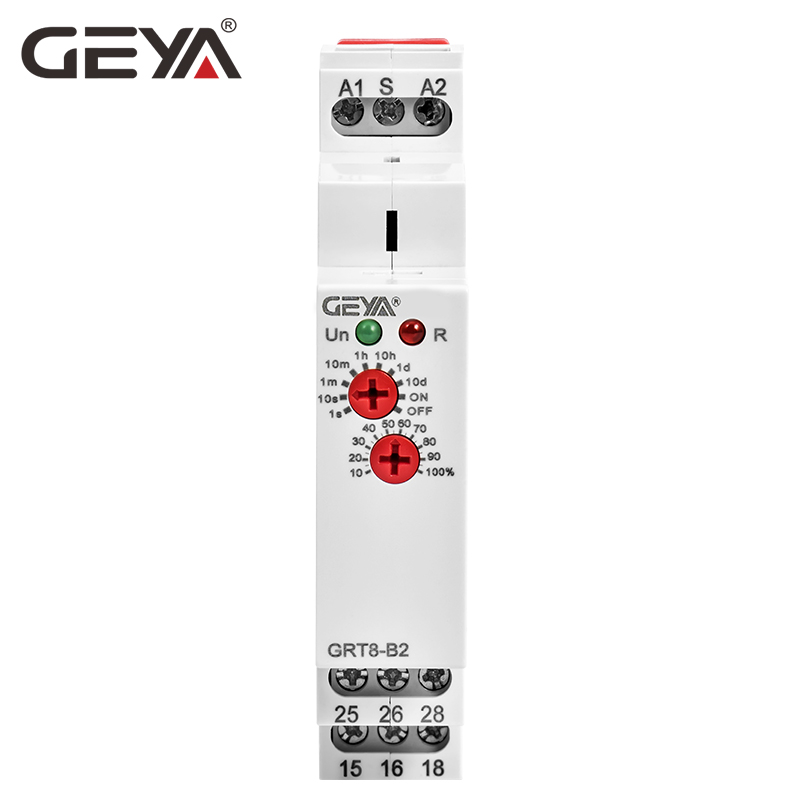

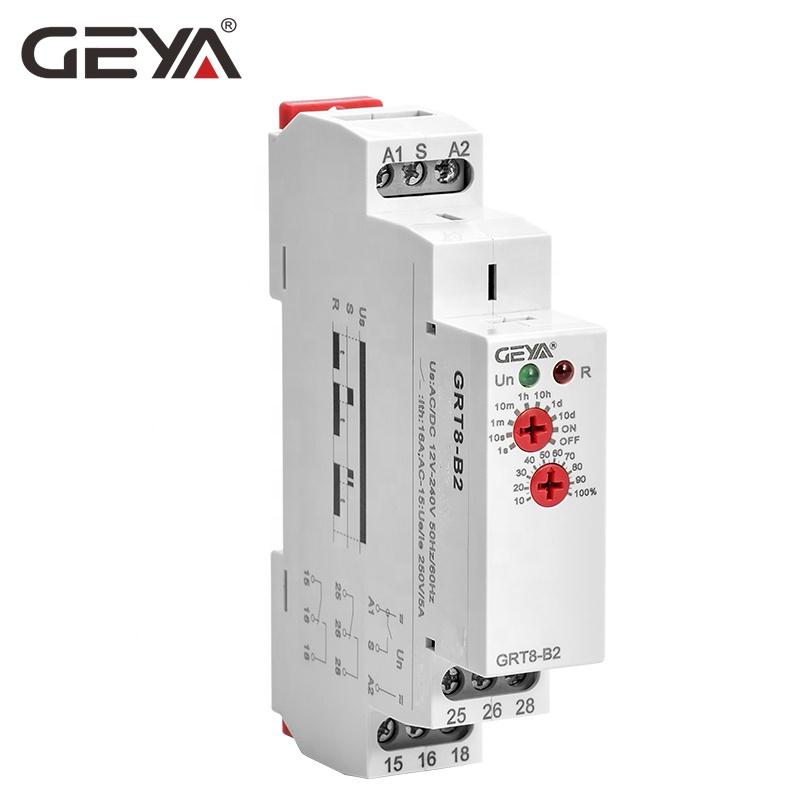

GEYA GRT8-B2 Relay timer Relay with electronic timer Relay timer with relay with one function with one function

  • Supplier: Zhejiang Geya Electrical Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Cassie Zhang
  • Price: $10.98 / 50 - 199 pieces
    $10.20 / 200 - 499 pieces
    $9.52 / 500 - 999 pieces
    $8.40 / >=1000 pieces
  • Min. Order: 50 pieces
Product details
Packaging Preview:Weight/pc:0.1KG/PCS
model:GRT8-B2-AC/DC12V~240Vbrand:Geya OEM ODM
time limit:0.1s-10h (6 alternates)Single package size:12X10X5 cm
Protective function:sealPackaging Details:Timer relays are standard shipping packaging, 1 individual box, 10 medium boxes, 20 boxes per case. Basic offer is blank packaging. OEM designs are acceptable.
Supply terminal:1SPDT or 2SPDTvoltage range:AC/DC12-240V
Contact load:low powerGross weight per piece:0.150kg
product name:Single function time relayCertification:Certification
usage:protectedSales unit:single product
Warranty/Guarantee:18 monthsplace of origin; place of origin:Zhejiang, China
theory:Time Relay2 functions:Delay On Delay Off Time Relay
frequency:50/60HZsize:miniature
Relay series
**This link is dedicated to GRT8-B2 AC/DC12V-240V model, if you need other specifications, please contact us!

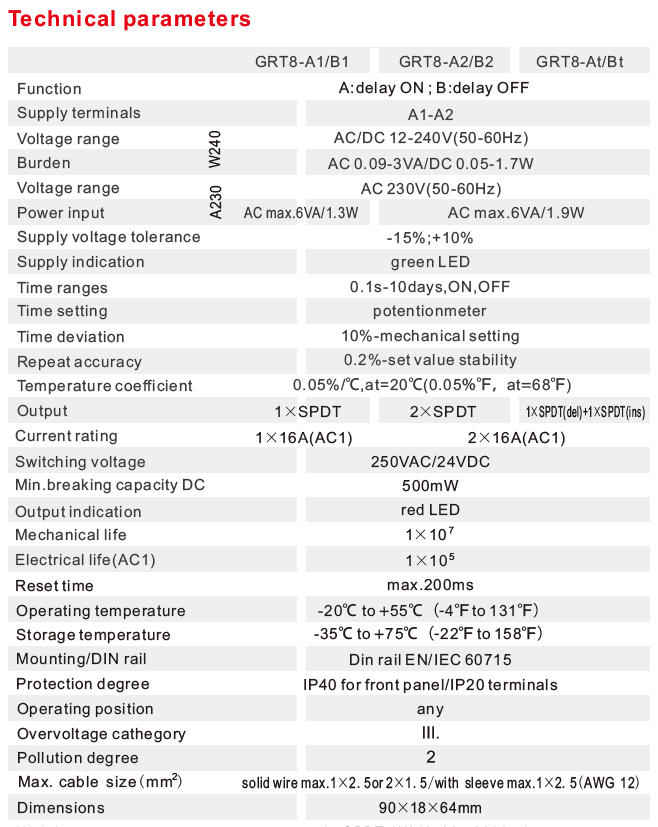

GRT8-A/B single function time relayFor applications with known functional and timing requirements. - As a time switch, it can be used to turn off heating, pump decay time after fan switching.

- GRT8-A time delay function time relay
- GRT8-At Delay on with Instananeous Contact
- GRT8-B Time Relay for Delay Off Function
- GRT8-Bt delayed closing and momentary contact

- Support a wide range of voltage: AC/DC12-240V or AC230V

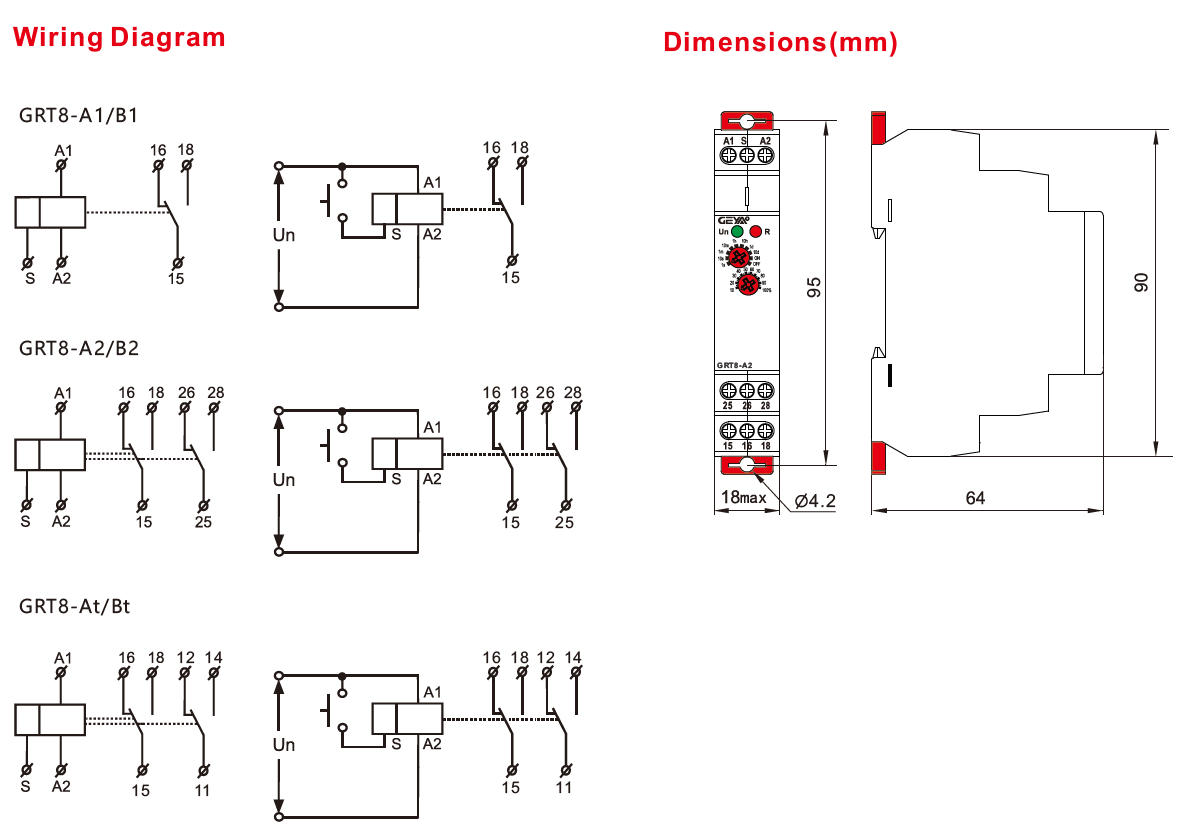

- Output contact: 1SPDT or 2SPDT or 1SPDT(del)&1SPDT(ins)

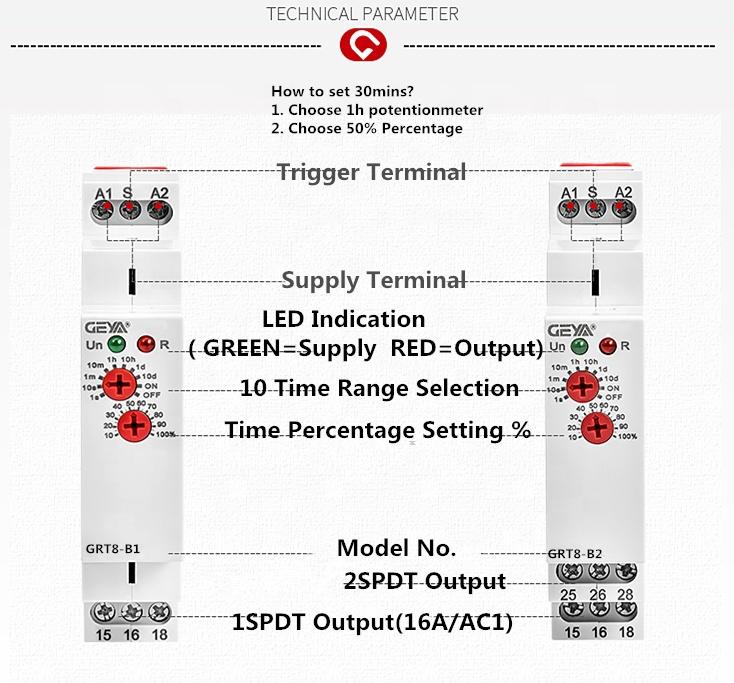

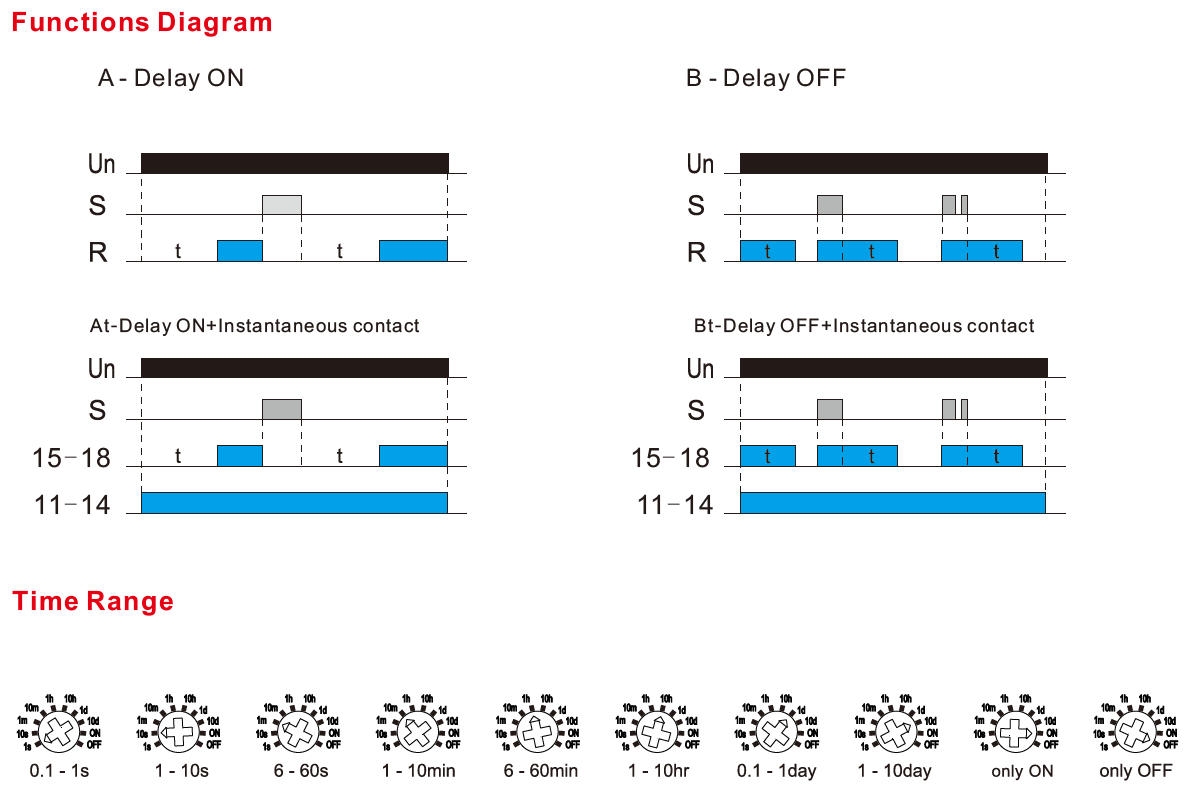

- Time scale 0.1 s - 10 days divided into 10 ranges, time set by potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only on, only off
- Relay status is indicated by LED.

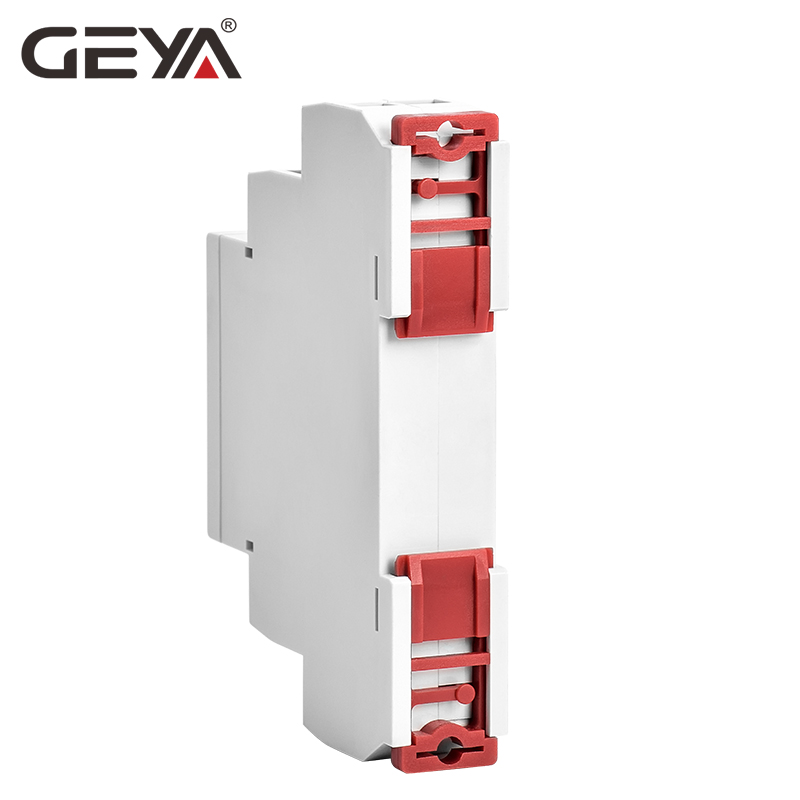

-1 MODULE 18mm, DIN rail mount.
GRT8-B
Delay off time relay selection
Please leave a message what specifications do you need?

1 SPDT 16A/AC1

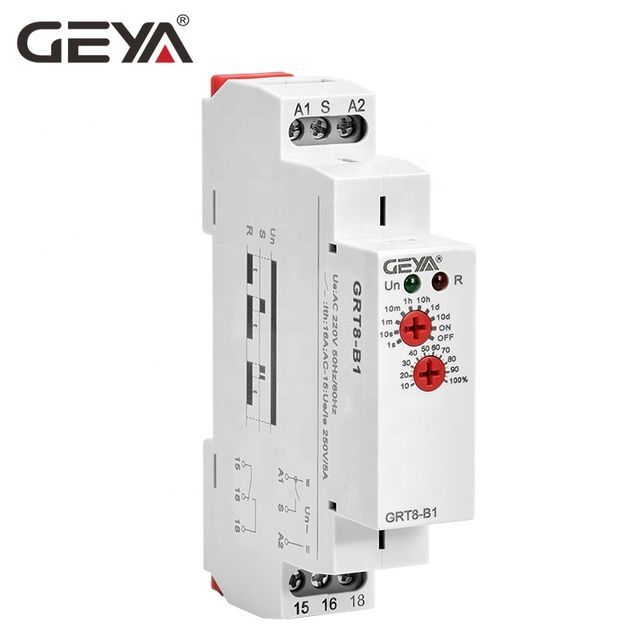

GRT8-B1 AC230V
GRT8-B1 AC/DC12-240V

2 SPDT 16A/AC1
GRT8-B2 AC230V
GRT8-B2 AC/DC12-240V
1SPDT (del) &
1SPDT (inch)
GRT8-Bt AC230V
GRT8-Bt AC/DC12-240V
If you want to know more technical information or price, please feel free to contact us!
