| Brand Name: | SKG / OEM; | Installation: | faceplate or build-in; |
| Supply Ability: | 1000 Pieces per Month; | Protect Feature: | Sealed; |
| Model Number: | TH100; | Package Preview: | ; |
| Timer type: | IC timer; | Place of Origin: | Guangdong, China; |
| Feature: | Time Display; | Color: | Black; |
| Theory: | Time Relay; | Port: | Shenzhen Zhongshan; |
| Certification: | CE; | Style: | timer relay for sale; |
| Contact Load: | High Power; | Packaging Detail: | 48*48 size, packing 7*5*12cm paper box per unit, 108 PCS in one Carton;; |
| Payment Terms: | Western Union,T/T; | Usage: | AUTO; |
| Perforate dimension: | 45*45mm; | Display units: | 2 LED digital indicator; |
| Size: | Miniature; | External dimension: | 48*48*73mm; |
| Product name: | TH100; |

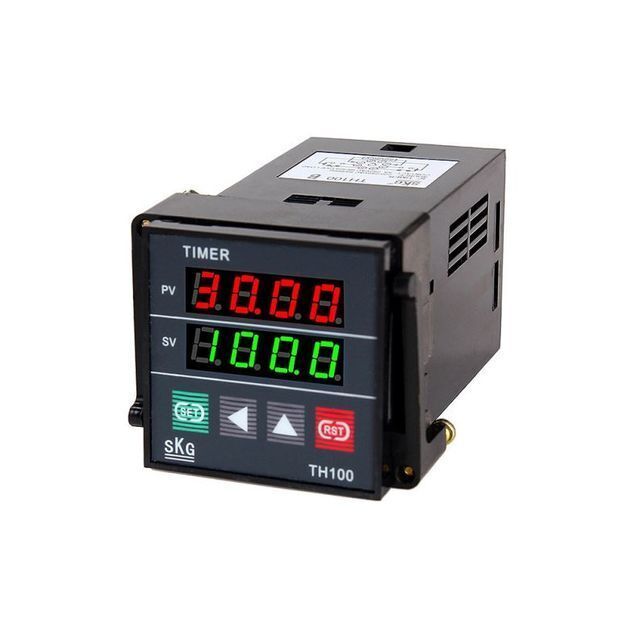

Model | Th100 |
External size | 48* 48* 73mm |
Cut out size | 45* 45mm |
Power supply | 220VAC |
Custom | 110VAC 380VAC 12VAC 24VAC 12VDC 24VDC |
Time setting range | 0. 1- 9999/ s/ m/ h |
Contact capacity | 220VAC/3A 28VDC/5A (resistive). |
Operating environment | temperature -10~+60°C, humidity 0-85%RH |
