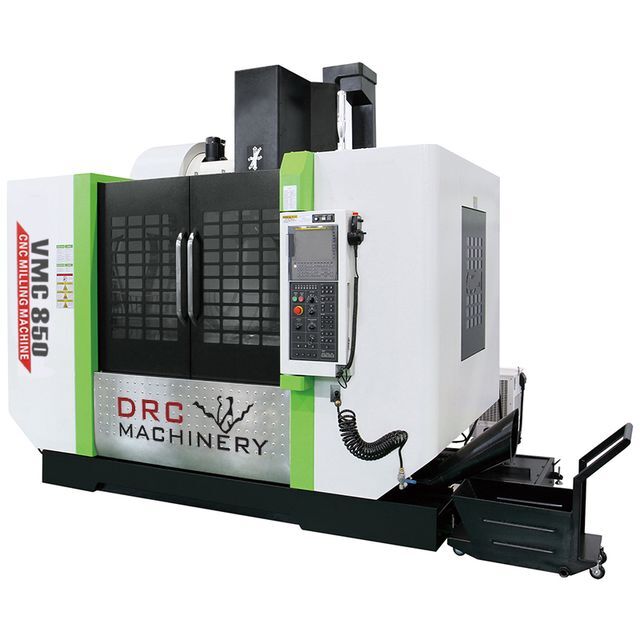

CNC 5 axis VMC 850 Taiwan Vertical machining center VMC850 Vertical CNC grinding machine

Supplier: Dalian R&C Machinery Co., Ltd.
Region: Liaoning, China
Contact: Ms Alice Liu
Price: $23500.00 / 1 - 2 sets
$22500.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Mechanical repair shops, manufacturing plants, construction engineering, energy and mining, mold making, mold production and processing, metal processing and manufacturing	Packaging Details:	Hyward Packaging VMC850 Machining Center
Packaging Preview:		Mechanical test report:	if
Tool magazine capacity:	twenty four	Random technical file:	Three-ball linear guide
Spindle motor power (kW):	7.5	Positioning accuracy (mm):	±0.008
Number of axes:	3,4,5	Machine Tool Lighting Work Lights:	Bt40-140-10000rpm belt spindle
Supply capacity:	50 sets/month 5-axis CNC milling center	Chip Fluid System:	Spindle taper: BT40
Marketing Type:	Hot Products of 2021	place of origin; place of origin:	Liaoning, China
Showroom location:	Canada, Turkey, Italy, France, Bangladesh, South Africa, Uzbekistan	Warranty:	1.5 years
Base spacers and adjusting bolts:	RS232 interface	Feed rate (mm/min):	1 - 3600 mm/min
Table travel (Y) (mm):	500 mm	CNC control system:	Siemens
Siemens808D CNC system:	VMC850 machining center	Table size (mm):	1000*550mm
Number of spindles:	single	Servo Transformer:	Separate handwheel
Spindle taper:	BT40	Table stroke (X) (mm):	850 mm
Spindle speed range (rpm):	1 - 8000 rpm	port:	Dalian
Main selling point:	high accuracy	CNC milling machine:	cheap 3 axis cnc vertical machining center vmc machine price for sale
Repeatability (X/Y/Z) (mm):	±0.005	minute. Tool change time:	2
brand:	Democratic Republic of Congo	Rapid feed rate (m/min):	1-12m/min
Metal Parts Machining Center:	Three-axis precision ground ball screw	Video external inspection:	if
Weight (tons):	5.3 tons	Dimensions (LWH):	280023602450mm
Voltage:	220/380V	maximum. Table load (kg):	700 kg
Spindle purifies air:	Centralized automatic feeding lubrication system	Core Components Warranty:	1.5 years
10.4" shows:	Three-color warning light	Core components:	motor
payment terms:	letter of credit, wire transfer	Table travel (Z) (mm):	500 mm
Health status:	new	type:	vertical

Product Description

4 axis 5 axis metal CNC milling machine metal

VMC Machine Center Features:High-quality resin sand Taiwan spindle Taiwan ball screw and lock nut Taiwan pressure cylinder Taiwan linear guide Japan NSK bearing Germany R+W coupling Automatic lubrication system Chip conveyor optionalMachine Center Application:This VMC is suitable for machining and mold making. It can adapt to machining requirements from roughing to finishing. It can also complete many operations such as milling, drilling, tapping, and boring.

Model	VMC850 (GSK25i system)	VMC 1050 (GSK25i system)
Three-axis travel parameters
X/Y/Z axis travel	800/500/500mm	1050/500/500mm
Spindle nose to table surface	120-620mm	120-620mm
X/Y/Z axis AC servo motor	Torque Nm 15/15/22	Torque Nm 15/15/22
Spindle center to column surface	550mm	550mm
worksheet
table size	1000×550mm	1000×550mm
maximum load	600kg	600kg
T lens	5×18×90mm	5×18×90mm
Feed parameters
Rapid traverse of X/Y/Z axis	24/24/20 m/min	20/20/18 m/min
cutting feed	1-10m/min	1-10m/min
Spindle parameters
Spindle connection	belt	belt
Spindle taper	BT40-140	BT40-150
Spindle speed range	8000 rpm	8000 rpm
Spindle motor	7.5kW	7.5kW
ATC parameters
Air Traffic Control Capability	24	24
Maximum tool diameter	Φ80/Φ150mm	Φ80/Φ150mm
Maximum tool weight	8kg	8kg
accurate
Position accuracy (JIS standard)	±0.008/300mm	±0.008/300mm
Repeat positioning accuracy (JIS standard)	±0.005mm	±0.005mm
shape and weight

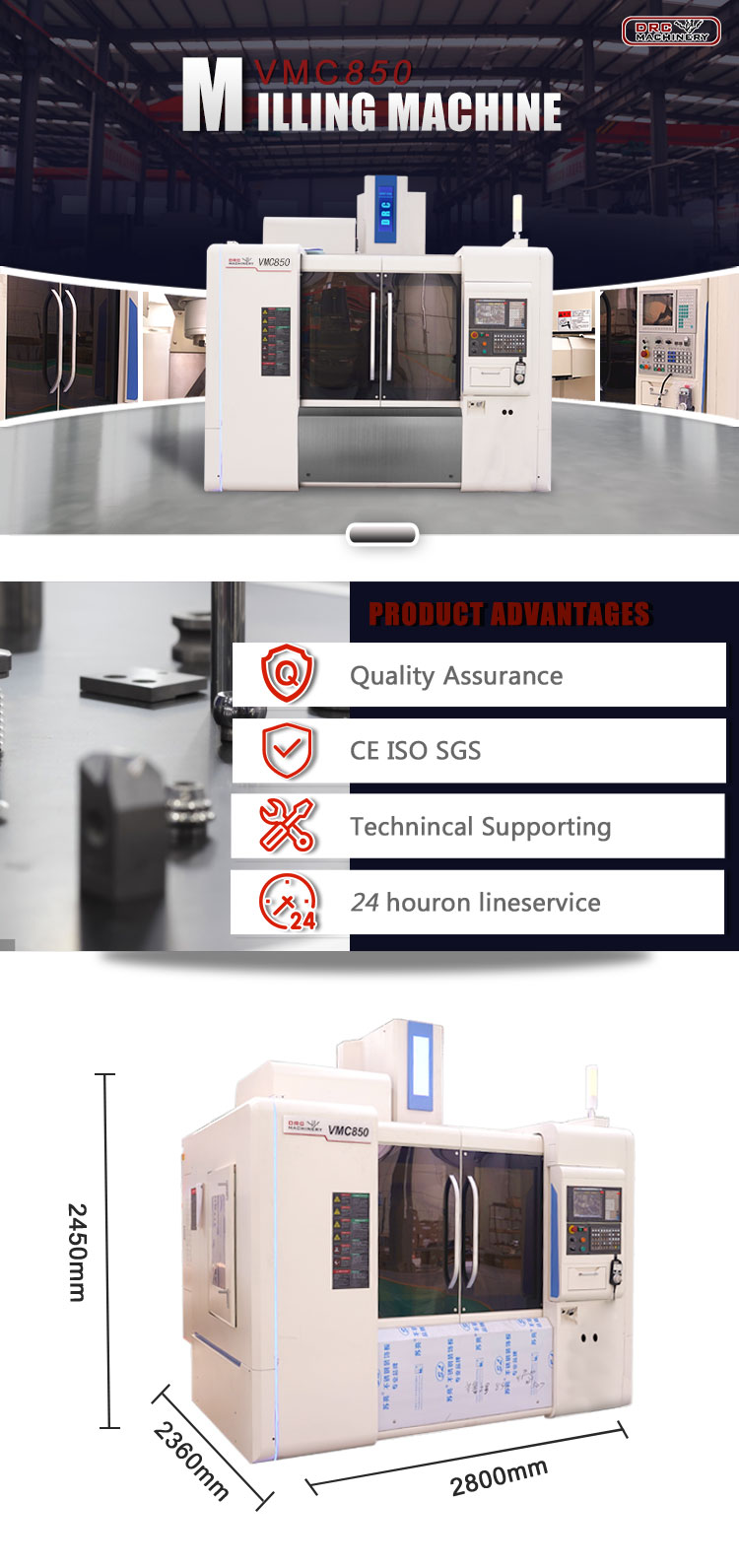

aspect	2750×2300×2300mm	2800×2360×2450mm
weight	5200kg	5600kg
