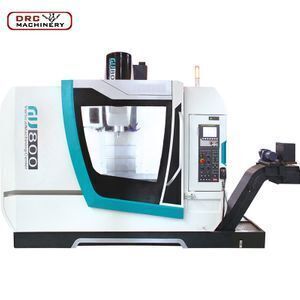

MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices
-
Supplier: Dalian R&C Machinery Co., Ltd. -
Region: Liaoning, China -
Contact: Ms Alice Liu -
Price: $2500.00 /set -
Min. Order: 1 set
| Repeatability (X/Y/Z) (mm): | 0.002; | Port: | Dalian; |
| Payment Terms: | L/C,T/T; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom,France,Germany,Viet Nam,Saudi Arabia,Indonesia,Pakistan,Russia,Thailand,Malaysia,Australia,Kenya,Argentina,South Korea,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; |
| CNC system: | FANUC-0i MF; | Range of Spindle Speed(r.p.m): | 8000 - 10000; |
| Max. Table Load(kg): | 700 kg; | Spindle Speed: | 8000rpm; |
| CNC Control System: | FANUC; | Table Travel (X) (mm): | 800 mm; |
| Dimension(L*W*H): | 3250X2700X2700; | Place of Origin: | Liaoning China; |
| No. of Spindles: | Single; | Number of Axes: | 3; |
| CNC or Not: | CNC; | Maximun load of table: | 700kg; |
| Packaging Detail: | Sea worthy packing MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices; | Name: | MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices; |
| Spindle Taper: | BT40; | Key Selling Points: | High-accuracy; |
| Table Travel (Y) (mm): | 550 mm; | Table Travel (mm): | 1050/520; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Certification: | ISO CE; |
| Voltage: | 380V; | Machine Name: | Vertical Machining Center; |
| Type: | Vertical; | Supply Ability: | 25 Set/Sets per Month MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices; |
| Machine Type: | Mini Metal CNC Milling Machine; | Year: | 2017; |
| Condition: | New; | Brand Name: | R&C; |
| Machining Capacity: | Medium Duty; | Spindle Motor Power(kW): | 11/15; |
| Product name: | cnc milling machine 4 axis; | Precision: | High Precision Milling Machine; |
| Warranty: | 1 YEAR; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom,France,Germany,Viet Nam,Saudi Arabia,Indonesia,Pakistan,Russia,Thailand,Kenya,Argentina,South Korea,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia; |
| Weight (KG): | 5200; | Table Travel (Z) (mm): | 600 mm; |
| Applicable Industries: | Manufacturing Plant,Construction works ,Energy & Mining; | X/Y/Z axis travel: | 800/550/600 mm; |
| Model Number: | MV cnc milling machine; | Positioning Accuracy (mm): | 0.001; |
MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices
What Is The Specifications Of MV series Vertical Machining Center?
Machine Type | MV800 ( Box rail ) | MVL800 ( Linear rail ) | Unit |
Worktable ( L x W ) | 1050 x 520 | 1050 x520 | mm |
Maximun load of table | 700 | 700 | kg |
T-slot | 5-18 x 80 | 5-18 x 80 | mm |
Axis travel | |||
X/Y/Z axis travel | 800/550/600 | 800/550/600 | mm |
Distance from spindle nose to workbench | 150-750 | 150-750 | mm |
Distance from spindle center to column guide | 520 | 620 | mm |
Feed system | |||
CNC system | FANUC-0i MF | FANUC-0i MF | |
Rapid shift of X/Y/Z axis | 16 | 30/30/20 | m/min |
Cutting feed speed | 7 | 12 | m/min |
Automatic tool transform system | |||
Standard tool quantity | Armless 20/ Arm 24 | Arm 24 | T |
Tool length and diameter | Φ80/300 | Φ80/300 | mm |
Tool exchanging manner | Pneumatic | Pneumatic | |
Tool exchanging time | Armless 5s/ Arm 2.5s | Arm 2.5s | sec |
Precision | |||
Positioning accuracy | 0.008 | 0.008 | mm |
Repeated accuracy | 0.005 | 0.005 | mm |
Spindle system | |||
Spindle speed | 8000 | 8000 | r.p.m |
Spindle specifications | BT40/Φ150 | BT40/Φ150 | |
Spindle drive manner | Belt | Belt | |
Spindle motor power | 11/15 | 11/15 | kw |
Air pressure | |||
Air demand | ≥6 | ≥6 | kg/cm² |
Air pressure flux | ≥0.3 | ≥0.3 | m³/min |
Machine specifications | |||
Integrated weight | 5200 | 5000 | kg |
Overall dimension | 2700 x 2300 x 2600 | 2700 x 2300 x 2600 | mm |
What Is DRC's MV series Vertical Machining Center?
MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices
MV series is line rail series, vertical machining center.Mainly used in medium-sized parts and molds, the workpiece in fixture maybe for the completion of milling, drilling, boring, it can be single used and can also be used for multiple operations on parts in a production line, Cutting with powerful, high-speed positioning mechanical and electrical integration, automatic Chip control and security protection feature.
What Is The Application Field of MV series Vertical Machining Center?
( More Detailed Picture of MV series Machining Center )
Strong spindle, ensure perfect processing
The gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.By enlarging thickness and diameter of spindle ends and flanges, the spindle with roller bearing not only strengthens all factors related to spindle system, but also improves cutting performance via clamping force of powerful tools.
Win in power
Optional spindle:
BT40:8000/10000r/min Belt-drive 12000/15000r/min Direct-drive
BT50:6000r/min Belt-drive
What Is The Details Of MV series Vertical Machining Center?
1.Design of machine tool ensures high rigidity of machine body
2.With patent technology, the pedestal and water pan are cast into a whole, and water retaining steps are designed at the junction with metal plates to eradiate possibility of water seepage and leakage.
3.Block saddle motor, overall type, to improve the transmission rigidity.
4.The surface of the guide rail were treated by high frequency quenching process, the hardness can reach HRC50±5.
5.Design of large-span herringbone columns guarantees strong rigidity of columns.
6.Optimal extension ratio of spindle box realizes the optimal machining rigidity.
MV800 Mini Metal CNC Milling Machine 4 Axis 5 Axis Prices
Send Inquiry Here to Get a Free Work-piece Sample!
Related Products
What Is The Historical Order Of DRC?
Below are some orders , click the photo to get more information.
Send Inquiry Here to Get a Free Work-piece Sample!
Who Is DRC?
DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
Lathe
CNC Lathe
Conventional Lathe,
Vertical Lathe
Machining Center
Machine Accessories
Planer & Slotting Machines
Wheel Repair Lathe Machine
Boring and Milling Machine
CNC Milling Machine
Laser Cutting Machine
Dental Milling Machine
Glass Tempering Furnace
Special Machine for Pipe Threading Lathe ,Valve Milling, End Facing Machine and so on
Send Inquiry Here to Get a Free Work-piece Sample!
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
3.When is the delivery time?
We will delivery it within 90 days after received your payments
4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
6.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).
If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.
Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us.
Our company has US $128000' trade assurance limit, it can guarantee your interests.
7.Do your products support trade assurance?
Yes, our products are all supported.
