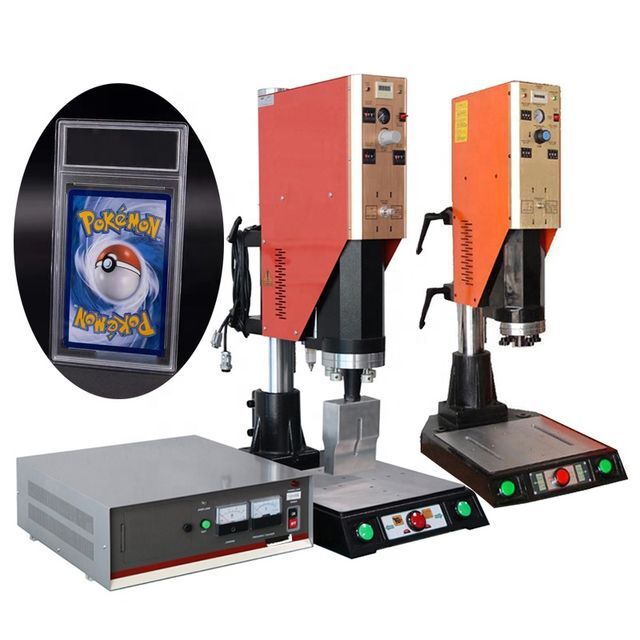

PSA grading card plastic plate sealing 15khz/28khz/35khz ultrasonic welding machine ultrasonic card welding machine

Supplier: Beijing Quanxin Ultrasonic Co., Ltd.
Region: Beijing, China
Contact: Ms Nancy Zhao
Price: $1500.00 / 1 - 9 pieces
$1200.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Marketing Type:	New Products 2021	Health status:	new
application:	Ultrasonic mask welding sensor	aspect:	6504001180mm
Video external inspection:	if	Power (kW):	15K 28K and 35K
Welding area:	220	product name:	Ultrasonic Plastic Welder Spot Welder
brand:	QXULTRASONIC	Main selling point:	Good material and long life
Gross weight per piece:	60.000 kg	air pressure:	0.1-0.7Mpa
place of origin; place of origin:	Beijing China	Sales unit:	single product
Output Power:	2600W	Welding head stroke:	75mm
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company	After-sales service provided:	Video technical support
Warranty:	1 year	Voltage:	AC198V-242V 50Hz/60Hz
Mechanical test report:	if	Welding time:	0.01-9.99 seconds
Weight (kg):	110kg	frequency:	15khz, 15K
Welding area:	adjustable	Input voltage:	220VAC
usage:	Non-woven surface welding	Single package size:	55X55X55 cm
Machine size:	6504001180

product description

Product performance and features:

PSA grading card boardplastic UltrasoundWelding machine, on/off pulse timer, precise power adjustment to ensure high welding, the equipment can work intermittently or run without load to meet different welding needs. Flat/n95 latest machine head design, small and beautiful, good sight line, new ultrasonic generator electric box design, intelligent protection, stable performance, reliable equipment, long service life

application:

Plastic welding, non-woven welding,metal welding,and many more.

feature

1):Self-excited circuit is adopted to track the changes of transducer parameters during operation, and maximize the performance of transducer and cutter head;
2):Imported high-power tube, resistant to high current impact, increases the working stability of the ultrasonic generator.
3):Using digital frequency display, the frequency can be fine-tuned, and the working frequency of the generator can be accurately observed.
4):It is easy to operate and can be applied to transducers and molds of different specifications.
Weld various materials

Product Specifications:

model:

QXSU-15

frequency:15KPower: 2600W

Operating Voltage:AC220V/50Hz

Frequency Range:

18.5 - 21.5 Hz

model:QXSU-20

Frequency: 20K

Power: 2000W
Working voltage: AC220V/50Hz
Frequency Range:

23.5 - 26.5 Hz

model:QXSU-28

Frequency: 28K

Power: 300W
Working voltage: AC220V/50Hz
Frequency Range:

26.5 - 29.5 Hz

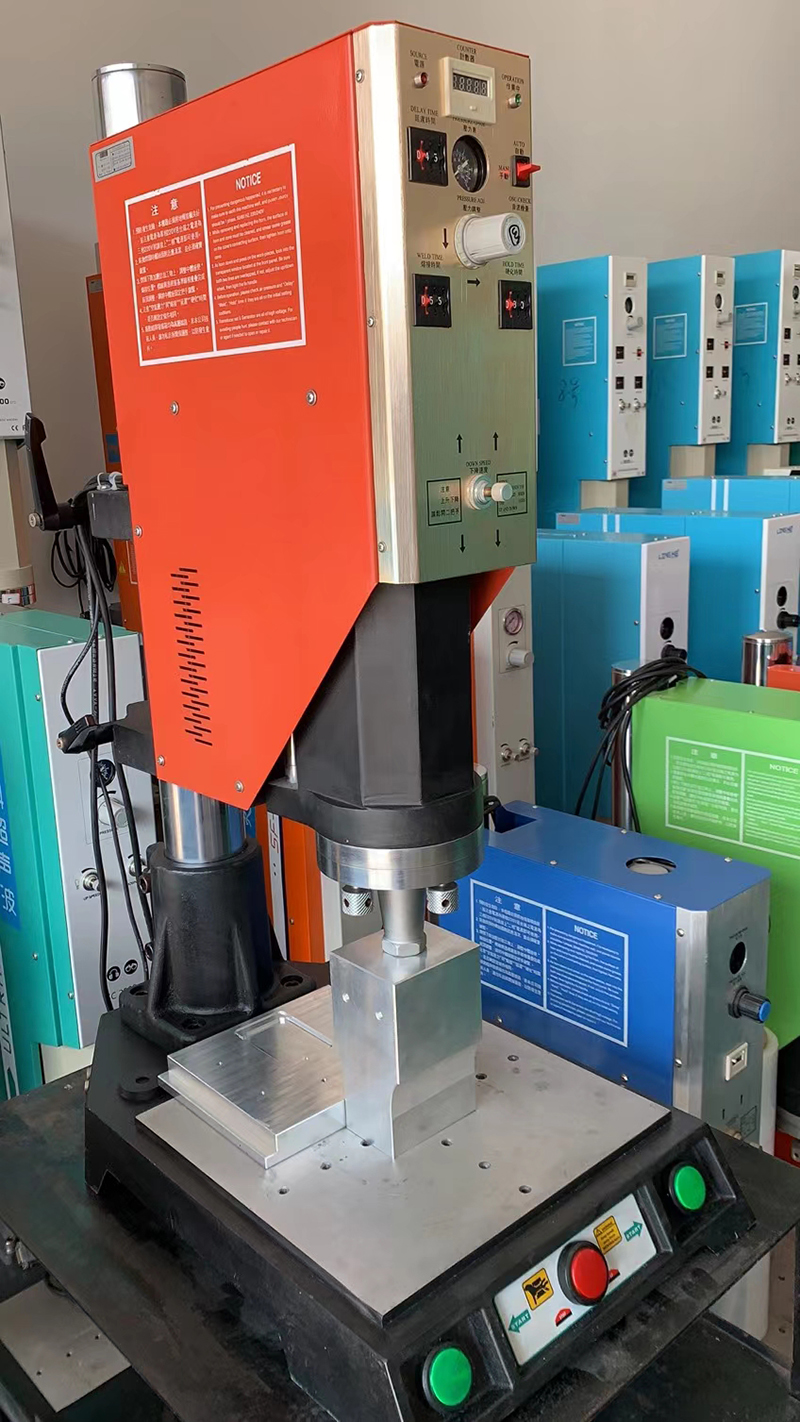

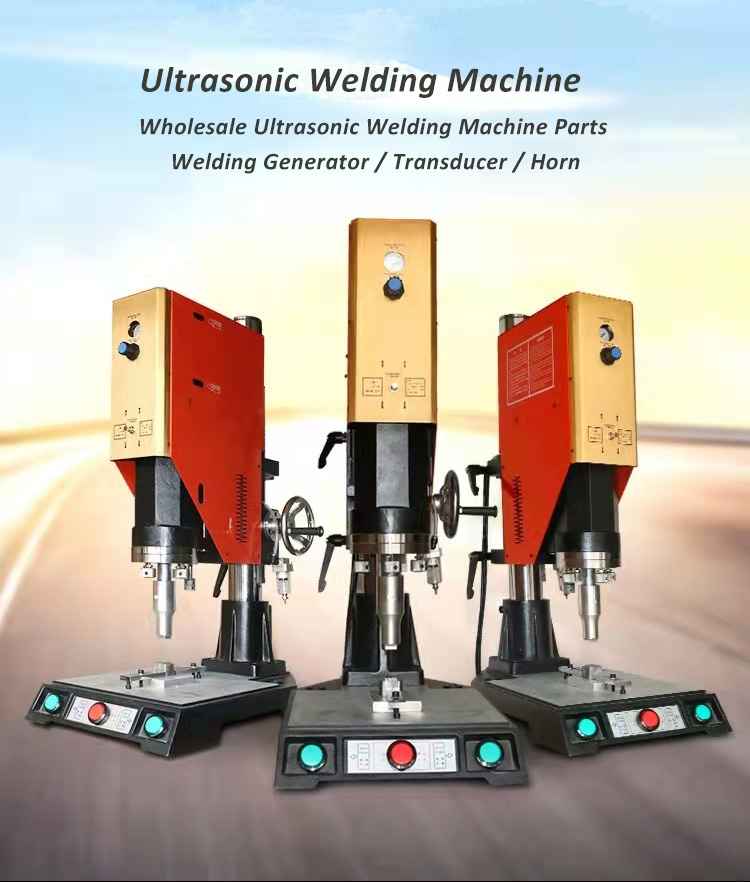

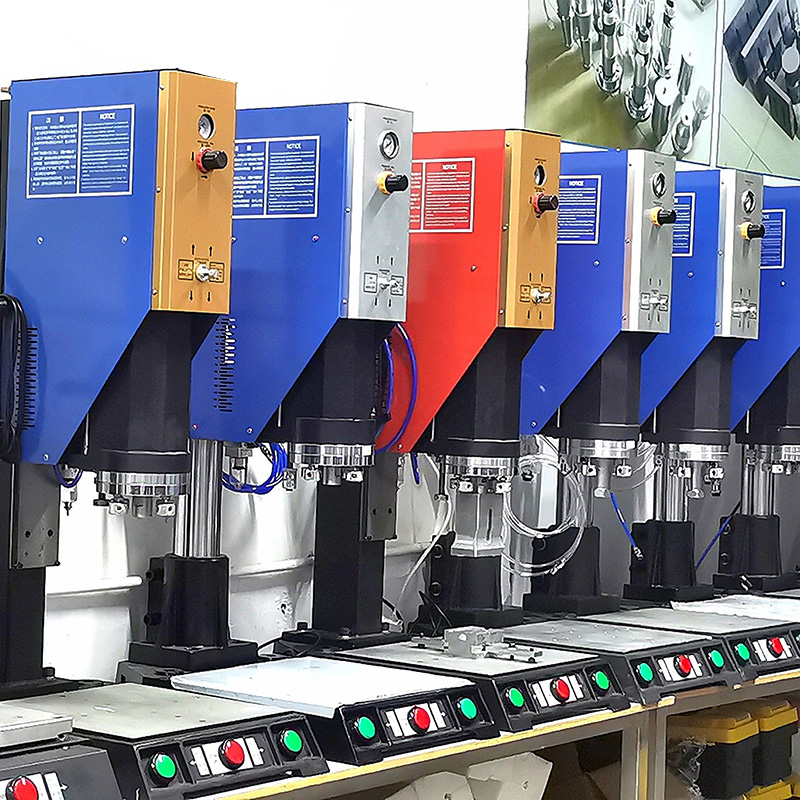

Product Image

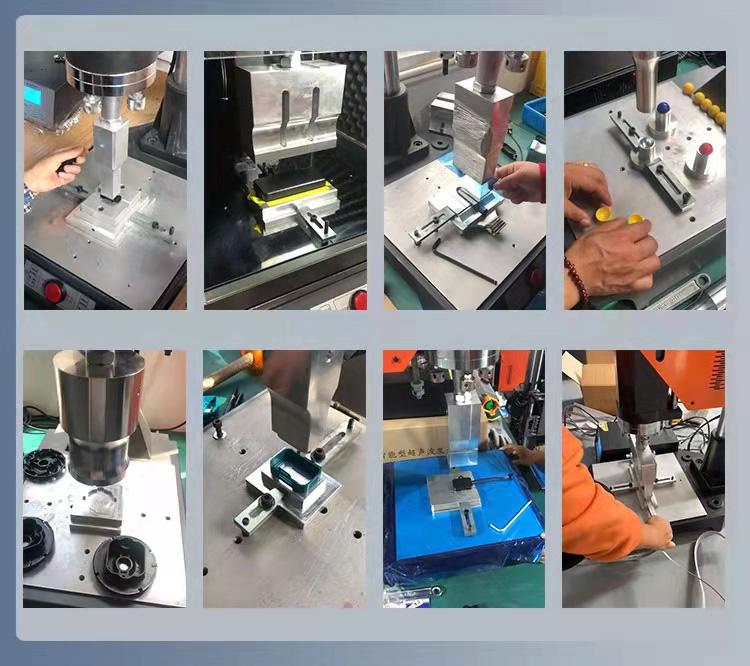

Product usage scenarios

Suitable for ABS, PC, PE, PP, PS, PVC, SAM, acrylic, cellulose, nylon, etc. Widely used in the automotive industry, electronics industry, medical industry, home appliance industry, cloth-free clothing, office supplies, packaging industry, toy industry, etc. The molds/horns and samples are attached below for reference.
