Customized Different Size Ultrasonic Piezoelectric Pzt Piezo Ceramic Plate Piezo Ceramic Disc 25mm

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Keyword:Disc Piezo Ceramic;
Electrode:Silver;Type:Piezoelectric Ceramics,Disc-Ceramic;
Packaging Detail:Pzt Piezo Ceramic Plate Piezo Ceramic Disc 25mm (Customized foam protection);Frequency:Detail Page;
Application:Ultrasonic Equipment;Material:PZT,PZT4/5/8 or Customized;
Supply Ability:1500000 Perch/Perches per Month;Certification:CE, RoHS, ISO9000;
Place of Origin:Beijing China;Product name:Piezo Ceramic Piezoelectric Sensor;
Feature:High Performance;Port:Beijing Port. Tianjin Port or Other Requirements Port;
Size:Detail Page;Brand Name:BJULTRASONIC;
Package Preview:;Model Number:BJQXPZT;

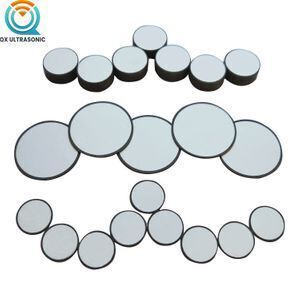

Customized Different Size Ultrasonic Piezoelectric Pzt Piezo Ceramic Plate Piezo Ceramic Disc 25mm

What is the trouble in business?



Worry about the quality and after-sale warranty ?

Which material need to use? Pzt4, pzt5 or pzt8?

What size is more suitable?

If you can customize required size?

How weld cable on the piezoelectric ceramic?

Need your own logo on products?

Contact US

Slove all your worries with one-step service!



Listen and see our clients feedback, will send our after-sales report.

Tell us your application ,our professional team will reply you within 24 hours. Help you to choose the suitable products.

Produce different size piezo ceramic as need.

Provide Professional technical support to help to weld the cable.

Real pictures before sending.

We are always here to support you.

Product Description



What's the Features of Our Dics Piezo Ceramic?



  1. Good Stable
  2. High Sensitivity
  3. All dimensional
  4. Accurate measurement
  5. Low Heat
  6. High Consistency of Frequency and static capacitance
  7. High Vibration Efficiency
  8. Silver Electrode
What are the Material of Disc Piezo Ceramic ?


PZT4,PZT5,PZT8 or other required Piezoelectric Materials

(If need the piezoelectric material performance list, pls contact us)



What are the Application of Disc Piezo Ceramic ?



Application: for ultrasonic cleaner,ultrasonic welding,ultrasonic distance measure sensor,ultrasonic detector,ultrasonic dental unit. Ultrasonic Beauty. ultrasonic motor,ultrasonic transformer and other high-power emanant transducers.



The above applications are just part of. if don't find what informations you need.

Pls check "Contact US" to get more.



Some Standard Size of Disc Piezo Ceramic:



(Size=OD*Thickness)  (Qm=Mechanical quality factor)  (tanδ(%)=Dielectric dissipation factor )



SizeThickness

Frequency
ft(MHz)

Capacitance
C(pf)
Impedance
Zt(Ω)
Kt (%)
16×0.45.0±5%5400±15%≤5≥45
16×2.11.0±5%1000±15%≤4≥45
20×1.21.65±5%1180±5%≤2.5≥45
20×2.01.0±5%1650±15%≤4≥45
25×0.45.0±5%1280±15%≤4≥45
25×1.21.65±5%1350±15%≤2≥45
25×1.02.0±5%5800±15%≤4≥45
25×2.01.0±5%2700±15%≤4≥45
28×1.02.0±5%6940±15%≤4≥45
28×1.71.2±5%3880±15%≤3≥45
28×21±5%3850±15%≤3≥45
28×2.01.0±5%3300±15%≤3≥45
30×3.066.72730±12.5%≤3≥45
35×3.063.03100±12.5%≤3≥45
38×6.559.91580±12.5%≤3≥45
45×3.050.05100±12.5%≤3≥45
45×3.550.04700±12.5%≤3≥45
50×3.046.05800±12.5%≤3≥45
50×3.546.06300±12.5%≤3≥45
50×5.046.04150±12.5%≤3≥45



The size on the above list is only one part which we have, pls contact us if required size is not on list. we can customize according to customer requirments by different size .

Contact Us Now



Related Piezoelectic Ceramics



Feedback





Some Technical Questions of Piezoelectric Ceramic



1.The oscillation frequency of piezoelectric ceramics, mainly related to what?

  • Oscillating frequency of piezoelectric ceramics, its related factors, the main is a driving power frequency, driving mode and the drive current .
  • In addition, the capacitance characteristics of piezoelectric ceramics are also related.Therefore, based on this, in the consideration and decision of frequency, these four factors are indispensable and can not be missed.

2.Can all the piezoelectric ceramic chips produce ultrasonic waves?

  • the answer is no, because, if we want to generate ultrasonic waves?the liquid water atomized particles frequency, driving frequency, and center frequency of the transducer should be the same. If this three frequency can not be consistent. It will generate other physical effects.

3. When we are welding the cable on the surface of piezoceramics, what you need to be noticed?

  • Welding temperature, not too high.
  • Welding time, not too long. In general.only a few seconds.

4.In the ultrasonic transducer, the thickness of the piezoelectric ceramic plate vibration and radial vibration, which one is more efficient?

  • compare to this two vibration types, from the professional point of view, thickness vibration is more efficiency.
  • However, if there is a conditional limit, there is only one radial vibration.

More Information of Piezoelectric Ceramic. Contact Us Now

Our Services

Packaging & Shipping

FAQ

Q:  Delivery Time

A:  Based on the order quantity, the goods will be sent out within 2-7 days.



Q: Payment

A: T/T,W esternUnion,L/C,Paypal



Q: Quantity guarantee

A: All products will have been strictly Quality insepected before packing.



Q: Shipping

A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.

    give the economic freight according to goods weight.



Q: Wealth of experience

A:  Professional sercive.choose us,you will do the trade more easily.



Q: Good Service

A: Excellent team to offer the efficient and professional reply.



Q: Technical Problem

A:  Provide Professional Technical Support.

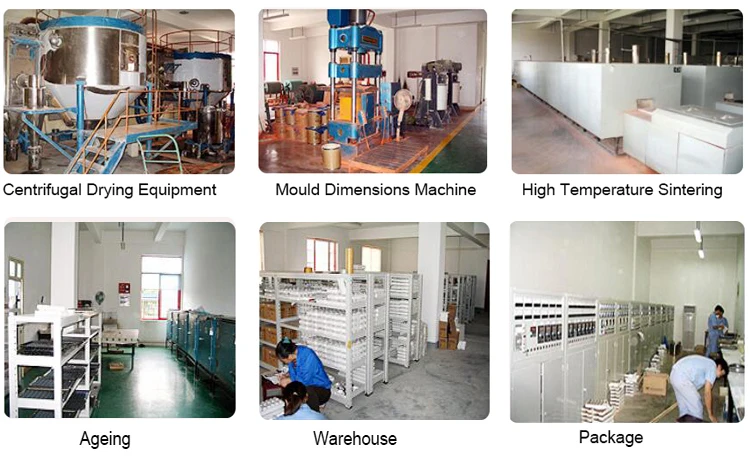

Company Information
