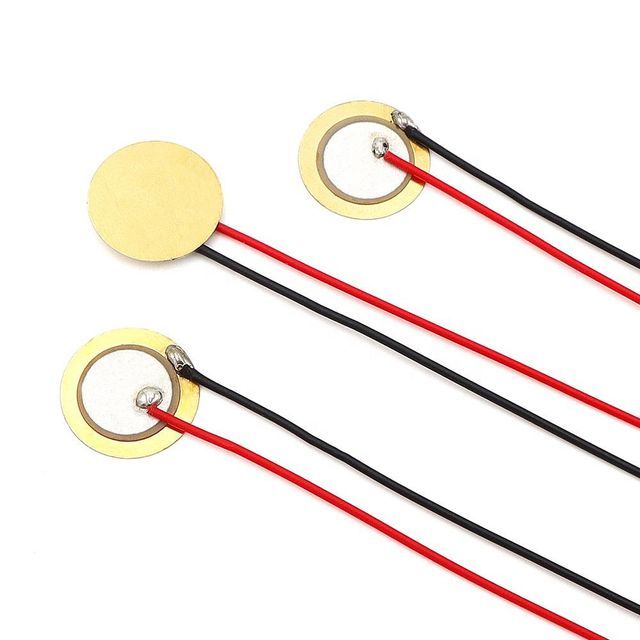

Diameter 12MM 15MM Piezo Ceramic Brass Disc Alarm Sound Piezo Ceramic Plate Buzzer with 60MM Wire

Supplier: Shenzhen Xinghuaxin Electronic Technology Co., Ltd.
Region: Gangdong, China
Contact: Mr Jacky Tang
Price: $0.04 / 1 - 999 pieces
$0.03 / 1000 - 9999 pieces
$0.02 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Resonant Impedance:	≤300Ω	model:	XHXDZ-12 15MM brass wire
diameter:	12MM 15MM	Operating temperature:	-20℃ ~70℃
Origin:	Guangdong, China	Supply capacity:	5,000,000 pieces per month
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Packaging Details:	Packing Details: Standard Export Packing Packing Type: 500PCS/1 BAG Port: Shenzhen, Guangzhou
Material:	brass	brand:	wxya
port:	Shenzhen, Guangzhou	application:	electrical appliance
type:	Piezoelectric Ceramics

Company Profile

Certificate

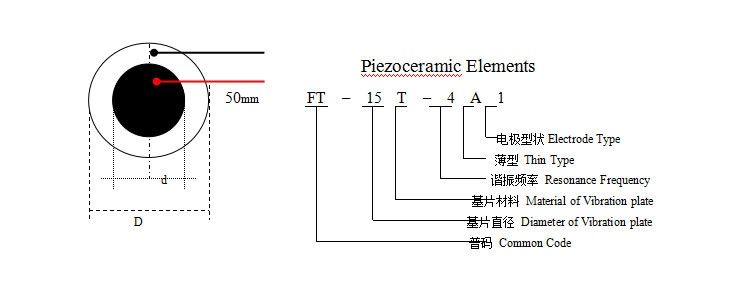

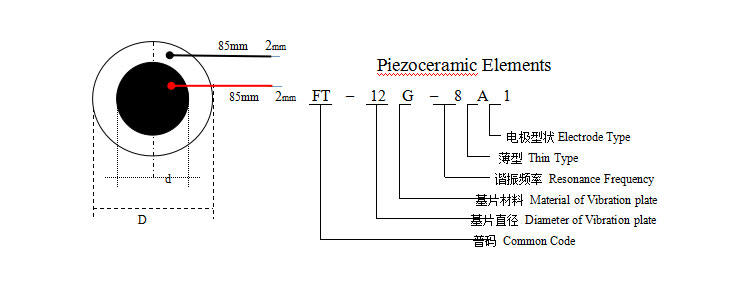

Product Description

thing	Specification
Resonant frequency	17.5±0.7KHZ
Resonant impedance	≤300Ω
static capacity	5000±30%PF
plate	brass
Metal plate diameter	12±0.1
Ceramic sheet diameter	9±0.2
Sheet metal thickness	0.13±0.03
Total thickness	0.33±0.03
Allowable input voltage	Vp-p max 1.5~30v
Operating temperature	-20℃ ~70℃

thing	Specification
Resonant frequency	8.5±0.5KHZ
Resonant impedance	≤300Ω
static capacity	8000±30%PF
plate	brass
Metal plate diameter	15±0.1
Ceramic sheet diameter	11±0.2
Sheet metal thickness	0.13±0.03
Total thickness	0.33±0.05
Allowable input voltage	Vp-p max 1.5~30v
Operating temperature	-20℃ ~70℃

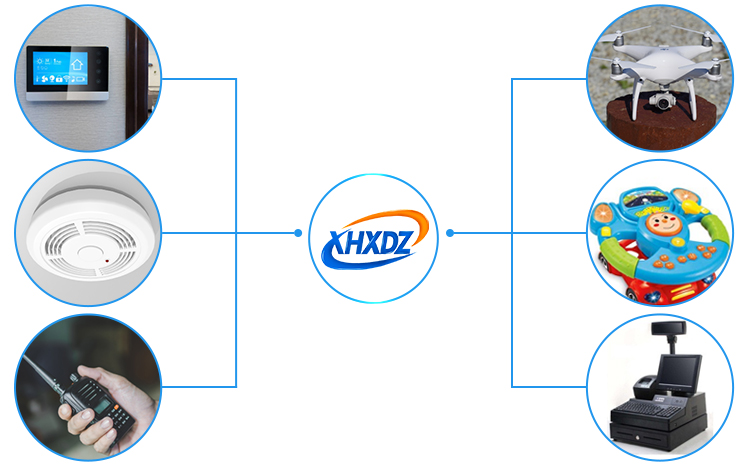

Applications
