Immersion Ultrasonic Cleaner Immersion Ultrasonic Cleaning System Immersion Ultrasonic Transducer Plate

Product details
Cleaning process:cold water washbrand:QXULTRASONIC
Warranty time:1 yearpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Mechanical test report:ifuse:degreased
Core Components Warranty:1 yearDimensions (L*W*H):Customized in various sizes
size:Different size requiredAfter-sales service provided:Video technical support
application:Ultrasonic cleaningUltrasonic power:required power
surface:Hard chrome platingGenerator Control:Separate digital ultrasonic generator
Warranty:1 yearApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
Showroom location:UK, Vietnam, Russiafrequency:17-200Khz
port:Beijing Airport, Tianjin Port or the desired portLocal service location:Vietnam, India, Russia
Health status:newAfter Warranty Service:Video technical support, spare parts
Video external inspection:ifKey words:Submersible ultrasonic cleaner
Marketing Type:Hot Products of 2020Certification:ce RoHS
gasoline:electricalMaterial:304ss.316ss, titanium alloy, stainless steel
Cleaning Type:Soak / SoakCore components:Submersible ultrasonic cleaner
strength:Required ultrasonic powerfeature:high performance
place of origin; place of origin:Beijing ChinaType of machine:Industrial Ultrasonic Cleaner
Supply capacity:100,000 array sensors per month

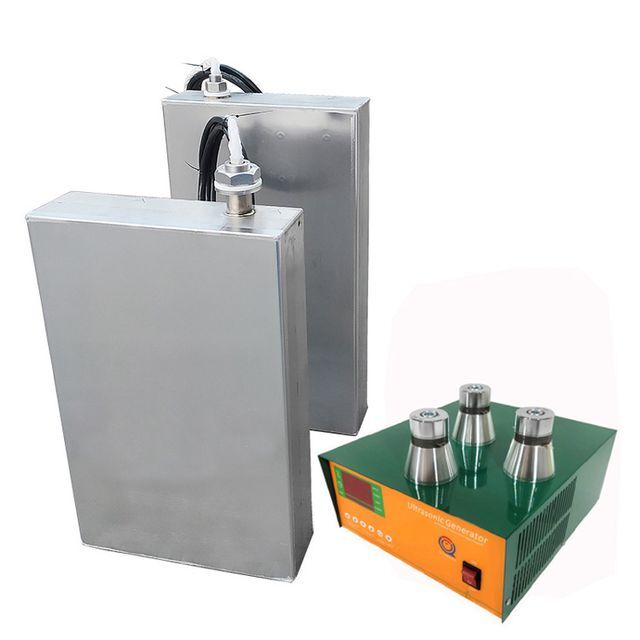

Immersion Ultrasonic Cleaner Immersion Ultrasonic Cleaning System Immersion Ultrasonic Transducer Plate

Product Description

IntroductionWaterproof Piezoelectric Ultrasound Transducer

  • The underwater ultrasonic transducer equipment adopts a split structure, and the vibration plate and the ultrasonic generator are connected by a high-frequency socket, which is convenient to use and maintain.

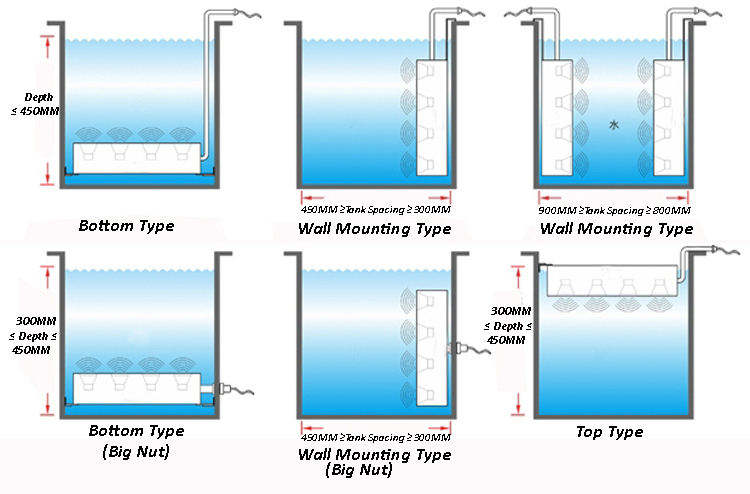

  • There are three types of bottom vibration type, side vibration type and top vibration type, which have obvious advantages of convenient disassembly and maintenance.
  • When the power of the trough ultrasonic cleaner is too small, a submerged transducer can be used. It can be retrofitted into an ultrasonic cleaning machine and is also a low-cost submersible ultrasonic transducer.

Application of Array Ultrasonic Immersion Transducer

  • Electronics, Jewelry, Watches, Lighting
  • Metal stamping parts, mechanical accessories, plumbing accessories
  • Glasses frames, glassware
  • Case and strap dewaxed
  • Industry parts such as electroplating pretreatment
  • Especially for trough ultrasonic cleaners

Specification

type

strength

(W)

frequency

(kilohertz)

size

L*W*H(mm)

Voltage

(five)

QXCI300

300

17-200

260×180×100

110/220

QXCI600

600

17-200

260×180×100

110/220

QXCI900

900

17-200

430×350×100

110/220

QXCI1200

1200

17-200

520×350×100

110/220

QXCI1500

1500

17-135

520×430×100

110/220

QXCL2000

2000

17-135

850×430×100

110/220

QXCI2400

2400

17-135

950×450×100

110/220



Custom Array Ultrasonic Immersion Transducer Information

  • Please tell us the size of your tank or the size of the object to be cleaned, and we will recommend the appropriate model and power and frequency of submersible ultrasonic transducer equipment for you.
  • Material: 304 stainless steel, 316 stainless steel, titanium alloy.
  • Material thickness: 2mm or 2.5mm
  • Frequency: from 17khz to 200khz
  • Cable length: as required
  • Submersible Ultrasonic Transducer Surface Treatment: Chrome Plating
