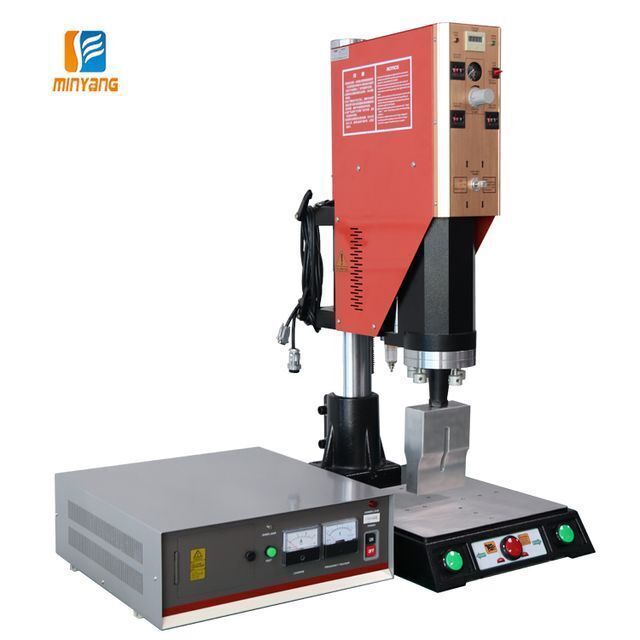

20KHz 15KHz 2600W Sonic Welding Machine Ultrasonic Welder For PS Plastic Cards Cases grading playing cards hard

Supplier: Dongguan Mingyang Ultrasonic Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Joan zhai
Price: $1400.00 / 1 - 9 sets
$1200.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	None;	Warranty:	1 Year;
Application:	Ultrasonic Welding;	Welding Area:	Around Dia. 280mm(depends material);
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Home Use,Auto parts Factory;	After-sales Service Provided:	Online support,Video technical support;
Key Selling Points:	Competitive price;	Local Service Location:	None;
Place of Origin:	Guangdong China;	Welding material:	ABS PC PP HDPE PE PVC EVA;
For Suitable Materials:	ABS PP PS plastic;	Ultrasonic frequency:	15khz/20KHz;
Air pressure:	0.5~0.8MPa;	Marketing Type:	New Product 2020;
Welding time:	0.01-9.99S/Time;	After Warranty Service:	Video technical support,Online support;
Ultrasonic power:	2600W;	Frequency:	20khz;
Video outgoing-inspection:	Provided;	Welding trip:	100mm;
Driven Type:	Pheumatic;	Condition:	New;
Usage:	welding/cutting;	Packaging Detail:	Packaging: Bubble pack+ stretch films +wooden frame with shipping marks. Packing method: Base on your special requirements will be changed.;
Payment Terms:	T/T,Paypal;	Machinery Test Report:	Provided;
Dimensions:	1100x400x650mm;	Power (kW):	2.6;
Port:	Shenzhen/ Guangzhou;	Brand Name:	MINYANG;
Supply Ability:	1600 Set/Sets per Month;	Weight (KG):	130;
Voltage:	220V 110V;	Welding Stroke:	280mm (depends material);

Click Here Send Inquiry Right Now！☺

Products Specification

Ultrasonic products of possibilities in solving application-specific problems and developing new production processes in a wide variety of areas. Thanks to individual analyzes and extensive know-how, we develop tailor-made solutions and thus satisfy our customers in the long term - in all relevant process areas such as ultrasonic welding, ultrasonic cutting, punching, riveting, embedding, melt forming or sealing.

Product name	Ultrasonic Plastic Welding Machine
Frequency	15 KHZ or 20 KHZ
Power	2600W
Welding Stroke	Around Dia.280mm(depends material)
Welding time	0.01S ~9.99 S
Welding trip	100mm
Dimension	400x650x1100mm
Weight	130KG
The most advantage is competitive price with good quality for this machine. It's also one of our best-selling machines.

Products Description

Recommend Products

Applications

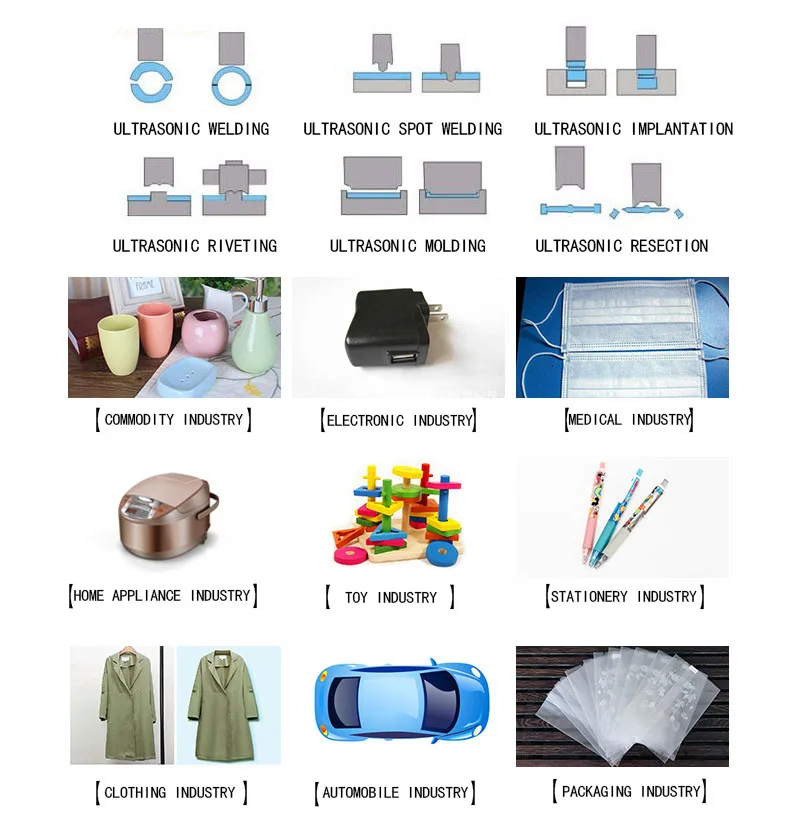

Suitable for welding, riveting and implant molding of fine ABS, PE, PC PS, PVC,PP, SAN, PA, acrylic, nylon, ABS and PC composite materials. As long as the welding head is changed, it can be used in a variety of applications, widely used in electronics, electrical appliances, automotive parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics and other industries.
