PFE315B hot selling 3.5kw electrofusion machine PE pipe welding machine

Click here to contact

Product details

place of origin; place of origin:	Shandong China	frequency:	40-65HZ, 50/60HZ
Number of data records:	500	Packaging Details:	Hot Melt Welding Machine PFE315B Electric Fusion Machine HDPE Pipe Fusion Machine Packed by aluminum shell+carton or carton only.
Video external inspection:	if	Packaging Preview:
port:	Shanghai Port	delivery time:	1-2 working days
Data output port:	USB Port & Scanner	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
After-sales service provided:	Video technical support	Marketing Type:	New Products 2022
Rated current:	55A	Rated voltage:	75V
usage:	Pipe welding	rated power:	3.5KW
Welding range:	20-315mm	Health status:	new
brand:	poly	Main selling point:	easy to operate
Mechanical test report:	if	Warranty:	1 year
Supply capacity:	100 sets per month	Package dimensions:	520x310x400mm
aspect:	460X300X430	weight:	9.0KG
Weight (kg):	9 kg	Power (kW):	3.5
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Voltage:	75V

Product Description

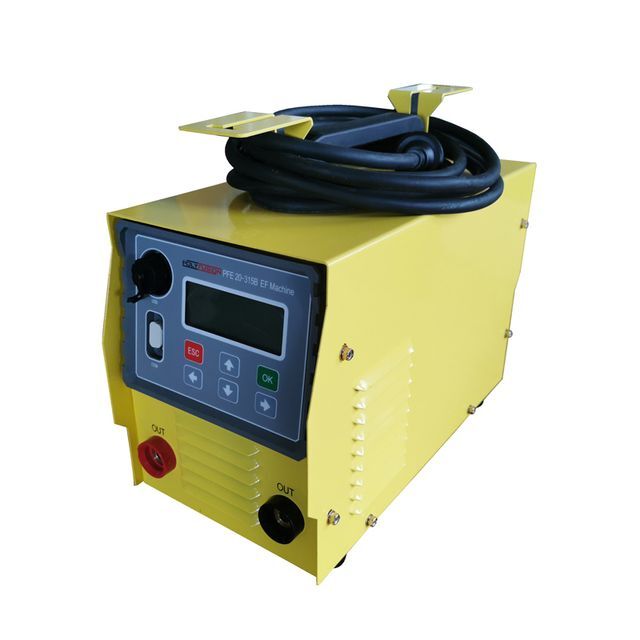

Hot Melt Welding Machine PFE315B Electrofusion Machine HDPE Pipe Welding Machine

1. Advanced digital MCU is the control core, with rich parameter setting, detection and perfect protection functions.

2. High-brightness LCD screen, multi-language operation, friendly man-machine interface.

3. 20% wide power supply voltage input, fully adapt to the specific power consumption environment of complex construction sites.

4. The output has fast response time and high stability when power off.

5. 0.5% high-precision power, time control, to ensure welding quality.

6. USB read and import welding record storage function.

7. Keyboard manual input or barcode scanning input.

8. Automatically retrieve pipe fittings for welding.

9. Good double protection function.

10. It is available in English, Spanish, Russian, Polish and Chinese.

Model	PFE315B	PFE500B	PFE630B	PFE1000B
Welding range(mm)	DN20~315MM	DN20~500MM	DN20~630MM	DN20~1000MM
Rated power (Kw)	3.5KW	12KW	15KW	18KW
Input voltage (V)	AC220V±20%	AC380V±20%
Input frequency (Hz)	40~65Hz
Rated current (A)	55A	60A	80A	80A
Output voltage (V)	75V	150V	170V	280V
ambient temperature	﹣20℃~50℃
control method	Constant voltage/constant current
Stored data number	270 times
constant precision	≤±0.5%
data output port	USB Port & Scanner
Packing weight (KG)	18kg	21kg	25kg	35kg
Packing size (MM)	460X300X430mm	467x204x335mm	515x204x386mm	515x204x386mm
