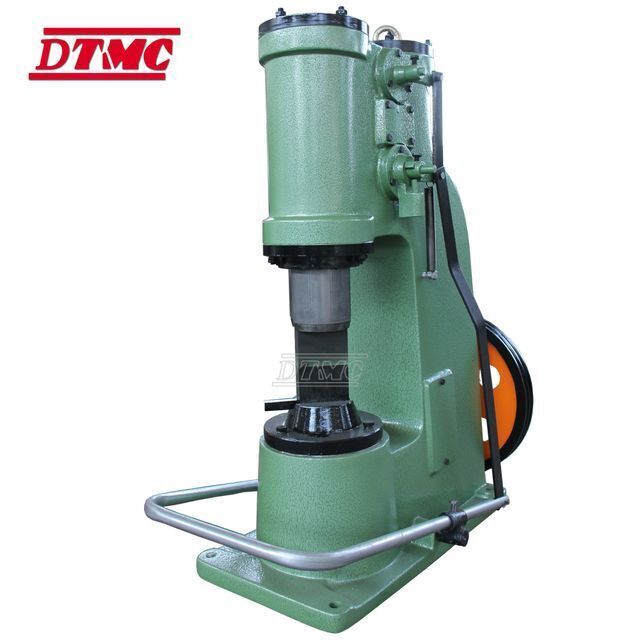

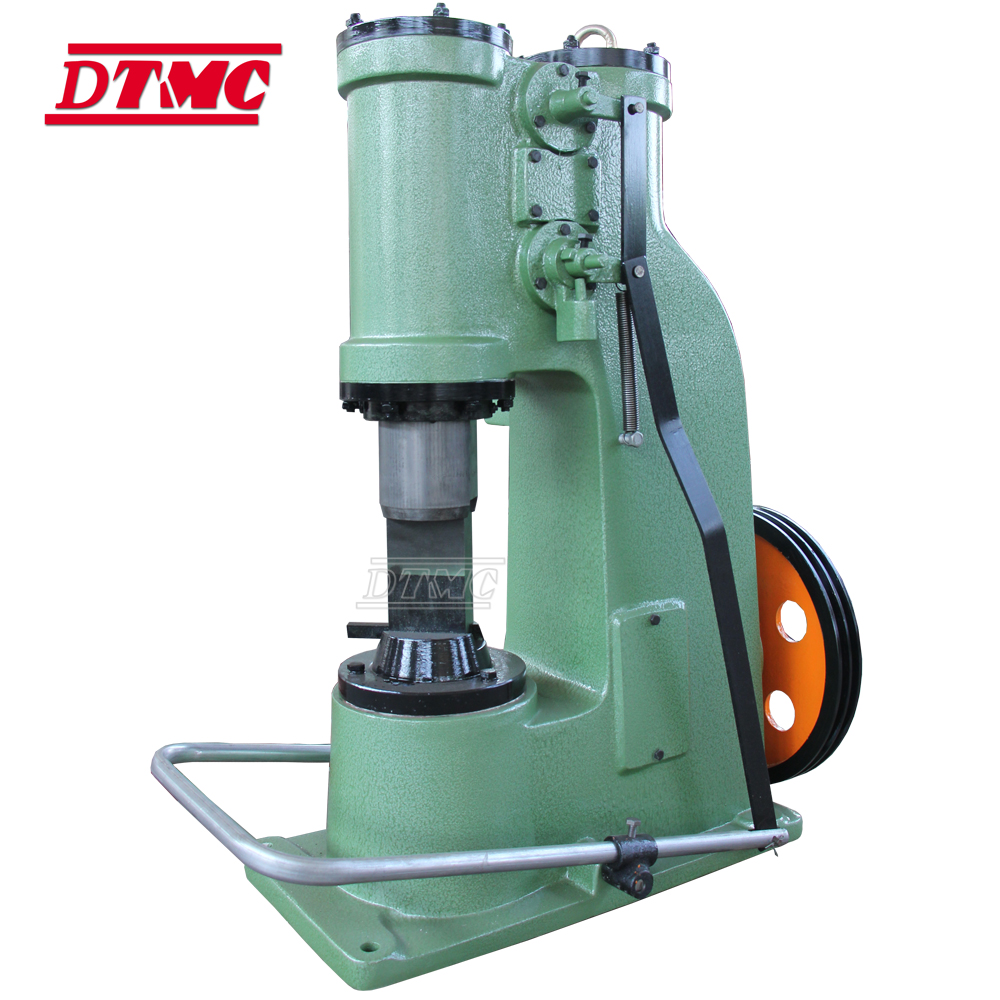

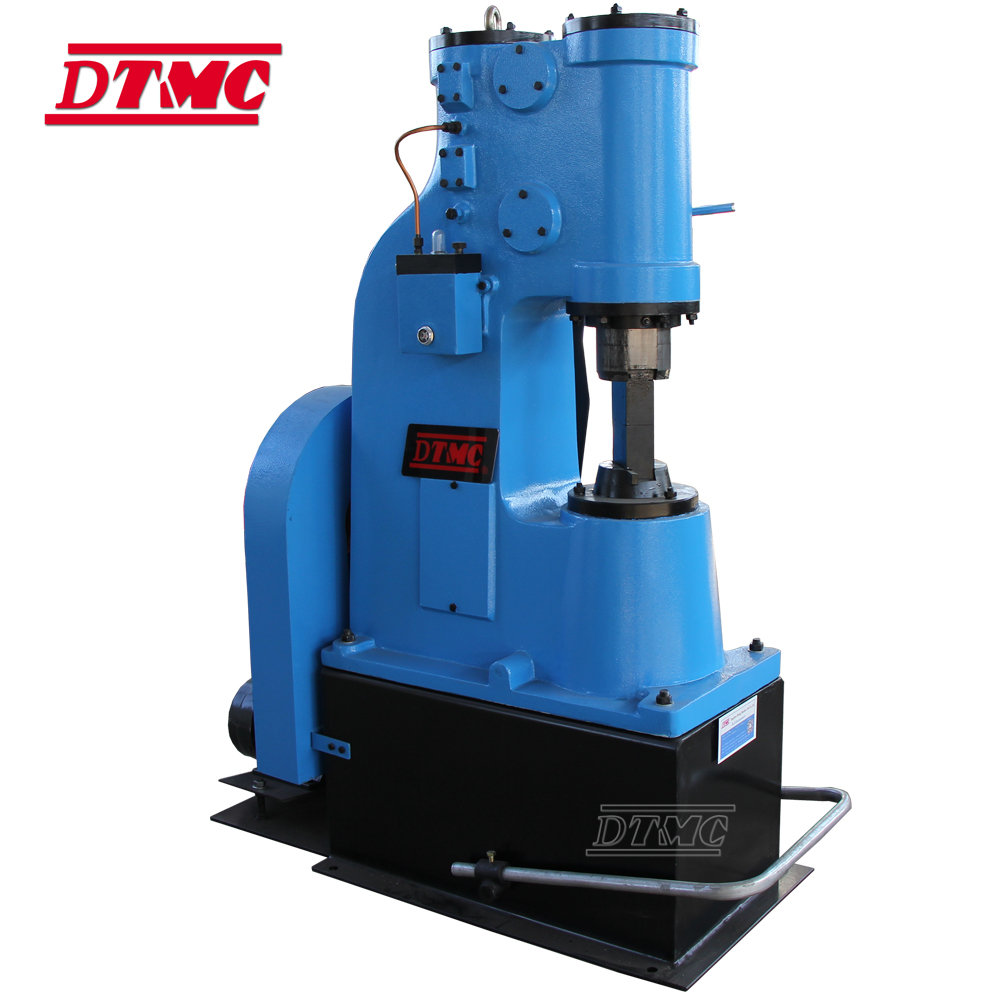

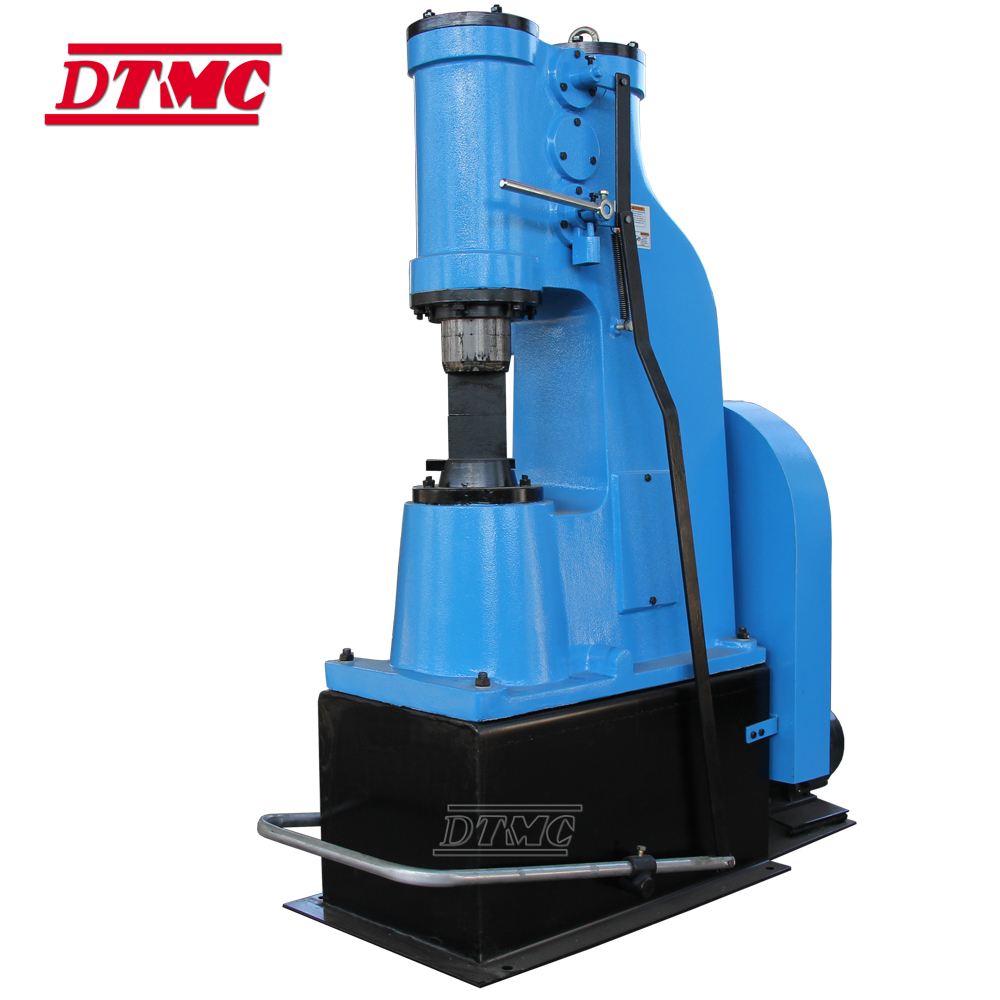

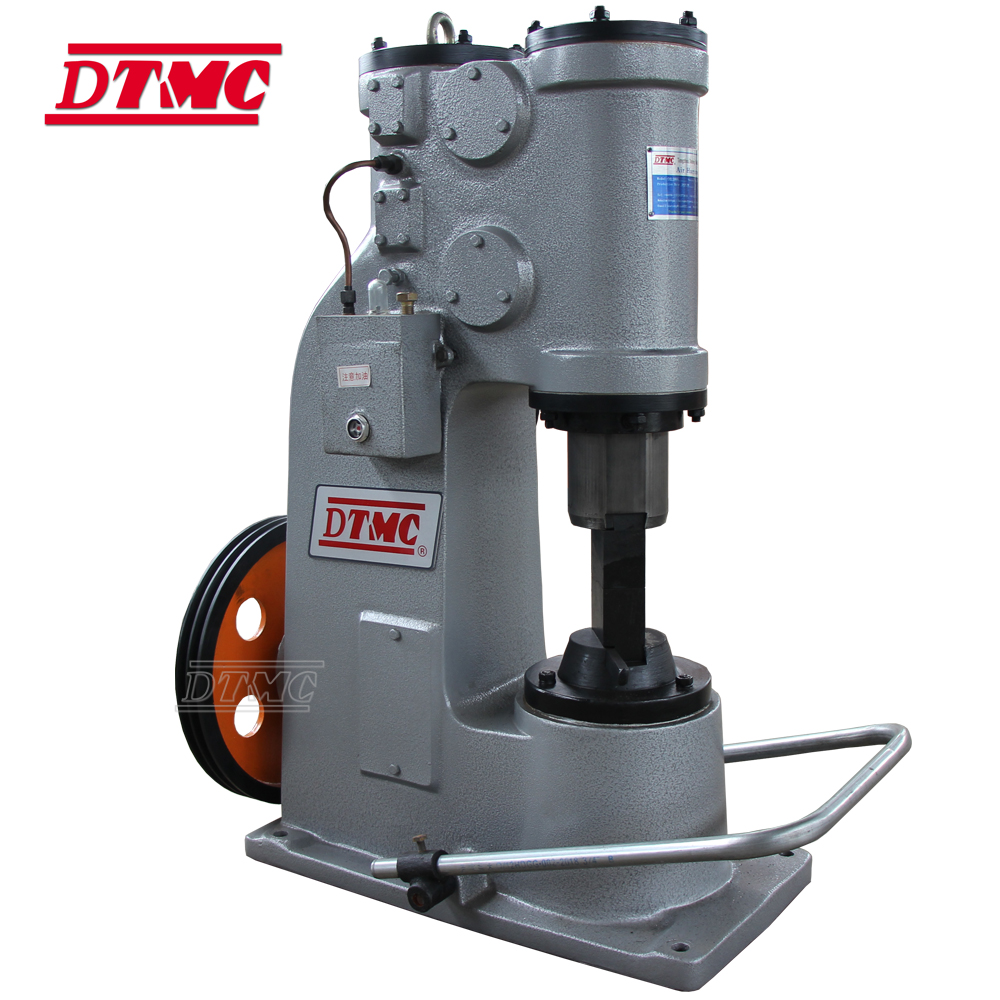

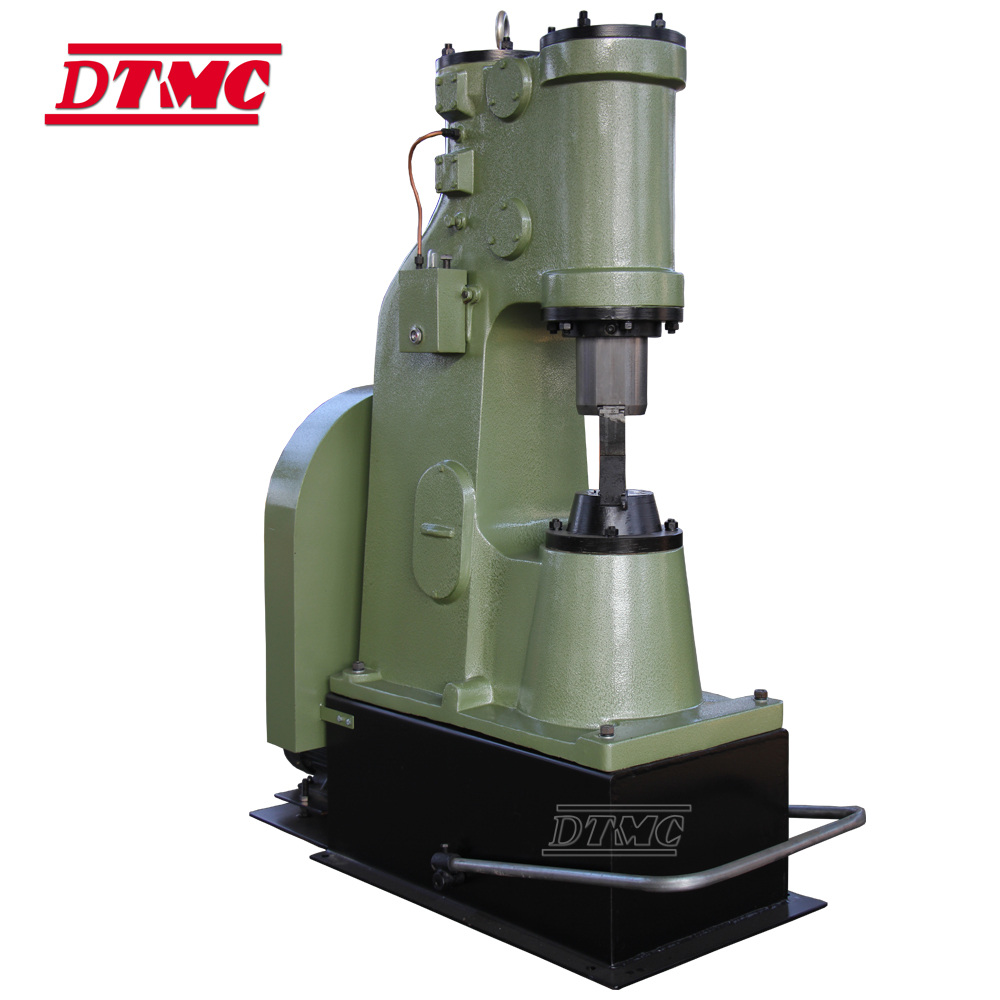

C41-16KG 20KG 25KG 40KG 55KG 65kg 75kg 150kgAir hammer blacksmith power forging hammer for sale

Supplier: Tengzhou Datong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Aileen Li
Price: $1450.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Ordinary Product;	Power:	1.5KW;
Machinery Test Report:	Provided;	Weight:	290KG;
Rate power(kw):	1.5;	Core Components:	Engine,Bearing,Gearbox,Motor,Gear,Pump;
Speed of motor(r.p.m):	1440;	Certification:	ISO9001 CE;
Weight of failling parts(kg):	16;	Brand Name:	DTMC;
After Warranty Service:	Video technical support,Online support,Spare parts;	Warranty of core components:	1 Year;
Key Selling Points:	Easy to Operate;	Condition:	New;
Machine Type:	C41-16KG C41-20KG C41-25KG;	Max.hit energy(kj):	0.18;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Shandong, China;
Max. square steel can be forged:	20*20;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Max. round steel can be forged:	22;	Port:	china port;
Packaging Detail:	Standard export package,custom suffocating free;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Kenya,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia,Morocco;
Weight of base plate(kg):	40;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ,Energy & Mining,Advertising Company;	Package Preview:	;
Video outgoing-inspection:	Provided;	Height of working area(mm):	180;
Hit number(min):	258;	Warranty:	1 Year;
Voltage:	380V;	Dimension of top and bottom die surface:	70*40;
Dimension(LWH):	800x420x1170mm;

DTMC

Characteristics:

1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control.

2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel.

3.Simple mechanism ,Is not easy to damage.

Application:

Model	C41-16KG	C41-20KG	C41-25KG	C41-40KG	C41-55KG
Weight of failling parts(KG)	16	20	25	40	55
Max.hit energy(KJ)	0.18	0.22	0.27	0.53	0.7
Height of working area(mm)	180	200	240	245	265
Hit number(min)	258	255	250	245	230
Dimension of top and bottom die surface(LxW mm)	70x40	90x50	100x50	120x50	120x55
Max. square steel can be forged(Diameter mm)	20x20	30x30	40x40	52x52	52x52
Max. round steel can be forged(Diameter mm)	22	35	45	68	68
Rate power(kw)	1.5	2.2	3/2.2	4	5.5
Speed of motor(r.p.m)	1440	1440	1440	1440	1440
Total weight(kg)	240	380	560	880	1700
Overall dimensions(L x W x H mm)	660x420x970	820x460x1110	980x510x1200	1080x600x1430	1320x670x1620

Company Information

Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.

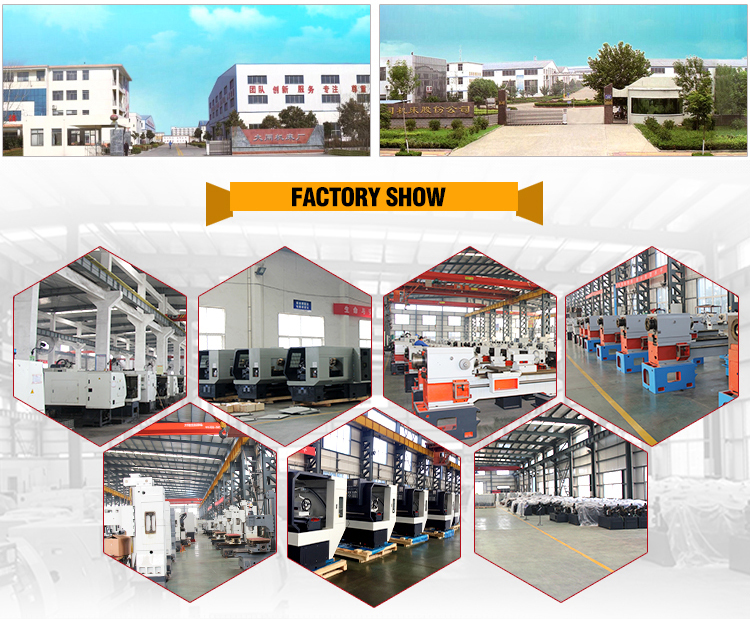

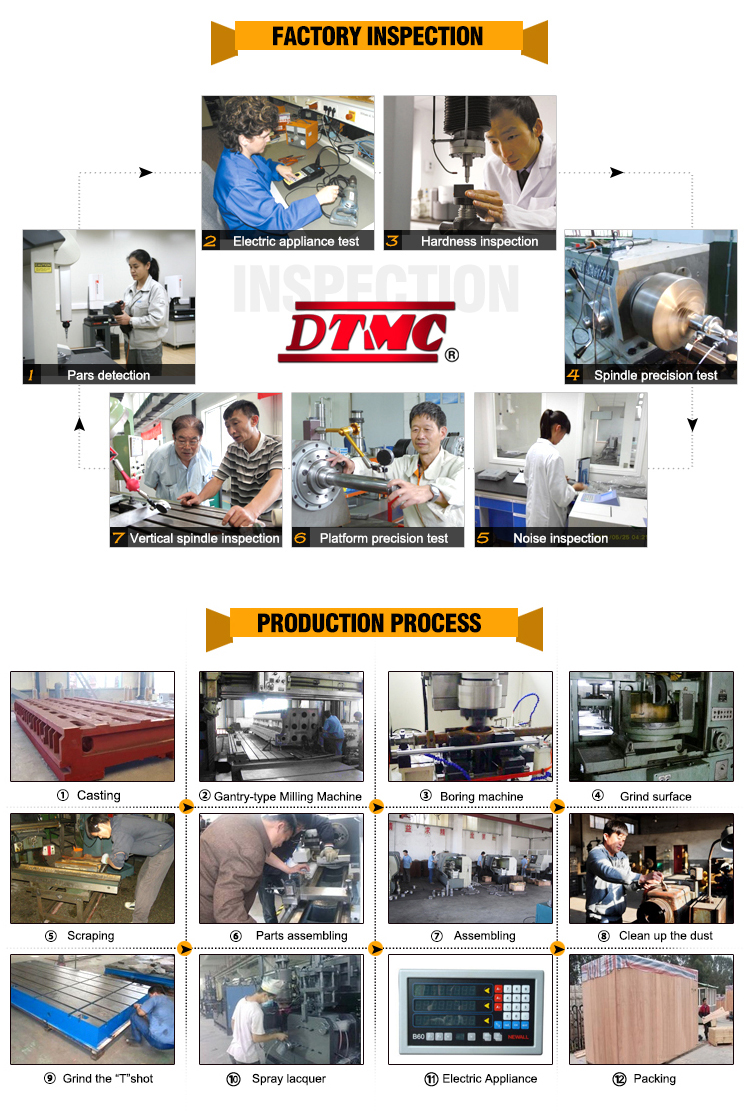

Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.
