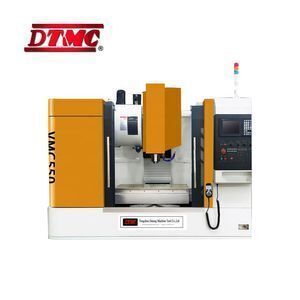

Chinese VMC550 vertical CNC milling machining machine center metal working

Chinese VMC550 vertical CNC milling machining machine center metal working

Main feature:

The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered,magazine capacity of 20. can achieve a variety of disc-type, plate type, shell, Cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping,etc. suitable for many varieties, small batch production of complex, high-precision machining of parts to better show its superiority.

The main Specification:

Features:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

Application:

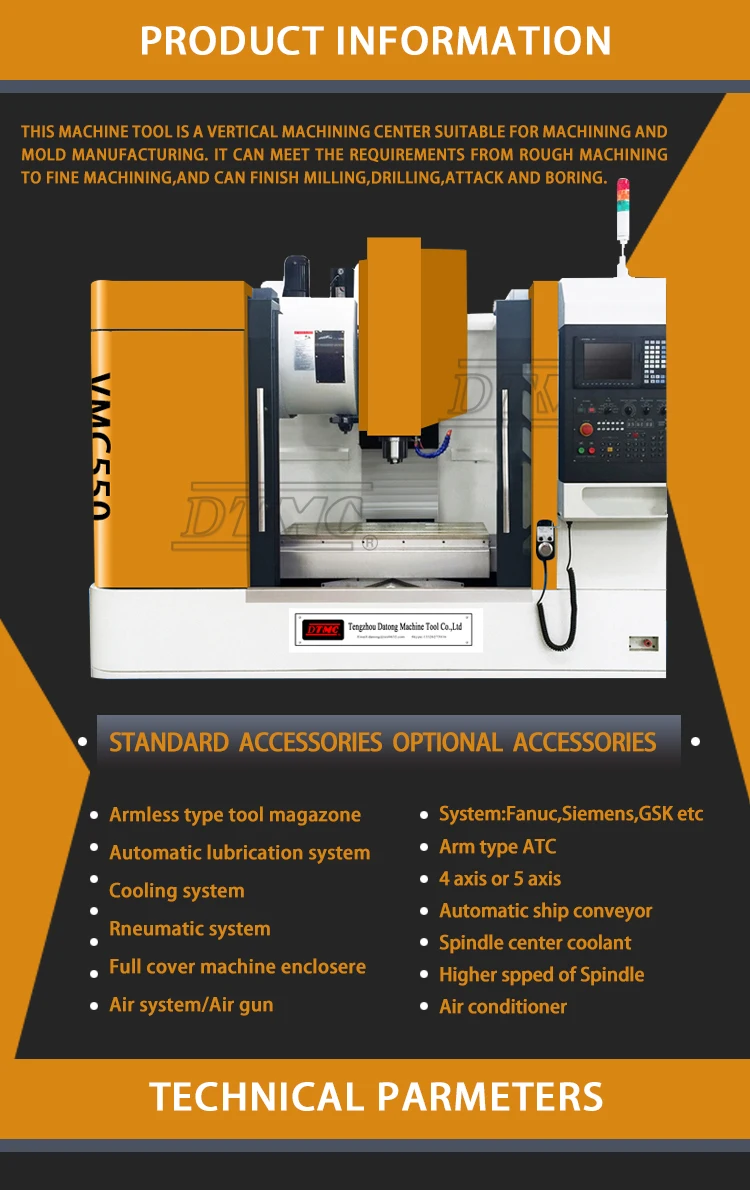

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Product main technical specifications:

Standard Configuration

1)SYNTEC 6MD system

2)12T-Funnel type tool changer

3)Taiwan linear guide ways

4)Taiwan BT40/120/8000 spindle

5)full enclosure machine guard

6)automatic central lubrication system with alarm

7)spindle cooling unit

8)tool holder and pull stud

9)working lamp

Optional Configuration

1) FANUC 0i-MF/SIEMENS 808D system

2)Arm type tool changer

3)screw type chip conveyor

4)chip cart

5)4th or 5th axis

6)Metrol tool setters

7)transformer to suit local power supply

    Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.

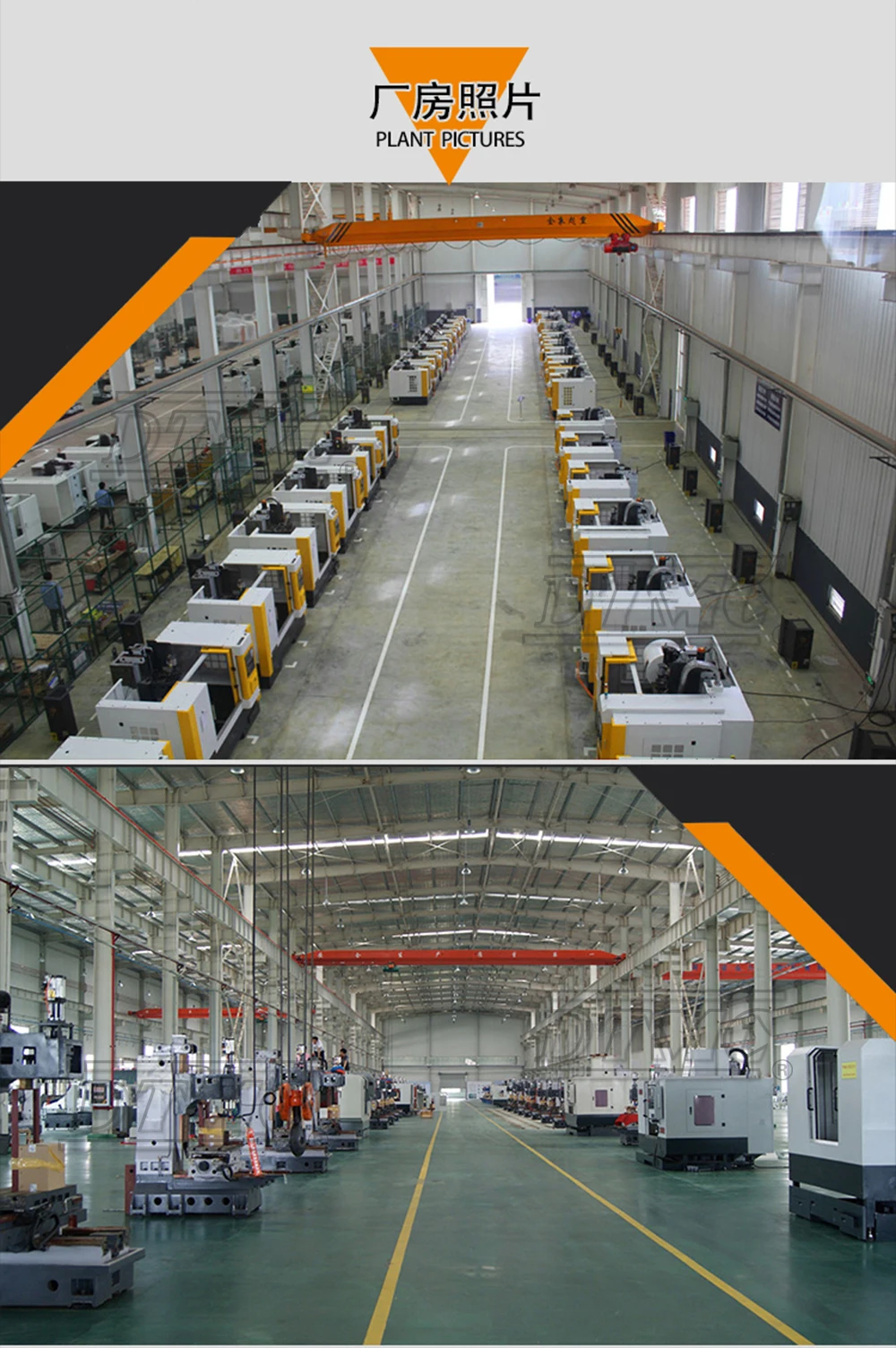

Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.

We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
