Ball screw drive belt drive cnc linear motion guide rail module 4 axis xyz slide table CNC gantry robot

Supplier: Chongqing Umot Technology Co., Ltd.
Region: Chongqing, China
Contact: Ms Nicole Nicole
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	any port in china;	Package Preview:	;
Controller:	as to your requirements;	Product name:	Gantry robot XYZ table;
Stepper Motor Driver:	as to your requirements;	Warranty:	6 Months;
Video outgoing-inspection:	Provided;	Model Number:	SW40 XYZ;
Lead:	5mm;	Application field:	medical equipment spraying equipment automatic welding series;
Machinery Test Report:	Provided;	Screw Precision Grade:	C7;
Effective Stroke:	50-1000mm;	Warranty of core components:	1 Year;
Condition:	New;	Core Components:	PLC,Bearing,Gearbox,Motor;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	Positioning Accuracy:	±0.05;
Material:	Bearing steel;	Supply Ability:	50000 Sets per Month;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Printing Shops,Energy & Mining,Food & Beverage Shops,Other,CNC;	Stepper Motor Type:	Nema 23;
Brand Name:	UMOT;	Weight (KG):	10;
Packaging Detail:	Foam+Hard Carton or Wooden Case+Waterproof film;	Place of Origin:	Chongqing, China;
Marketing Type:	New Product 2020;

Ball screw drive belt drive cnc linear motion guide rail module 4 axis xyz slide table CNC gantry robot

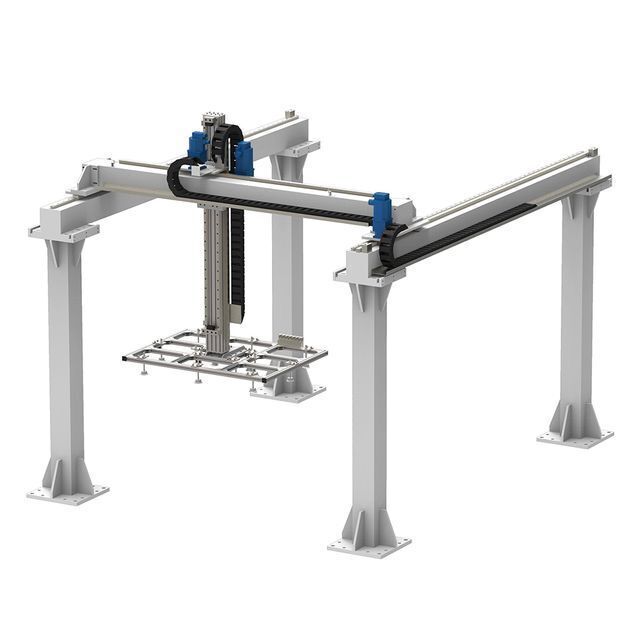

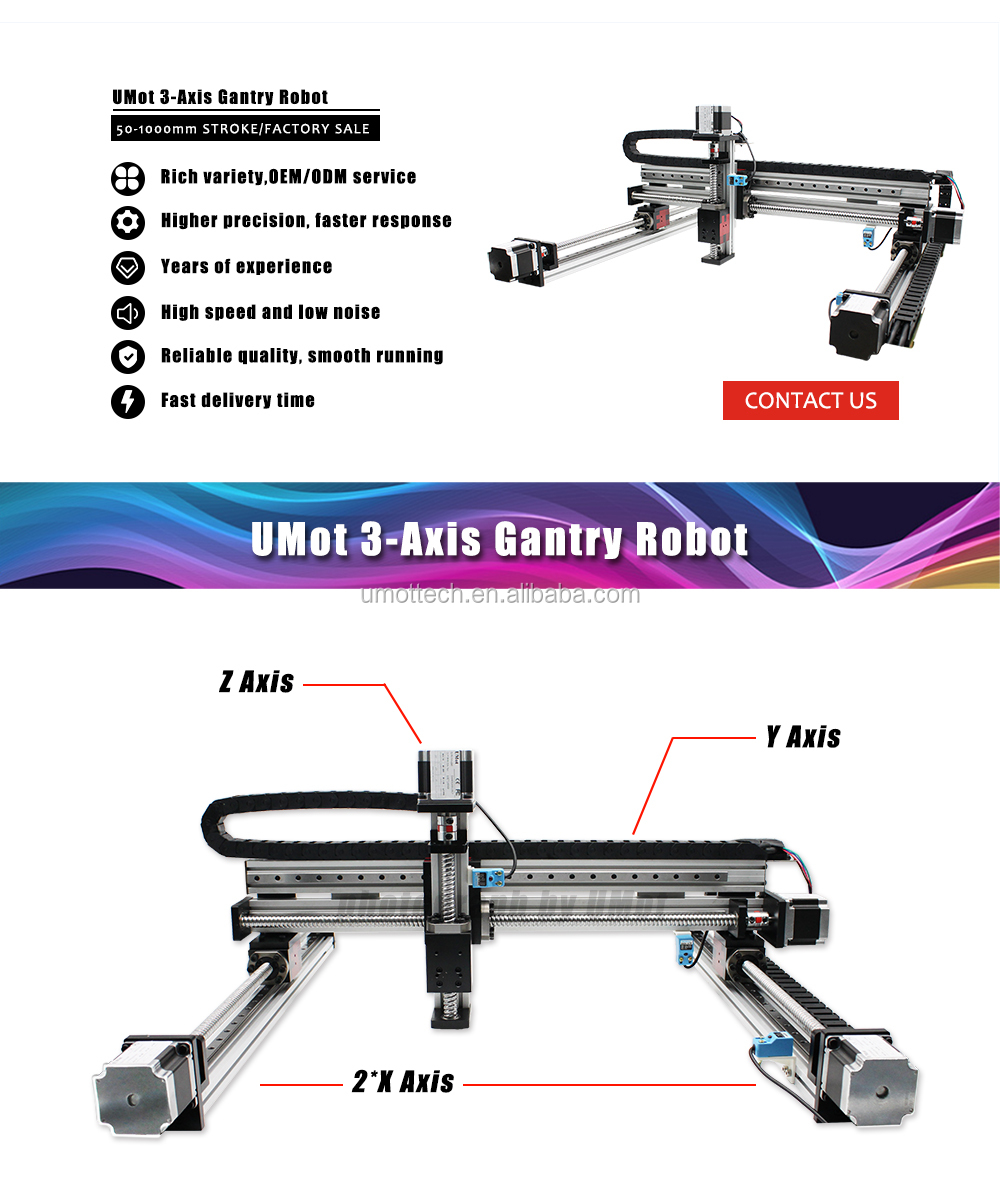

UMot stable XYZ linear stage cartesian robot 4-axis ball screw driven linear axis is customized product. The max travel length we can do is from 50mm to 1000mm. Please contact us to customize your linear guide rails.

Discount will be given to you if you leave a message to us.

Product Description

Brand Name	UMot
Guide Width	40mm
Model Number	SW40
Effective Stroke	50-4000mm
Position Accuracy	0.05mm
Screw Precision Grade	C7
Max thrust	471N
Stepper Motor Type	Nema 23

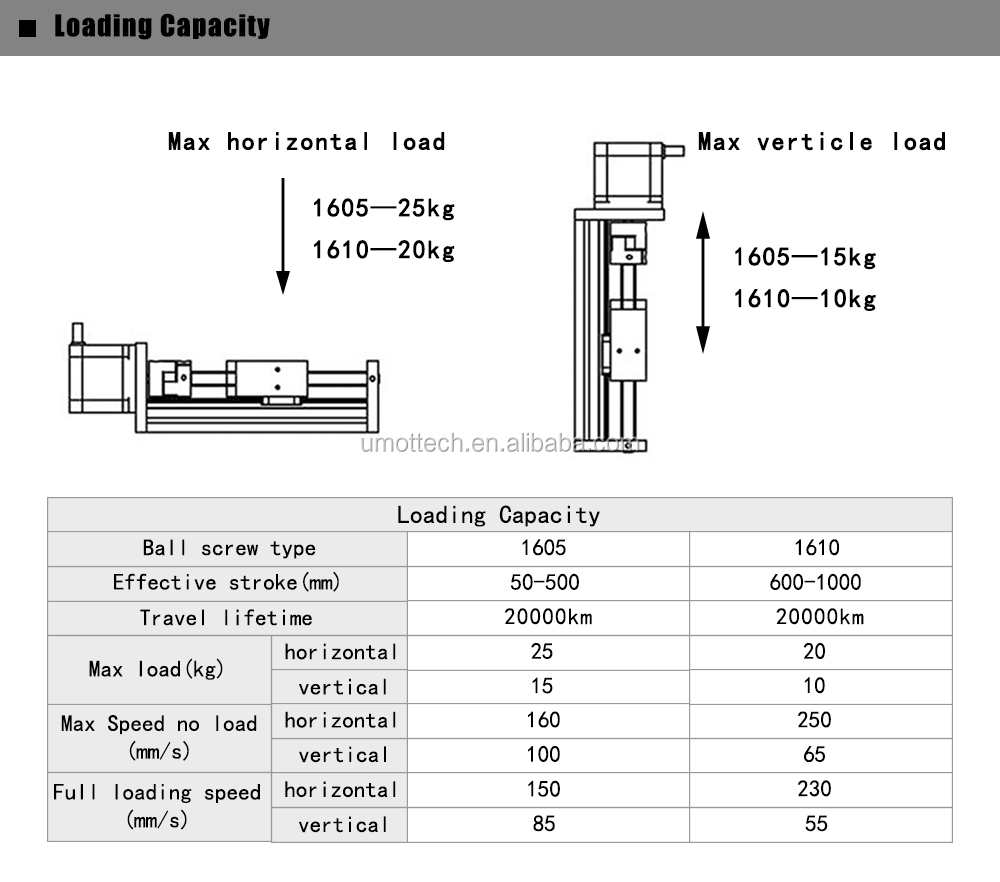

Max Honrizontal Loadings	25kg
Max Vertical Loading	15kg
Max Honrizontal Full Speed	230mm/s
Max Vertical Full Speed	90mm/s
Rated Acceleration	500mm/s²
Limit switch	2 for free
Application field	3D printer automated production line robotic arm plasma detector
Applicable industry	medical equipment spraying equipment automatic welding series
