Tiger rig YG160 traveling block hook for oil well drilling

Supplier: Chengdu Zhonghang Machinery Co., Ltd.
Region: Sichuan, China
Contact: Ms terry liu
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Overseas service center available;	Application:	oil well drilling;
Drilling rig type:	skid-mounted rig;	Type:	Oil well drilling;
Warranty of core components:	1 Year;	Selling Units:	Single item;
Features:	Big Torque;	Video outgoing-inspection:	Provided;
Dimension(LWH):	Machine Sizes;	Single package size:	10X10X10 cm;
Marketing Type:	Ordinary Product;	Model Number:	YG160;
Single gross weight:	20.000 KG;	Weight:	3282 KG;
Voltage:	380V;	Packaging Detail:	water proof cover inside and steel frame box outside ,name sizes,weight will be marked on the package in different language;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining,oilfield;	Machinery Test Report:	Provided;
Place of Origin:	Sichuan, China;	Core Components:	Bearing;
Warranty:	1 Year;	Power Type:	Diesel;
Qty of sheave:	6 or 8;	Condition:	New;
Color:	yellow;	Package Preview:	;
Usage:	Oil Well;	Brand Name:	TIGER RIG;
Offical Product Name:	traveling block;	Showroom Location:	None;

Tiger rig YG160 drilling rig traveling block hook

Product Description

25 years drilling rig hoisting system production

Experience is key to producing quality travelling block and hook, and We’ve been making them for 25 years, our factory is well-equipped to delivery similar standards to those which you would find in American Houston or Russian oil field.

Specification

Model	Max. hook load KN(ton)	Qty. of sheave	OD of sheave mm(in)	Wire line diameter mm(in)	Hook Opening size mm(in)	spring travel mm/in	Dimension (L x W x H) mm (in)	Weight kg(lbs)
YG135	1350(150)	4	760(30)	26 (1)	150(5.9)	170(6.7)	2946838647/1163326	3126(6892)
			760(30)	29(1 1/8)			2946838647/1163326	3126(6892)
			915(36)	29(1 1/8)			3091987647/1223330	2426(7548)
YG160	1600(180)	4	760(30)	29(1 1/8)	220(8.7)	150(5.9)	3059830763/1213330	3282(7236)
YG170	1700(190)	5	915(36)	29(1 1/8)	200(7.9)	170(6.7)	3402960725/1343829	4594(10120)
YG225	2250(250)	5	915(36)	29(1 1/8)	190(7.5)	180(7)	3610960775/1423831	6200(13657)
			915(36)	32(1 1/4)			3610960775/1423831	6200(13657)
			1120(44)	29(1 1/8)			37141190775/1464731	6600(14538)
			1120(44)	32(1 1/4)			37141190775/1464731	6600(14538)
YG350	3170(350)	5	1270(50)	32(1 1/4)	220(8.7)	200(7 7/8)	41901350885/16553.234.9	10860(23942)
YG450	4500(500)	6	1524(60)	35(13/8)	220(8.7)	200(7 7/8)	48871600810/1936332	12530(27646)

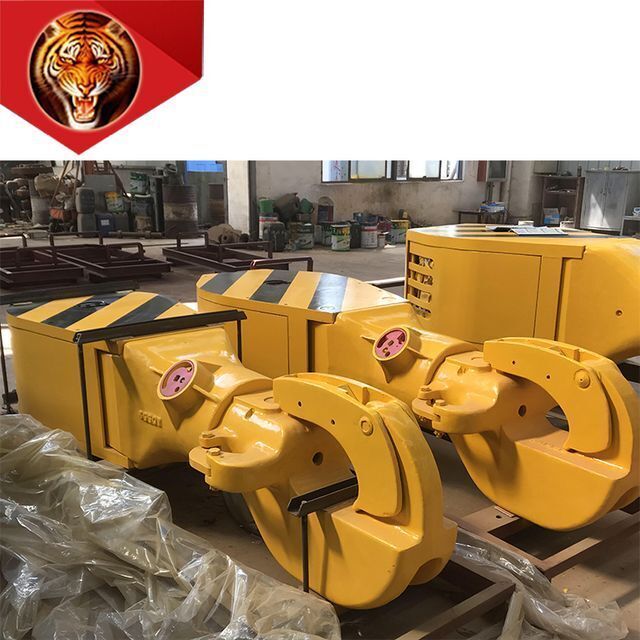

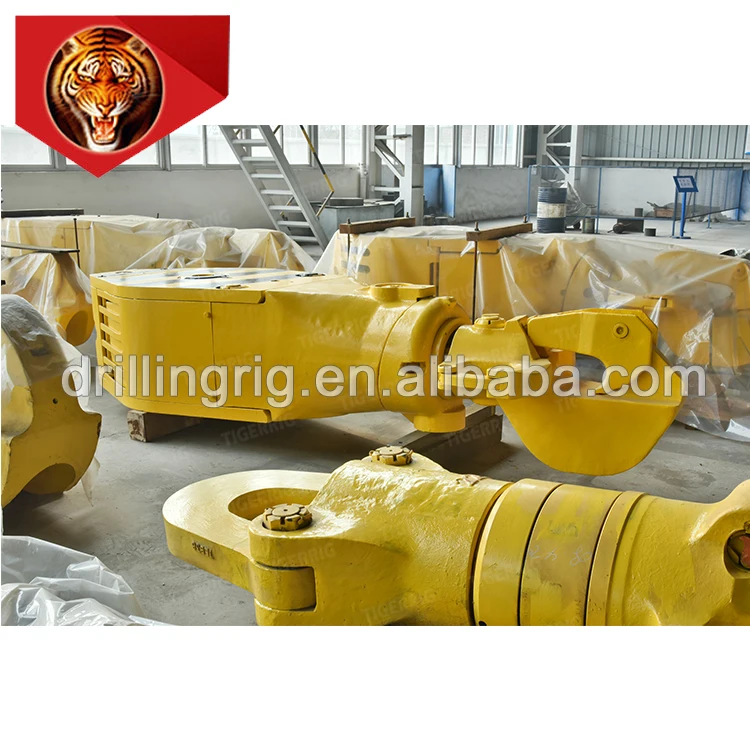

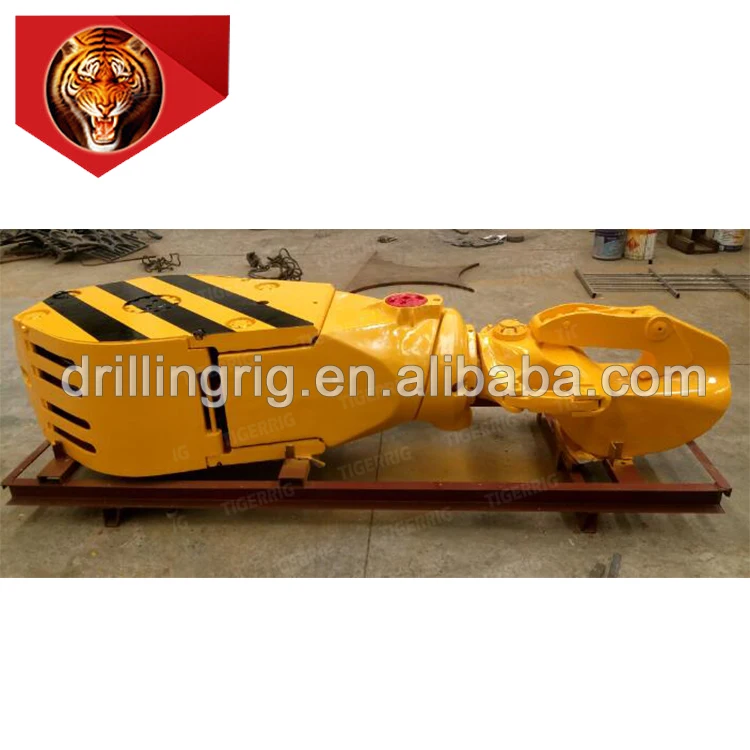

Drilling rig traveling block hook Pictures

100% real in our workshop shooting, not online shop or magazine reprinted.

Factory Strenth

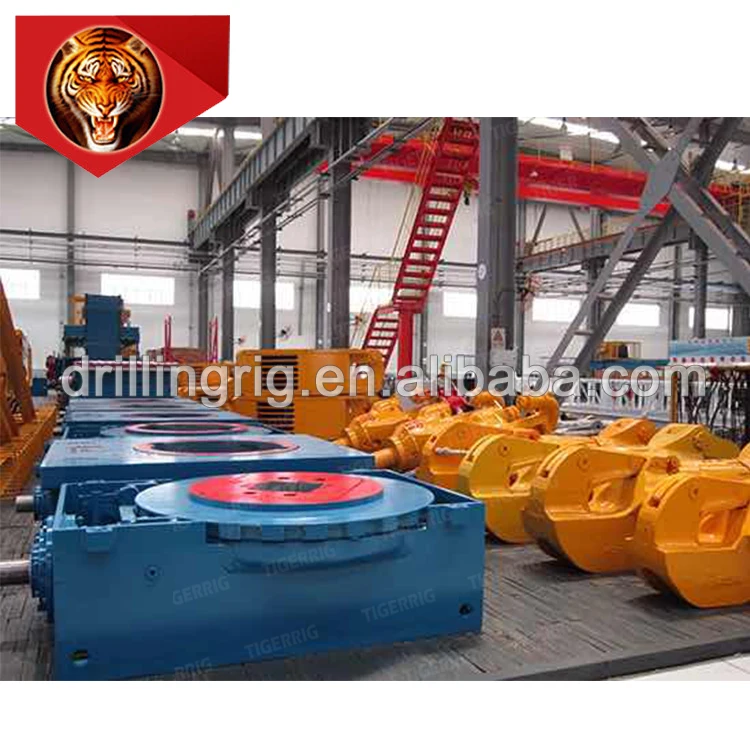

Our Factory

Tiger Rig was created in 2005, which has got great reputation in the world. Our customers come from every corner of the global placing repeat orders to our products. The recognition of customers also promotes us to use more advanced technologies to improve the quality of the product to satisfy them. Our Products have got approval of authority institution of the USA. The quality and price of our products and service to our customers have made our equipment preferred in the oilfield.

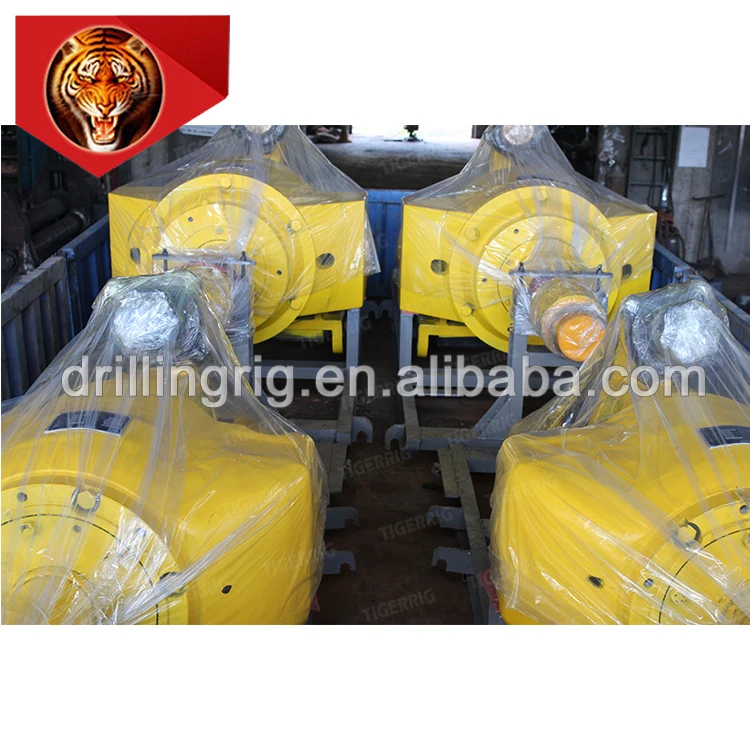

Packaging & Shipping

Packing:

1.The goods will be covered with plastic or other rainproof coat.

2.The packing of goods, which should be delivered to destination in accordance with the agreement we signed, will be offered by our company. And we will be held responsible for the consequences if damage of the product or loss of accessories occurs by the time the goods have shipped to port of destination.

Delivery time:

1. Warehouse machine: 3 days after 100% payment.

2. booked machine: 15-45 days after 30% payment.

Welcome oversea rig manufacturer to cooperate with us.

3.YG135.YG225,YG450 in stock supply~!

Contact

1. Our working time: 8:00am~23:00pm (if urgent, please call our director: terry,mobile:+86-18081980882, wechat:drillingrig)

2. All the inquiries will be replied within 24hours, So please feel to send us your inquiry.

3. When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address.

----------------------------------------------------------------------------------------------------------------------------------

Feedback:

1. If satisfied please tell your friends otherwise please let us know.

2.Any opinion of yours are warmly welcome.

3. Email me for any questions.

4. Thank you, and happy for placing order.

Russian customer scan my wechat:

Our Customer

Certificate

Agents Wanted

Tiger Agent Requirements:

1.Over 30 years old

2.Having the capital background in the local place

3.Having the working experience on the oilfield, such as oil technician, oil exploit, oil sales etchant the one who has customer resources, is prior

4.Working near the oil field, thus convenient to visit customers

5.Capacity of English communication

Star Endorsement

Cost-Effective

As the drilling rig crown block price compete, many company would use poor materials, such as poor seals, low quality square parts,use Casting instead of forging to drop the cost. So please never compare the price only. for us, we always insist high quality first, we hope can do long-term business with you. So we always use better materials to ensure the high quality, be honest and fine workmanship always to customers and do long term business.
