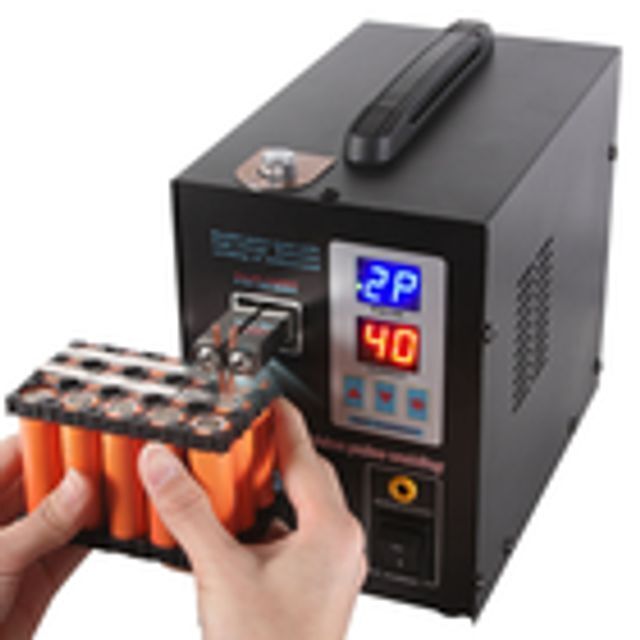

SUNKKO 737G 220V Mini Portable Spot Welder for Pack Battery Welding

Supplier: Shenzhen E-Fire Technology Development Co., Limited
Region: Guangdong, China
Contact: Ms Little Bear
Price: $65.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Welding method:	spot welder;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Rated Capacity:	3.2KVA;	Condition:	New;
Function:	spot welding for lithium battery;	Packaging Detail:	PE/Carton;
Welding current:	50A~800A;	Place of Origin:	China,Guangdong, China;
Input voltage:	220V;	Applicable Industries:	Energy & Mining;
After-sales Service Provided:	Online support;	Feature:	Portable Welding;
Weight:	5.5Kg;	Usage:	Spot welder machine;
Max. Welding Thickness:	0.2mm;	Brand Name:	Sunkko,Sunkko;
Power:	1600W;	Warranty:	1Year;
2 pluse welding:	0.12~0.2mm Nickle plated;	Certification:	ISO;
Rated Duty Cycle:	N/A;	MOQ:	1pcs;
Dimensions:	245140200mm;	Voltage:	220V;
Supply Ability:	20000 Pieces per Month;	Port:	Shenzhen/HK;
Product Name:	Spot Welder for Pack Battery Welding;

737G is equipped with dual pulse mode selection and 0 ~ 99 current level setting, which allow the machine to weld nickel strip within 0.03 ~ 0.2mm thickness (0.15mm for pure nickel), making the spots more reliable. The combination of fixed welding head and foot pedal will meet users' different welding requirements.

This spot welding device is suitable for building small lithium battery packs.

(This model is only available for US customers.)

Official Manual

Technical Detail(Yes: Y)

Welding part
Model: 737G (110 Voltage, US plug style)
Welding thickness of nickel coated steel: 0.2mm
Welding thickness of pure nickel: 0.15mm
Pulse quantity selection: 1-2
Each pulse time: 5ms
Max. welding current: 800A
Pulse LCD display: Y
Current LCD display: Y
Led light: Y
Pressure adjuster: Y

Packing list
Main machine: 1pc
Copper welding rods:2 pairs
Battery fixture(6 section):1 pc
Foot pedal:1 pc
Fuse(30A):2 pcs
Hexagon wrench:1 pc
0.15x5x100mm(nickel plated strip):30 pcs
0.1x4x100mm(nickel plated strip):30 pcs

Physical information
Product dimension (LxWxH, inch):9.1x5.5x7.9
Net weight (lbs):9.6

Attention: This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.
