SUNKKO 737G 110V Mini Portable Spot Welder for Pack Battery Welding

Supplier: Shenzhen E-Fire Technology Development Co., Limited
Region: Guangdong, China
Contact: Ms Little Bear
Price: $68.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	20000 Piece/Pieces per Month;	Place of Origin:	Guangdong, China;
Certification:	ISO;	Voltage:	110V;
Rated Capacity:	3.2KVA;	Product Name:	Spot Welder for Pack Battery Welding;
Condition:	New;	Max. Welding Thickness:	0.2mm;
Power(W):	1600W;	Weight:	5.5Kg;
Brand Name:	Sunkko;	Feature:	Portable Welding;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Paypel;	Function:	spot welding for lithium battery;
Warranty:	1Year;	2 pluse welding:	0.12~0.2mm Nickle plated;
Usage:	Spot welder machine;	Dimensions:	245140200mm;
Port:	Shenzhen/HK;	Packaging Detail:	PE/Carton;
Place of Origin:	China;	Brand Name:	Sunkko;
Rated Duty Cycle:	N/A;	Applicable Industries:	Energy & Mining;
Welding method:	spot welder;	Welding current:	50A~800A;
After-sales Service Provided:	Online support;	MOQ:	1pcs;
Input voltage:	110V;

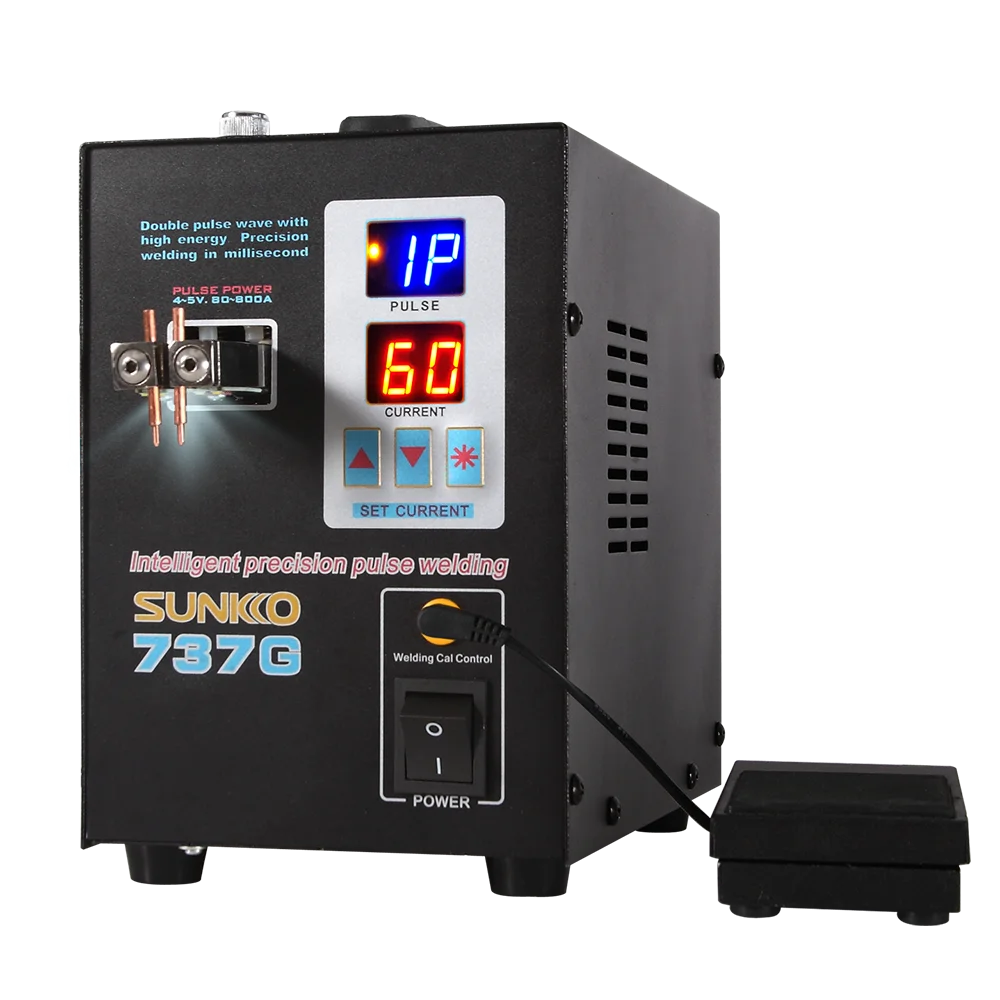

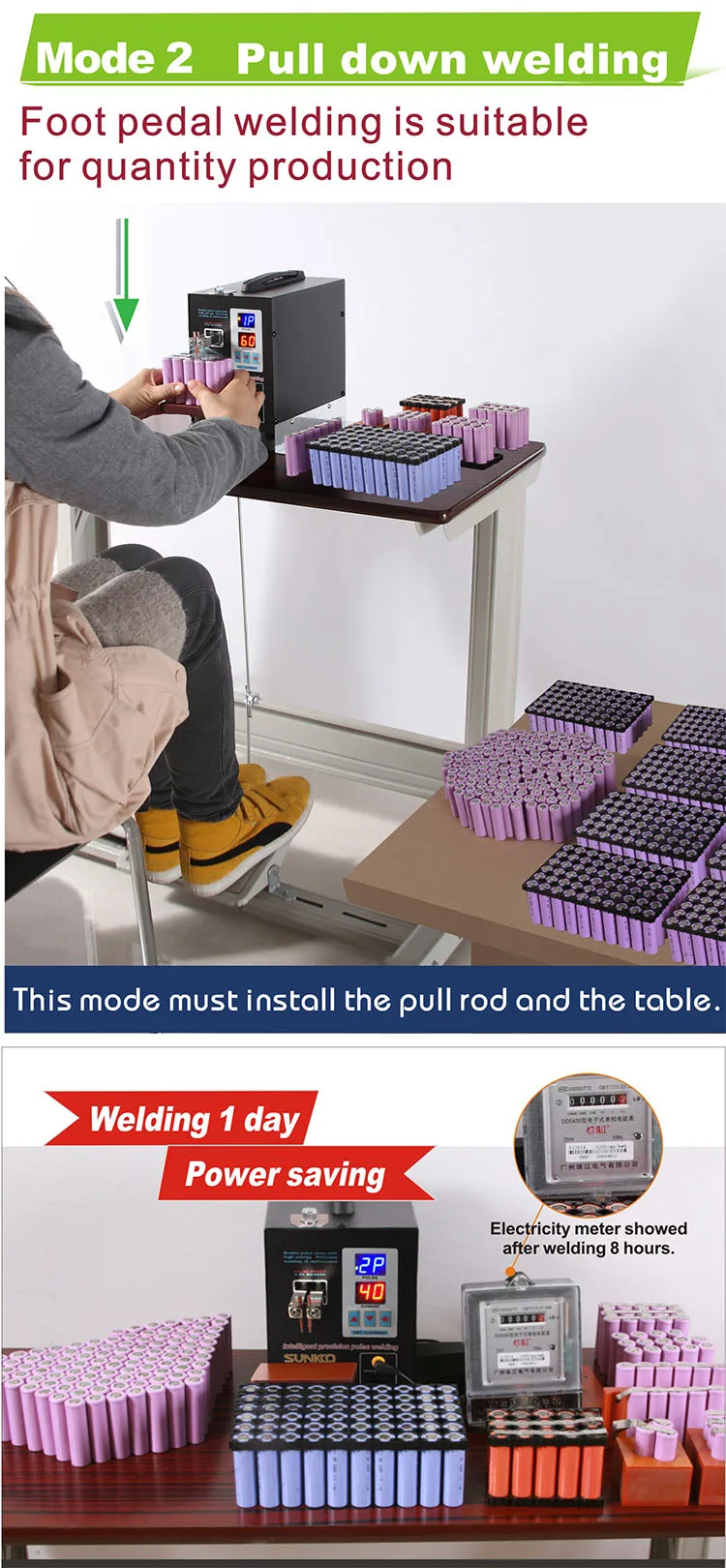

737G is equipped with dual pulse mode selection and 0 ~ 99 current level setting, which allow the machine to weld nickel strip within 0.03 ~ 0.2mm thickness (0.15mm for pure nickel), making the spots more reliable. The combination of fixed welding head and foot pedal will meet users' different welding requirements.

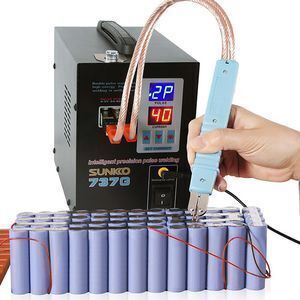

This spot welding device is suitable for building small lithium battery packs.

(This model is only available for US customers.)

Official Manual

Technical Detail(Yes: Y)

Welding part

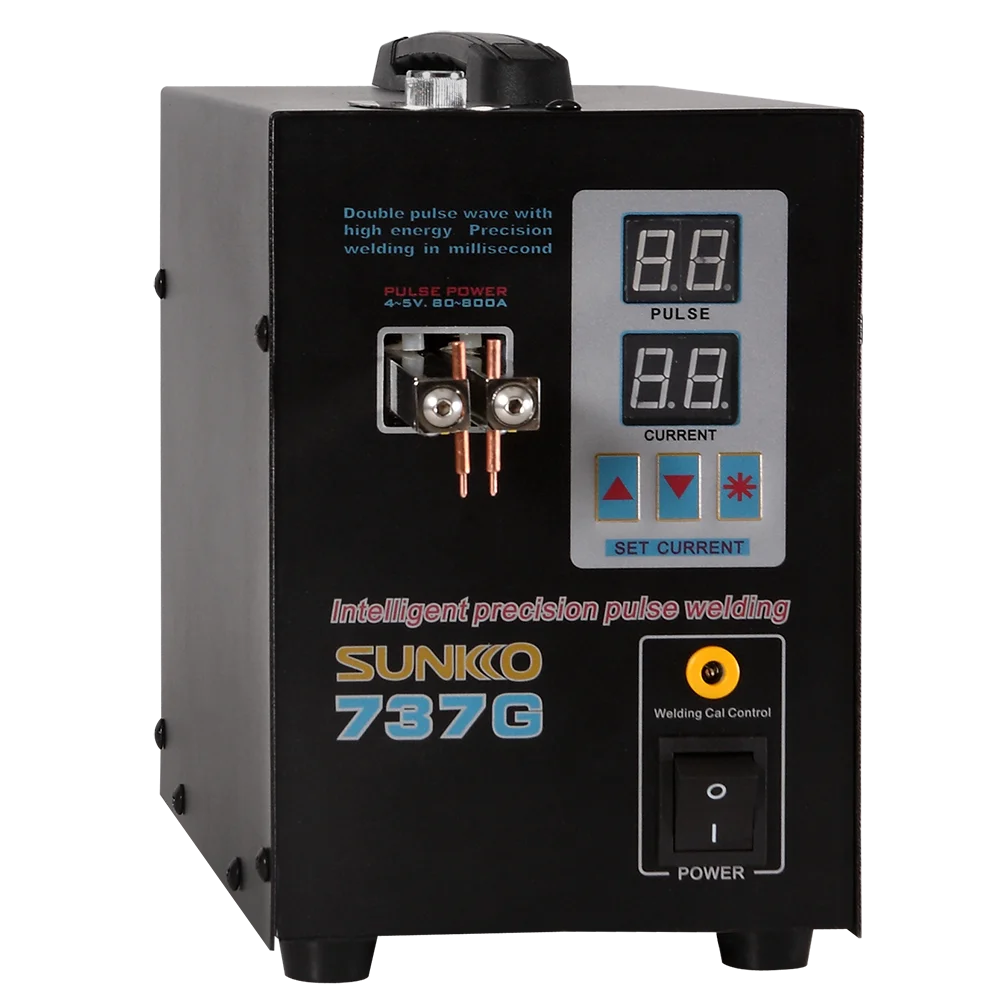

Model: 737G (110 Voltage, US plug style)
Welding thickness of nickel coated steel: 0.2mm
Welding thickness of pure nickel: 0.15mm
Pulse quantity selection: 1-2
Each pulse time: 5ms
Max. welding current: 800A
Pulse LCD display: Y
Current LCD display: Y
Led light: Y

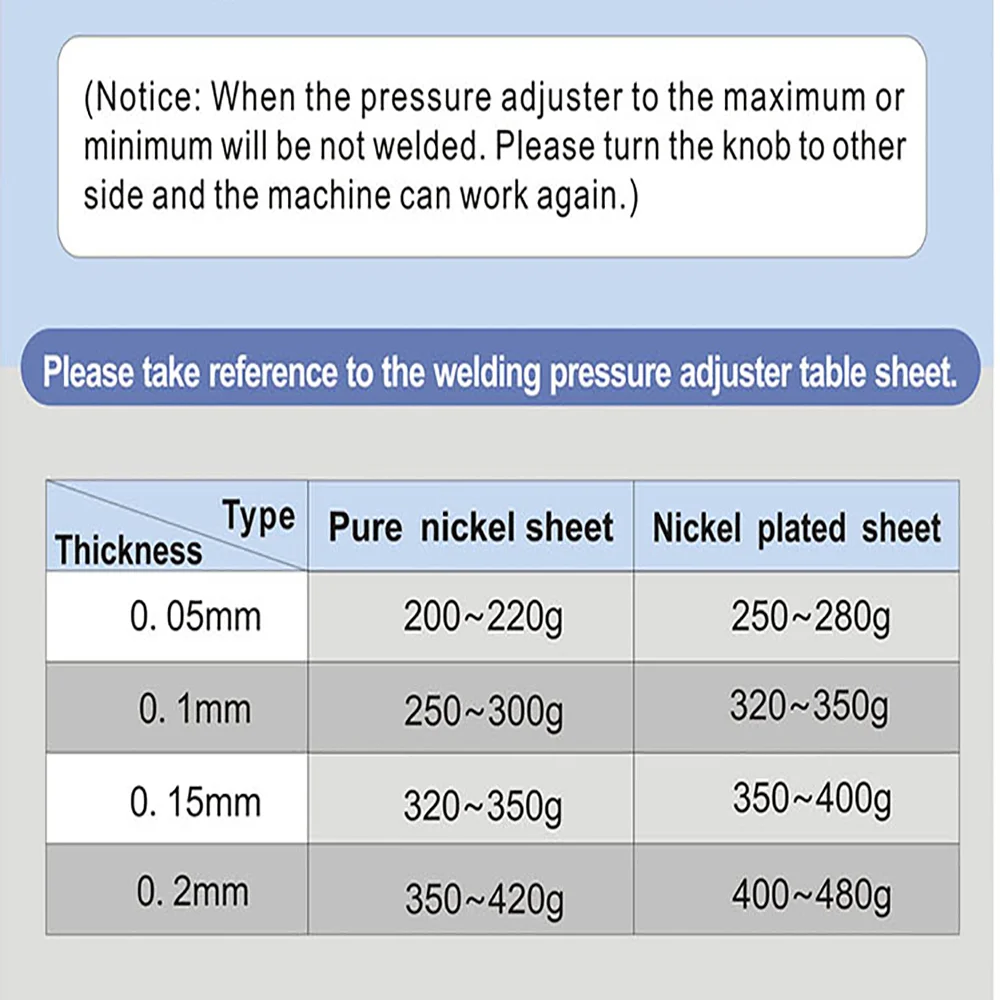

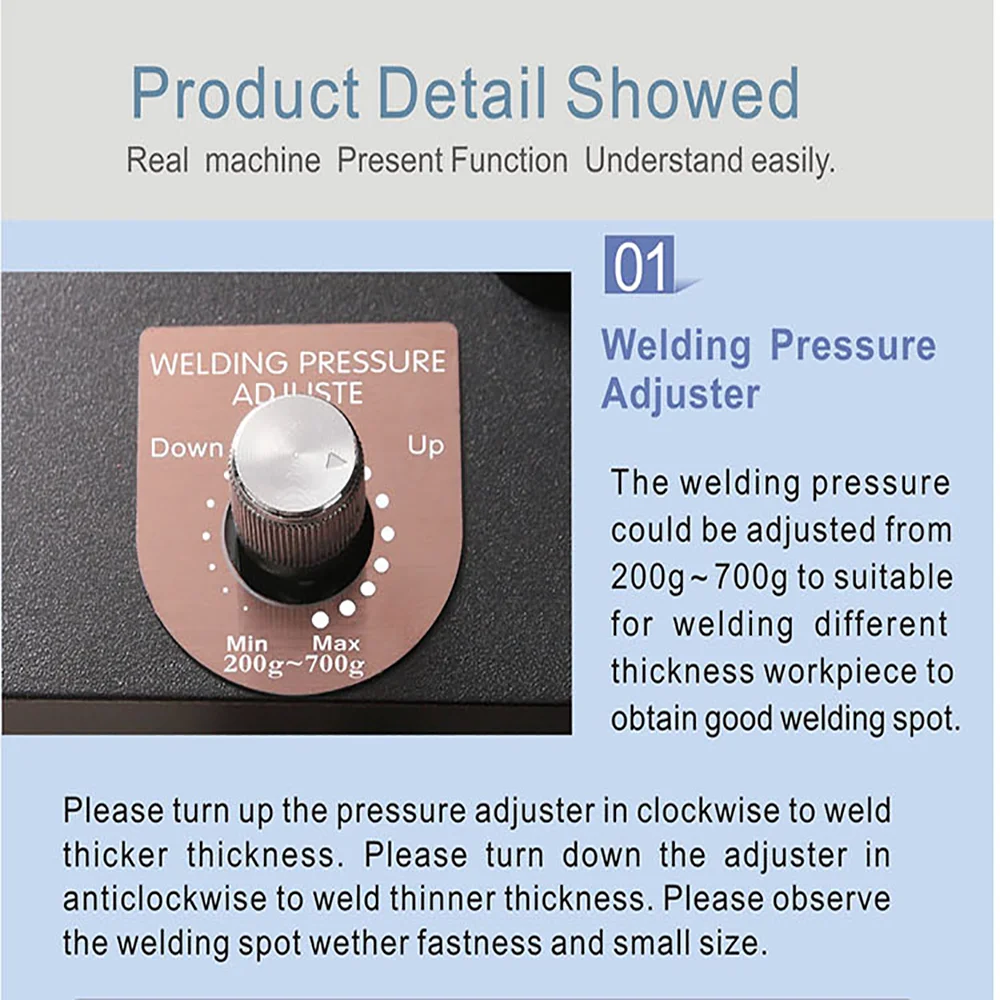

Pressure adjuster: Y

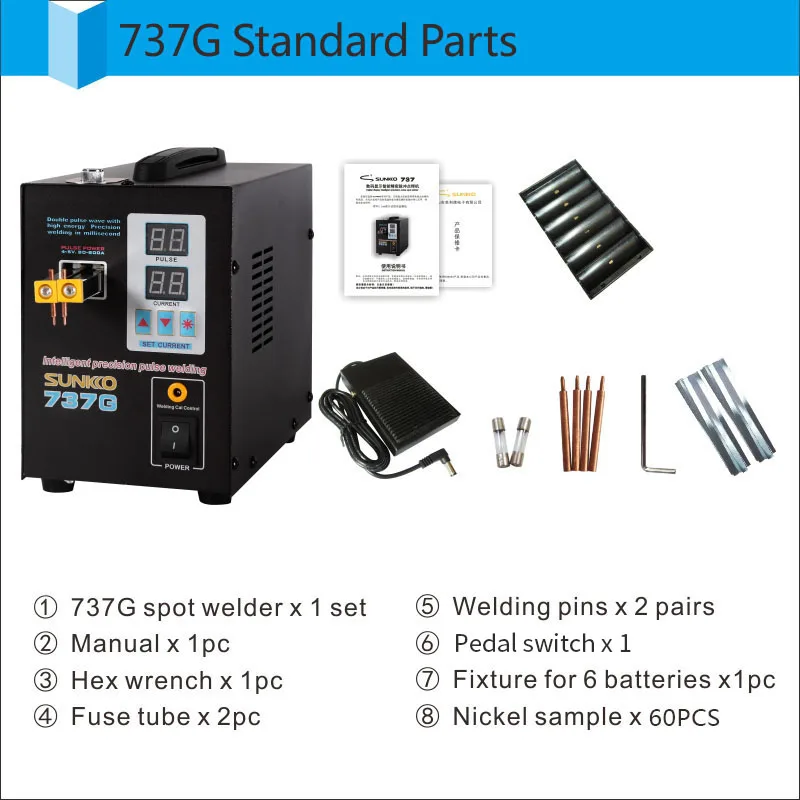

Packing list
Main machine: 1pc
Copper welding rods:2 pairs
Battery fixture(6 section):1 pc
Foot pedal:1 pc
Fuse(30A):2 pcs
Hexagon wrench:1 pc
0.15x5x100mm(nickel plated strip):30 pcs
0.1x4x100mm(nickel plated strip):30 pcs

Physical information
Product dimension (LxWxH, inch):9.1x5.5x7.9
Net weight (lbs):9.6

Attention: This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.
