1.9kw Pulse Spot Welder Sunkko 709A Battery Welding Soldering Machine 110V 220V battery cells spot welder
- 225.00 set
| After-sales Service Provided: | No overseas service provided; | Condition: | New; |
| Single gross weight: | 7.5 KG; | Rated Duty Cycle: | N/A; |
| Voltage: | 110v/220v; | Skype: | E-firesales; |
| Delivery Detail: | 0 days after payment; | Selling Units: | Single item; |
| Brand Name: | Sunkko; | Power(W): | 1900W; |
| Place of Origin: | Guangdong China (Mainland); | Rated Capacity: | N/A; |
| Single package size: | 25X35X30 cm; | Max. Welding Thickness: | 0.3mm; |

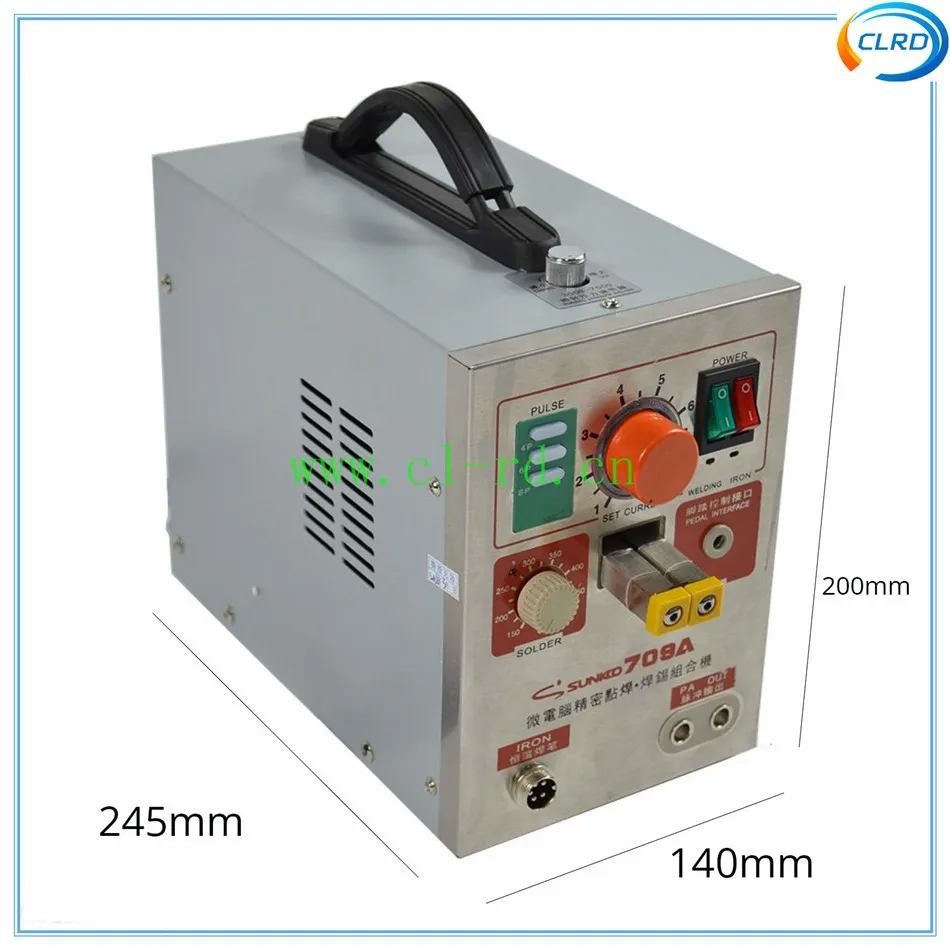

| Warranty: | 1 Year; | Dimensions: | 245*140*200mm; |
| Package Type: | carton pack; | Certification: | ISO; |
| Weight: | 7.5KG; | Usage: | Spot Welding; |
1.9kw Pulse Spot Welder Sunkko 709A Battery Welding Soldering Machine 110V
1.The machine is a combination of battery spot welding and circuit board solder, which makes your work more convenient.
2.Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.
3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator, selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.
6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.
| Model | S709A |
| Power Supply | AC 110 V, 60 Hz |
| Instantaneous Power | 1.9 kw |
| Current | 500 A |
| Time of Double Pulse (Instantaneous Welding Time) | 1 ~ 10 ms (adjustable, by adjusting the welding current knob) |
| Time of Four Pulses (Instantaneous Welding Time) | 2 ~ 20 ms (adjustable) |
| Time of Eight Pulses (Instantaneous Welding Time) | 8 ~ 80 ms (adjustable) |
| Welding Pin Range | 5 - 6 mm |
| Welding Pressure | 300 - 500 g |
| Welding Distance | Adjustable |
| Suitable Welding Thickness | 0.03 - 0.3 mm for Fixed Copper Head 0.03 - 0.2 mm for Mobile Welding Pen For pure nickel strip: 0.03 - 0.15 mm |
| Soldering Iron Temperature | 150°C ~ 450°C |
| Power | 50 W |
| Output Voltage | DC 20 V |
Tips:
1. This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.
2. The welding thickness 0.03 - 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 - 0.3 mm.
3. Rated current of tripping device of the leakage protection switch should be up to 60A.
4. For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.
