Automatic Suppository Production Line Pharmaceutical Suppository Filling and Sealing Line

Product details
Packaging Detail:Automatic Suppository Production Line Pharmaceutical Suppository Filling and Sealing Line Packaging: wooden case;Application:Chemical, Pharmaceutical Factory;
Warranty:1 Year;Condition:New;
Filling material:Synthetic fatty acid glycerides, glyceri, gelation etc;Brand Name:pharmec;
Supply Ability:10 Sets per Month Suppository Filling And Sealing Closing Packing Machine;Video outgoing-inspection:Provided;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Machinery Test Report:Provided;
Product name:Suppository Filling And Sealing Closing Packing Machine;Place of Origin:Shanghai, China;
Air Pressure:≥0.7MPa;Marketing Type:Hot Product 2021;
Core Components:PLC,Engine,Motor;Dosage Allowed:<±2%;
Key Selling Points:Stable;Applicable Industries:Pharmaceutical Factory,Daily Chemical Industry;
Usage:suppository filling and sealing machine;Warranty of core components:2 years;
Dimension(L*W*H):2300 x 1200 x 1800mm;Packing Material:PVC/PE (Thickness:0.15-0.18mm);
Automatic Grade:Automatic;Voltage:3 phase, 380V(customized);
Single Dosage:0.5-5g;Showroom Location:Canada,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Thailand,Bangladesh,Ukraine,Uzbekistan;
Port:shanghai;Weight (KG):500;
Warranty Period:2 years;Power:4KW/5KW/7.5KW/9.5KW;
Products Description
Introduction

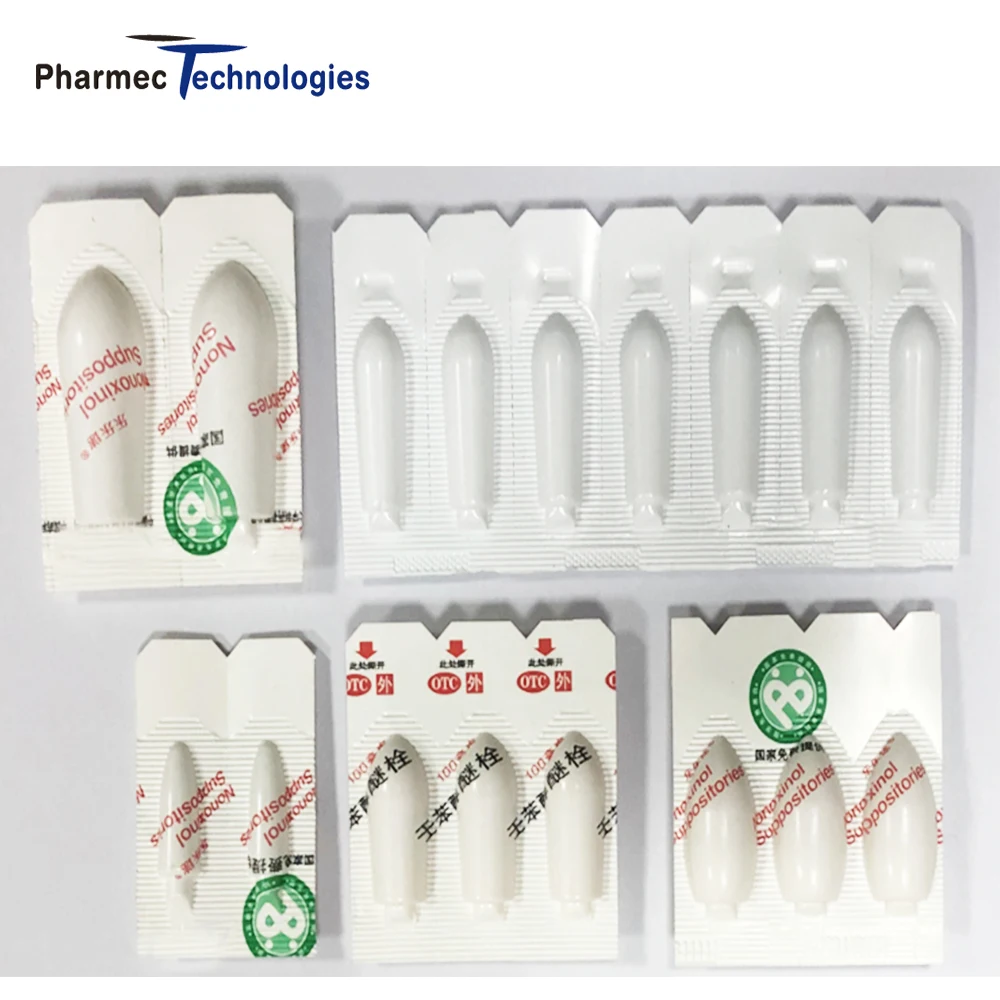

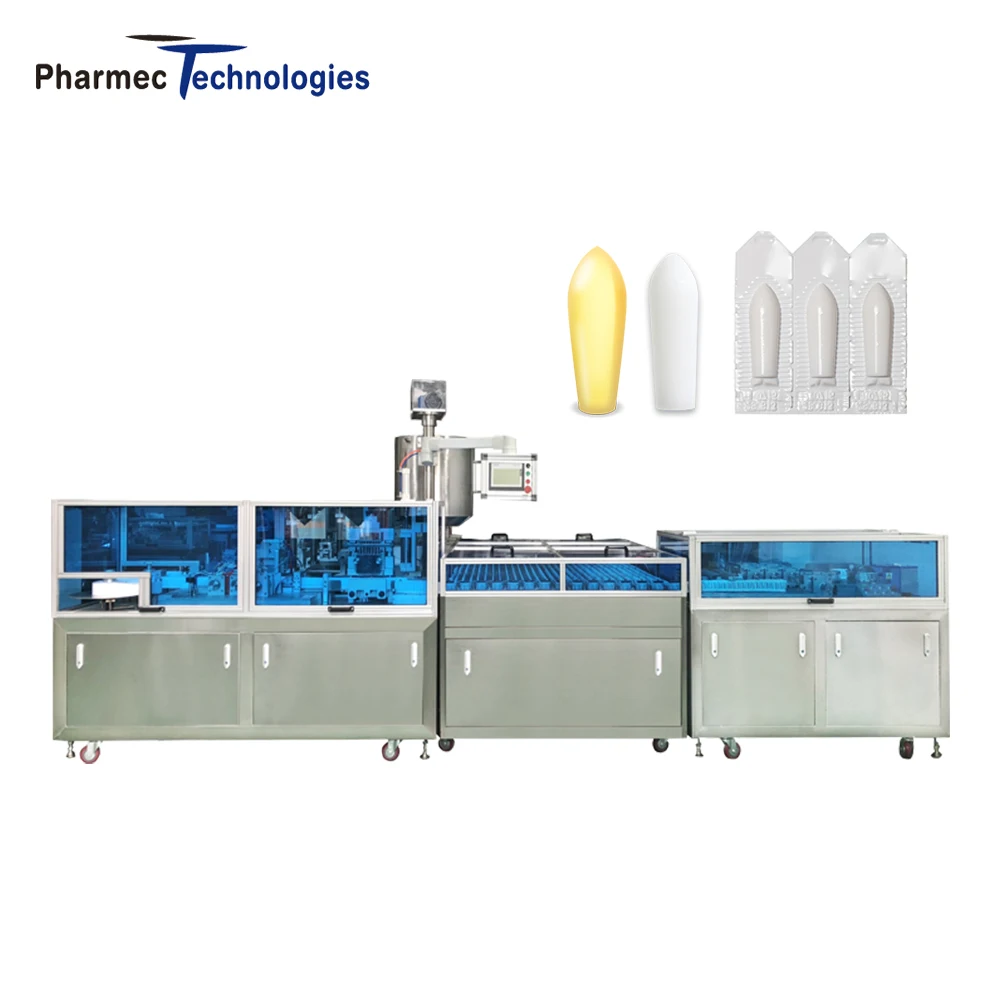

Automatic suppository production line is suitablefor the production of special shapesof slugs such as bulletshape, torpedo shape and duckbill shape, which can meet the production of suppositories of various shapes. (Make a mold according to the sampleor requirement.)

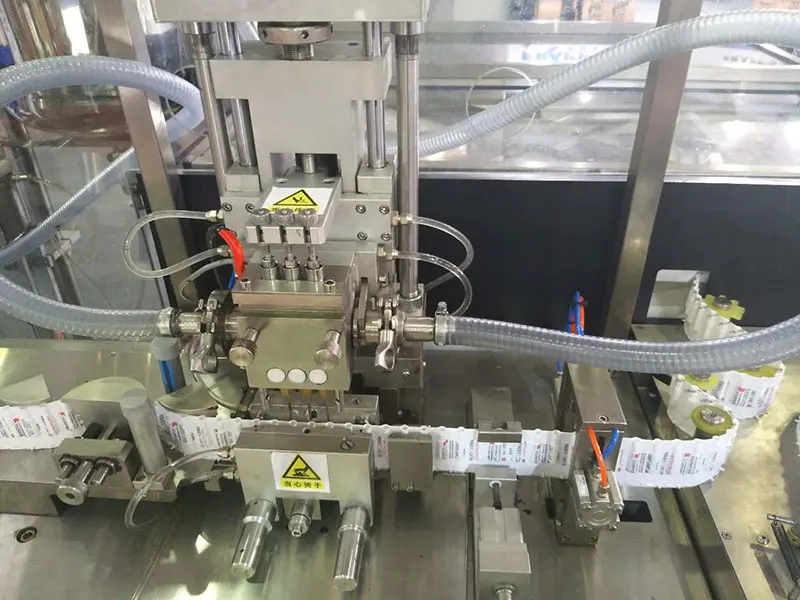

From the beginning of the automatic suppository shell molding, to the filling station of the liquid medicine, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)

Technical Parameters
Name
Laboratory Automatic
Suppository Production Line
Continuous Automatic
Suppository Production Line
Model
PT-1LS
PT-3LS
PT-7LS
Output
1,000-2,000 pcs/h
5,000-6,000 pcs/h
10,000-12,000 pcs/h
15,000-18,000 pcs/h
18,000-23,000 pcs/h
Stirring tank capacity
20L/30L
70L
Air consumption/min
1.5m3/min
1.6m3/min
Total power
4KW/5KW
7.5KW/9.5KW
Machine Weight
500kg/1000kg
2000kg/2500kg
Single Dosage
0.5-5g
Dosage Allowed
<±2%
Packaging Film
PVC/PE
Thickness: 0.15-0.18mm
Work pressure
≥0.7MPa
Water consumption
50kg/h(recycle use)
Working voltage
3 phase, 380V(customized)
Center distance
17.4mm
Shape
The bullet,torpedoes,duck bill and other various shapes
Application
Synthetic fatty acid glycerides,glycerin,gelation and polyethylene glycol,etc
Overall size
PT-1LS
L2300 x W1200 x H1800mm
PT-3LS
L3578 x W1388 x H1828mm
PT-7LS
L5839 x W1456 x H2115mm
Material
Stainless Steel
Customized
Accept
Service
OEM and OEM
Package
Standard wooden packing for sea shipping
