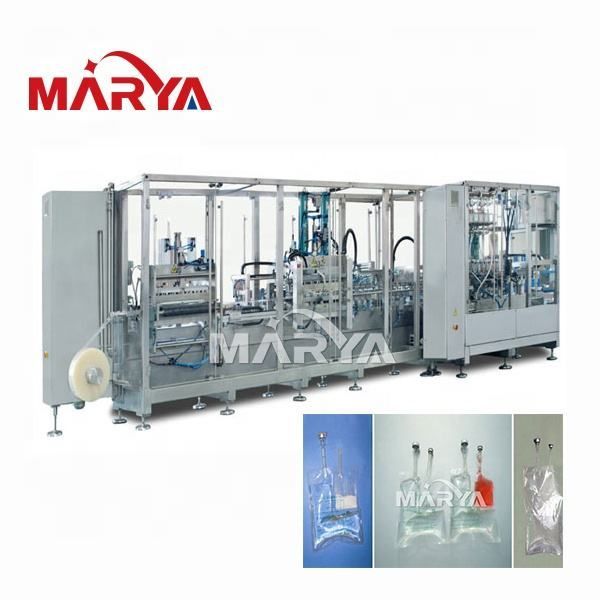

Pharmaceutical non-PVC soft bag physiological saline intravenous injection filling and sealing production line

Supplier: Shanghai Marya Pharmaceutical Engineering & Project Co., Ltd.
Region: Shanghai, China
Contact: Mr Andy Gao
Price: $95000.00 / 1 - 1 sets
$90000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	Maria	Applicable industries:	Manufacturing plants, pharmaceuticals, medical
Filling accuracy:	1%	Voltage:	380V 50Hz
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Package preview:
Main selling points:	High accuracy	Packaging Details:	Wooden packaging is suitable for shipping/medical non-PVC soft bag physiological saline intravenous injection filling and sealing production line
product name:	Soft bag IV liquid filling and sealing production line	Video outbound inspection:	if
Filling capacity:	50-3000ml	Health status:	new
port:	Shanghai Port/Pharmaceutical non-PVC soft bag physiological saline intravenous injection filling and sealing production line	Production capacity:	1000-8000BPH
Origin:	China	Weight (kg):	6000
Warranty:	1 year	Core components:	PLC, bearings, gearboxes, motors, pressure vessels, gears, pumps
Showroom location:	Bangladesh, Tajikistan	Supply capacity:	50 sets per year
Driver type:	electric	Mechanical test report:	if
Dimensions (LWH):	810020002250mm	Core component warranty:	1 year
usage:	liquid	Marketing Type:	2020 new products
strength:	10 kW

Pharmaceutical non-PVC soft bag physiological saline intravenous injection filling and sealing production line

Product Description

This machine is specially designed for pharmaceutical use as per GMP and CE guidelines. it is designed forForms, fills and seals two bags, each equipped with two SFC ports per cycle.

feature

(1)Precise temperature control

The temperature error can be controlled within ±0.5°C, and precision temperature control devices are used to ensure all qualificationsmembrane.
(2)Zero-tolerance manufacturing process
Ensure that the flatness and parallelism tolerances of the mold are within 1%mm, making replacement easy, adjustment-free, and delamination-free.
(3)Advanced industrial network
The system uses advanced communication networks to connect various industrial equipment to the network. Simplify hardwareConnect, reduce use errors, reduce the difficulty of use and maintenance, and reduce the number of uses
workers, streamlined equipment structure.
(4)Simple design
Simplicity is the ultimate sophistication.Ensure that the equipment is stable and efficient, while making the equipment structure the simplest and simplestOperation, commissioning and maintenance. Reduce the quality requirements for workers and reduce the number of workers.

Specification

Soft bag type	CS2 type (2 bags/group)	Comment
Movie	PP double roll multi-layer flat film (3 layers/5 layers) meets production requirements
100ml/250ml	2500 bags/hour	The data must meet the following conditions: filling pressure 0.40Mpa/compressed air 0.75Mpa
500ml	2400 bags/hour
filling pressure	0.2Mpa-0.4Mpa
filling temperature	up to 55°C
Filling accuracy	+/- 1.0%
Product connection	50.5 standard clamp
Online disinfection	up to 125° C CIP Standard equipment only provides for the disinfection of pipe interface components.
Passing rate	minute. 99.9% (based on qualified materials and error-free operation) Leakage rate Max.0.001%
Waste corner scrap rate	99.99%, with independent waste corner collection tank
strength	Three-phase 380V 50Hz /CS2: Max. 10 kW
compressed air	0.5Mpa~0.75Mpa, dry oil-free compressed air CS2: About: 1800L/min
Cooling water	None (heat dissipation module can be added according to customer requirements)
nitrogen	Can be increased according to customer requirements
room temperature	Recommendation: 20°C - 24°C
Air humidity	Recommended: 45%-65%/maximum 85%
Temperature control accuracy	Stable operation temperature control accuracy +/- 0.5°C start-stop control accuracy +/- 1.5°C (bag making mold/port welding mold/port preheating mold)
Welding helmet error	Maximum 0.1mm
noise	maximum. 75 decibels

Packaging and shipping

Wooden packaging is suitable for shipping/medical non-PVC soft bag physiological saline intravenous injection filling and sealing production line

Company Profile

Shanghai Maria Pharmaceutical Engineering Project Co., Ltd. is a manufacturer specializing in pharmaceutical packaging machinery and clean room systems. We have 3 factories in Shanghai, Suzhou and Changsha. Our main products include BFS machine, soft bag filling and sealing machine, blister packaging machine (tablet/capsule/ampule/vial/syringe blister packaging machine), strip packaging machine, tablet counting machine, cartoning machine , ampoule filling machine, vial powder filling machine, dry granulator, etc. As a manufacturer, we can provide more favorable prices and better technical support and services than trading companies. We can design and manufacture machines according to customers' requirements, your satisfaction is our top priority. Our machines have been sold all over the country and exported to Southeast Asia, America, Europe, the Middle East, Africa and other countries and regions. Welcome to visit our factory.
