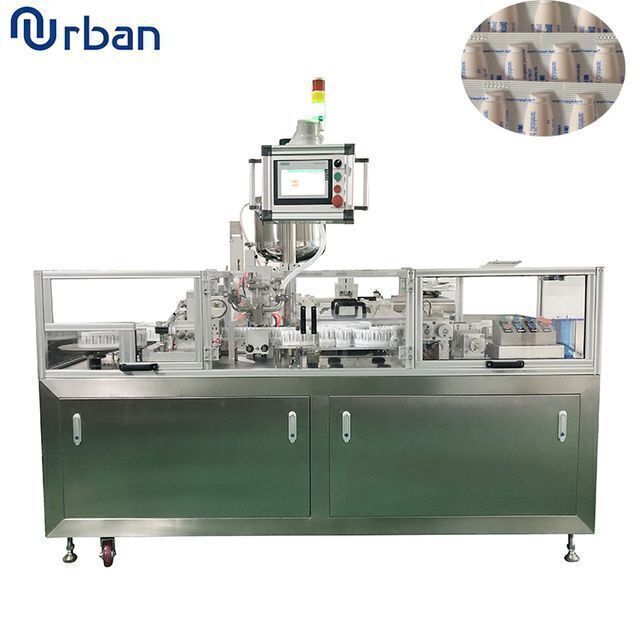

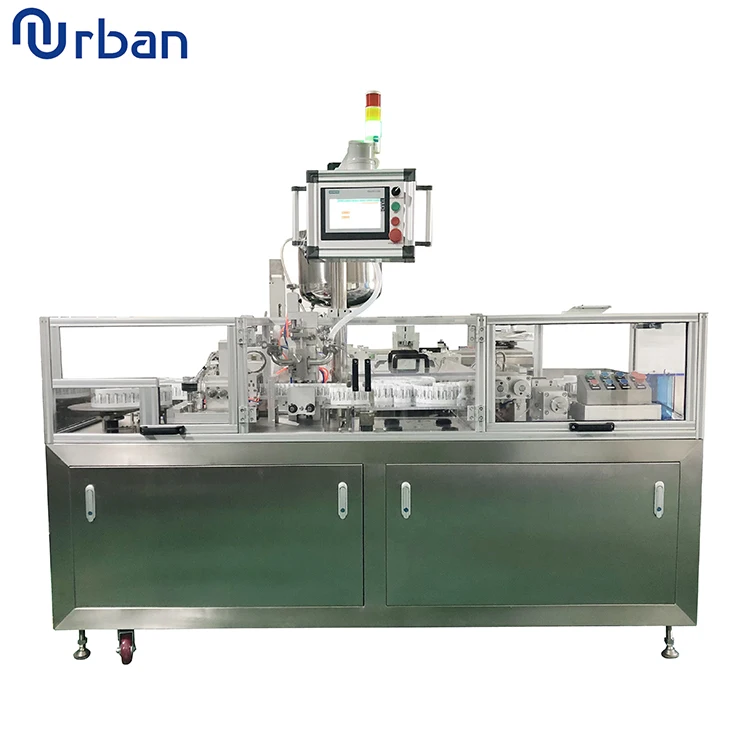

Pharmaceutical Laboratory Automatic Suppository Filling And Sealing Closing Packing Machine Production Line

Supplier: Wenzhou Urban Machinery Co.,Ltd
Region: Zhejiang, China
Contact: Ms Coli Zhan
Price: $38500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working voltage:	3 phase 380V;	Supply Ability:	70 Sets per Year;
Core Components:	PLC,Engine,Motor,Pressure vessel;	Key Selling Points:	High Productivity;
Condition:	New;	Water consumption/h:	50kg (recycling);
After-sales Service Provided:	Video technical support;	Air pressure:	≥0.6Mpa;
Port:	Ningbo,Shanghai,Guangzhou,Beijing;	Machinery Test Report:	Provided;
single dosage:	0.5-5g;	Stirring tank capacity:	20L;
Marketing Type:	Ordinary Product;	Warranty of core components:	1 Year;
Packaging Detail:	Free fumigation in wooden cases;	Showroom Location:	Thailand;
total power:	4KW;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Brand Name:	Urban;	Power:	4kw;
Air consumption/min:	1.2m3;	Video outgoing-inspection:	Provided;
Place of Origin:	Zhejiang, China;	Output:	1,000-1,500 pcs/h;
Dosage allowed:	<±2%;	Weight (KG):	500;
Dimension(LWH):	2300x1200x1800mm;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant;

Products Description

Feature:

1 SJ-1LS Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications) 2 The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation. 3 The temperature sensor and microcomputer control system are used to realize high precision thermostatic control. 4 The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling. 5 The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5g and the filling error is plus or minus 2%. 6 Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized. 7 Continuous strip, continuous sealing, sealing process batch number self-printing; The sealing seal should be well sealed, with neat appearance and good value of not less than 99.9%. Simple and reasonable design, convenient operation and maintenanc

Product Paramenters

Commodity	Automatic suppository production line
Model	SJ-1LS
Output	1,000—1，500 pcs/h
Single dosage	0.5—5g
Dosage allowed	＜±2%
Stirring tank capacity	20L
Air consumption/min	1.2m3
Working voltage	3 phase 380V

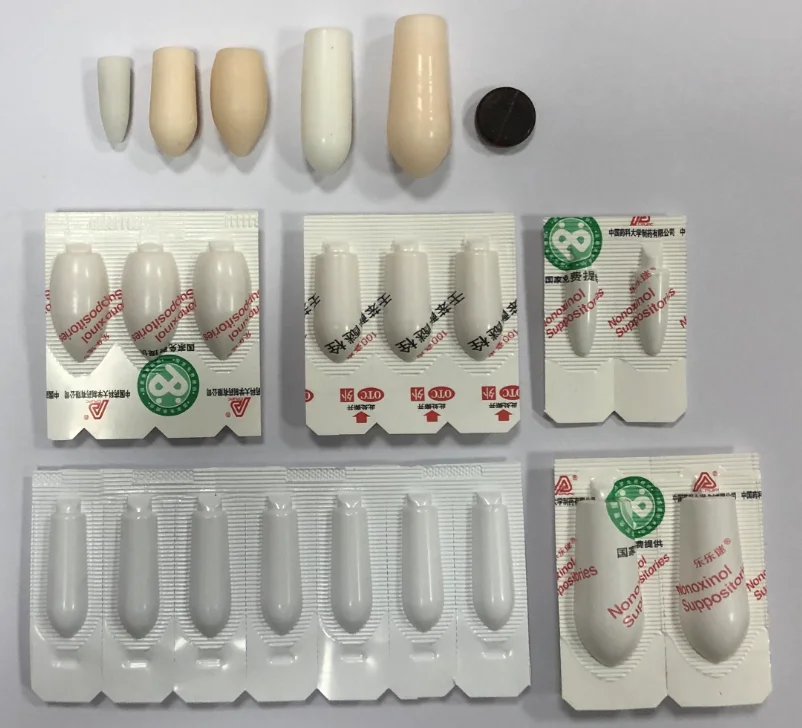

Adopt forming shapes	Bullet, torpedo and duck shapes and other shapes
Adapt Material	Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc

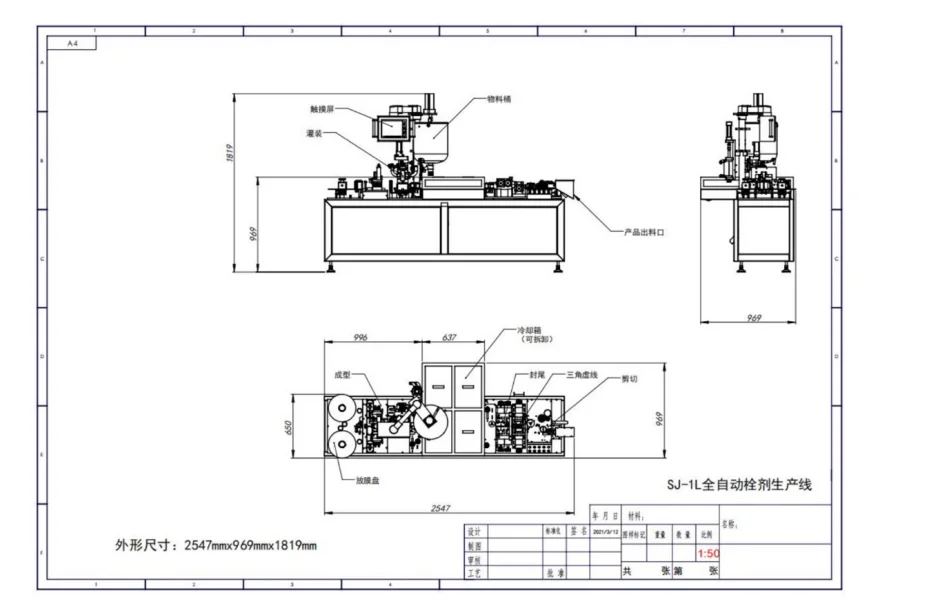

Overall dimensions	L2,300mm×W1200mm×H1,800mm
Packaging Film	PVC\PE (thickness0.15-0.18mm)
Air pressure	≥0.6Mpa
Water consumption/h	50kg (recycling)
total power	4KW
Machine Weight	500KG
Each distance of suppository	17.4mm
