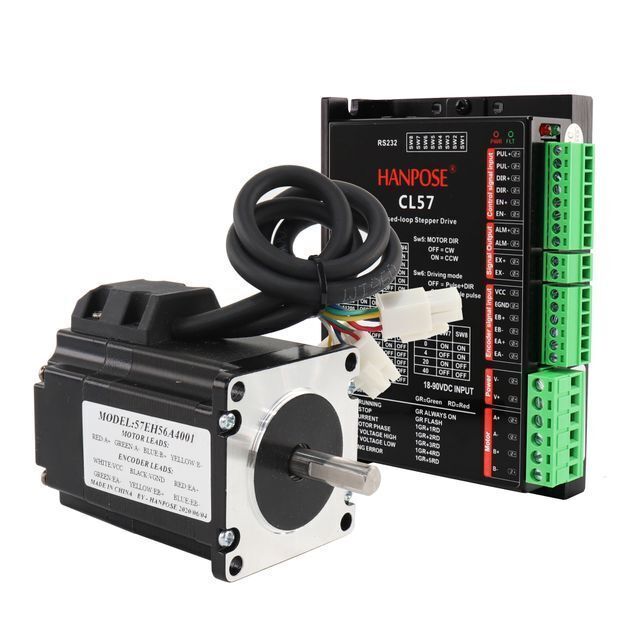

57CME13 4.0A Servo stepper motor 57EH56A4001 closed-loop motor engraving 1.3N.m encoder 2 phase CL57 drive step motor nema 23
-
Supplier: Guangzhou HANPOSE 3D Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Coco LIU -
Price: $45.89 / 1 - 5 pieces
$44.91 / 6 - 49 pieces
$41.40 / 50 - 99 pieces
$40.50 / >=100 pieces -
Min. Order: 1 piece
| Type: | Hybrid; | Single gross weight: | 1.200 KG; |
| Brand Name: | HANPOSE; | Model Number: | 57EH56A4001+CL57; |
| Shaft Diameter: | 8mm; | Place of Origin: | Guangdong, China; |
| Current / Phase: | 4A; | Certification: | ce; |
| Single package size: | 15X15X5 cm; | Key words: | stepper motor; |
| Phase: | 2; | Warranty: | 3months-1year; |
| Voltage: | 12-24V; | Product Keywords: | Nema23 Stepper Motor; |
| Selling Units: | Single item; | NEMA23: | 57EH56A4001-CL57; |
Remarks:
We are the source manufacturer, complete product model, rich production experience, can accept drawings custom stepper motor (including shaft processing, outlet mode, etc.), motor wiring is optional (stock has ordinary line, 1M DuPont line)
57 closed loop motor
57CME13 current 4A, 57EH56 torque: 1.3N.m shaft diameter: 8mm
57CME22 current 4A, 57EH76 torque: 2.2N.m shaft diameter: 8mm
57CME26 current 4A, 57EH83 torque: 2.6N.m shaft diameter: 8mm
57CME33 current 4A, 57EH100 torque: 3.3N.m shaft diameter: 8mm
Rated speed: 1000 rpm, idling speed 3000 rpm
The motor line outlet and encoder outlet default to 1 meters.
Motor line and encoder line are extended by 1 meter = 3USD, which is sold at a low price.
Both the motor line and the encoder line use high-end super-soft towline cables, which are resistant to cold, water, oil and
bending. 10 million TRVVP.

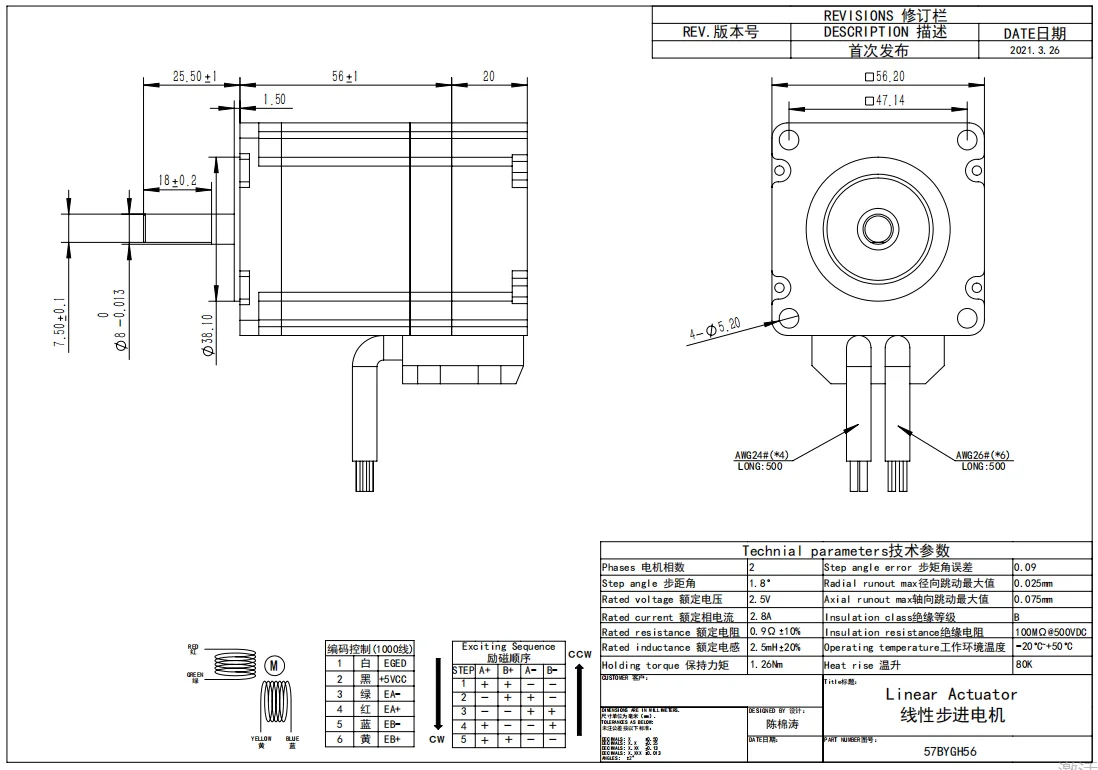

Product Name | 57EH56A4001+CL57 |
Size | 57*57*56MM |
Phase | 2 |
Step Angle | 1.8° |
Shaft | "D" 8MM |
Outlet way | "4" plug line |
Color | black |
Packing Details : Packing uses shockproof foam, different sizes and different models have special cartons, generally 60pcs/carton
Delivery Details : The products on the shelves are all in stock, sent in about 3 days, received in 5-10 days, if customized and large orders, 5-20 days delivery, 5-30 days to arrive!
Product type
Stepper motor, ball screw motor, T-screw motor, geared motor, turbine rod motor, drive motor, etc.
Exhibition picture
Since 2012, we have participated in national exhibitions every year, so that customers can better understand "HANPOSE". If you are interested, please contact customer service for detailed time! Thank you
Customer picture
Service is our aim! In good faith, quality is life! "HANPOSE" wins the trust of customers all over the world, we will work harder to thank you!
Product Image
"HANPOSE" is mainly engaged in stepper motors, ball screw motors, T-screw motors, geared motors, drives, etc. We ensure that 2-5 new products are sold every year! With technology and peers, quality is the life! We also is a factory outlet store! Accept custom motors! Thank you
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity and Customized.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
