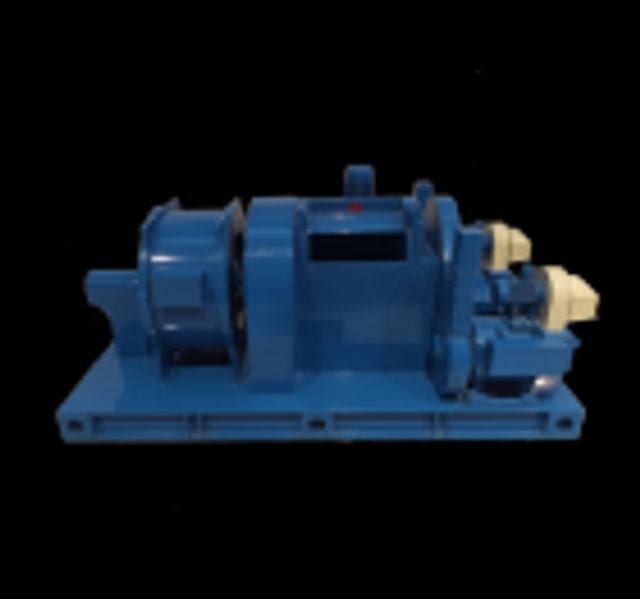

Oilfield drilling equipment drawworks with API standard for drilling rig

Supplier: Lanzhou LS Energy Equipment International Engineering Co., Ltd.
Region: Gansu, China
Contact: Ms Cloris Song
Price: $80000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	New Product 2020;	Warranty:	6 months;
Machinery Test Report:	Provided;	Usage:	Oil Well;
Warranty of core components:	1 Year;	Port:	Qingdao;
Core Components:	Engine,Bearing,Motor,Gear;	Type:	Rotary Drilling Rig;
Weight:	9000;	Local Service Location:	United States,Russia,Thailand,UAE;
Brand Name:	LS;	Showroom Location:	United States,Russia,Thailand,UAE;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Payment Terms:	L/C,T/T;
Applicable Industries:	Energy & Mining;	Condition:	New;
Place of Origin:	Gansu China;	Video outgoing-inspection:	Provided;

Oilfield drilling equipment drawworks with API standard for drilling rig

Technical Parameter

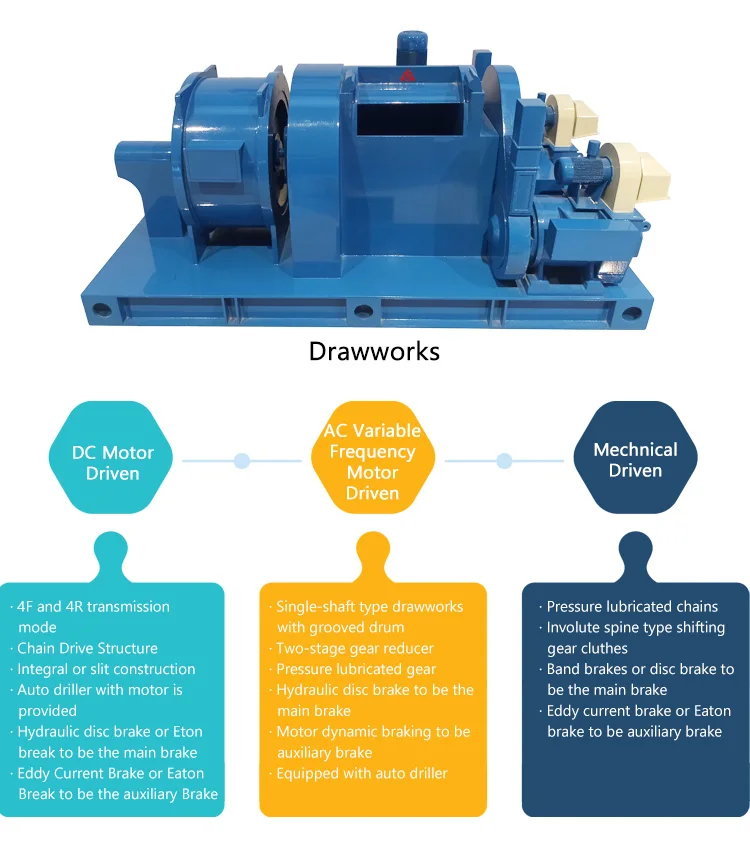

DC Motor Driven Drawworks
Model	JC40D	JC50D	JC70D	JC80D	JC90D
Nominal depth range(m)	2500~4000	3500~5000	-	-	2500~4000
Nominal depth range(m)		2000~3200	2800·4500	5000~8000	6000~9000	2000~3200
Rated input power(KW(hp))	735(1000)	1100(1500)	1470(2000)	2210(3000)	2210(3000)
Number X rated power of motors(KW)	2*580	2*800	2*800	3*800	3*800
Rated speed of motor r/min	1000	970	970	970	970
Dia. of wire line (mm(in))	32(1 ^1/4)	35(1 ^3/8)	38( 1 ^1/2)	42(1 ^5/8)	42(1 ^3/4)
Max.pull of fast line KN	275	340	485	553	640
Drum(Dia X Length) mm(in)	685 x 1245 (27 x 49)	685 x 1245 (27 x 49)	770 x1436 (30 x 56 ^1/2)	-	640 x 1235 (25 ^1/4 x 48 ^1/2)
Brake rim (Dia.x width) mm(in)	1168 x 265 (27 x 49)	1270 x 267 (50 x 10 ^1/2)	1270 x 267 (50 x 10 ^1/2)	1370 x 267 (54 x 10 1/2)	-
Drum( Dia x Length)
