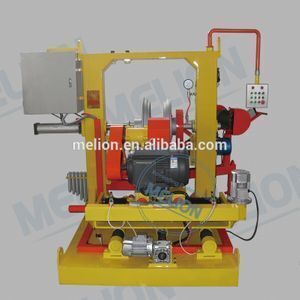

Tire Retreading Buffing Machine

Supplier: Rizhao Melion Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Joe Yan
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	MELION;	Usage:	Tire Buffing Machine;
Voltage:	380v/50Hz;	Buffing Blades:	Z-4-25;
Application:	Buffing Tyre Old Tread;	Supply Ability:	50 Set/Sets per Month Tire Retreading Buffing Machine;
Pressure:	0.15 Mpa;	Place of Origin:	Shandong China (Mainland);
More Function:	Sidewall Buffer Device optional;	Radius Plate:	15''-16''-20''-22.5'';
Packaging Detail:	40 High Cube Container loading;	Power(W):	16 Kw;
Safety:	Over-inflate Function Engineered;	Delivery Detail:	25 Days;
Model Number:	ML-FXM-F;	Color:	Yellow;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	Qingdao Port;
Product Name:	Tire Retreading Buffing Machine;	Wheel Chuck:	15''-22.5'';
Dimension(LWH):	1600x1800x2100mm;	Certification:	CE;
Condition:	New;	Weight:	1550 Kgs;
Payment Terms:	T/T;

Product Description

Tire Retreading Buffing Machine

In Pre-cure Tire Retreading process flow,after initial Inspection,the tire’s old tread is mechanically removed on high speed buffers.Our buffers are extremely accurate and will remove the proper amount of old rubber while turning the tire to an exact specified diameter and radius.

SPECIFICATIONS OF MELION TIRE BUFFING MACHINE
Tire Sizes Suitable	650-1200(15''-22.5'')
Inflation Pressure	0.1-0.15 Mpa
Dimension	1920x2150x1850mm
Electricity	380V,50Hz,3Ph
Buffer Motor Power	11 Kw
Turntable Motor Power	2.2 Kw
Buffing Head Speed	2980 r/min
Standard Wheel Chucks	15''-16'',20''-22.5''
Wheel Chuck Speed	42 r/min
Front-to-Rear Limits Control Motor	0.37 Kw
Left-to-Right Limits Control Motor	0.55 Kw
Chuck Cylinder	spc100x400mm
Lifting Cylinder	spc80*100mm
Advantages	1.Lifting Tyres Pneumatically Saving Labors

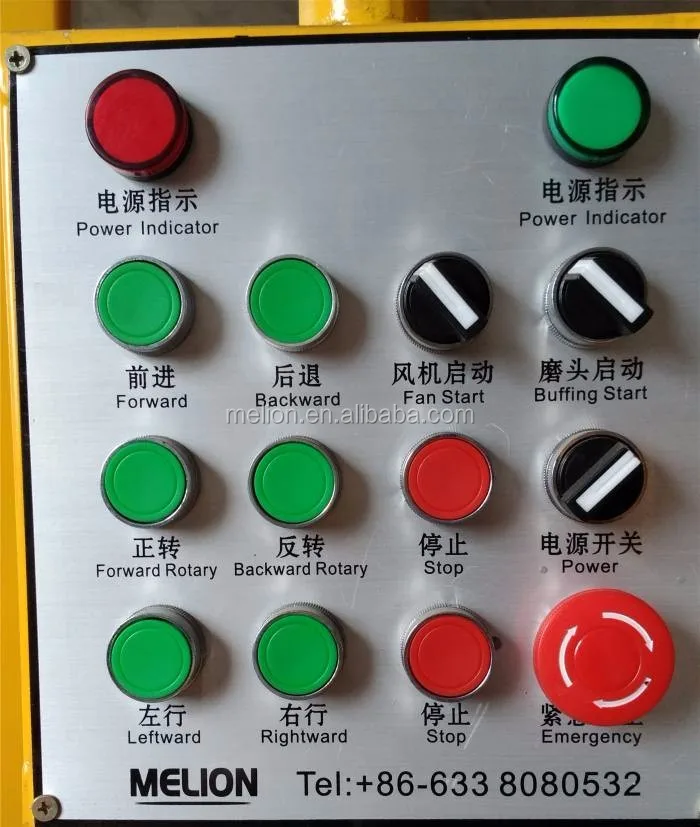

	2.Easy Operation on Portable Control Panel
	3.Over-Inflation Protection Function Designed for Safety
	4.Rubber Granules Collected by Dust Collector
	5.Accurate Buffer Saving Buffing Time

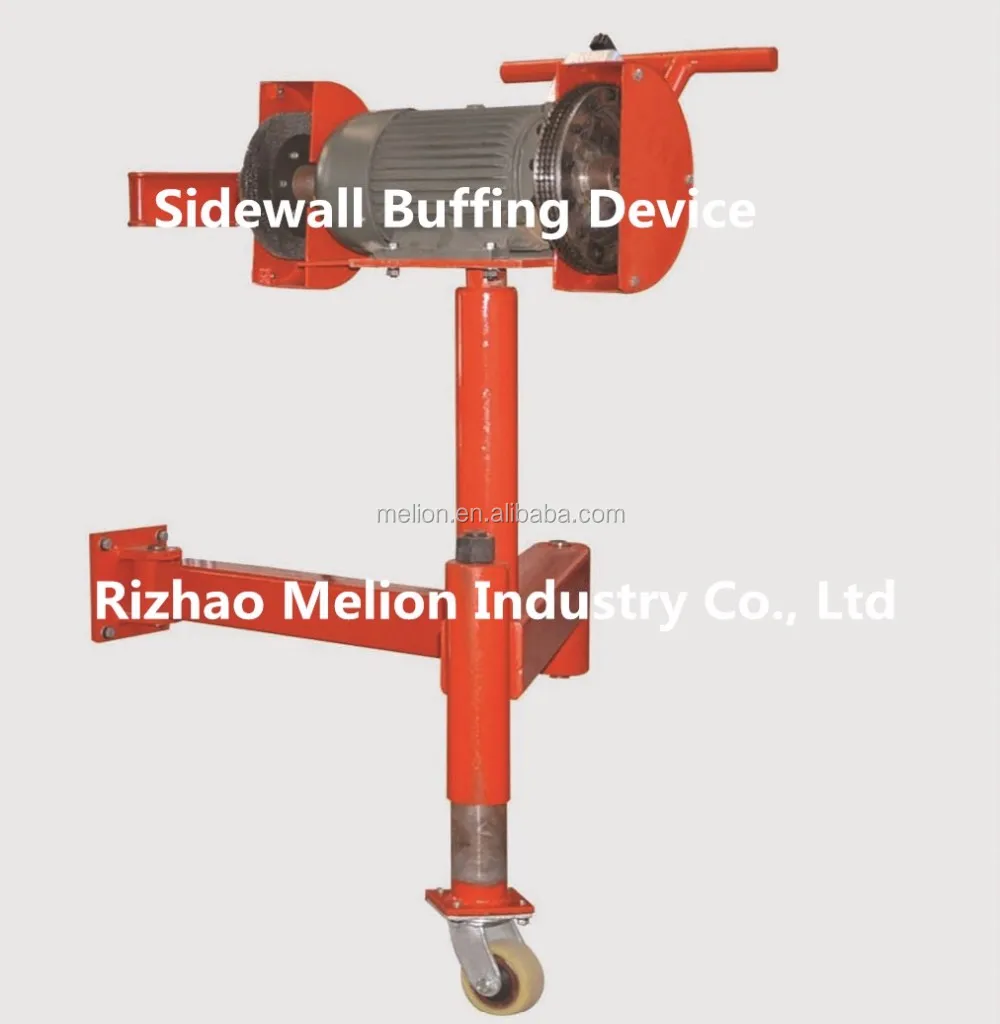

	6..Optional for Tyre Shoulder & Sidewall Buffing Device

Main Structure

This Tire Retreading Buffing Machine mainly consists of the Frame, Grinding Motor, Limit Control Motors, Lead Screw, and Curve Grinding Head, Wheel Chuck, Pneumatic Components and Electric Control Cabinet.

Keyword:tire buffing machine,tire retreading buffing machine,tire buffing machinery,buff tire machine

Detailed Images

Buffing Machine Parts

Name: Buffing Head of Tire Retreading Buffing Machine

Rasp Size: Z-4-25

Activate the Left-to-Right Limit Control Switch and adjust the position the Grinding Motor and make it move smoothly within the set range specified on the Radian Plate.

Buffing Machine Parts

Name: Wheel Chucks
Standard Size: 15'',16'',20'',22.5''
More Sizes Optional: 17.5'',19.5'',24'',24.5''
Over-Inflation Protection Function Designed on the Wheel Chuck for Safety

Machine Parts/Tire Buffing Machine

Name: Radian Plate
Size: 15'',16'',20'',22.5''
Adjust the center positioning of the Radian Plate and align its center line with the center of the Chuck Plate.

Main Features

Name: Tire Lifter
Power:Pneumatic
The Tires can be lifted by engineered Cylinder to save your labor and promote production efficiency.

Our Service

Technical Support

* Engineers available to service machinery overseas

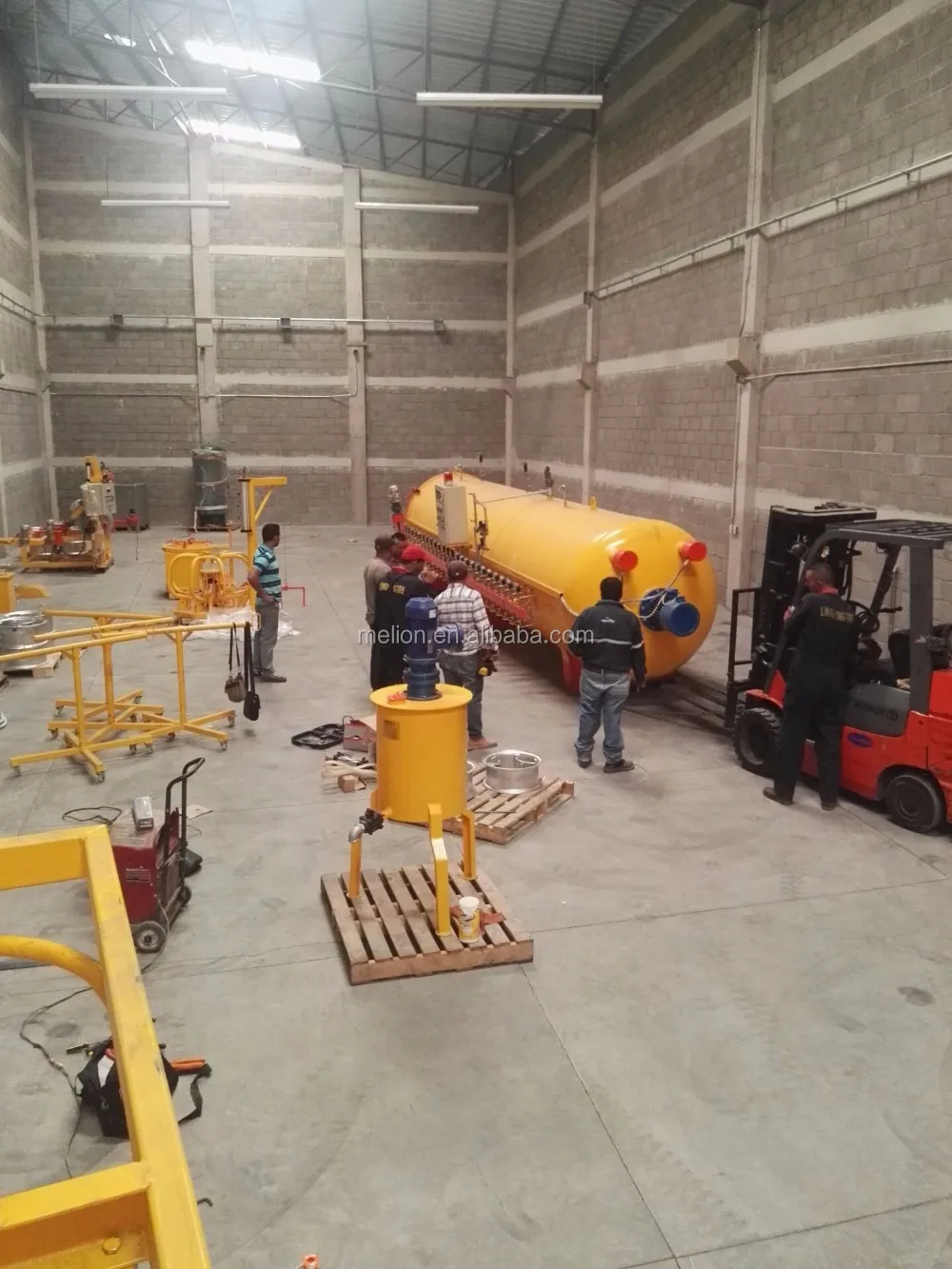

* Equipment Installation

* Training Courses

Materials Supply

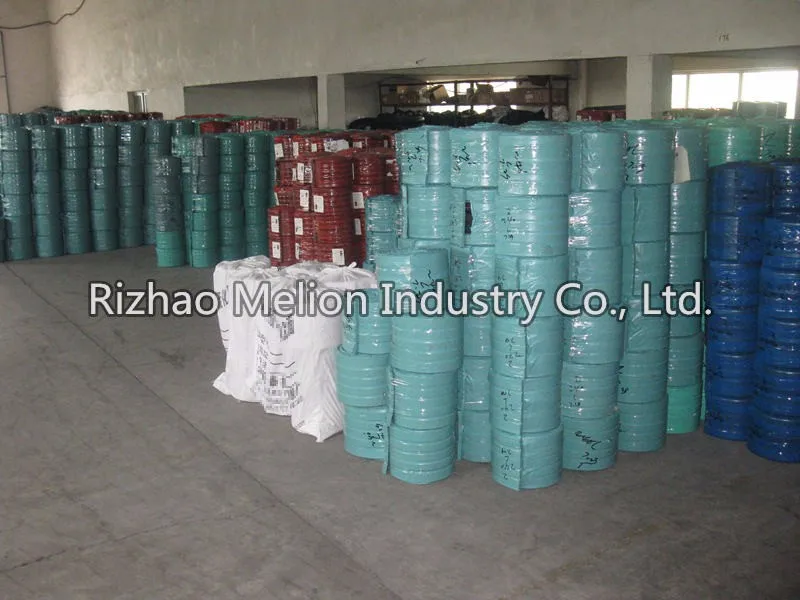

* Various patterns design with Pre-cured Tread Rubber

* Technical analysis for your Retreaded Tires feedback

Packing & Delivery

Packaging of Tire Retreading Machine
Container	1*40 HC
Weight	8 T
Packaging Details	One full set of tire retreading line(12 tires) can be loaded within one 40 high cube container and also with other rubber materials 5-8 tons.

Packaging of Tire Retreading Machine
Container	140 Hq +120Gp
Weight	12 T
Packaging Details	One full set of tire retreading line(24 tires) can be loaded within one 40 high cube container and another 20 Gp.
