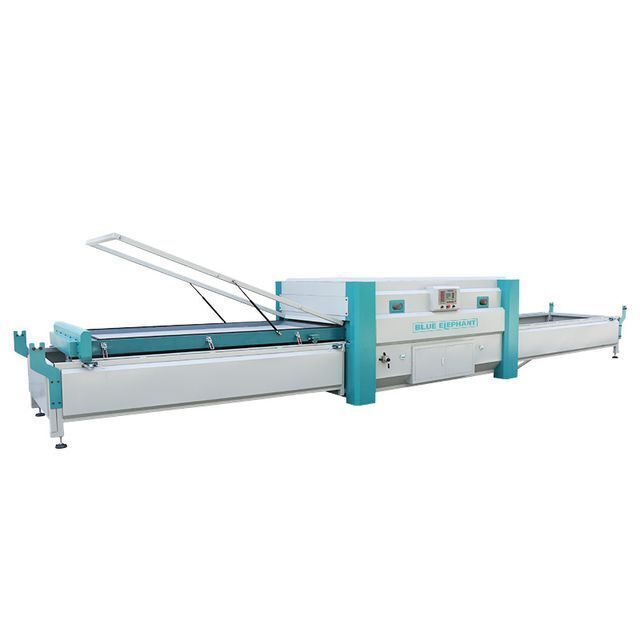

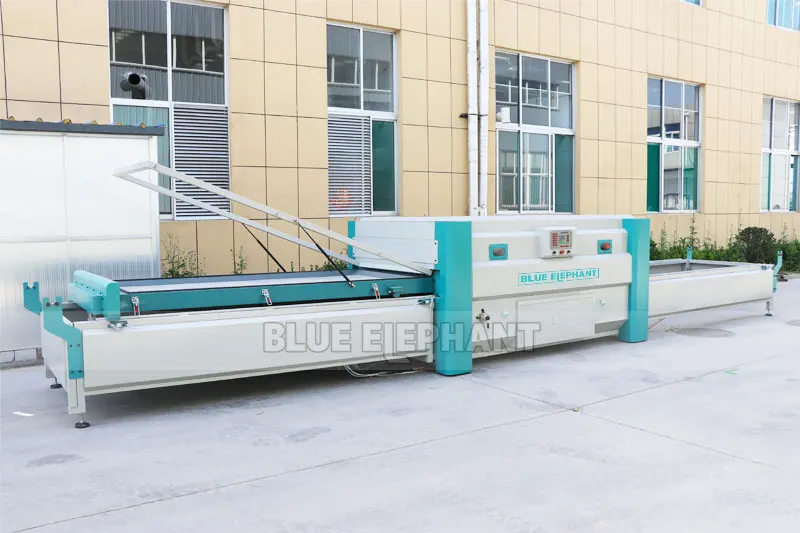

professional wood milling pvc vacuum heat press laminating machine manufacturer
- 3220.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Marketing Type: | New Product 2020; | Showroom Location: | Canada,Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Algeria,Kazakhstan; |
| Weight: | 1.6t; | Fixed work stress: | >=-0.095Mpa; |
| Video outgoing-inspection: | Provided; | Local Service Location: | Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,India,Mexico,Russia,Spain,Thailand,Japan,Australia,Morocco,Argentina,South Korea,Romania; |
| Key Selling Points: | Easy to Operate; | Dimension(L*W*H): | 9700*1780*1400mm; |
| Machinery Test Report: | Provided; | Working desk size: | 2550*1300mm/2550*1150mm; |
| Power: | 18kw; | Voltage: | 380V 50Hz; |
| After-sales Service Provided: | Video technical support; | Core Components: | Motor,Pump; |
| Warranty of core components: | 1 Year; | After Warranty Service: | Video technical support,Spare parts,Field maintenance and repair service; |
| Supply Ability: | 200 Set/Sets per Month; | Maxium temperature: | 185°; |
| Condition: | New; | Maxium processing height: | 60mm; |
| Max.Pressure(T): | 2 T; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T; |
| Port: | QINGDAO shanghai tianjin; | Pressure: | customized; |
| Warranty: | 1 Year; | Actual Power Consumable: | 6-8kw; |
| Weight (KG): | 1500; | Working Table Size(mm): | 2550*1300mm; |
| Place of Origin: | Shandong China; | Certification: | CE; |
| Packaging Detail: | Three layers: The innermost layer is EPE pearl cotton film package; The middle layer is wrapping up with environmental protection material ; And the outermost layer is winding up with PE stretch film. They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Food & Beverage Shops; |
| Type: | HOT PRESS; |
Related Video
Product Features
1. High automation with the function of automatic digital display technology, simple operation and low failure rate.
2. Working table adopts special steel, high temperature resistance and corrosion resistance.
3. Infrared auxiliary heating system heating, imported insulation material with the advantages of heating evenly and energy saving.
4. Adopting the current domestic vacuum pump with the stable performance and fast pumping speed.
5. With the high compatibility, one machine can be apply for PVC, veneer and transfer and others.
Technical Parameters
Working Area | 2550*1300mm/2550*1150mm |
Whole machine size | 9700*1780*1400mm |
Maxium processing height | 60mm |
Fixed work stress | >=-0.095Mpa |
Total power | 21-30kw |
Total weight | 1.6T |
Maxium temperature | 185° |
Applied Industries
PVC pasted furniture, speakers, cabinets, craft doors, decorative wall skirts, high-gloss PVC and various special-shaped finishes
