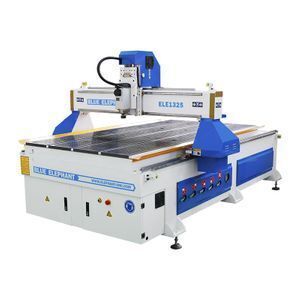

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325 Wood Working Cnc Router for Sale

Product details
Showroom Location:None;After Warranty Service:Online support;
Travel (Y Axis)(mm):2500 mm;X,Y,Z Working Area:1300x2500x200mm;
Voltage:AC380V 3PH (Option);Machine Type:CNC Router;
Warranty:12 months for whole machine;Certification:CE SGS ISO9001 BV TUV;
Spindle:HQD 4.5kw air cooling spindle;Applicable Industries:Home Use,Advertising Company;
Working Table Size(mm):1300×2500;Payment Terms:L/C,T/T,Western Union,Paypal;
Local Service Location:None;Place of Origin:Shandong China;
Table Surface:T-slot Table or Vacuum table;Packaging Detail:1. Outside package : Standard marine export plywood case for wood carving machine. 2. Inner package:Stretch film and and plastic film for humidity.;
Port:Qingdao, Tianjin, Shanghai, etc.;Inverter:5.5 KW Fuling inverter;
Drive Motors:Stepper System;Weight (KG):1400;
Supply Ability:200 Set/Sets per Month wood carving machine;Condition:New;
Operating System:DSP System (Options: Ncstudio/Mach3 PC Software);No. of Spindles:Single;
CNC or Not:CNC;Power(W):according to your order;
Key Selling Points:Sustainable;Repeatability (X/Y/Z) (mm):0.02 mm;
Dimension(L*W*H):3200x2140x1850mm;Transmission:TBI ball screw and Taiwan HIWIN linear guide rail;
Travel (X Axis)(mm):1300 mm;Application:wood carving, wood pattern making, acrylic cutting;
Positioning Accuracy (mm):0.03 mm;Product name:Wood carving machine;
Product Description

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325 Wood Working Cnc Router for Sale

Sometimes you will meet problem like this, cnc router can not always keep same level during working which influence working accuracy in some degree. At this time, adding “adjust screw” under 4 corners of machine becomes necessary.







Advantages

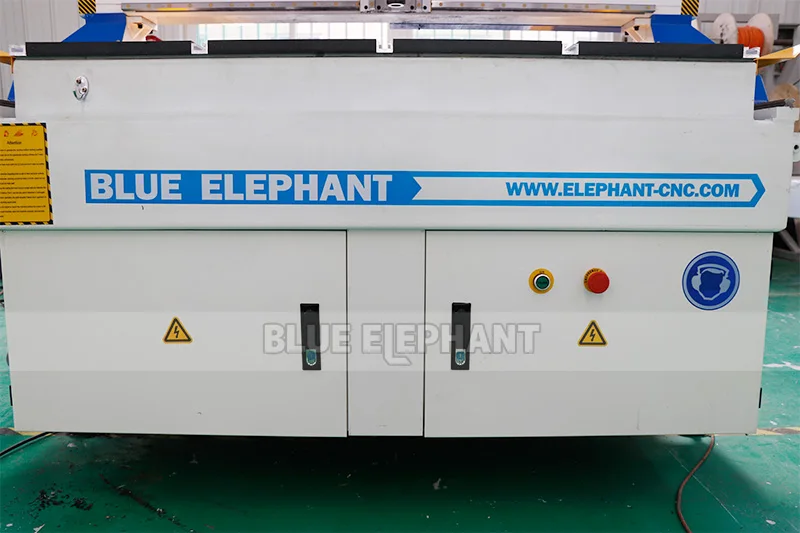

1) Single control box placed inside machine, save working space

2) Adjusting screw design, it can help to adjust the height to keep same level to maintain processing precision.

3) DSP A11 control with handle, simple operation for new customers



Technical parameters

X,Y,Z Working Area

1300*2500*200mm

Color

White and Blue (can be Customized)

Working Voltage

380V/3PH/50Hz (option)

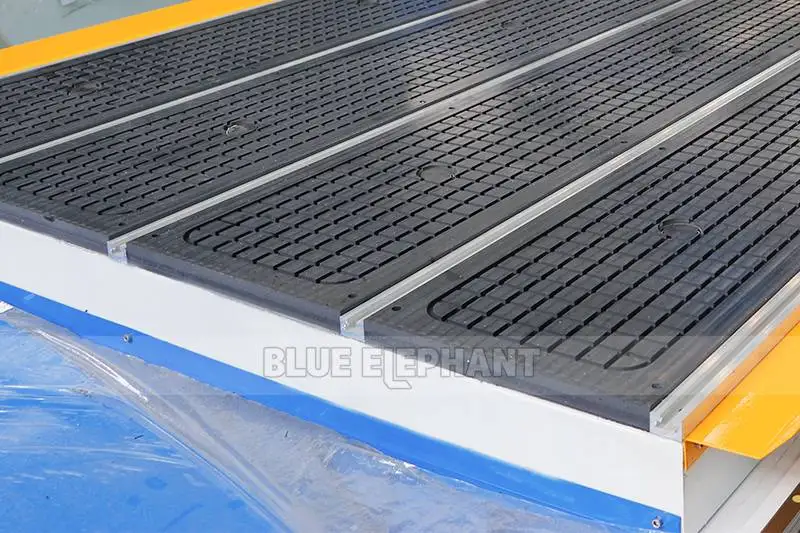

Table

Vacuum table with 4 zones

Control System

DSP A11 control

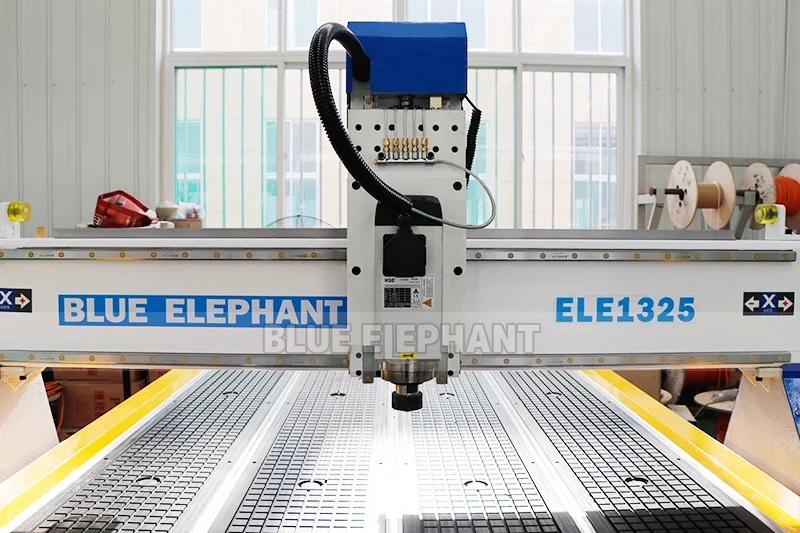

Spindle

HQD 4.5kw air cooling spindle

Spindle Speed

0-24000RPM

Inverter

5.5 KW Fuling inverter

Drive Motors

FL118 Motor and Leadshine 860H

Frame

New Type Heavy Duty Body

Lubrication

Manual Lubrication System

Gantry structure

Steel Gantry

Option

Automatic Oil Mist Cooling

X, Y Structure

ABBA/PMI 20# Guide Rails

Z Structure

TBI Ball Screw Ball Screw Transmission

Tool Sensor

Semi-Automatic Tool Sensor

Limited Switch

Japan Omron Limited Switch

Wire

High Soft Shjeld with Copper Wire to Protect Against Static Electricity



Detail Image

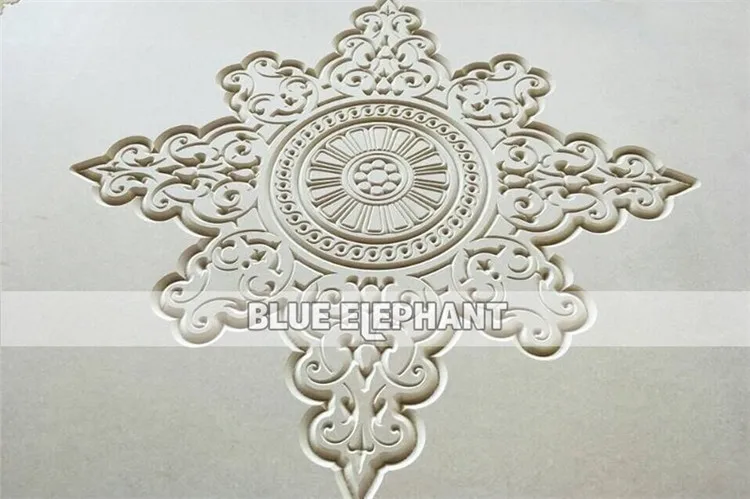

Sample & Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.



Packaging & Delivery

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment.





Service & Feedback

Guarantee and After-sale service:
1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.
