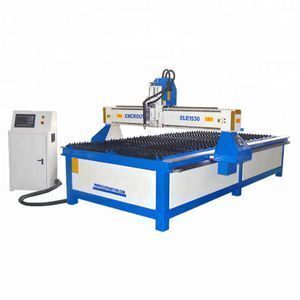

Best Price China Plasma Cutting Machine, 1500*3000mm CNC Machine Plasma Cutter for Metal

Product details
Certification:CE, SGS, ISO9001, BV, TUV;Voltage:380V (option);
Motor Type:Stepper Motor;Notice:an Produce as Your Specific;
Processing Materials:Iron, Aluminum, Galvanized Sheet;Port:Qingdao, Tianjin, etc;
Warranty:12 Months;Supply Ability:300 Set/Sets per Month;
Control System:Start Control System;Condition:New;
Year:2019;After-sales Service Provided:Engineers available to service machinery overseas;
Processing Thickness:25MM;After-sales Service Provided:Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support;
Key Selling Points:High-accuracy;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:Three layers: The innermost layer is EPE pearl cotton film package; The middle layer is wrapping up with environmental protection material ; And the outermost layer is winding up with PE stretch film. They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.;Optional:Auto Torch Height Controllor;
Weight (KG):2000;Weight:1700KG;
Metal Cutting Machinery Product Name:Plasma Cutting Machine;Dimension(L*W*H):3800*2300*1900mm;
Applicable Industries:Manufacturing Plant,Home Use,Construction works ;Place of Origin:China;
Rated Power:8.5KW;Plasma Power:100A LGK Power;
Worktable:Blade Worktable or Swatooth;



Product Description

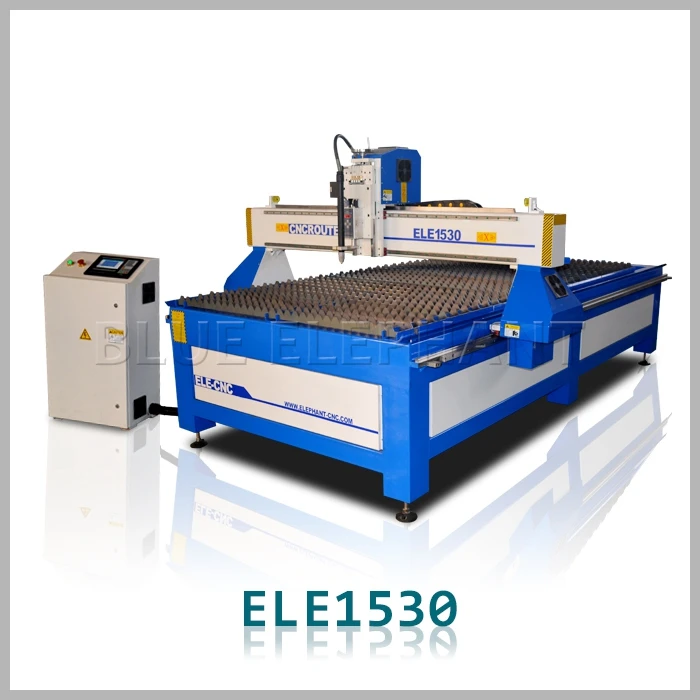

Best Price China Plasma Cutting Machine, 1500*3000MM CNC Machine Plasma Cutter for Metal



Plasma is different from ordinary woodworking machines. Its main function is in the processing of metal.
To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc. Please Kindly tell us the Cutting Materials, the maximum working area and the cutting depth. According to this, we suggest suitable machine for you.



Features:

1. 1500*3000*200mm maximum working area

2. START control system

3. USA Victor Thermal Dynamics 120A plasma generator

4. Cutting Material Collection Box with wheels,for easy take out products

5. High Quality cut performance,Fast cutting speed,high precision and low cost.

6. With firm and reasonable structure,the machine is easy to operate and durable for use.

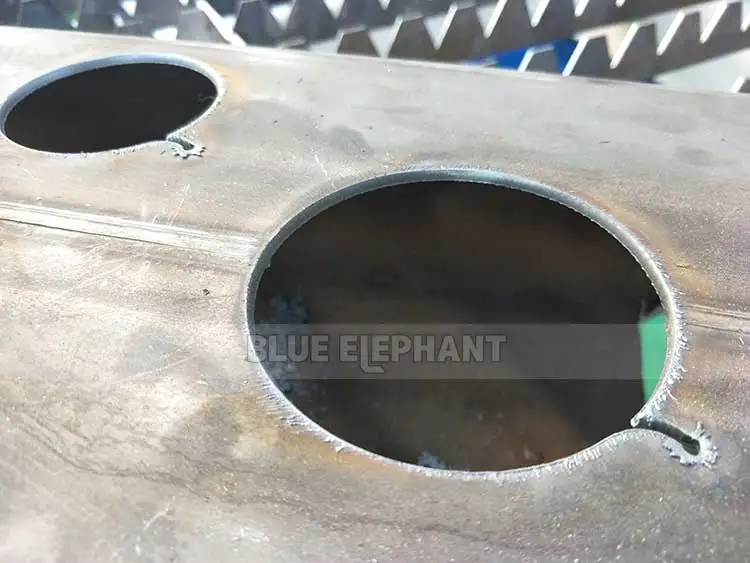

7. The cutting incision is thin and tidily and can avoid the second processing.

8. High configurated CNC system,auto arc-striking and stable performance.

9. Working with computer and support G code and files of  Uncannest software (specilized in cutting metal material) (optional Fastcam software)

10. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)

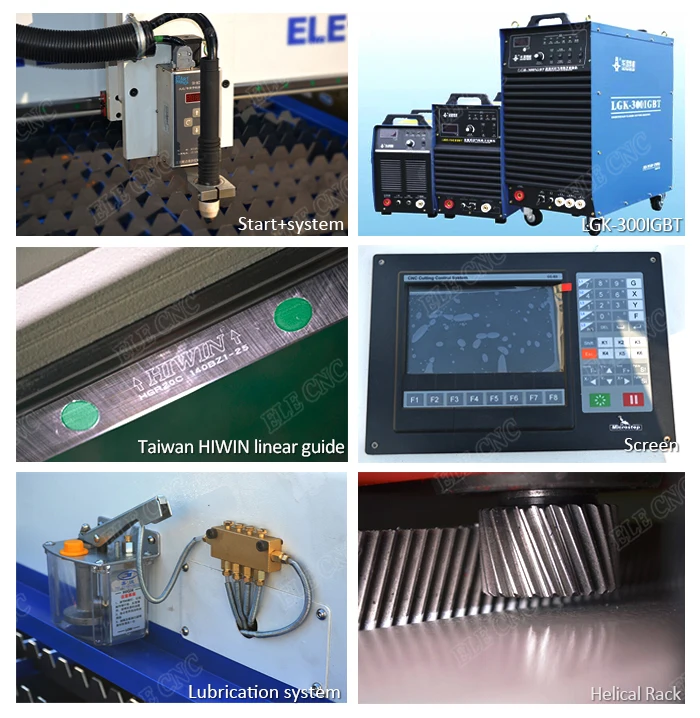

Machine parts:

Components:

A Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.



B Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair



C Plamsa torch or flame torch



D Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.



E Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.



F Height adjustment: Torch Height Controllor (can cut different height material ).



Parameters:

Name

Specification

Working Area(X*Y)

1500×3000*200mm

Frame

Square tube Integral guide

X Y Z Rail

Taiwan HIWIN Linear guide

Transmission

X/Y rack and pinion,Z Taiwan TBI Ball Screw

Motor driver

Stepper Motor driver

Control System

DSP/START

Cutting Thickness

25mm MAXIMUM

Plasma Power Supply

63A/100A/160A/200A

Working Speed

8000mm/min

Working Voltage

380V,3PH,50/60HZ

Software

ArtCAM/Type 3/Ucancam



Applications:

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc

Application IndustrySheet metal, kitchenware, components, decorations industry



Packaging & Delivery

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment.







Service & Feedback

Guarantee and After-sale service:
1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.



Good reviews from customer in the world:

(kindly reminder, each video url is safe, you can rest assured to watch each video)





Company Information

BLUE ELEPHANT



Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.



Learn more about us, welcome to click https://blueelephant.en.alibaba.com



Workshop



Customer visiting

Contact us:

Skype: elephantcnc

WhatsApp/Mobile: 0086-15064026772

Web: www.elephant-cnc.com

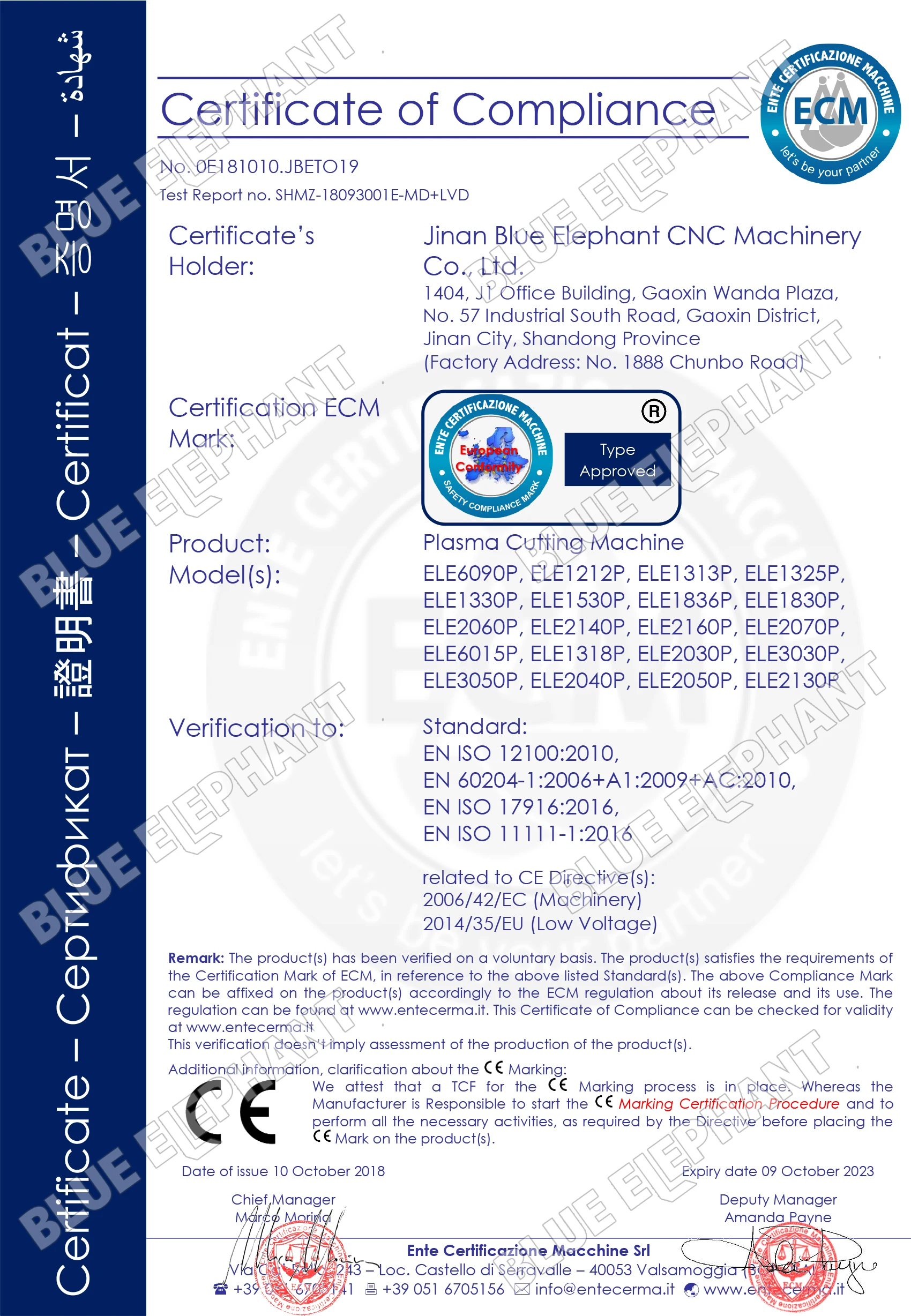

Certificate:
