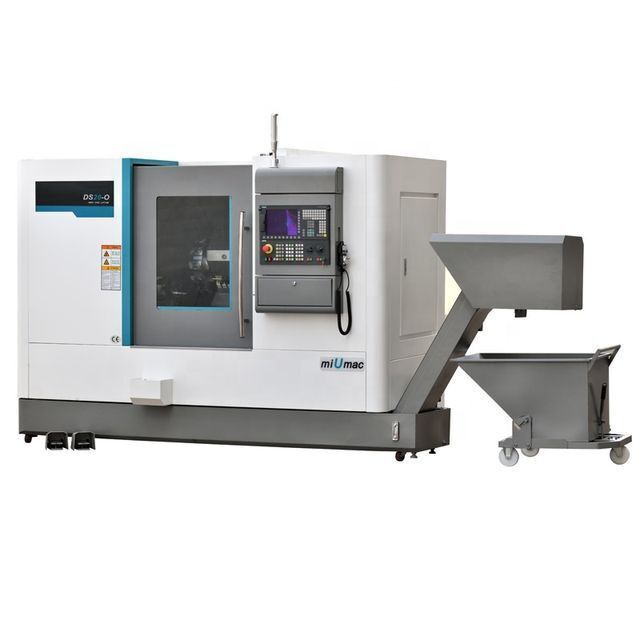

DS28-O slant bed Fanuc okuma cnc lathe torno cnc machine precio torno cnc

Supplier: Zhejiang Kaida Machine Tool Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Xie
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

No. of Spindles:	Single;	Port:	Shanghai Port;
Model Number:	DS28-O;	Power(W):	11/15KW;
Chuck:	Hydraulic 8"/10" chuck;	Max. Swing Diameter:	520mm;
Automatic Grade:	Automatic;	Payment Terms:	L/C,T/T;
Condition:	New;	Place of Origin:	Zhejiang China;
Dimension(LWH):	2880x1850x2000;	Machining Capacity:	Heavy Duty;
Weight (KG):	4300;	Tool Post Stations:	12;
Spindle Motor Power(kW):	11/15;	Number of Axes:	3;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining;	Warranty:	1 Year;
Supply Ability:	20 Set/Sets per Month;	Spindle nose:	As-6/A2-8;
Spindle Bore(mm):	65 m'm;	Type:	TURNING CENTER;
CNC or Not:	CNC;	Machinery Test Report:	Provided;
Package Preview:	;	Brand Name:	KD;
Voltage:	Optional;	Marketing Type:	Hot Product 2019;
Core Components:	Bearing;	Tailstock:	Hydraulic tailstock;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Malaysia,Australia;	Max. Length of Workpiece (mm):	500 mm;
Warranty of core components:	1 Year;	CNC control:	Optional (Fanuc, Simens, GSK);
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	CE, ISO9001, ISO14001;
Video outgoing-inspection:	Provided;	Max. Spindle Speed (r.p.m):	5000;
Max. Turned Length (mm):	500;	Width of bed (mm):	45;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan;	Travel (X Axis)(mm):	255;
Travel (Z Axis)(mm):	600;	Positioning Accuracy (mm):	0.01 mm;
Turning length:	500/1000/1500mm;	Repeatability (X/Y/Z) (mm):	0.003;
Weight:	4300kg;	CNC Control System:	FANUC;
Packaging Detail:	Moisture-proof inner packaging wooden case outside;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Key Selling Points:	High Productivity;

FEATURES AT A GLANCE

Product Features

1. Aseismatic capability, high strength and good quality cast iron.

2. Main motor and spindle driven through wide-angle belt.

3. Taiwan high precision linear guide ways.

4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

5. Adopting Japan NSK special screws angular contact ball bearing group.

Right elevation

Left elevation

Back elevation

PRODUCT SPECIFICATIONS

MODELS	DS28-O/500	DS28-O /1000	DS28-O /1500
CAPACITY
Max. swing over bed	Ф520mm
Max. cutting diameter for disc parts	Ф420mm	Ф420mm	Ф500mm
Max. cutting diameter for axle parts	Ф300mm
Max. cutting length	500mm	1000mm	1500mm
TRAVEL
X travel	255mm	270mm	270mm
Z travel	600mm	1050mm	1550mm
FEED
Rapid feed speed of X/Z	30/24m/min
Linear guide ways width of X/Z	35/ 45mm
Ball screw of X	Ø32×10 mm	Ø32×10 mm	Ø32×10 mm
Ball screw of Z	Ø40×10 mm	Ø40×10 mm	Ø50×10 mm
SPINDLE
Max. speed of spindle	4000rpm	2500rpm	2500rpm
Spindle nose	A2-6	A2-8	A2-8
Diameter of spindle bore	Ф65mm	Ф80mm	Ф80mm
Hydraulic chuck	8″	10”	10”
Spindle motor power	11/15kw	15/18.5kw	15/18.5kw
TOOL POST
Tool number	12-T hydraulic
Outside diameter of cutting tool shank	25×25mm
Inner dia. of cutting tool shank	Ф40mm
TAILSTOCK
Tailstock sleeve dia.	Ф80mm
Tailstock sleeve travel	120mm
Taper hole of tailstock quill	M.T.No.4	M.T.No.5	M.T.No.5
OTHERS
Positioning accuracy of X/Z	≤0.010/0.012mm
Repeated positioning accuracy	≤0.003/0.005mm
Power of coolant pump	180W
Capacity of lubrication pump	2L
Bed structure	45° slant bed integrated with stand
Overall dimensions(L×W×H)	2880×1850×2000mm	4800×1850×2000mm	5300×1850×2000mm
Net weight	4300kg	5500kg	6500kg
